Toyota Prius Phv
2016-09 → 2022-11 · chassis ZVW52 · catalogue 224130 · Japan
Supported model
Data version 2023-12

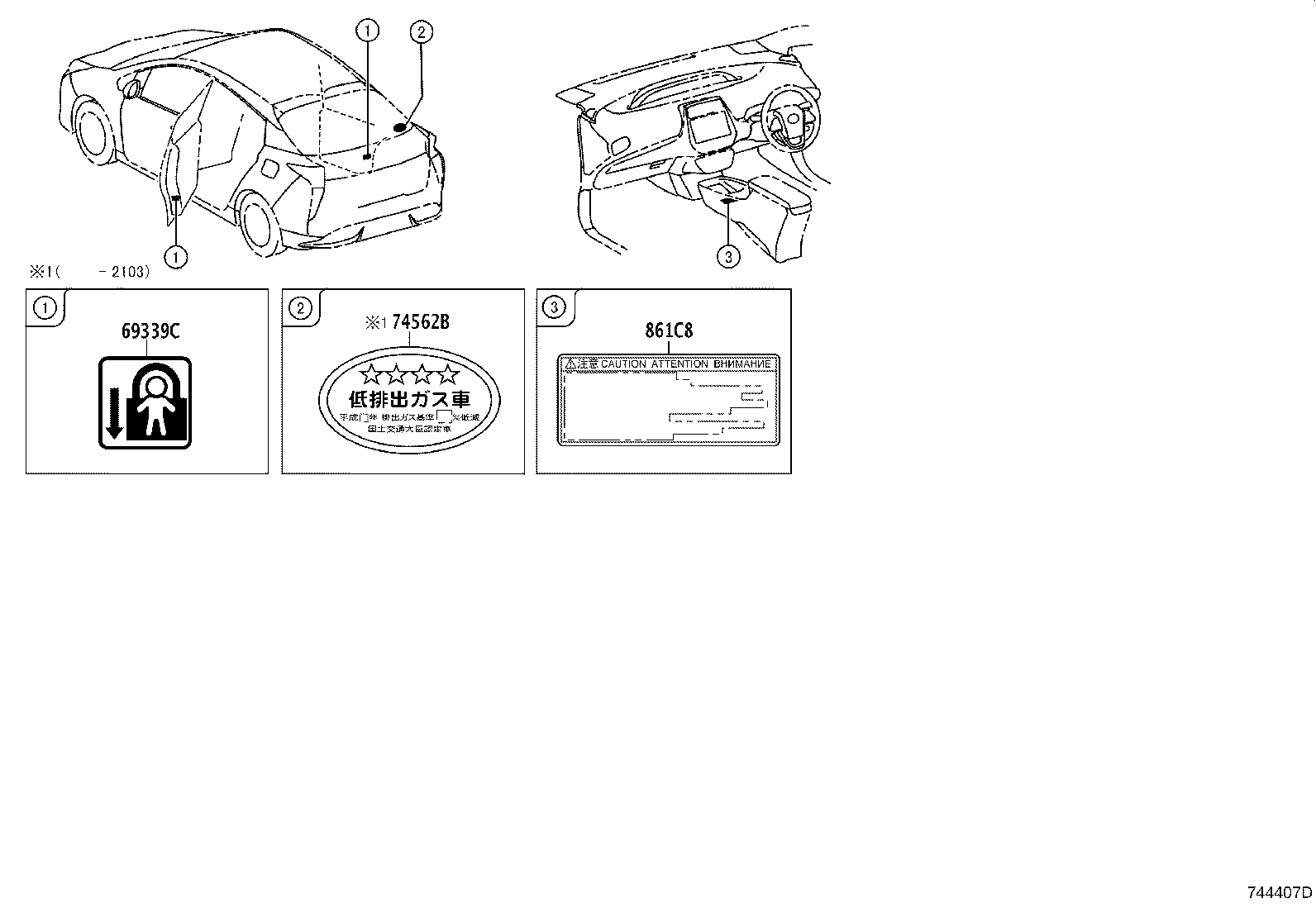

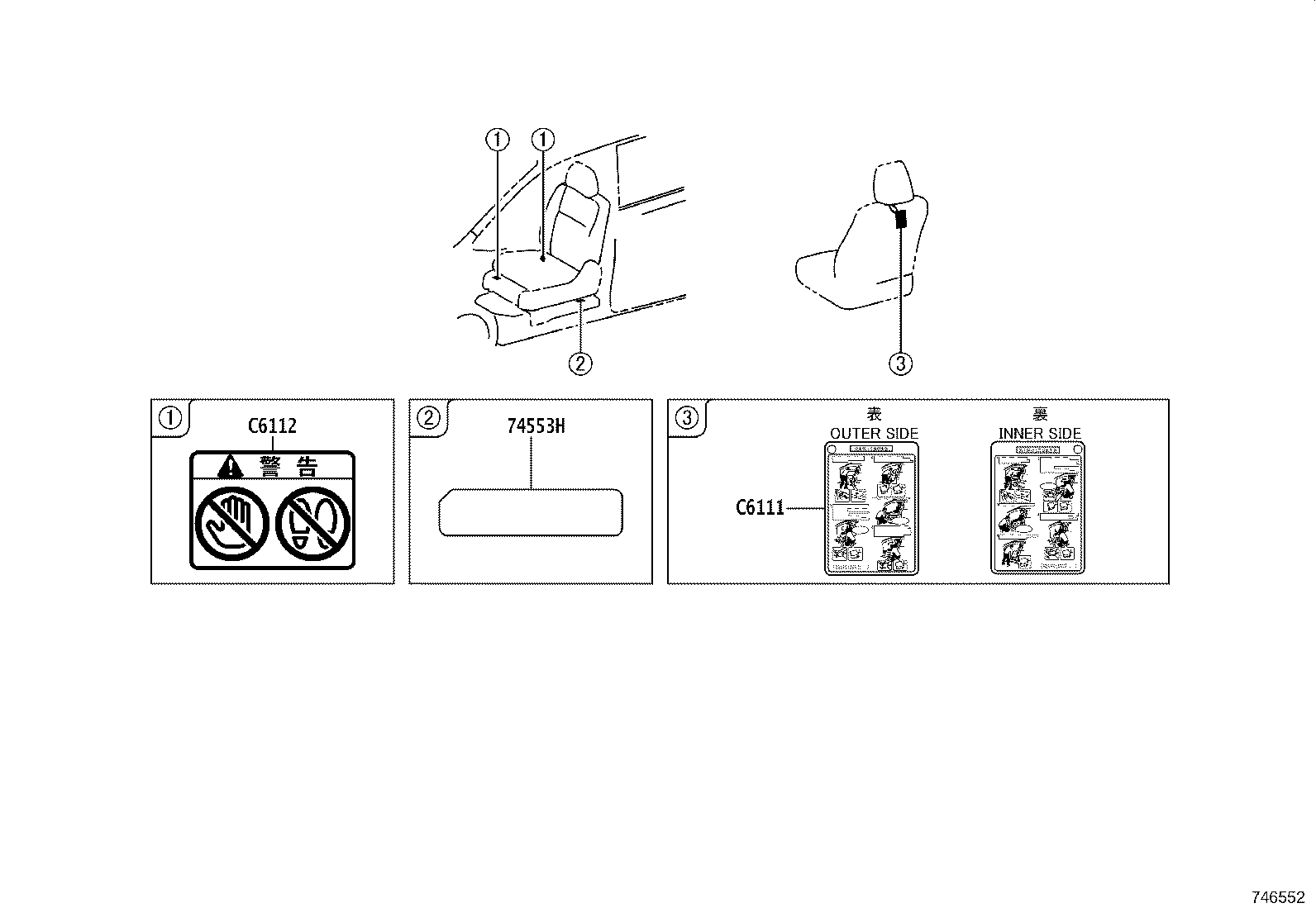

Caution Plate (EXTERIOR & INTERIOR)
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11293D | Label, Engine Caution |
| 11296C | Label, Engine Service Information |
| 16793B | Label, Cooling Fan Information |
| 42661 | Label, Tire Pressure Information |
| 47997C | Label, Accumulator Caution, NO.1 |
| 69339C | Label, Child Protector Information |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74512A | Plate, Identification Number |
| 74515C | Label, Theft Warning Information |
| 74553H | Label, Front Seat Information, NO.2 |
| 74559B | Label, Fuel Information |
| 74562B | Label, Emission Information |
| 74573D | Label, Electric Vehicle Battery Caution |
| 861C8 | Label, Mobile Wireless Charger Caution |
| 88723E | Label, Cooler Service Caution |
| 89356A | Label, Clearance Warning Information |
| C6111 | Plate, Safety Caution |
| C6112 | Label, Safety Information, NO.2 |
| G9275 | Label, Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
