Toyota Prius Phv

2016-09 → 2022-11 · chassis ZVW52 · catalogue 224130 · Japan

Supported model Data version 2023-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

116 part groups · 15 illustrations

Illustrations

84H504B 2016-09 → —

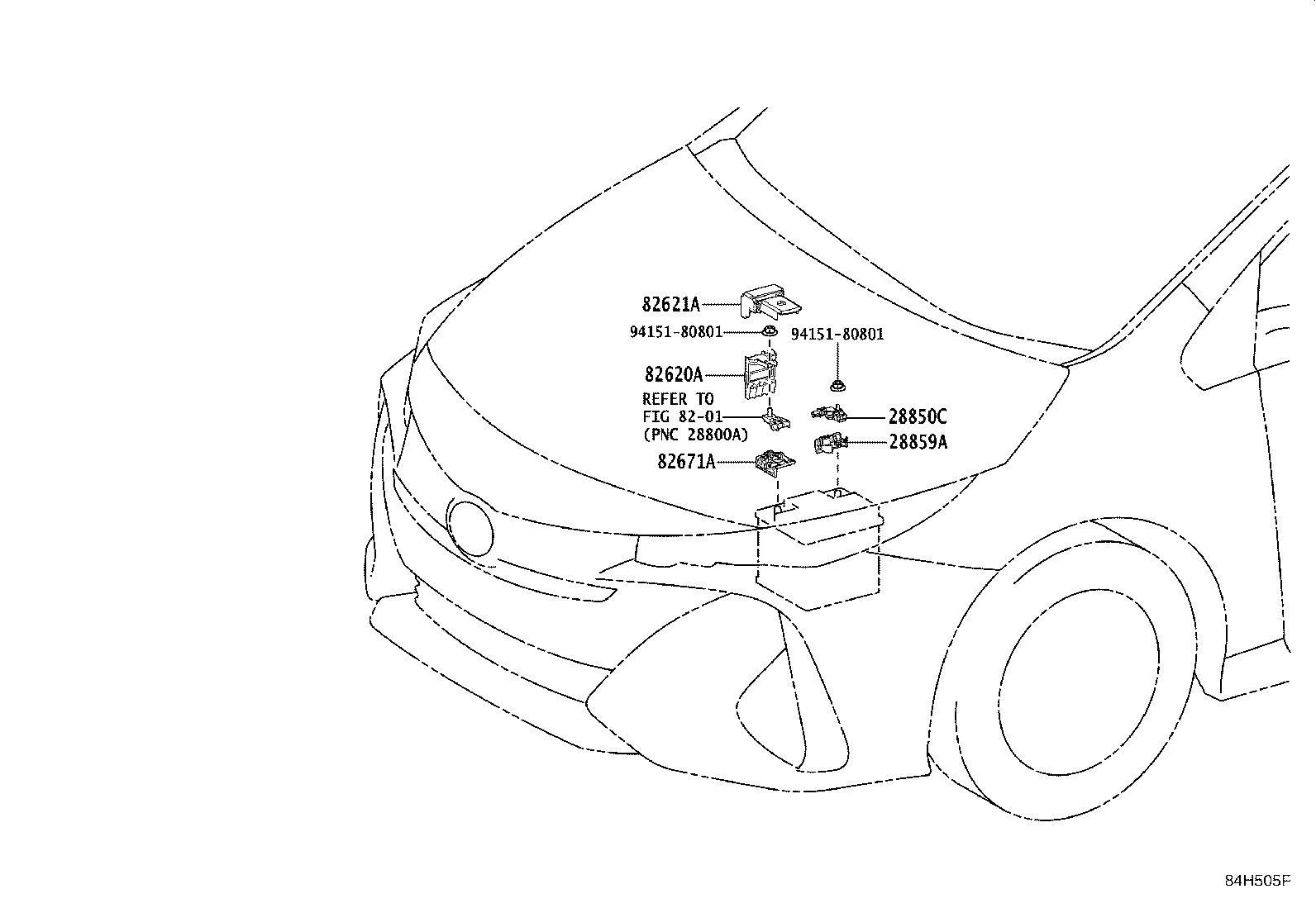

84H505F 2016-09 → 2019-04

84K241B 2019-05 → —

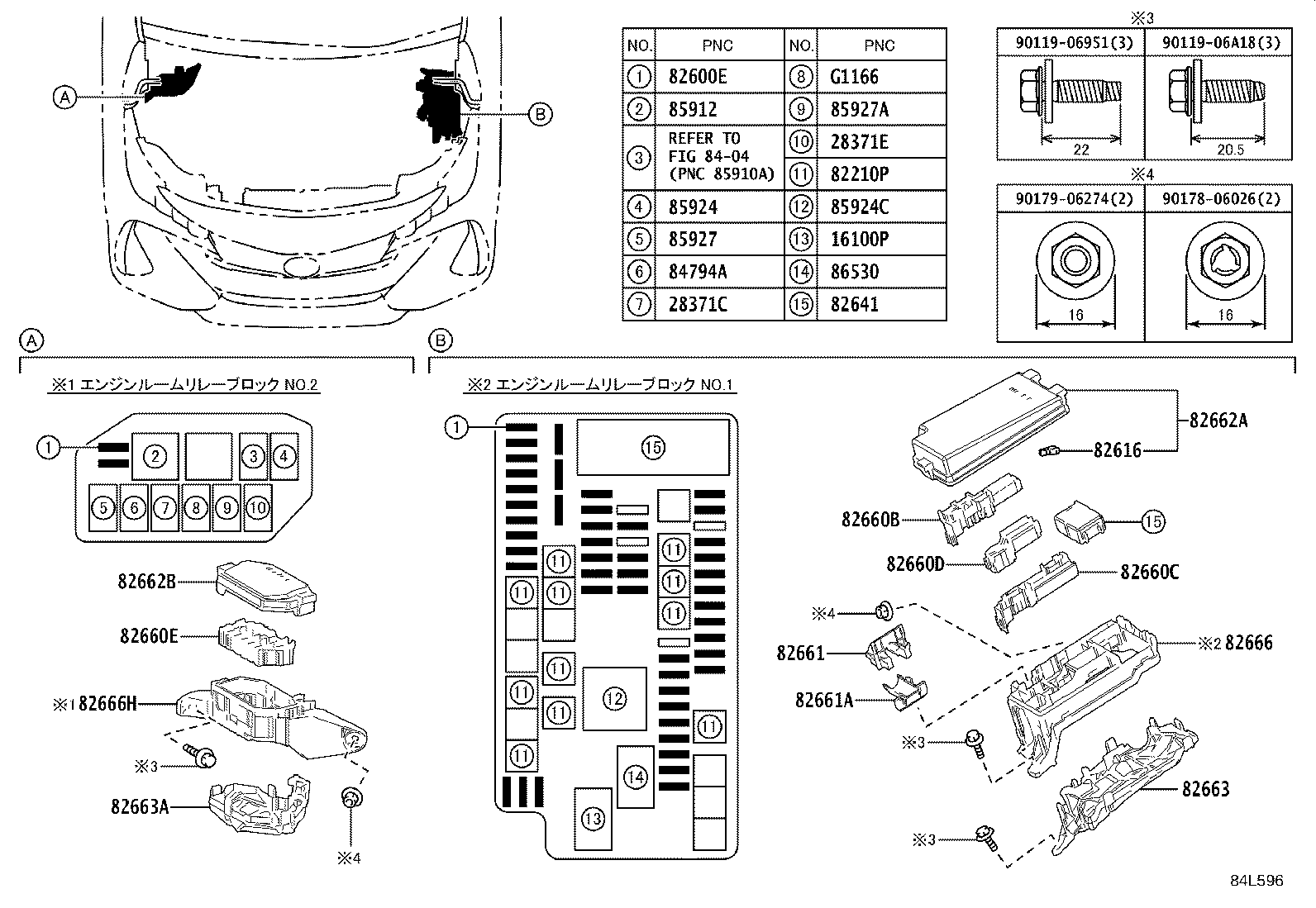

84L596 2016-09 → 2019-04

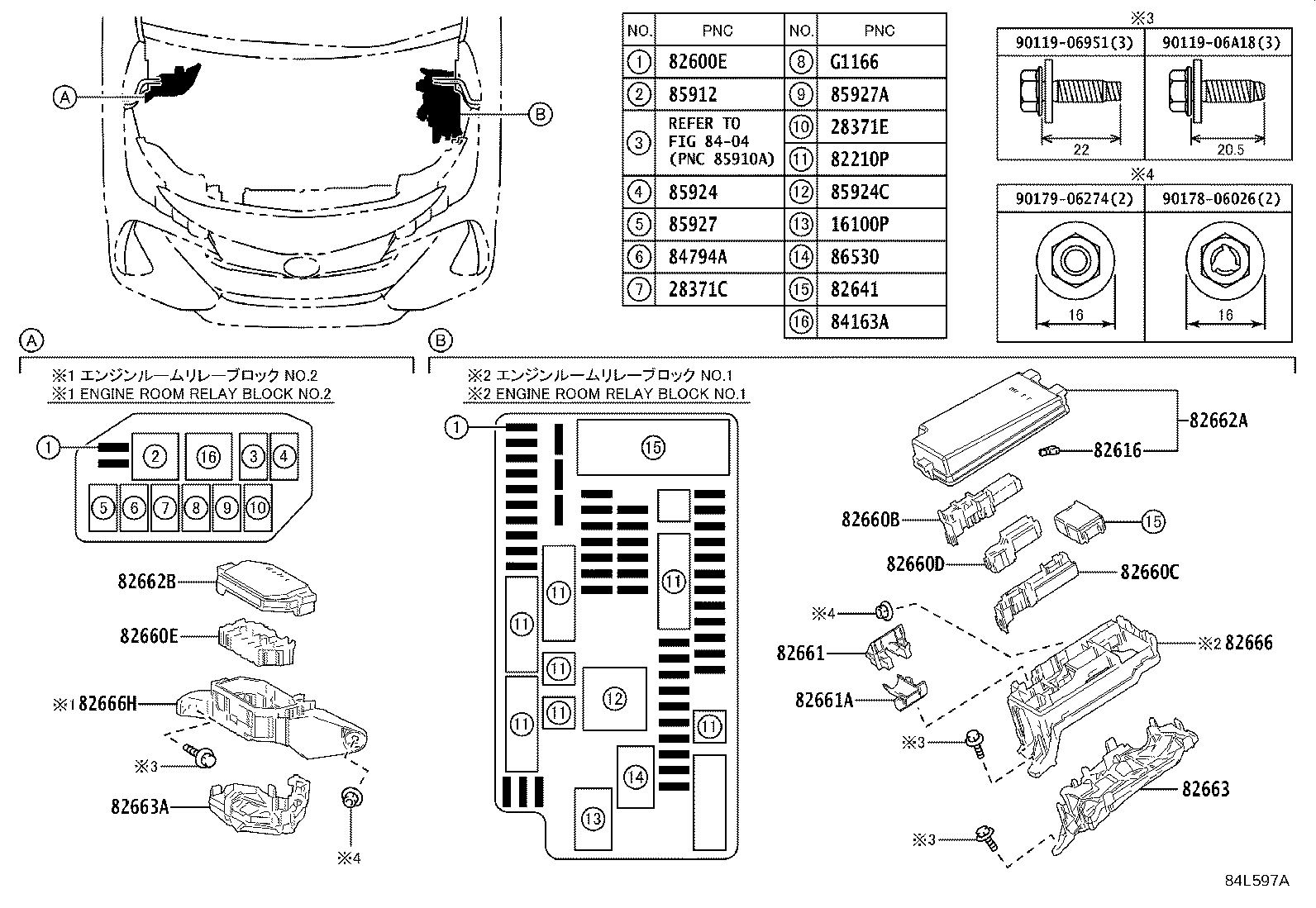

84L597A 2019-05 → —

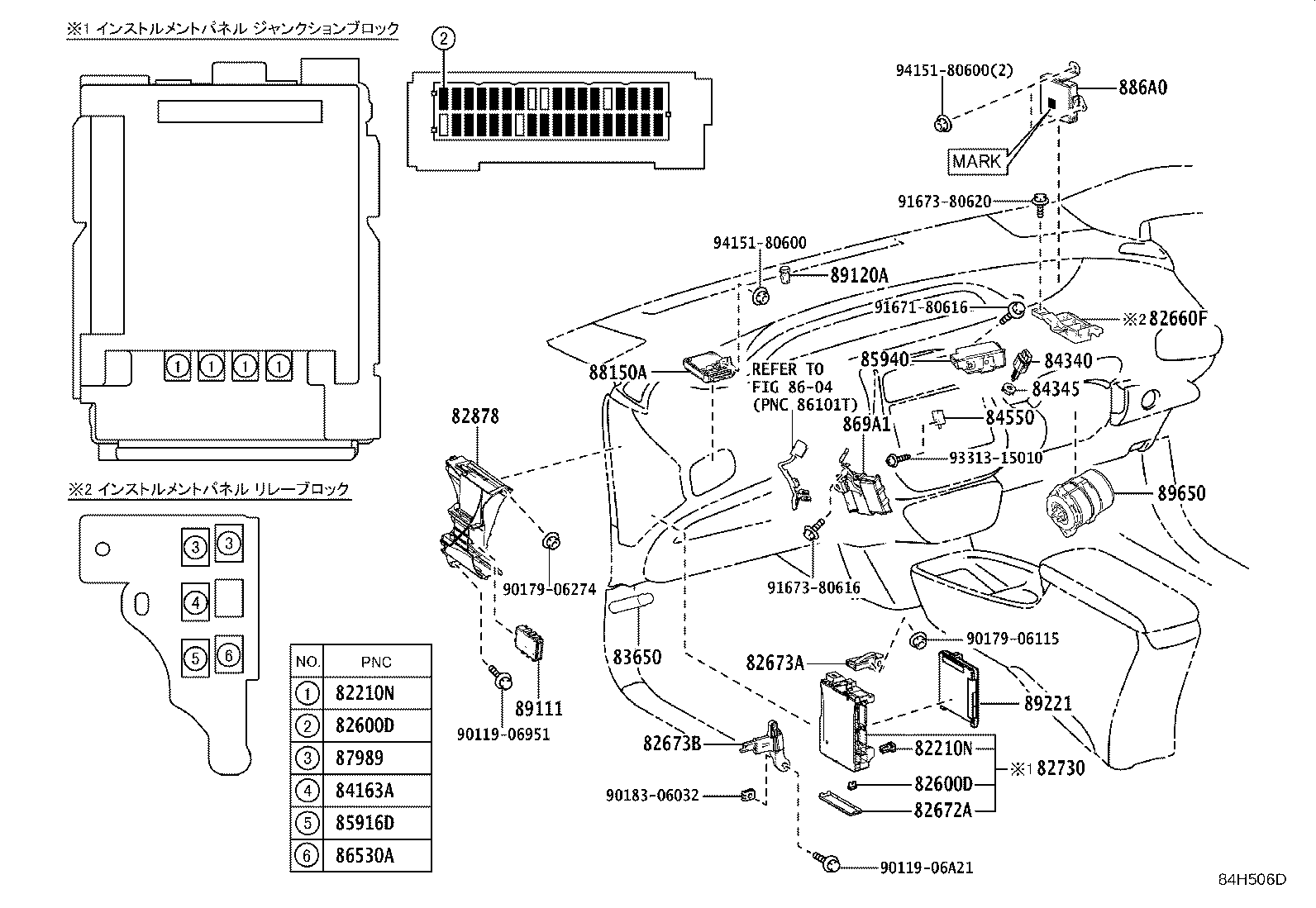

84H506D 2016-09 → 2019-04

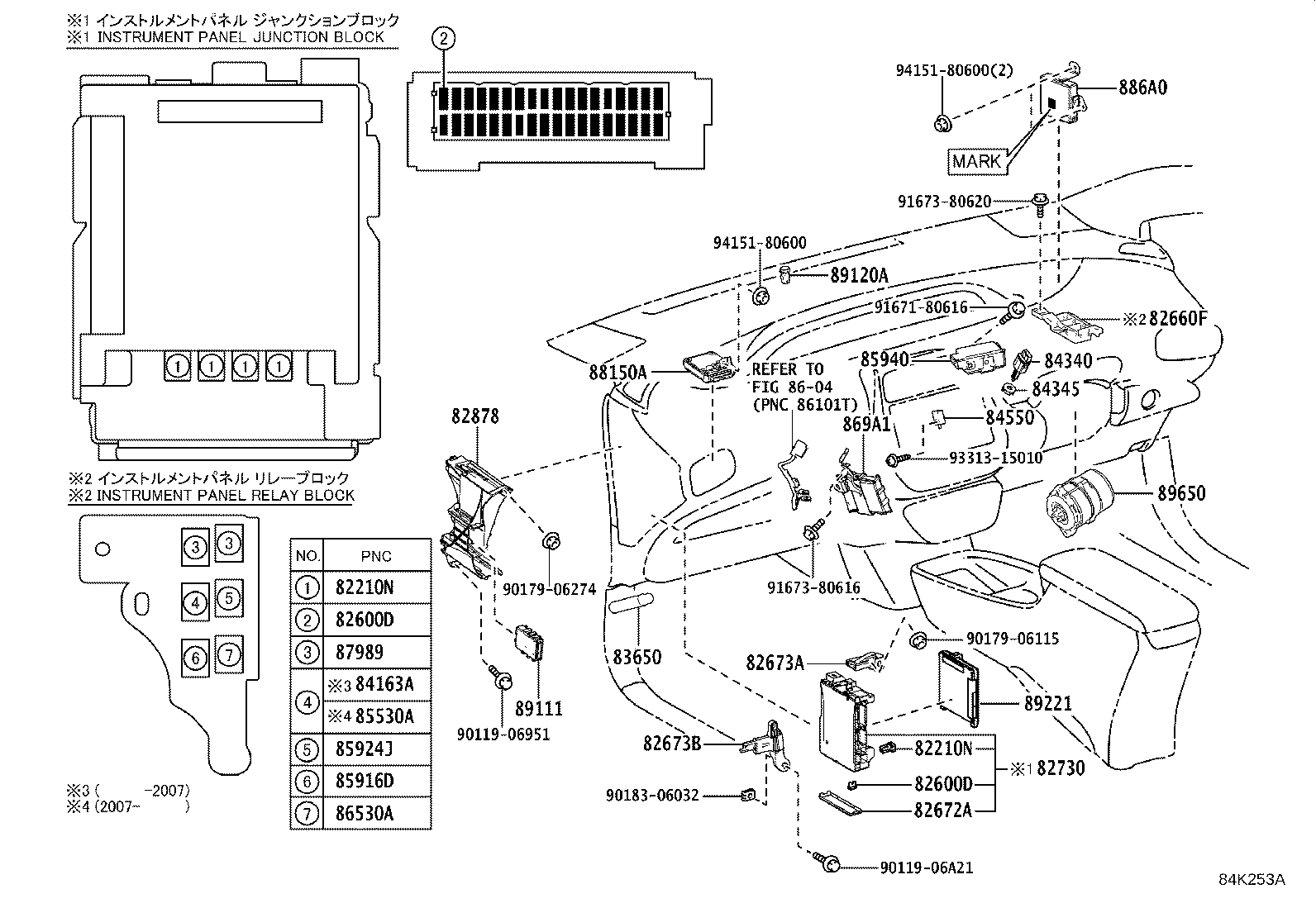

84K253A 2019-05 → —

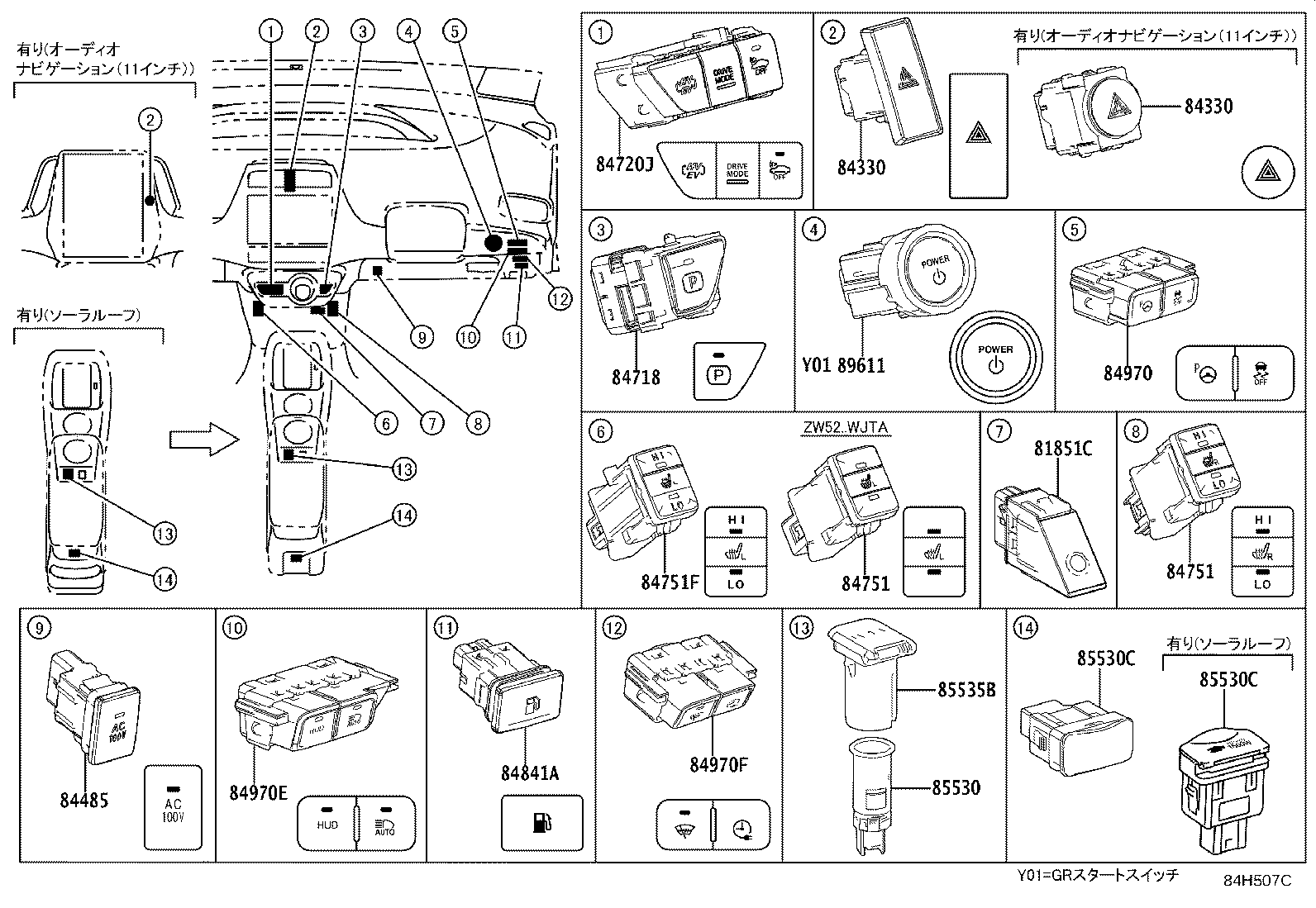

84H507C 2016-09 → 2019-04

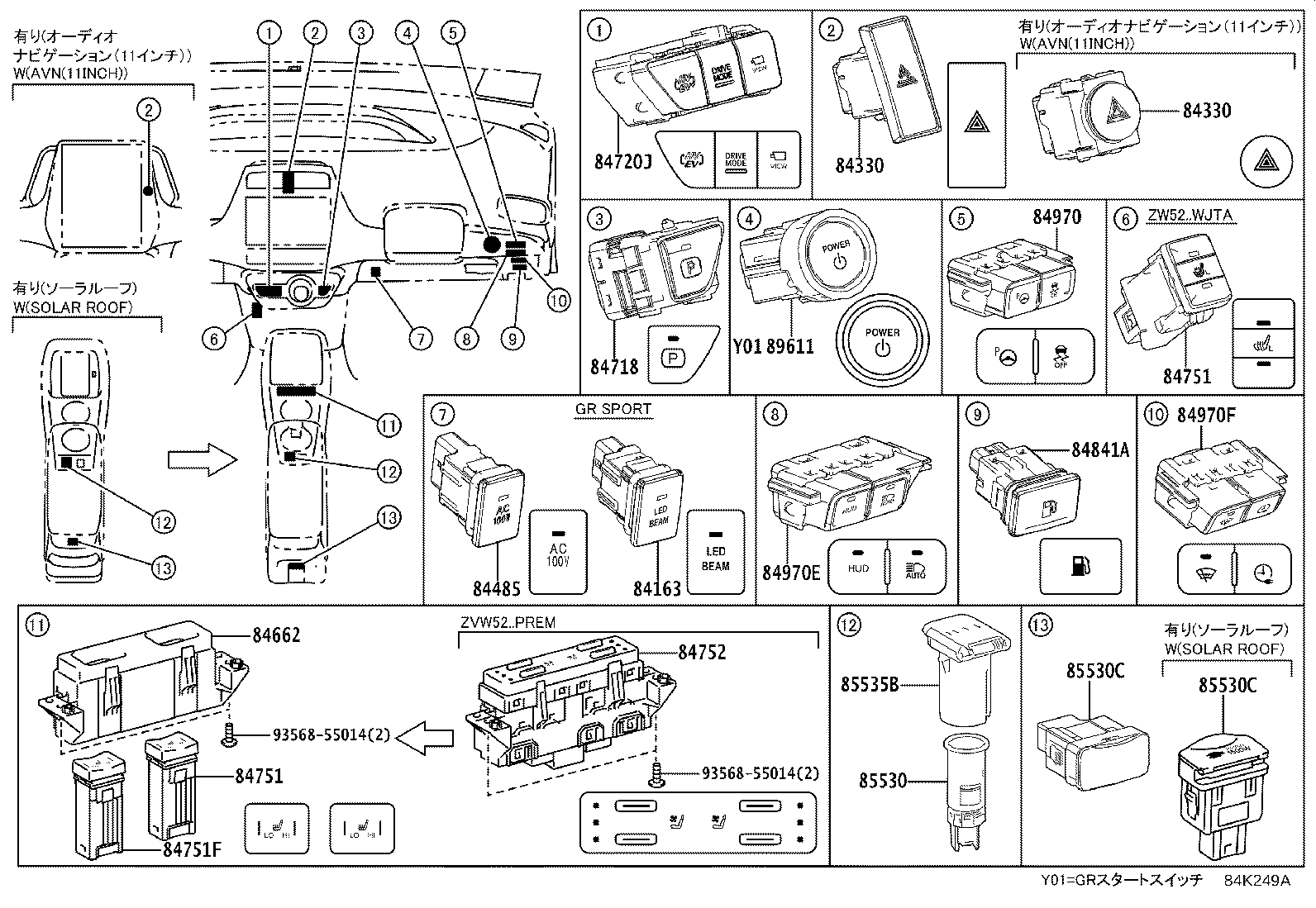

84K249A 2019-05 → —

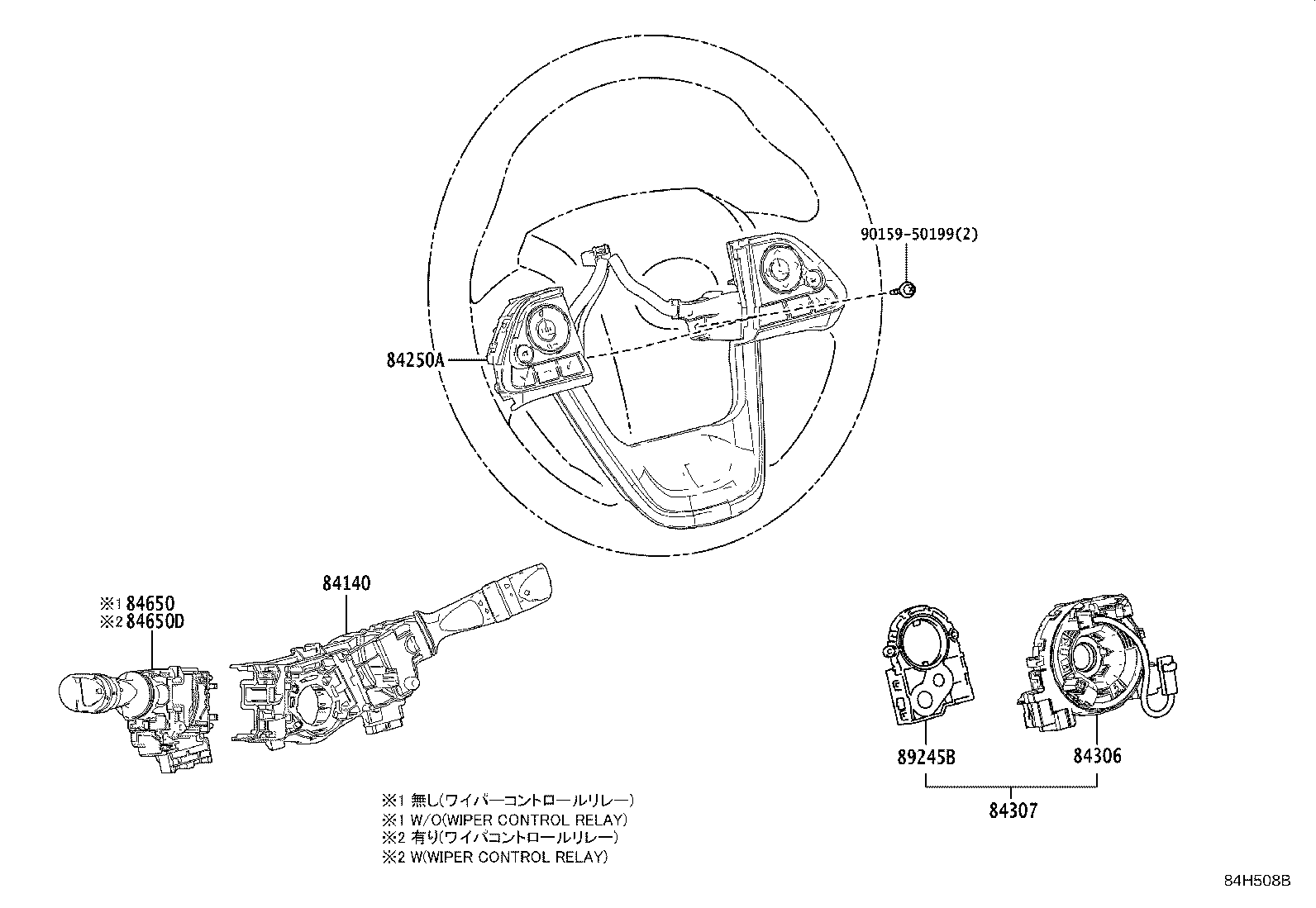

84H508B 2016-09 → —

84H509A 2016-09 → —

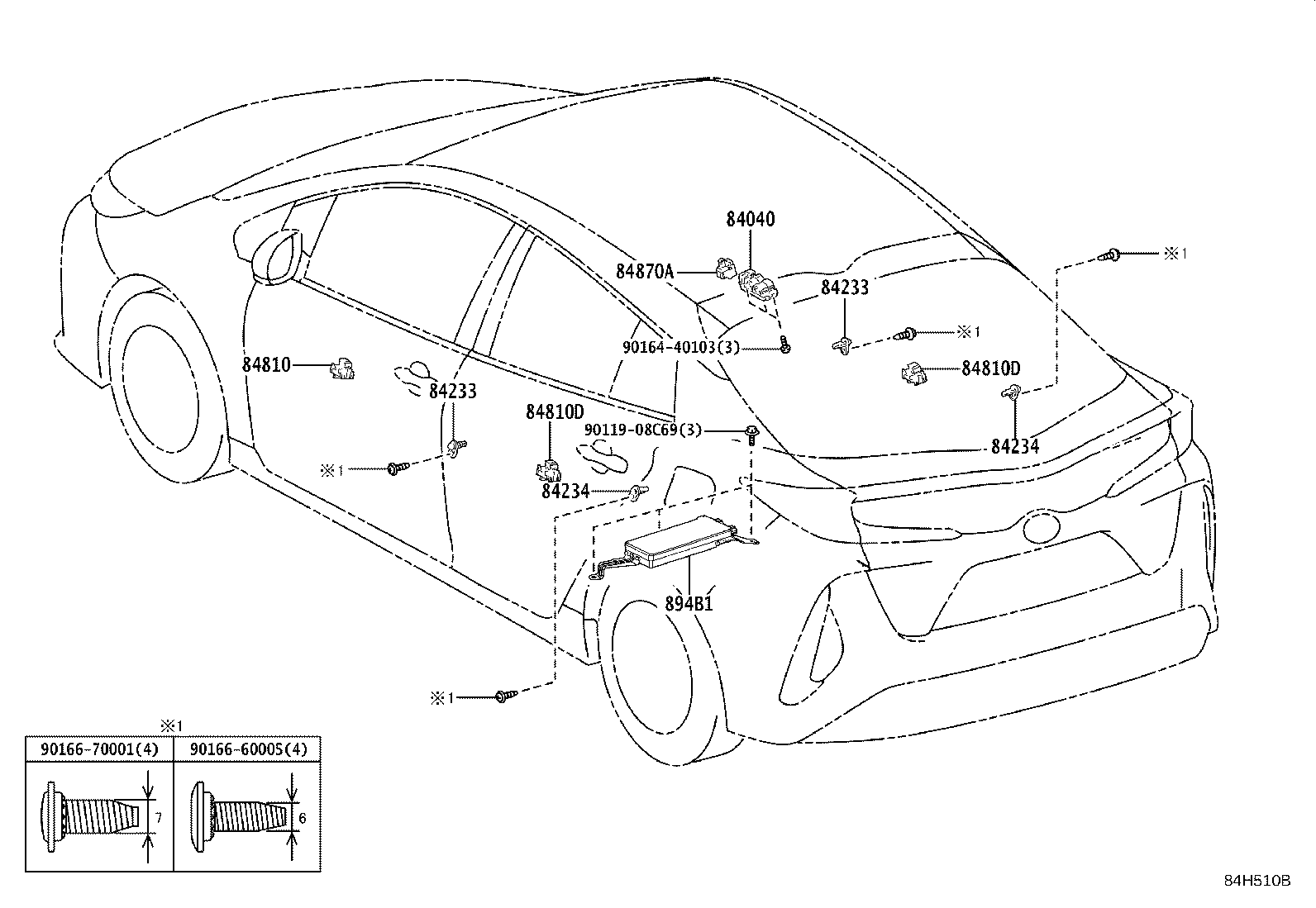

84H510B 2016-09 → 2019-04

84K254 2019-05 → —

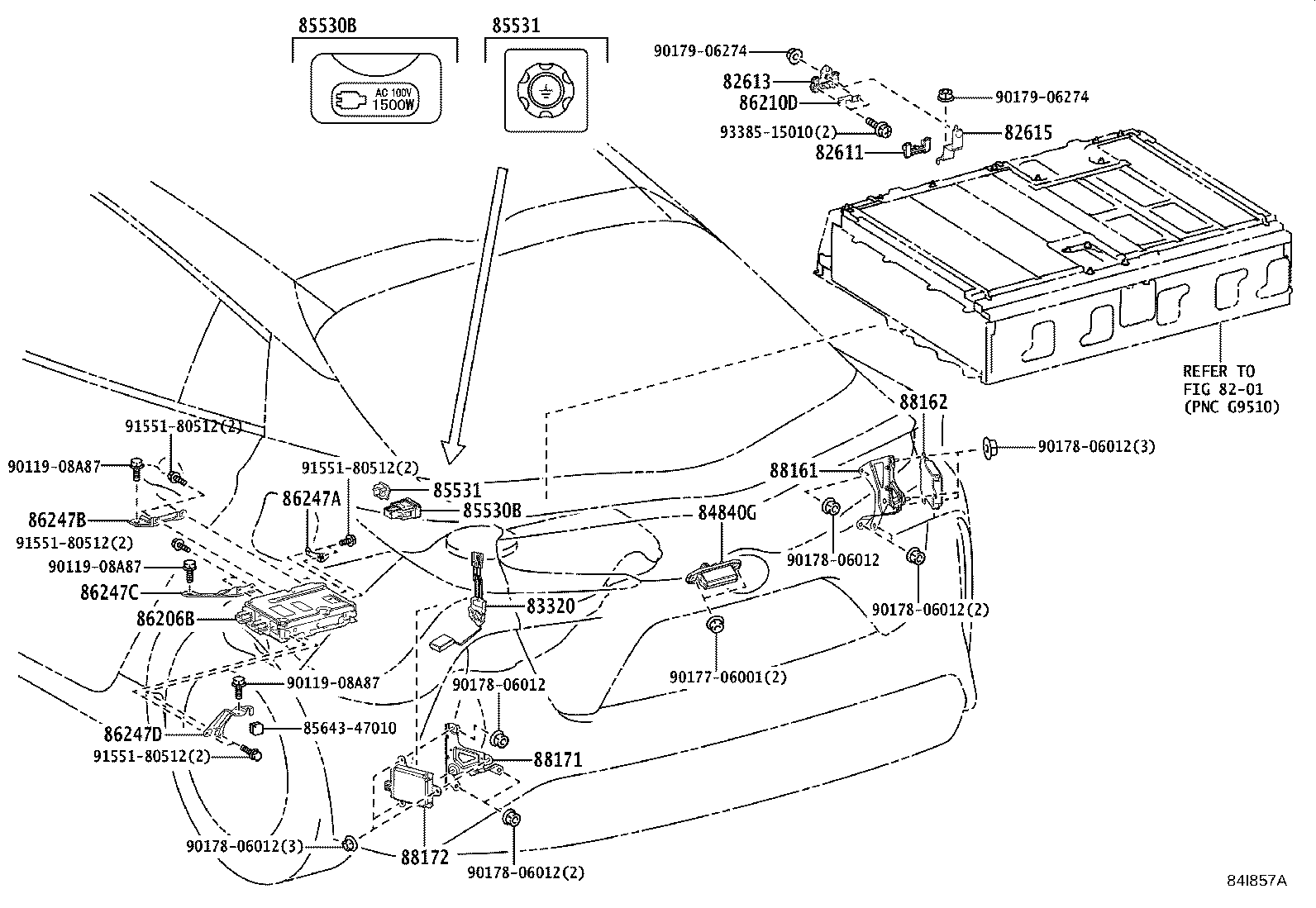

84I857A 2016-09 → 2019-04

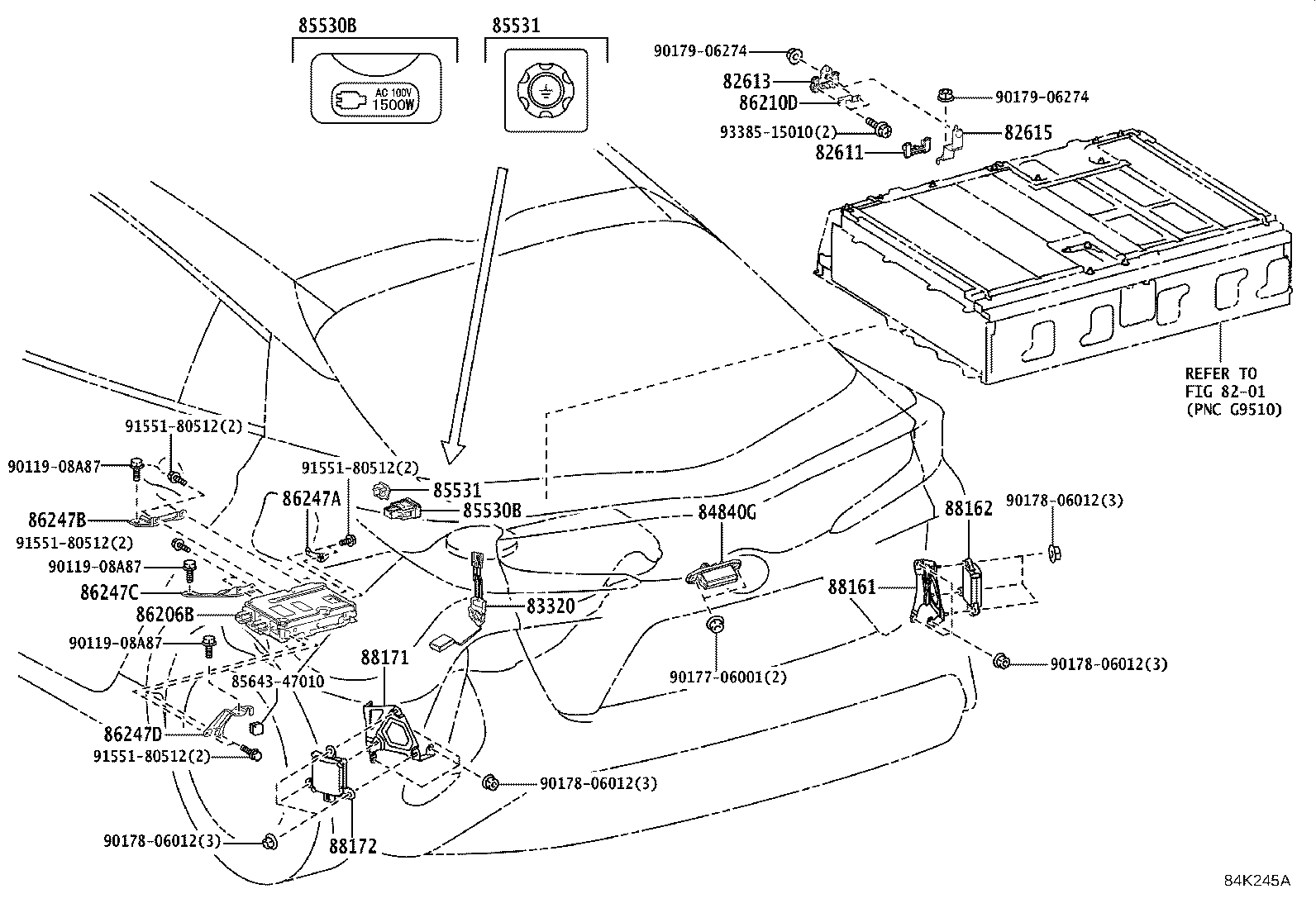

84K245A 2019-05 → —

Part groups

PNC	Description
16100P	Relay, Water Pump
28371C	Relay, Ignition, NO.2
28371E	Relay, Ignition, NO.4
28850C	Sensor Assy, Battery State
28859A	Holder, Battery Current Sensor
81851C	Lamp Assy, Indicator
82210N	Instrument Panel Fusible Link
82210P	Engine Room Fusible Link
82600D	Instrument Panel Fuse
82600E	Engine Room Fuse
82611	Cover, Fuse Block
82613	Cover, Fuse Block
82615	Bracket, Fuse
82616	Puller, Fuse
82620A	Block Assy, Fusible Link
82621A	Cover, Fusible Link
82641	Relay, Integration NO.1
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82660D	Block Assy, Relay
82660E	Block Assy, Relay
82660F	Block Assy, Relay
82661	Cover, Relay Block, NO.1
82661A	Cover, Relay Block, NO.2
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82666	Holder, Connector
82666H	Holder, Connector, NO.2
82671A	Block, Junction
82672A	Cover, Junction Block
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82730	Block Assy, Instrument Panel Junction
82878	Box, Computer Integration, LH
83320	Gage Assy, Fuel Sender
83530	Switch Assy, Oil Pressure (FOR ENGINE)
83650	Fusee
84040	Master Switch Assy,Multiplex Network
84140	Switch Assy, Headlamp Dimmer
84163	Switch, Light Emitting Diode Illumination
84163A	Relay, Light Emitting Diode Illumination
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A	Switch Assy, Steering Pad
84306	Cable Sub-assy, Spiral
84307	Cable Sub-assy, Spiral W/Sensor
84330	Switch Assy, Hazard Warning Signal
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84485	Switch, Power Outlet(AC100V ACCESSORY SOCKET)
84550	Switch Assy, Parking Brake
84650	Switch Assy, Windshield Wiper
84650D	Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84662	Panel, Cooler Control Switch
84718	Switch, Transmission Shift Main
84720J	Switch Assy, Pattern Select
84751	Switch, Seat Heater
84751F	Switch, Seat Heater
84752	Switch, Refreshing Seat
84794A	Relay, FR Wiper Deicer
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84840G	Switch Assy, Back Door Opener
84841A	Switch, Fuel Lid Opener
84870A	Switch Assy, Outer Mirror
84921C	Knob, Power Seat Switch, RH
84921J	Knob, Power Seat Switch, RH
84922B	Switch, Front Power Seat, RH
84970	Switch Assy, Combination
84970E	Switch Assy, Combination NO.2
84970F	Switch Assy, Combination, NO.3
85530	Socket Assy, Power Outlet, NO.1
85530A	Relay, Power Outlet Socket
85530B	Socket Assy, Power Outlet, Rear NO.1
85530C	Socket Assy, Power Outlet, Center
85531	Socket, Power Outlet
85535B	Cover, Power Outlet Socket, NO.1
85912	Relay, Defogger
85916D	Relay, Fog Lamp
85924	Relay, Ignition Control
85924C	Relay, Igct
85924J	Relay, Dcb
85927	Relay, Cooling Fan
85927A	Relay, Cooling Fan, NO.2
85940	Relay Assy, Windshield Wiper
86206B	Inverter Sub-assy, Voltage
86210D	Fuse, High Voltage
86247A	Bracket, Voltage Inverter
86247B	Bracket, Voltage Inverter
86247C	Bracket, Voltage Inverter, NO.2
86247D	Bracket, Voltage Inverter, NO.3
86530	Relay Assy, Horn
86530A	Relay, Horn
869A1	Computer, Intelligent Transport Systems Communication
87989	Relay, Mirror Control
88150A	Computer Assy, Driving Support
88161	Bracket, Blind Spot Monitor, RH
88162	Sensor, Blind Spot Monitor, RH
88171	Bracket, Blind Spot Monitor, LH
88172	Sensor, Blind Spot Monitor, LH
886A0	Computer Assy, Heat Pump
89111	Computer, Network Gateway
89120A	Sensor, Automatic Light Control
89221	Computer, Multiplex Network Body
89245B	Sensor, Steering
89465	Sensor, Oxygen
89467B	Sensor, Air Fuel Ratio
89491	Sensor, Engine Oil Level
894B1	Solar Energy Control Unit
89611	Switch, Push Start
89615	Sensor, Knock Control
89650	Computer Assy, Power Steering
89747F	Buzzer, Blind Spot Monitor
G1166	Relay, Oil Pump Motor Controller

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
