Toyota Prius Phv

2016-09 → 2022-11 · chassis ZVW52 · catalogue 224130 · Japan

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

8 part groups · 3 illustrations

Illustrations

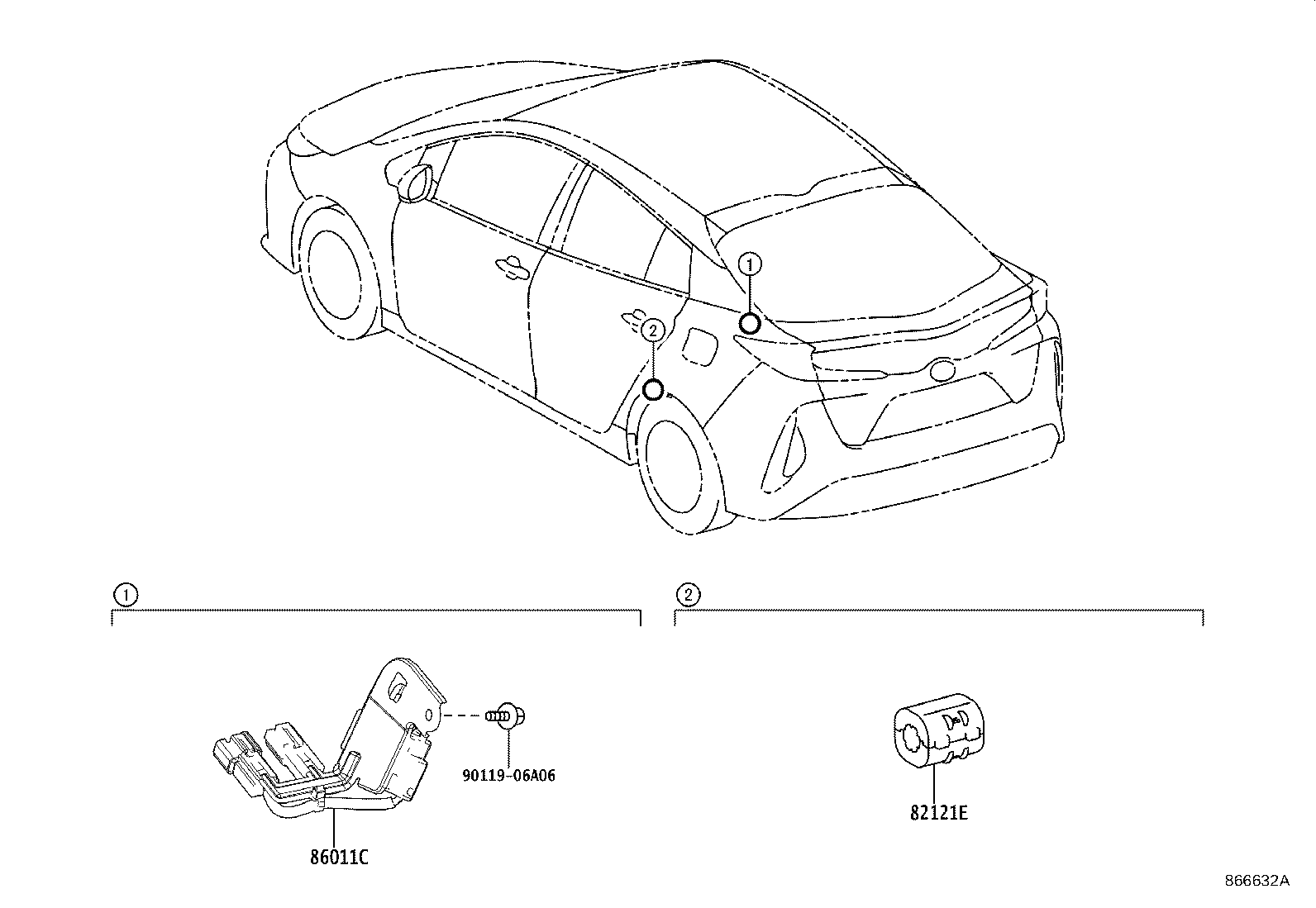

Figure 866633A 866633A 2016-09 → 2019-04 Figure 867590A 867590A 2019-05 → — Figure 866632A 866632A 2016-09 → —

Part groups

PNCDescription
82121E Condenser
86011C Filter, Noise
86145 Connector, Antenna Male
86183D Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
