Toyota Prius Phv

2016-09 → 2022-11 · chassis ZVW52 · catalogue 224130 · Japan

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

8 part groups · 3 illustrations

Illustrations

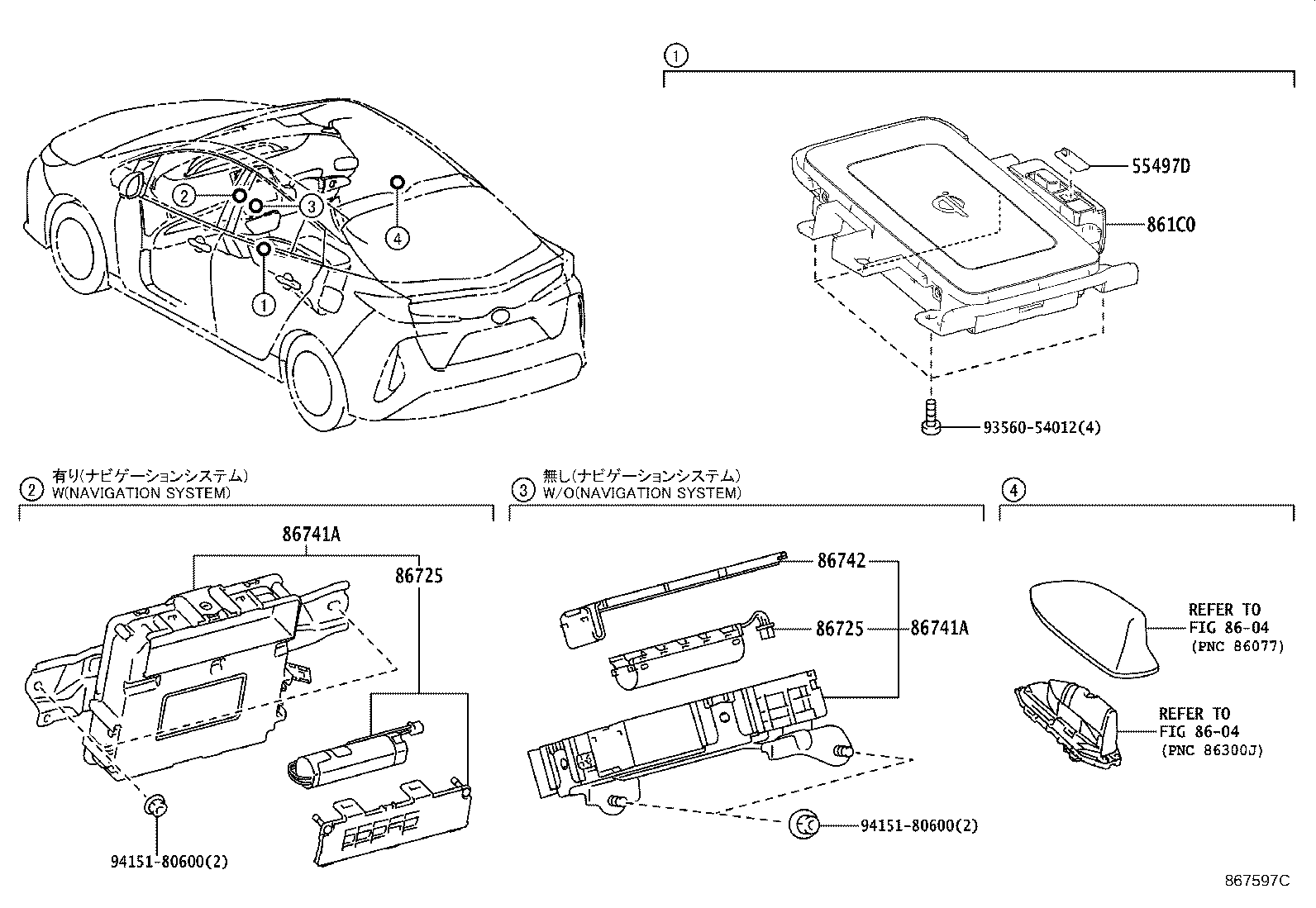

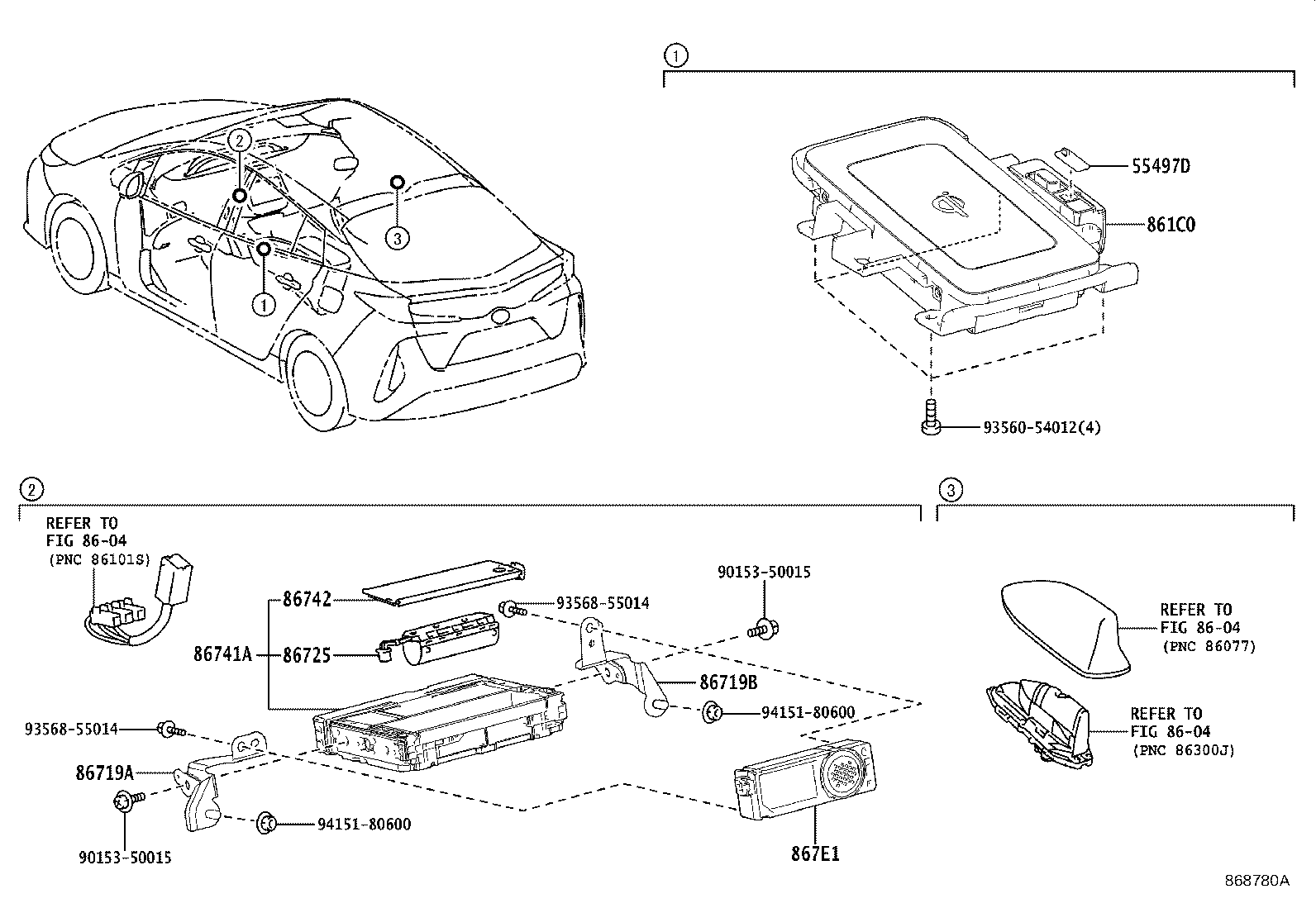

Figure 866703D 866703D 2016-09 → 2019-04 Figure 867597C 867597C 2019-05 → 2021-06 Figure 868780A 868780A 2021-06 → —

Part groups

PNCDescription
55497D Lens, Warning Lamp
861C0 Cradle Assy, Mobile Wireless Charger
86719A Bracket, Telephone NO.1
86719B Bracket, Telephone NO.2
86725 Battery, Mobilephone
86741A Transceiver, Telematics
86742 Cover, Transceiver
867E1 Box, Communication Telematics
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
