Toyota Prius A(ALPHA)
2011-04 → present · chassis ZVW4# · catalogue 225110 · Japan
Supported model
Data version 2017-12

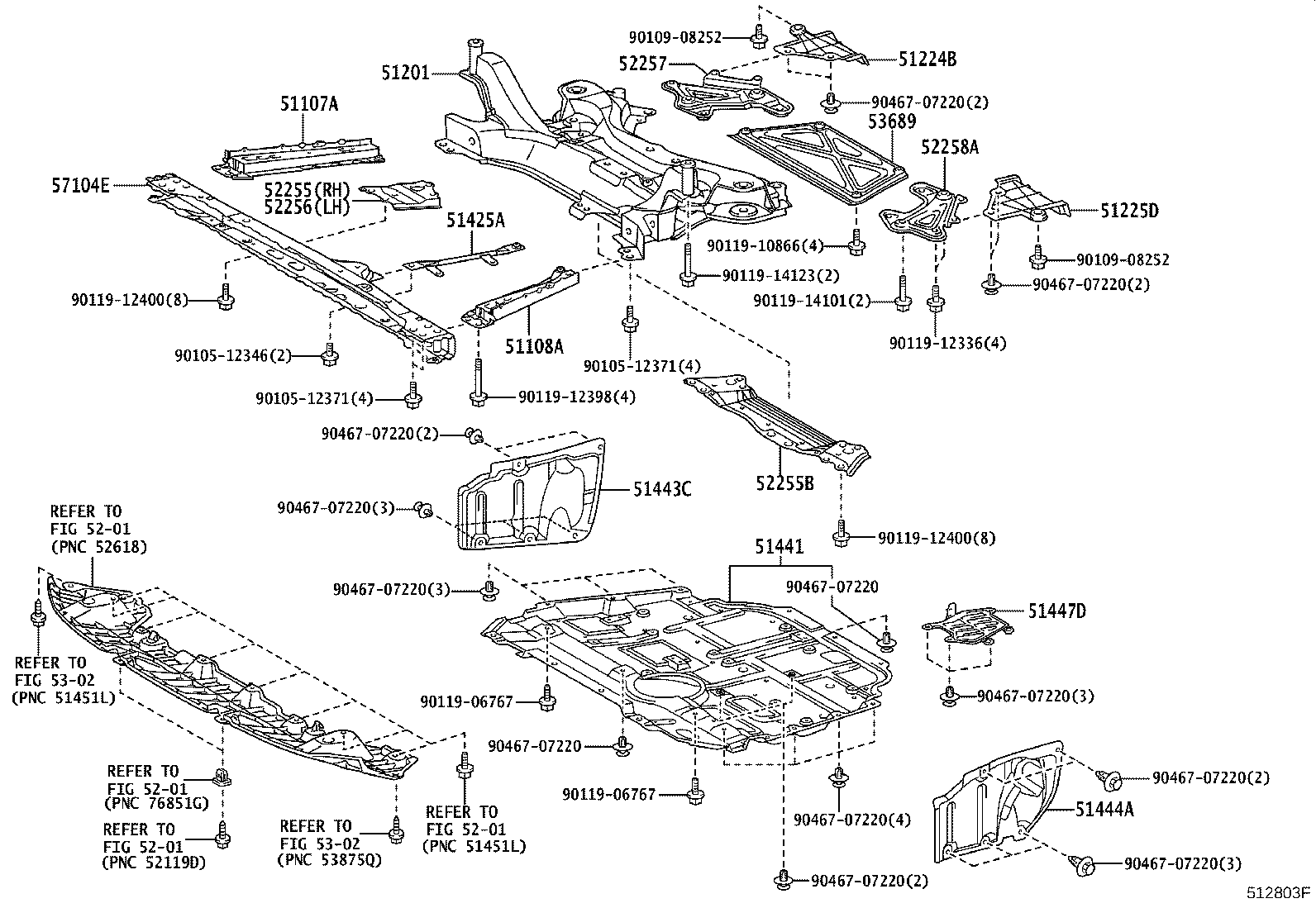

Suspension Crossmember & Under Cover
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51107A | Reinforcement Sub-assy, Side Rail, Rear RH |
| 51108A | Reinforcement Sub-assy, Side Rail, Rear LH |
| 51201 | Crossmember Sub-assy, Front Suspension |
| 51224B | Plate, Front Suspension Menber Brace, RH |
| 51225D | Plate, Front Suspension Menber Brace, LH |
| 51425A | Reinforcement, Engine Front Mounting Bracket, Lower |
| 51441 | Cover, Engine Under, NO.1 |
| 51442A | Cover, Engine Under, Front NO.3 |
| 51442E | Cover, Engine Under, NO.2 |
| 51443C | Cover, Engine Under, Rear RH |
| 51444A | Cover, Engine Under, Rear LH |
| 51447D | Cover, Engine Under, NO.4 Center |
| 52255 | Brace, Front Suspension Member, Front RH |
| 52255B | Brace, Front Suspension Member |
| 52256 | Brace, Front Suspension Member, Front LH |
| 52257 | Brace, Front Suspension Member, Rear RH |
| 52258A | Brace, Front Suspension Member, Rear LH |
| 53689 | Brace, Front Suspension, Lower Center |
| 57104E | Member Sub-assy, Front Cross |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
