Toyota Prius A(ALPHA)

2011-04 → present · chassis ZVW4# · catalogue 225110 · Japan

Supported model Data version 2017-12

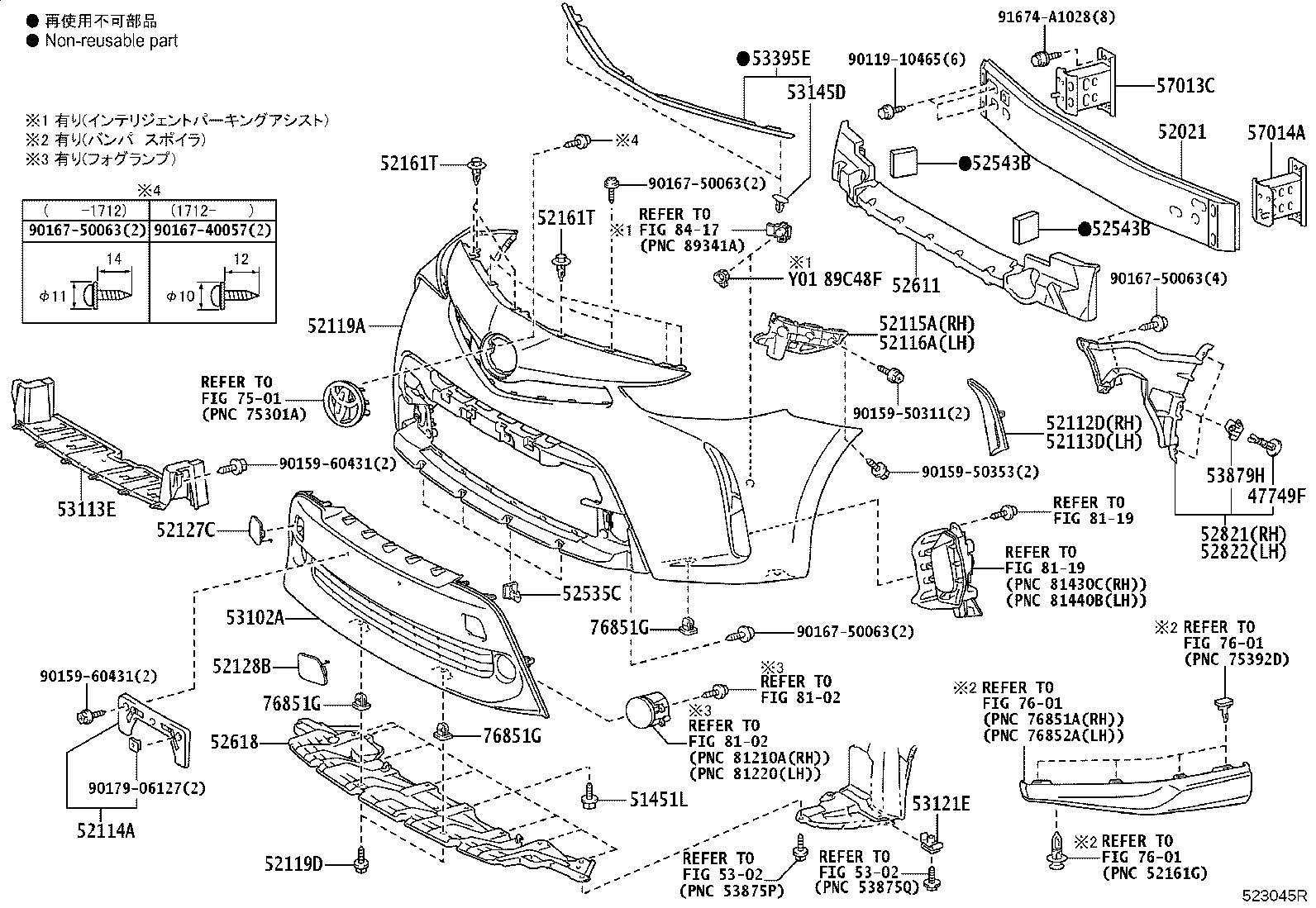

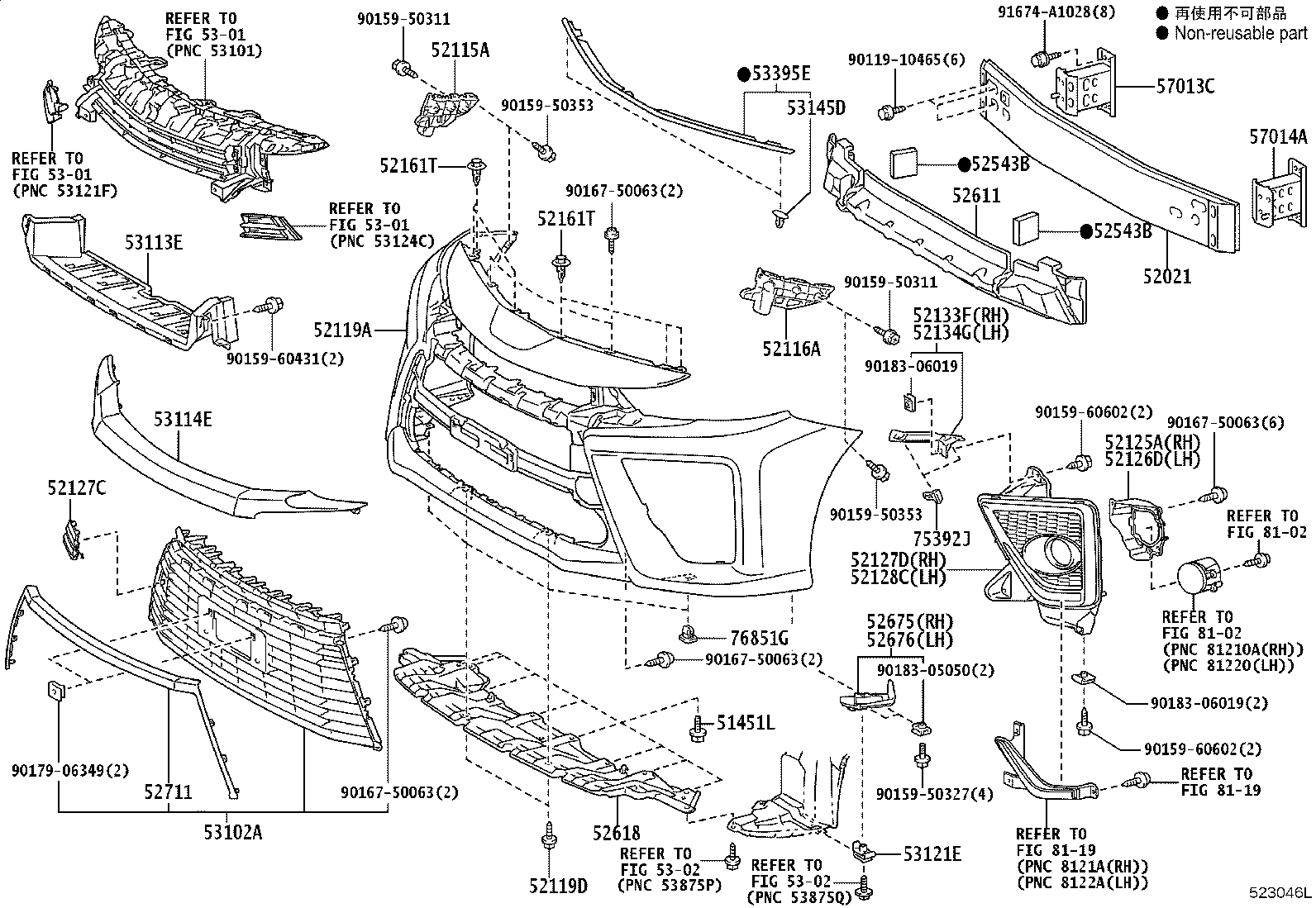

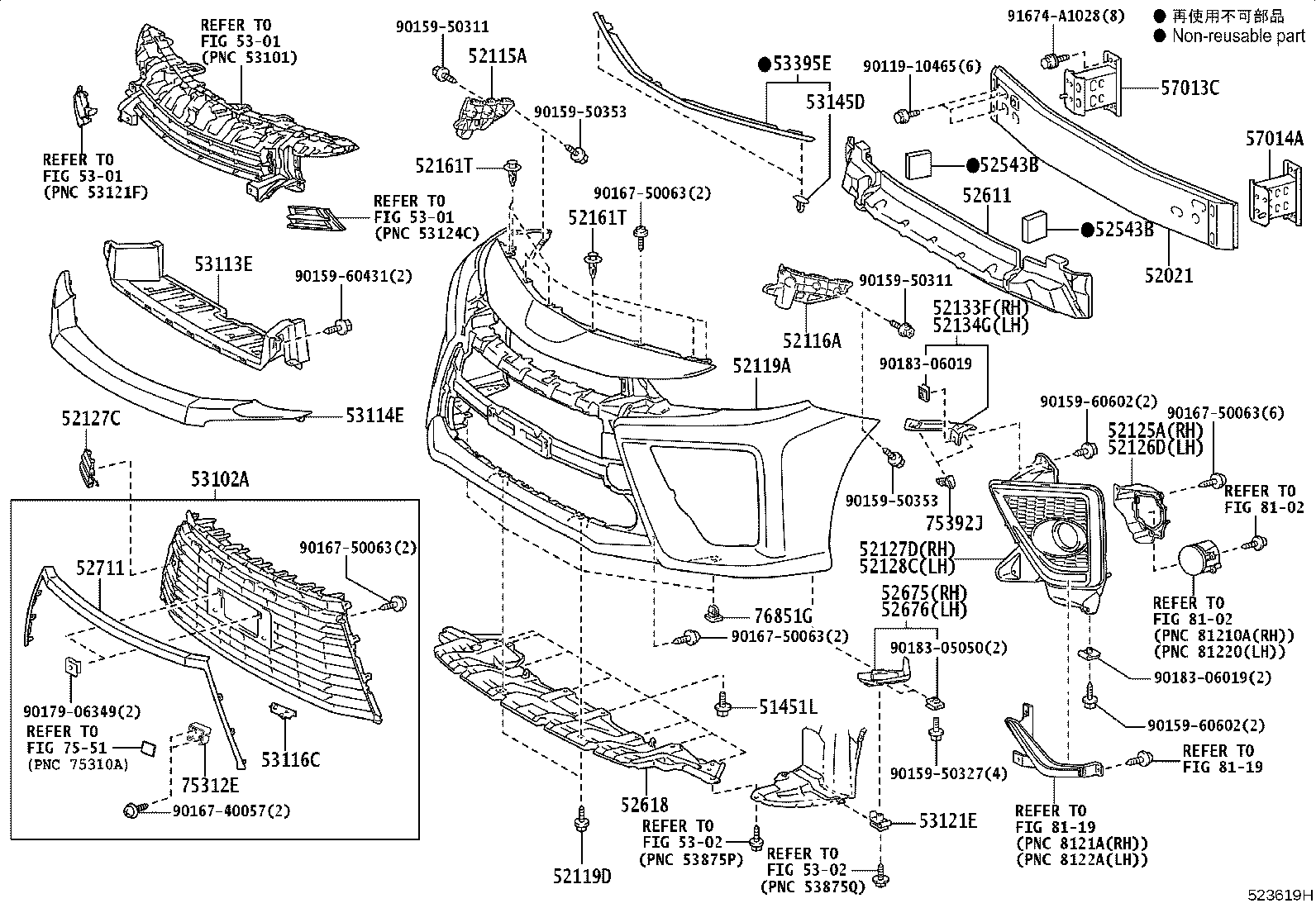

Front Bumper & Bumper Stay

45 part groups · 4 illustrations

PNC	Description
47749F	Clip, Pin Hold
51451L	Bolt, NO.1
52021	Reinforcement Sub-assy, Front Bumper
52112D	Extension, Front Bumper, RH
52113D	Extension, Front Bumper, LH
52114A	Bracket, Front Bumper Extension Mounting
52115A	Support, Front Bumper Side, RH
52116A	Support, Front Bumper Side, LH
52119A	Cover, Front Bumper
52119D	Screw, NO.1
52125A	Bracket, Fog Lamp Mounting, RH
52126D	Bracket, Fog Lamp Mounting, LH
52127C	Cover, Front Bumper Hole
52127D	Cover, Front Bumper Hole, RH
52128B	Cover, Front Bumper Hole, LH
52128C	Cover, Front Bumper Hole, LH
52133F	Bracket, Front Bumper, RH
52134G	Bracket, Front Bumper, LH
52161T	Piece, Front Bumper
52535C	Retainer, Front Bumper Side
52543B	Seal, Front Bumper
52611	Absorber, Front Bumper Energy
52618	Absorber, Front Bumper, Lower
52675	Support, Front Bumper Lower Side, RH
52676	Support, Front Bumper Lower Side, LH
52711	Moulding, Front Bumper
52821	Duct, Air Intake, RH
52822	Duct, Air Intake, LH
53102A	Grille Sub-assy, Radiator, Lwr
53112E	Grille, Radiator, Lower NO.1
53113E	Grille, Radiator, Lower NO.2
53114E	Grille, Radiator, Upper
53116C	Bracket, Radiator Grille, NO.2
53121E	Clip(FOR FRONT BUMPER), NO.1
53145D	Clip, Radiator Grille
53395E	Seal, Hood TO Front End Panel
53879H	Retainer, Front Fender Liner
57013C	Bracket Sub-assy, Front Side Member, RH
57014A	Bracket Sub-assy, Front Side Member, LH
75312E	Base, Radiator Grille Emblem
75392J	Retainer, Outside Moulding
76851G	Grommet, Screw, NO.1
81481E	Cover, Fog Lamp, RH
81482C	Cover, Fog Lamp, LH
89C48F	Retainer, Ultrasonic Sensor, Front Side

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
