Toyota Prius A(ALPHA)

2011-04 → present · chassis ZVW4# · catalogue 225110 · Japan

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

17 part groups · 3 illustrations

Illustrations

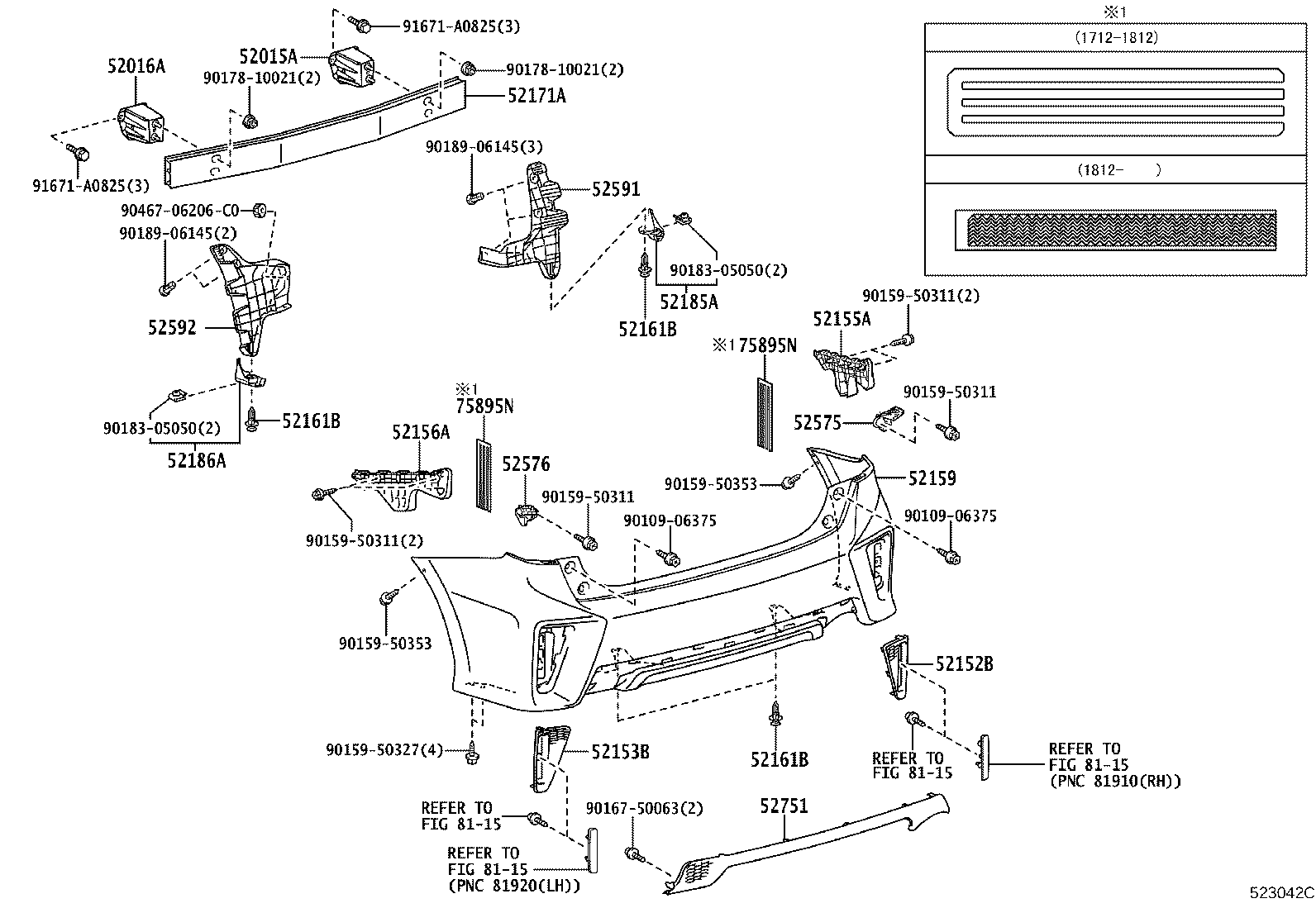

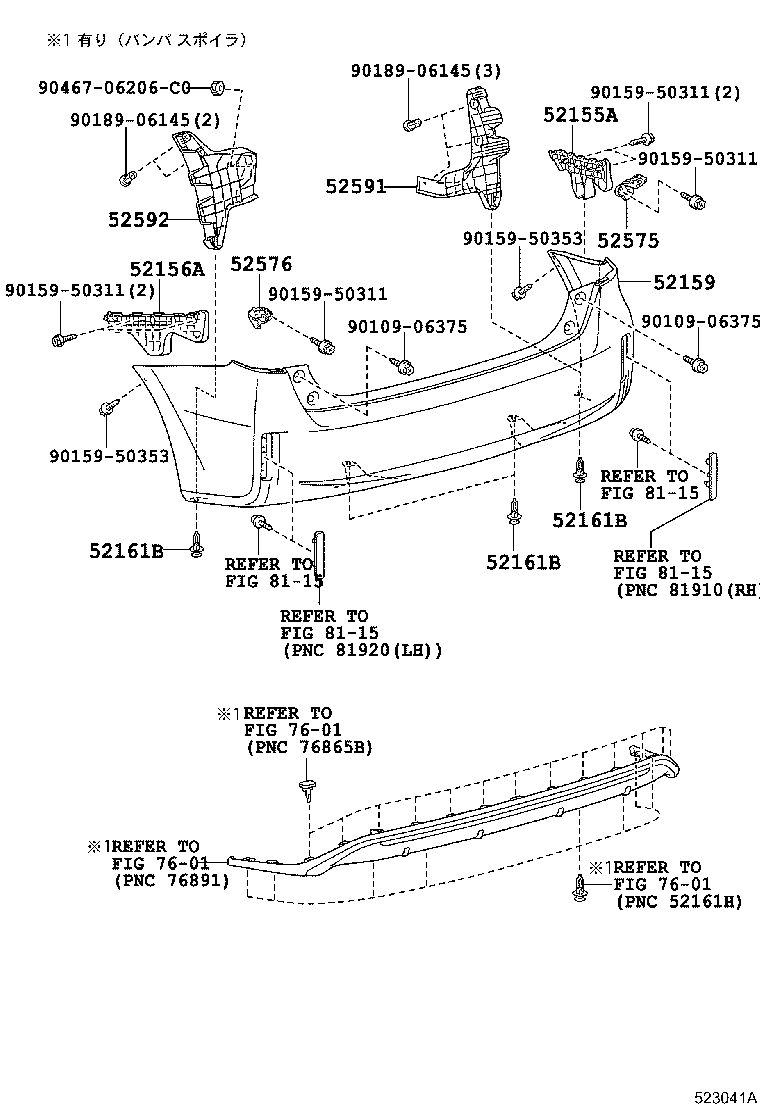

Figure 522395C 522395C 2011-04 → 2014-11 Figure 523041A 523041A 2014-11 → — Figure 523042C 523042C 2015-02 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52171A Reinforcement, Rear Bumper, NO.1
52185A Bracket, Rear Bumper Side, RH
52186A Bracket, Rear Bumper Side, LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52751 Moulding, Rear Bumper
75895N Tape, Moulding, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
