Toyota Prius A(ALPHA)

2011-04 → present · chassis ZVW4# · catalogue 225110 · Japan

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

6 part groups · 2 illustrations

Illustrations

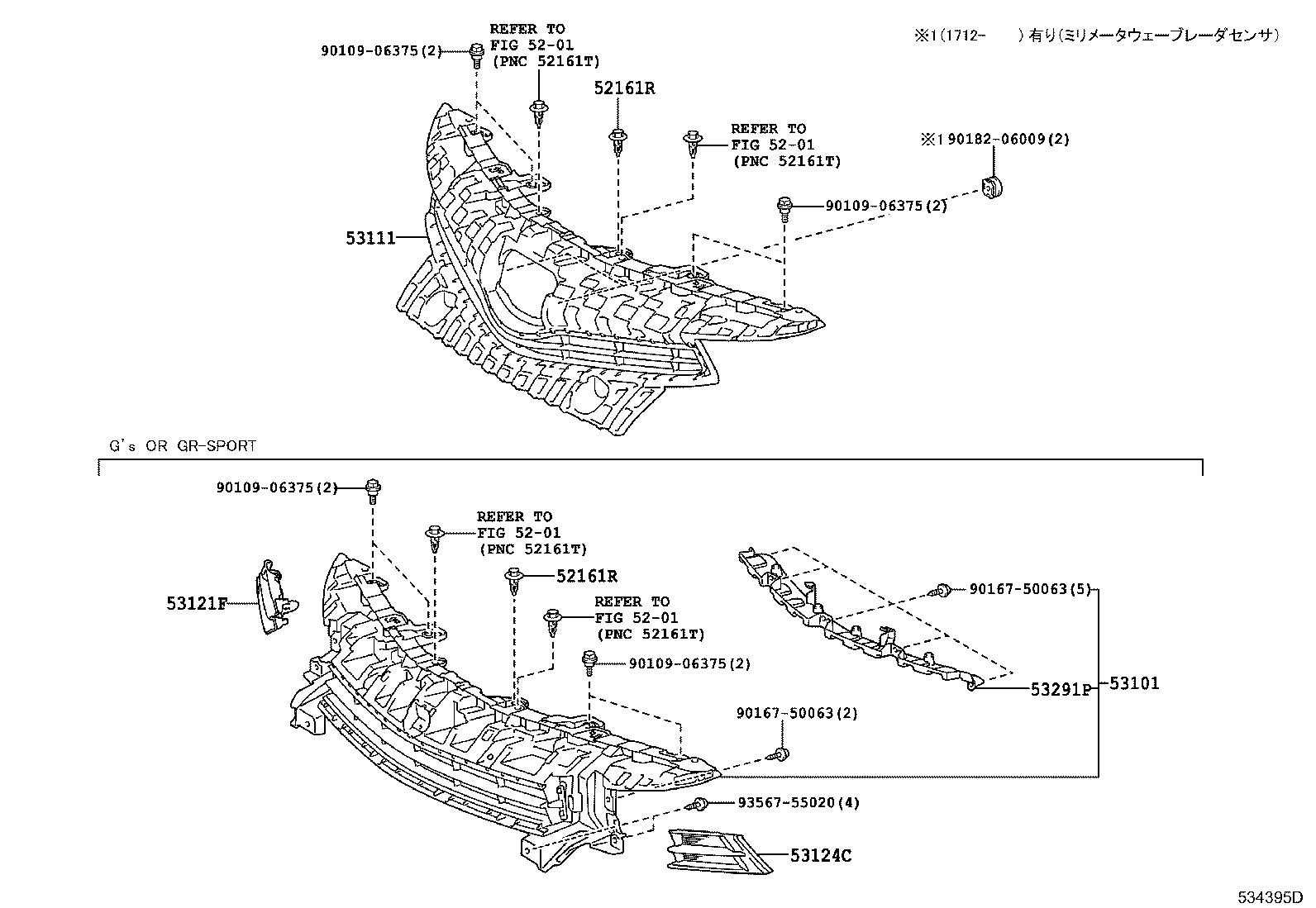

Figure 533402A 533402A 2011-04 → 2014-11 Figure 534395D 534395D 2014-11 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53121F Moulding, Radiator Grille, Upper RH
53124C Moulding, Radiator Grille, Upper LH
53291P Plate, Radiator Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
