Toyota Prius A(ALPHA)
2011-04 → present · chassis ZVW4# · catalogue 225110 · Japan
Supported model
Data version 2017-12
Console Box & Bracket

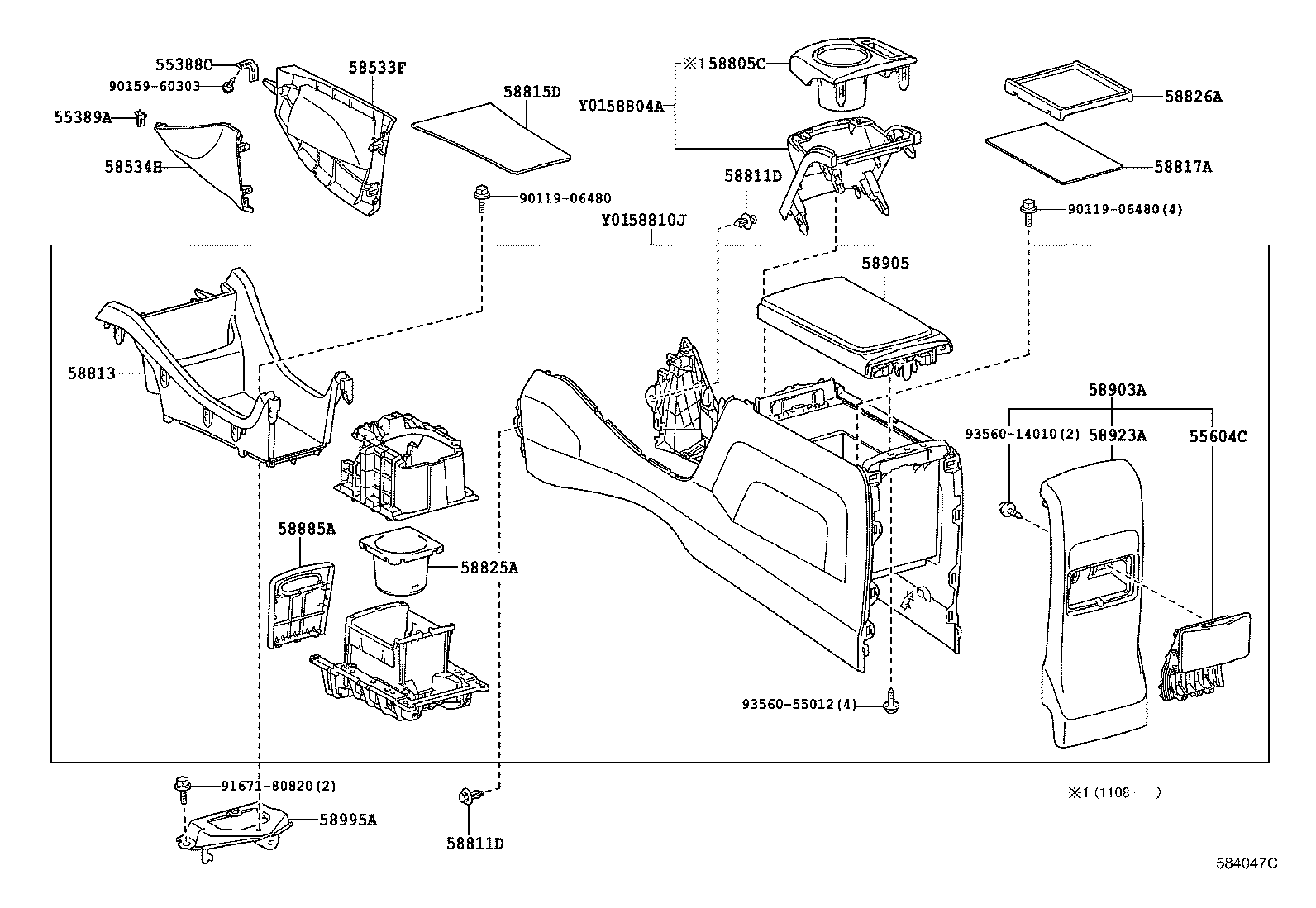

25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55388C | Bracket, Console Mounting, RH |
| 55389A | Bracket, Console Mounting, LH |
| 55604C | Holder Sub-assy, Console Box Cup |
| 58533F | Cover, Floor Carpet, Center RH |
| 58534H | Cover, Floor Carpet, Center LH |
| 58804A | Panel Sub-assy, Console, Upper |
| 58805C | Panel Sub-assy, Console, Upper Rear |
| 58810J | Box Assy, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58811H | Box, Console, RH |
| 58812C | Box, Console, LH |
| 58813 | Box, Console, Upper |
| 58815D | Sheet, Console Box, NO.1 |
| 58817A | Insert, Console Box, Front NO.2 |
| 58821C | Panel, Console, Upper |
| 58825A | Pocket, Console Box |
| 58826A | Pocket, Console Box, Lower |
| 58861A | Support, Console Box, NO.1 |
| 58885A | Panel, Equipment Set |
| 58903A | Panel Sub-assy, Console Rear End |
| 58905 | Door Sub-assy, Console Compartment |
| 58910D | Clip(FOR CONSOLE BOX) |
| 58923A | Panel, Console Rear End |
| 58933 | Garnish, Console Rear End Panel |
| 58995A | Bracket, Console Box Mounting, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
