Toyota Prius A(ALPHA)

2011-04 → present · chassis ZVW4# · catalogue 225110 · Japan

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

19 part groups · 4 illustrations

Illustrations

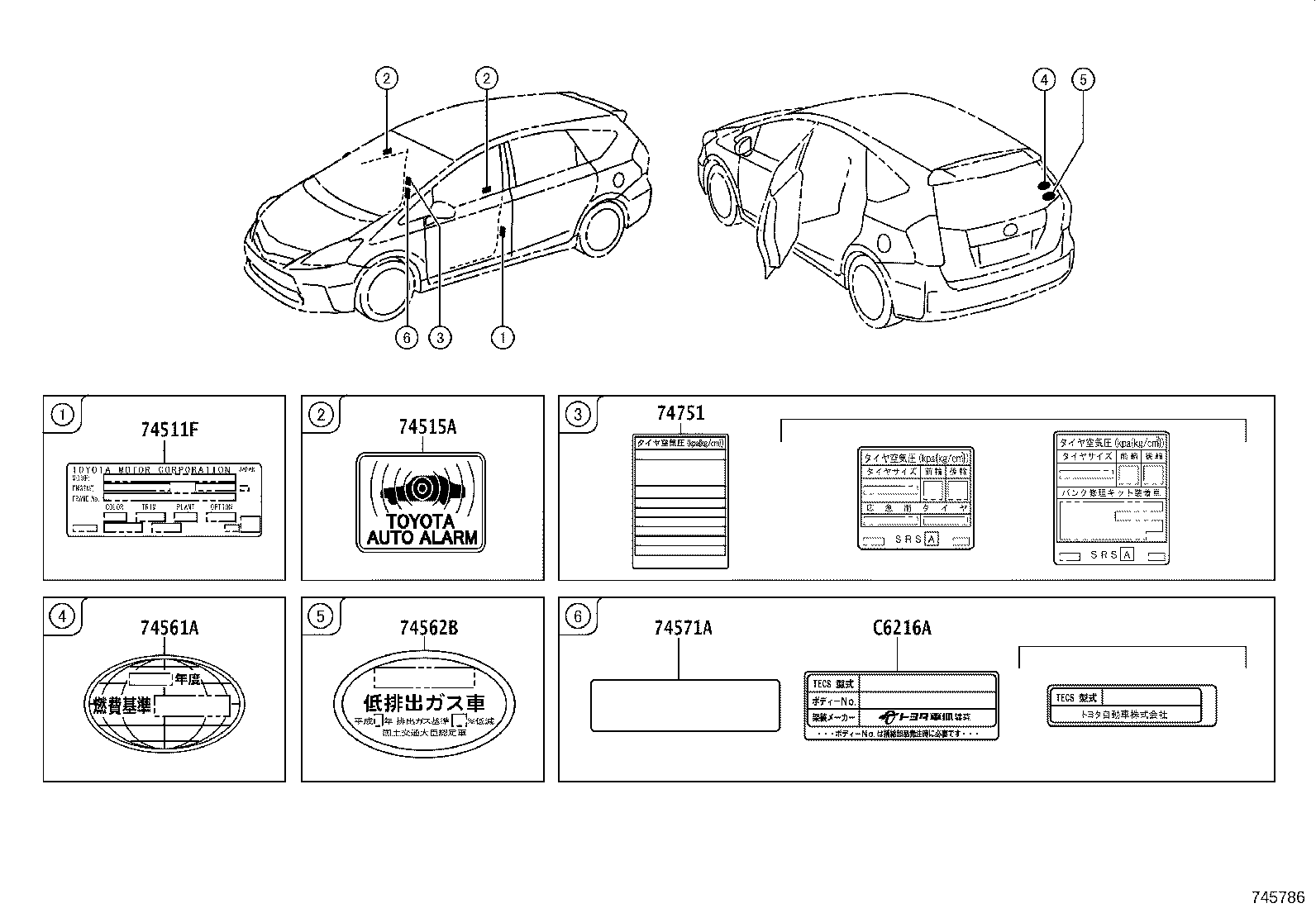

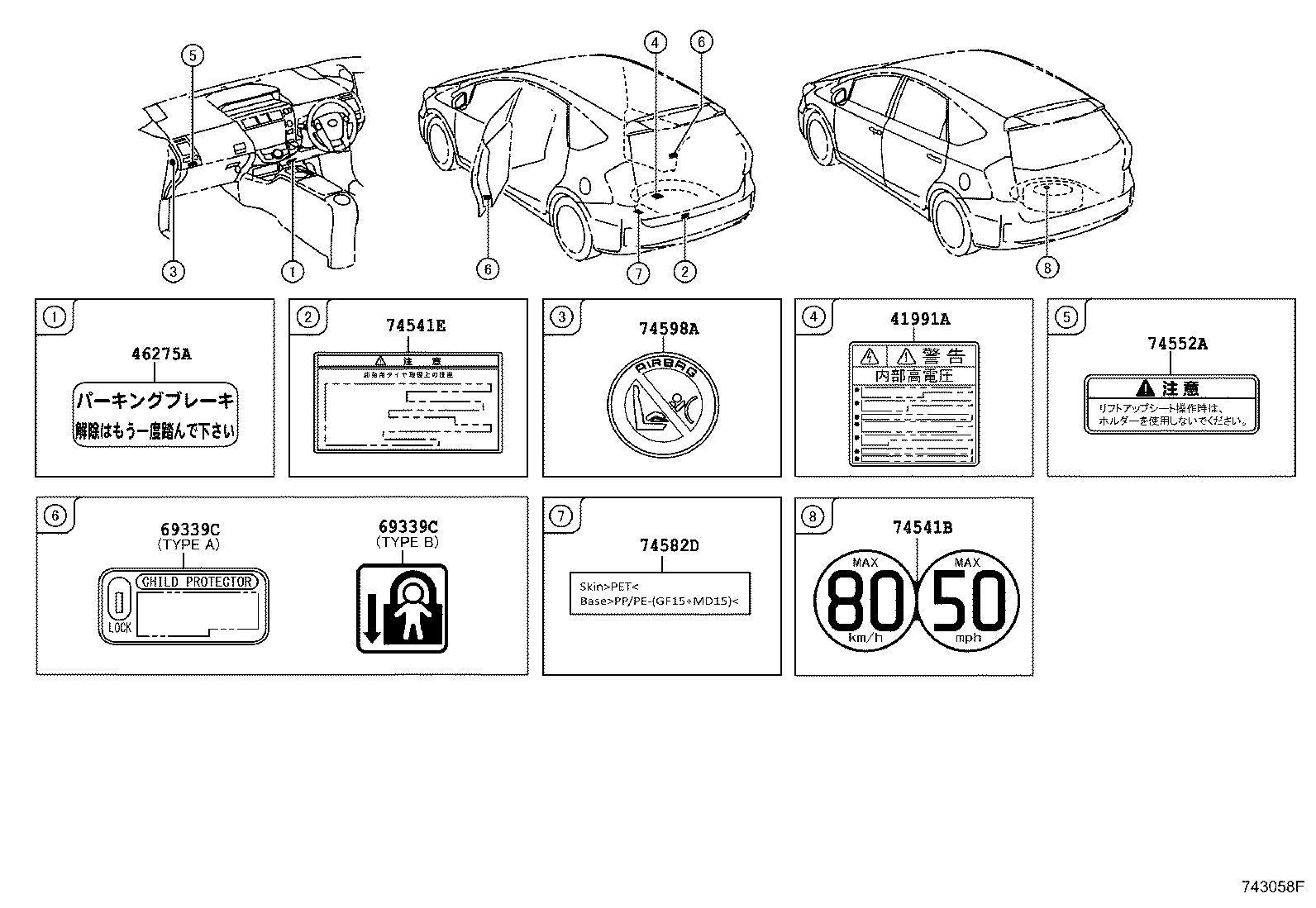

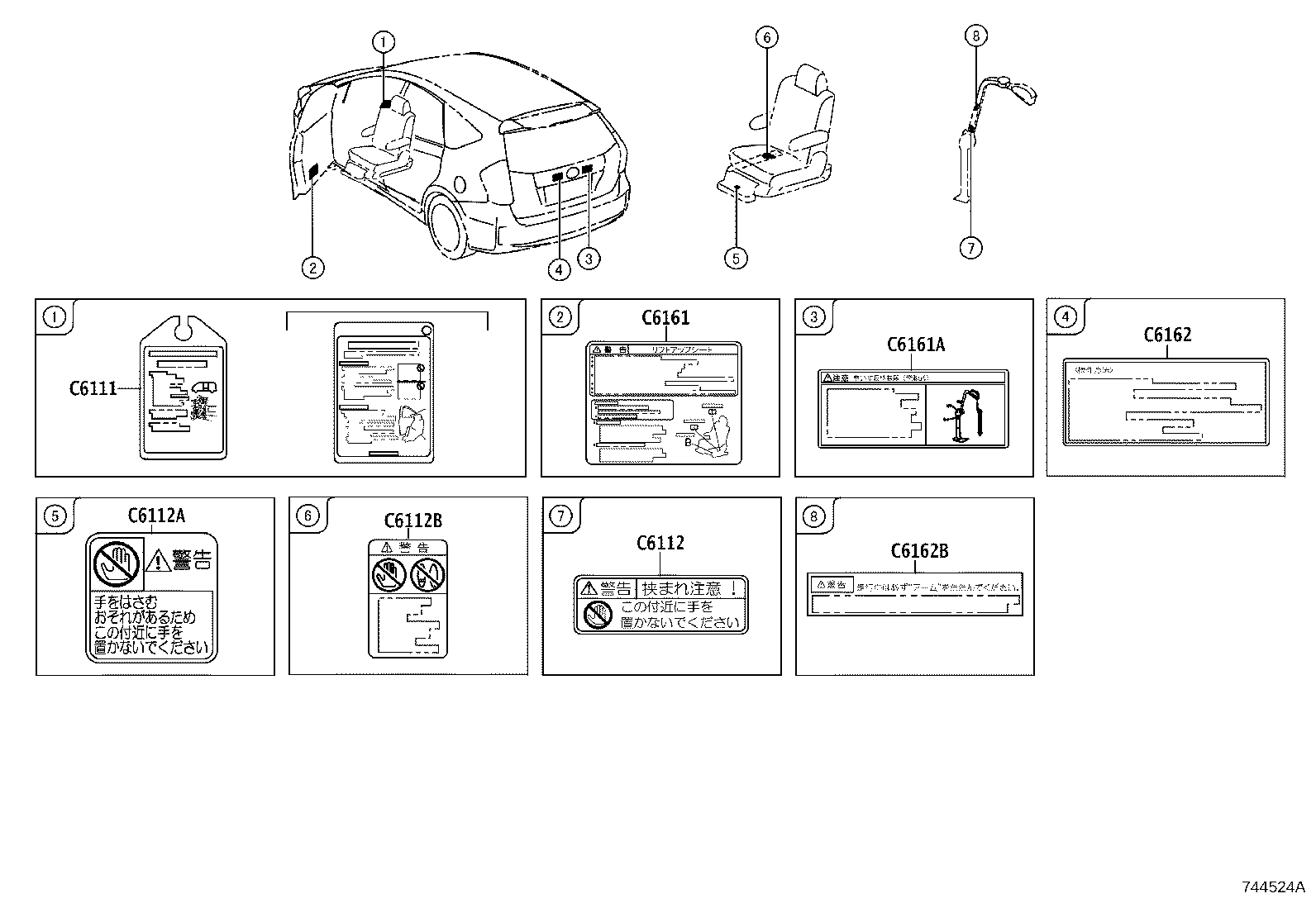

Figure 743057I 743057I 2011-04 → — Figure 745786 745786 2011-04 → — Figure 743058F 743058F 2011-04 → — Figure 744524A 744524A 2011-04 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11293D Label, Engine Caution
11296C Label, Engine Service Information
16793B Label, Cooling Fan Information
41991A Plate, Caution
46275A Label, Parking Brake Release Information, NO.1
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515A Plate, Theft Warning
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
C6216A Plate, Identification Number
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
