Toyota Carina FF

1984-05 → 1988-04 · chassis AT15#,160,ST150,162,CT150 · catalogue 231110 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

34 part groups · 7 illustrations

Illustrations

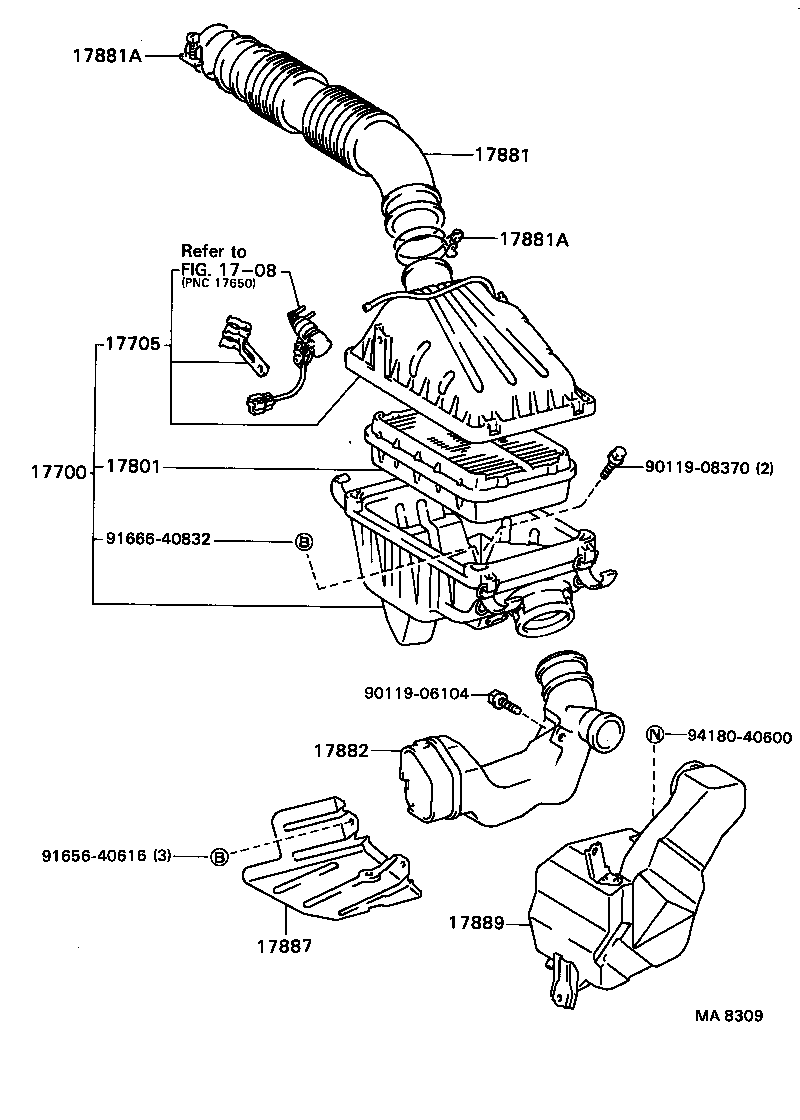

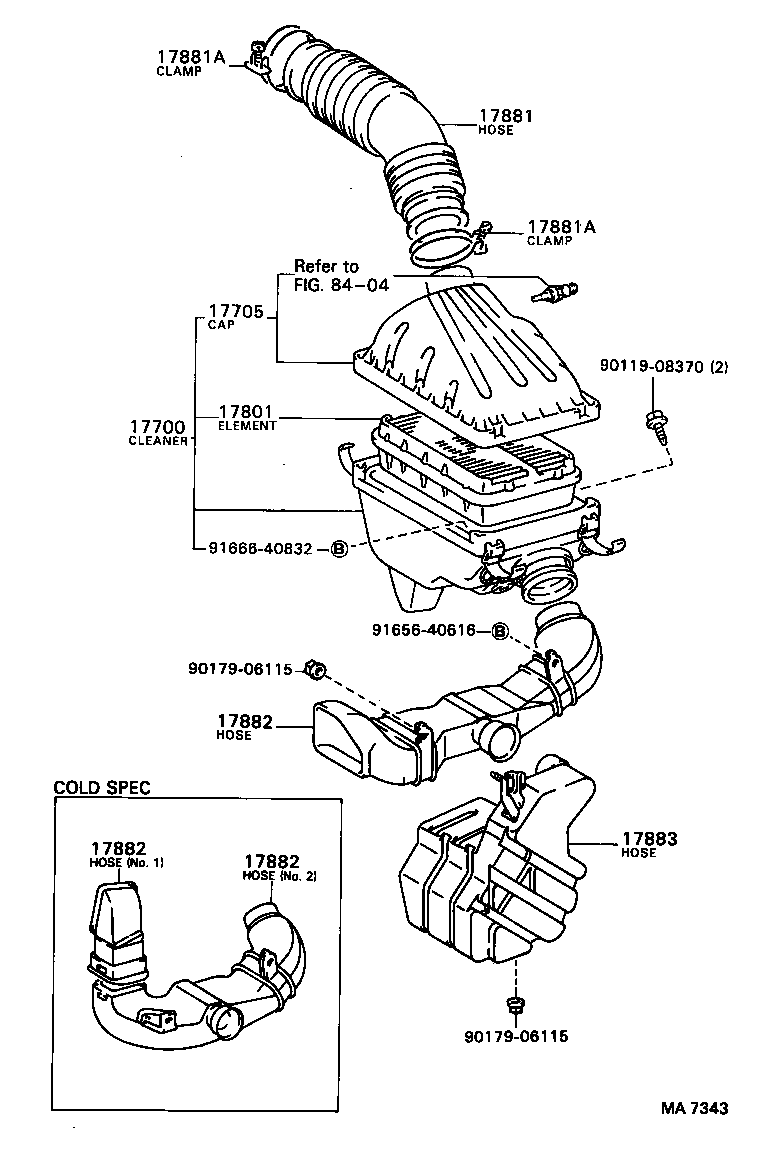

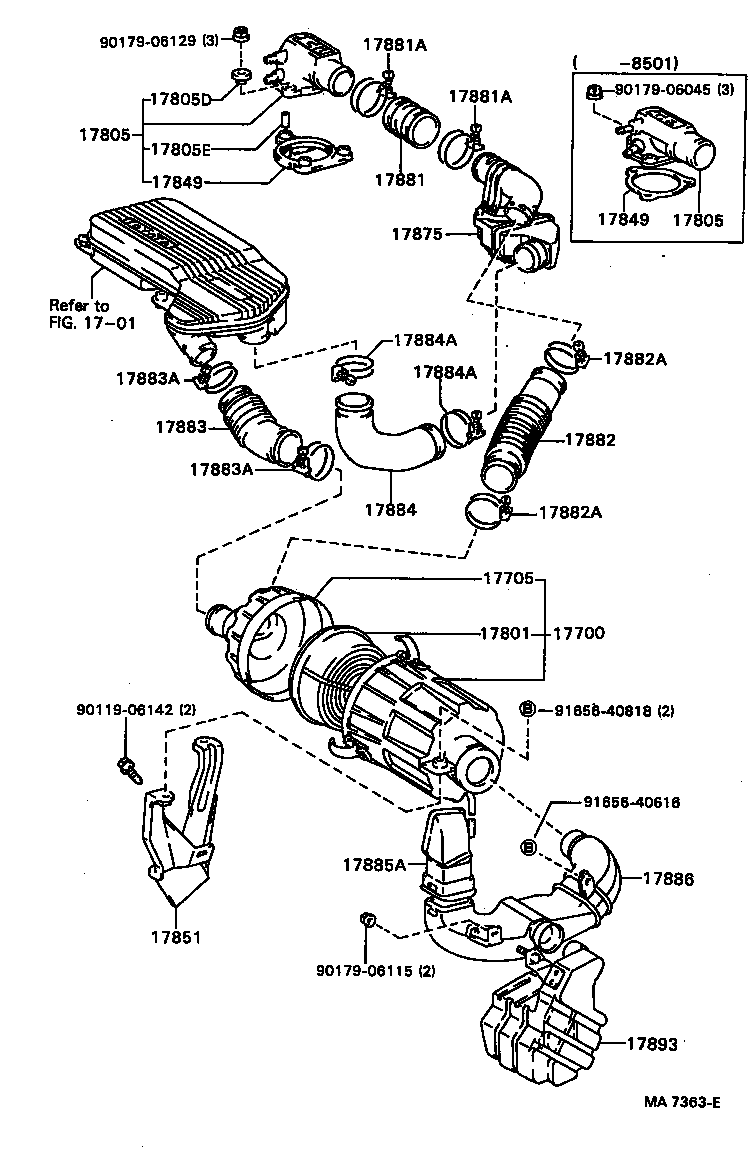

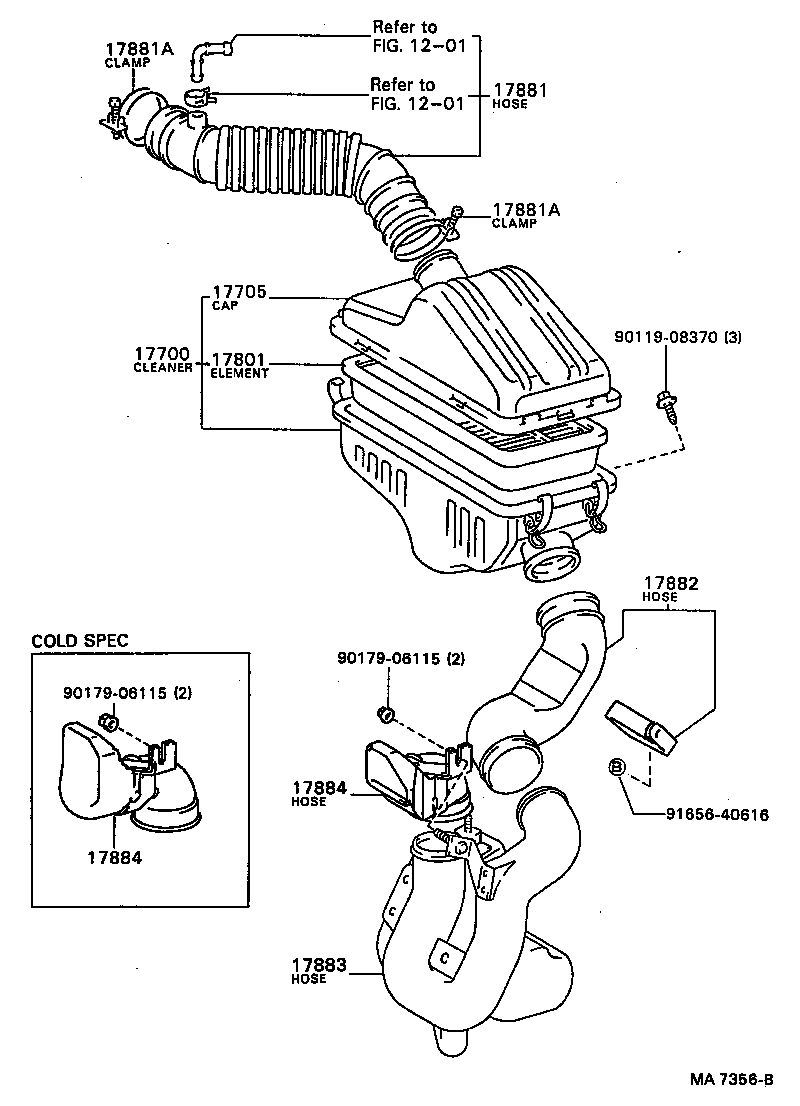

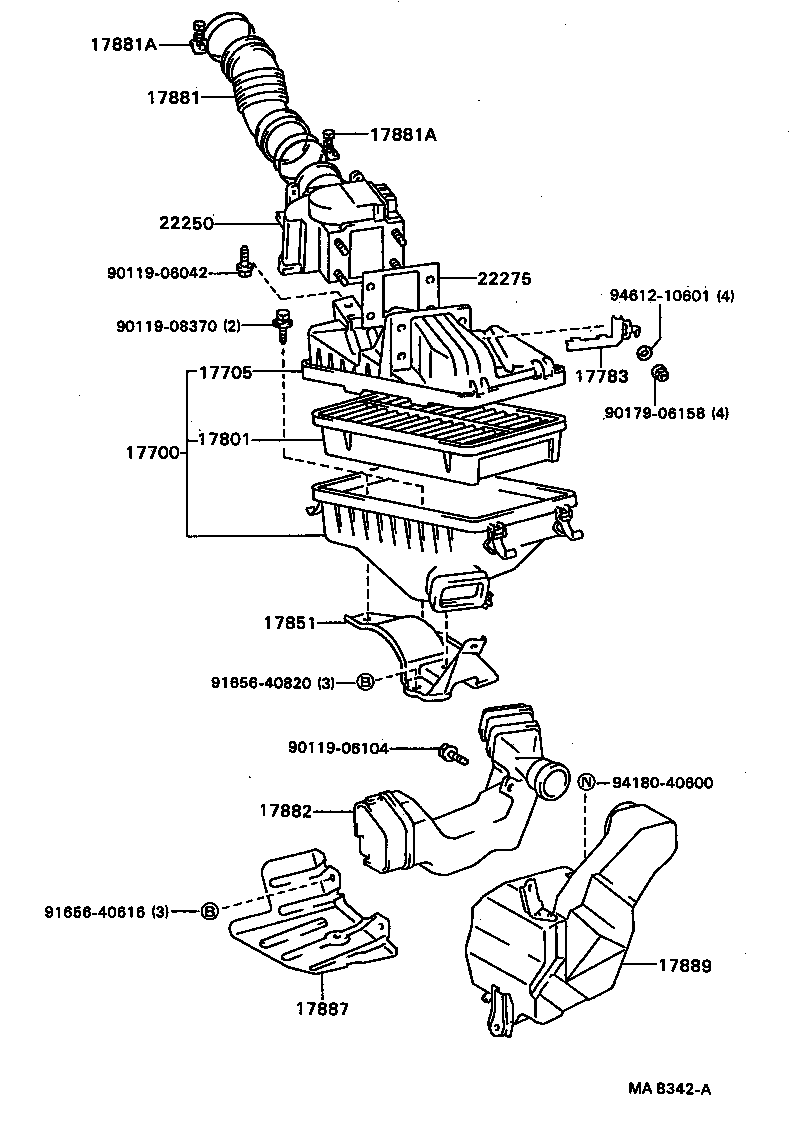

Figure MA7190B MA7190B 1984-05 → 1985-08 Figure MA8306C MA8306C 1985-08 → — Figure MA7343 MA7343 1984-05 → — Figure MA8309 MA8309 1985-08 → — Figure MA7356B MA7356B 1984-05 → — Figure MA7363E MA7363E 1984-05 → — Figure MA8342A MA8342A 1985-08 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17728 Valve, Thermostatic
17783 Plate, Air Cleaner Baffle
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805D Grommet(FOR INTAKE AIR CONNECTOR)
17805E Collar(FOR INTAKE AIR CONNECTOR)
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17849 Gasket, Intake Air Connector
17851 Bracket, Air Cleaner Support
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17884A Clamp(FOR AIR CLEANER HOSE, NO.4)
17885A Hose, Air Cleaner, NO.5
17886 Hose, Air Cleaner, NO.6
17887 Cover, Air Cleaner Hose
17889 Box, Air Cleaner Hose, NO.2
17893 Resonator, Intake Air
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
25704 Valve Sub-assy, Electric Air Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
