Toyota Carina FF
1984-05 → 1988-04 · chassis AT15#,160,ST150,162,CT150 · catalogue 231110 · Japan
Discontinued model
Data version 1989-02

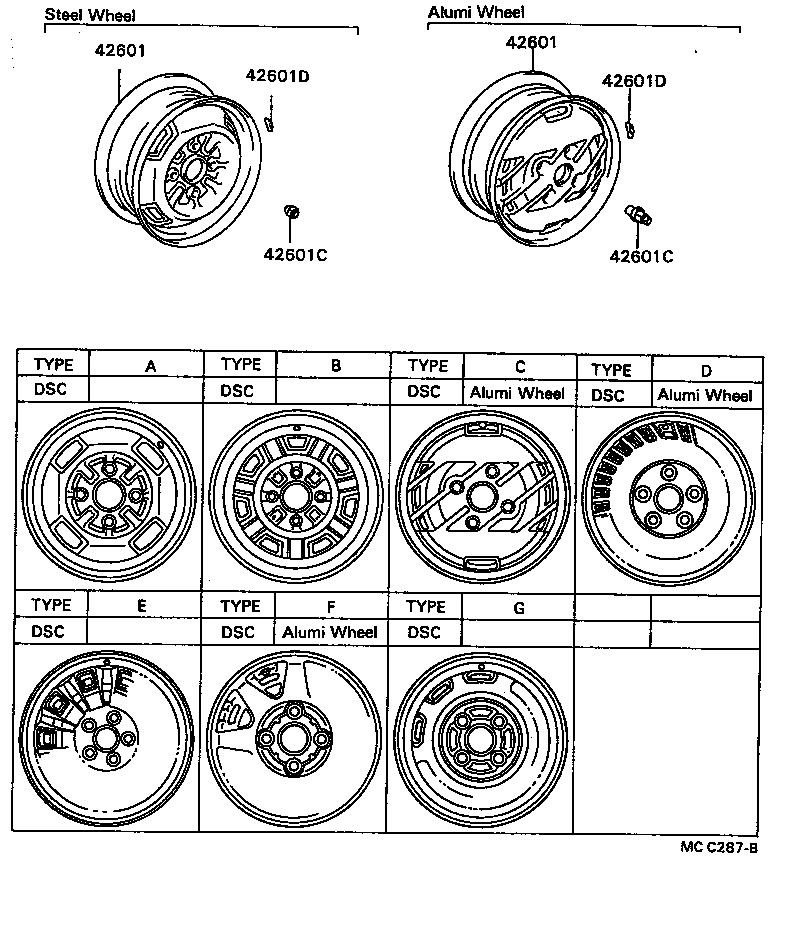

Disc Wheel & Wheel Cap
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 42601 | Wheel, Disc |
| 42601C | Nut, Hub (FOR AXLE) |
| 42601D | Weight, Balance (FOR DISC WHEEL) |
| 42603 | Ornament Sub-assy, Wheel Hub |
| 42611A | Tire Tube Set OR Tubeless Tire |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42621 | Cap, Wheel |
| 42644A | Holder, Wheel Hub |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
