Toyota Carina FF

1984-05 → 1988-04 · chassis AT15#,160,ST150,162,CT150 · catalogue 231110 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

22 part groups · 7 illustrations

Illustrations

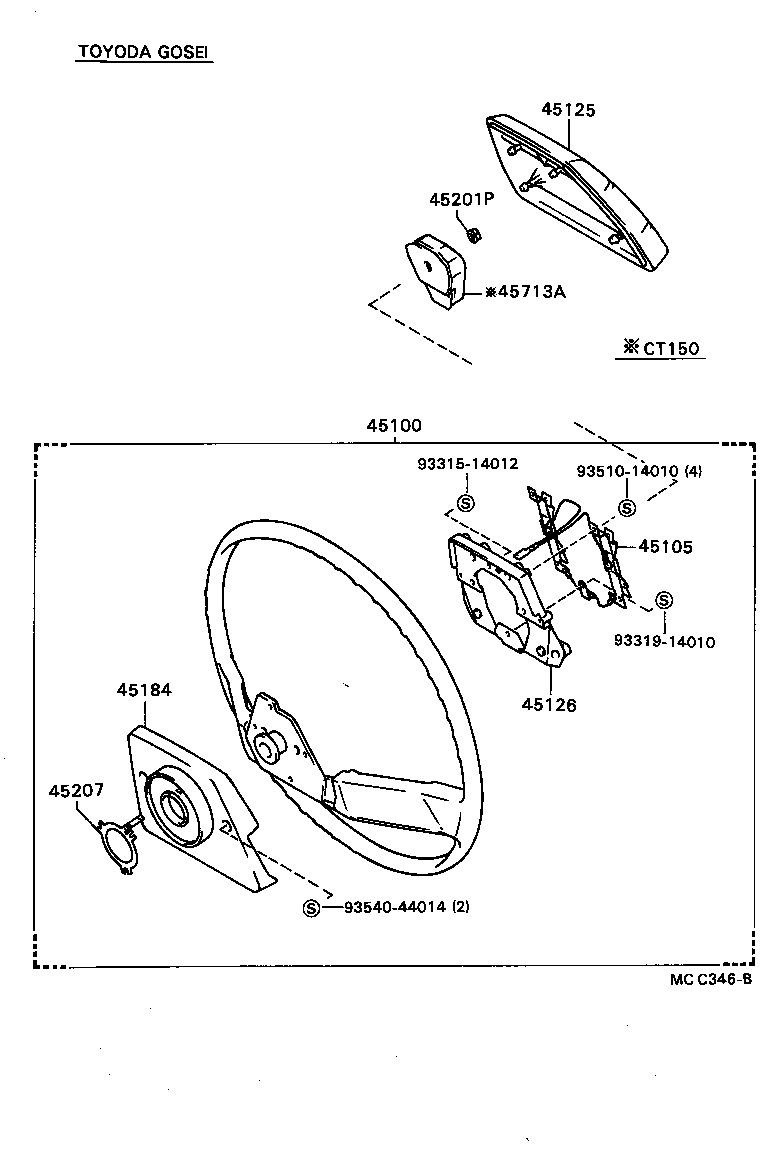

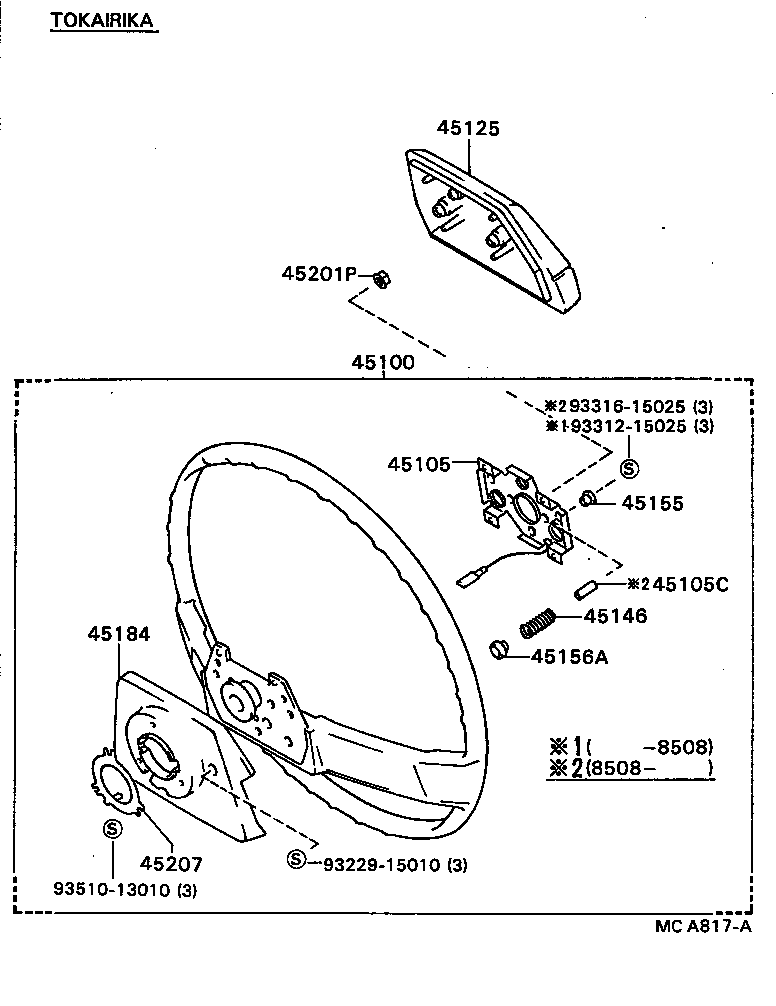

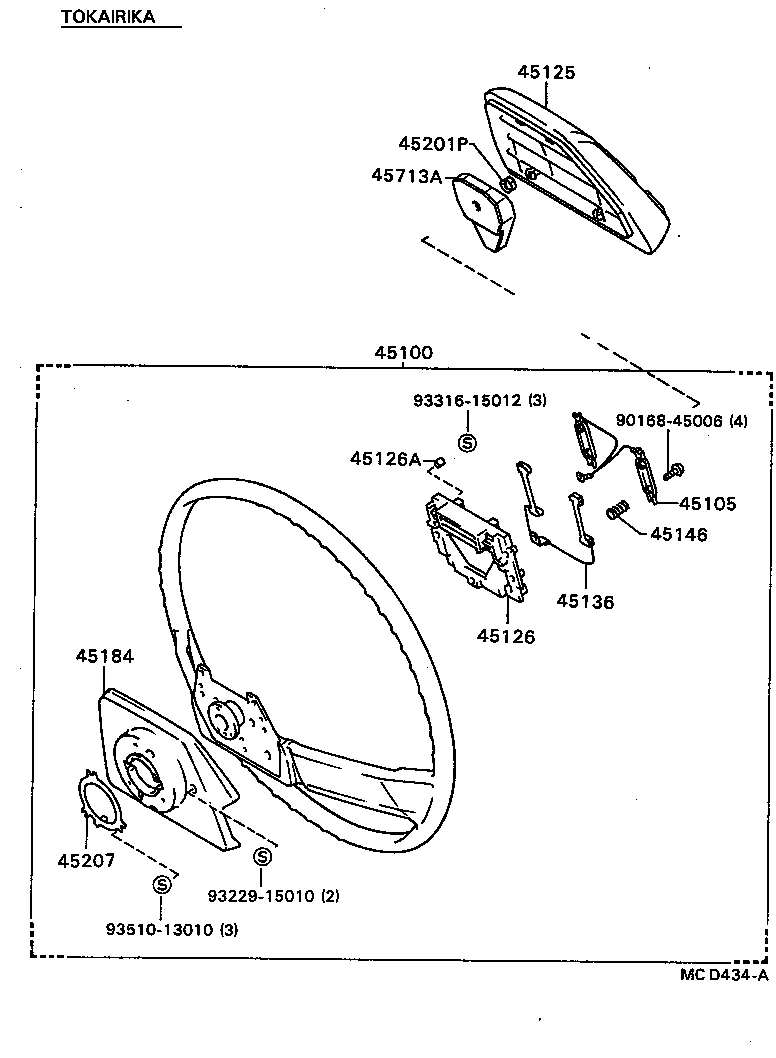

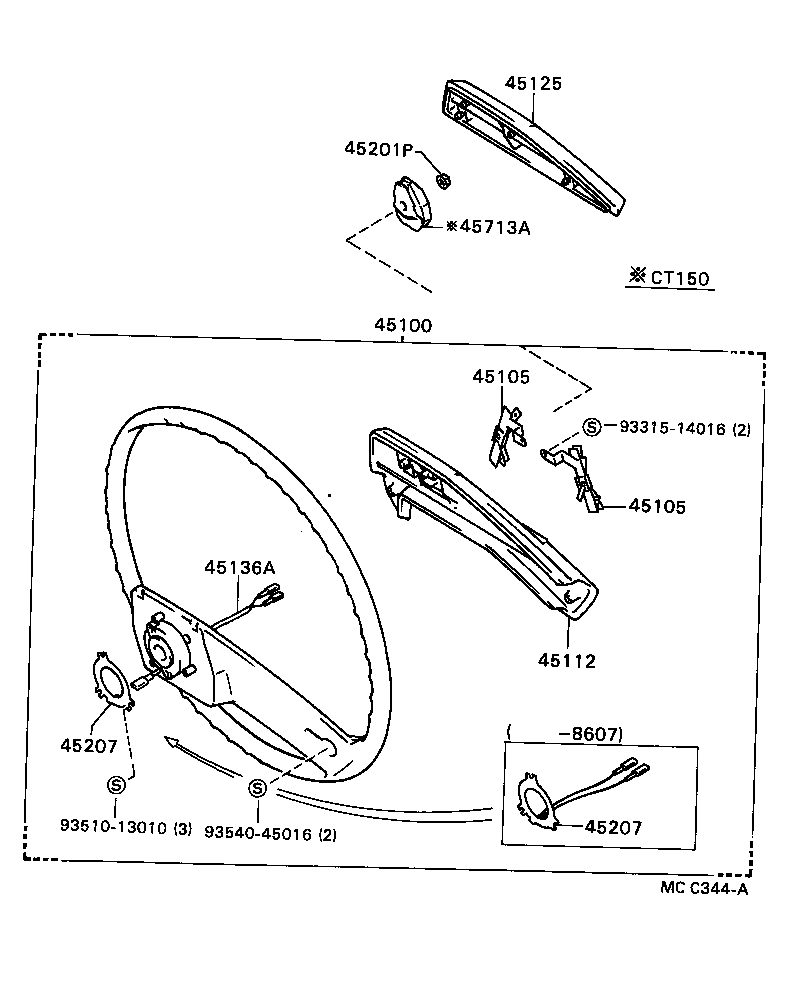

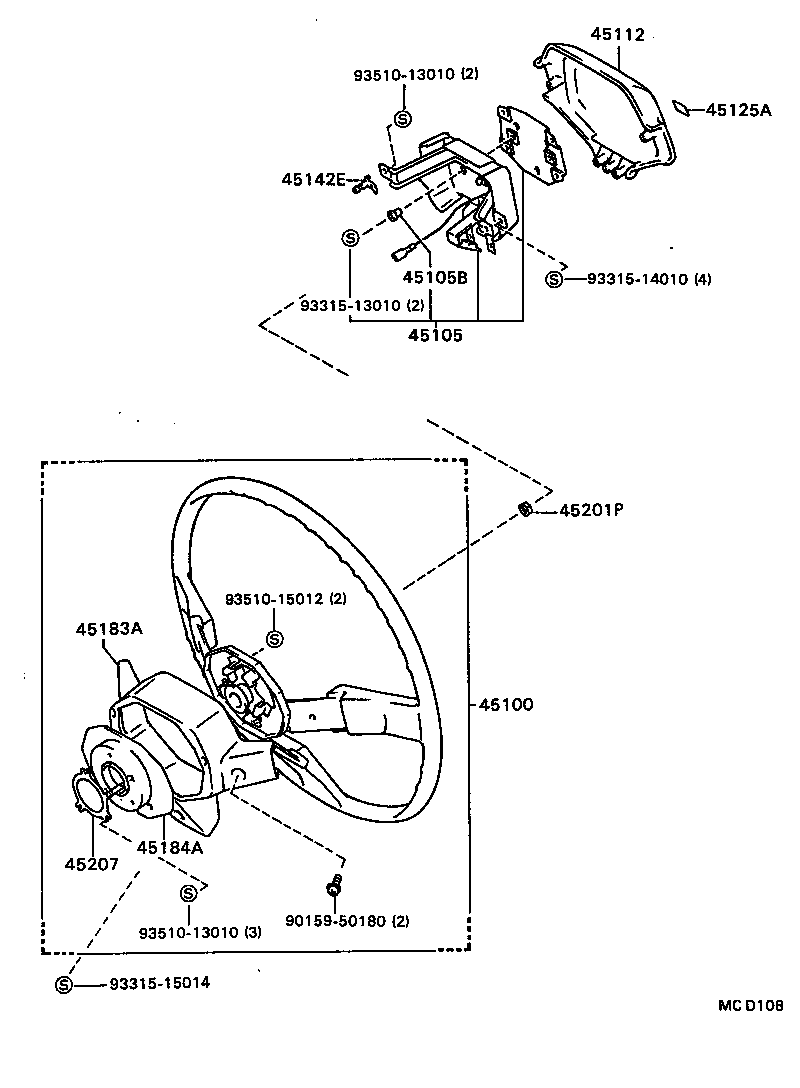

Figure MCA816 MCA816 1984-05 → 1986-05 Figure MCC344A MCC344A 1986-05 → — Figure MCA817A MCA817A 1984-05 → 1986-05 Figure MCA818 MCA818 1984-05 → 1986-05 Figure MCD434A MCD434A 1986-05 → — Figure MCC346B MCC346B 1986-05 → — Figure MCD108 MCD108 1985-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45105C Collar(FOR HORN BUTTON CONTACT PLATE)
45112 Pad, Steering Wheel
45125 Mark, Steering Wheel Pad
45125A Mark, Horn
45126 Plate, Steering Wheel Pad Set
45126A Collar(FOR STEERING WHEEL PAD SET PLATE)
45130 Button Assy, Horn
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45142E Piece, Horn Contact
45146 Spring, Horn Button Contact
45155 Spacer, Horn Button Contact Plate
45156A Seat, Horn Contact Spring Set
45183A Cover, Steering Wheel Boss, Lower NO.1
45184 Cover, Steering Wheel Boss, Lower
45184A Cover, Steering Wheel Boss, Lower NO.2
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
45713A Damper, Steering Shake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
