Toyota Carina FF

1984-05 → 1988-04 · chassis AT15#,160,ST150,162,CT150 · catalogue 231110 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

17 part groups · 7 illustrations

Illustrations

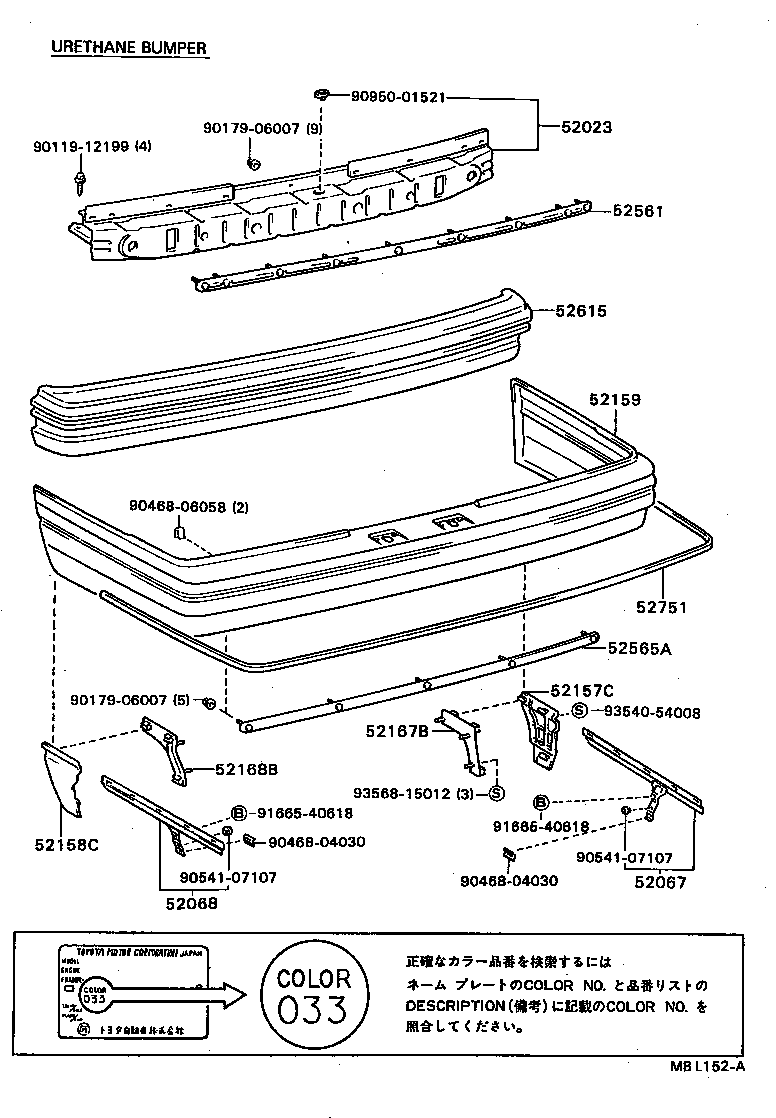

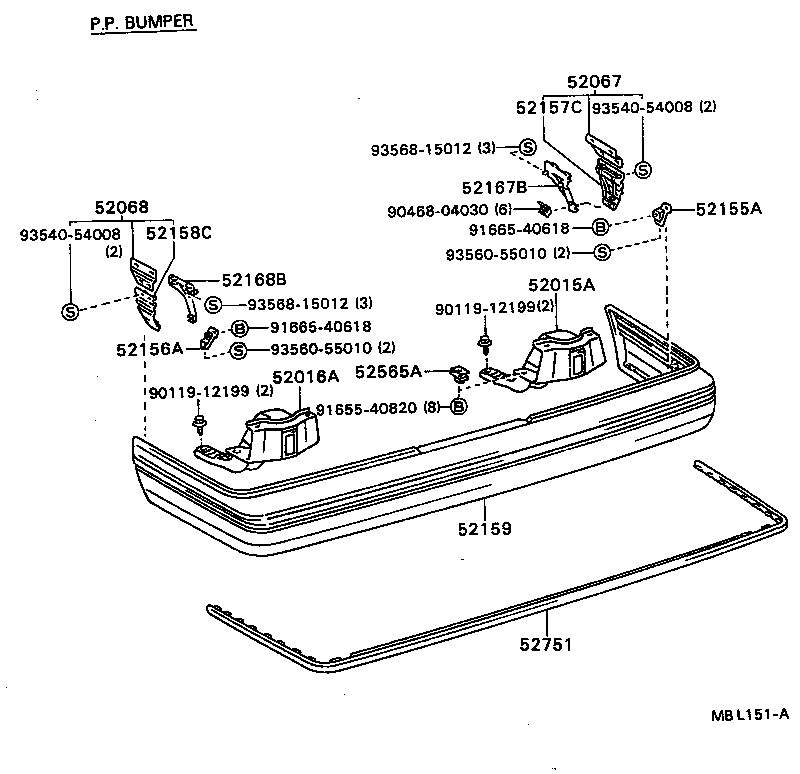

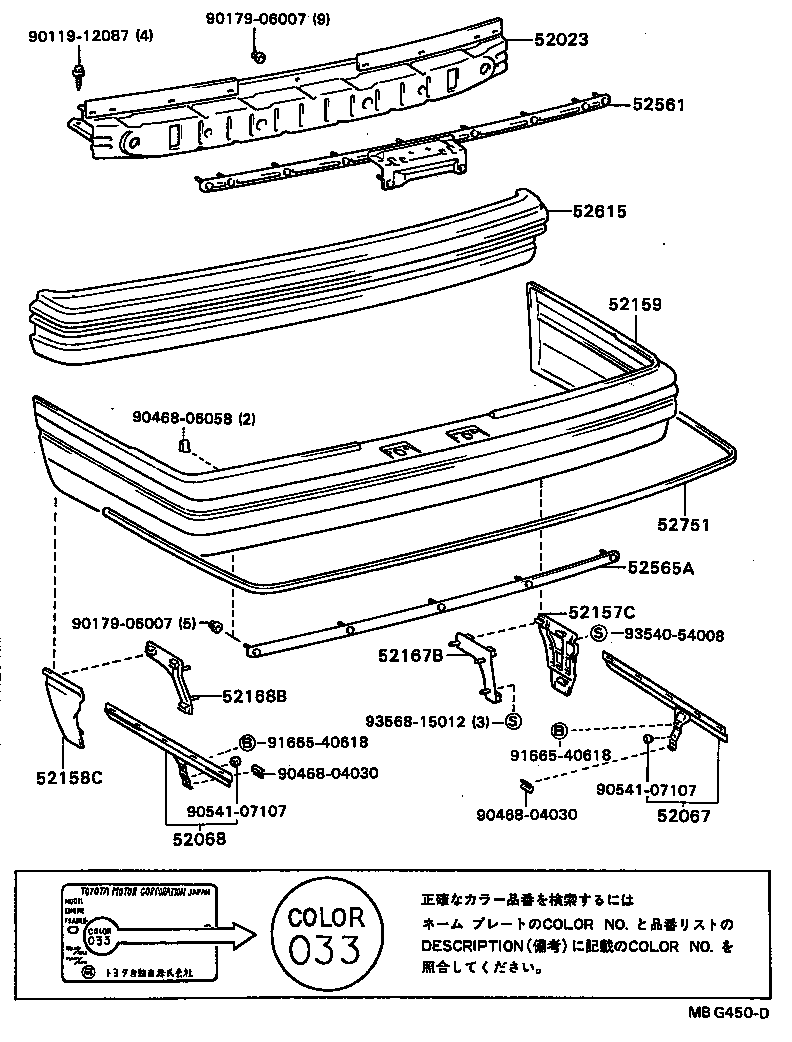

Figure MBG449E MBG449E 1984-05 → 1986-05 Figure MBG449E MBG449E 1986-05 → — Figure MBL151A MBL151A 1986-05 → — Figure MBG450D MBG450D 1984-05 → 1984-10 Figure MBG450D MBG450D 1984-10 → 1986-05 Figure MBL152A MBL152A 1986-05 → — Figure MBL152A MBL152A 1987-12 → 1988-04

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52023 Reinforcement Sub-assy, Rear Bumper
52067 Support Sub-assy, Rear Bumper Side, RH
52068 Support Sub-assy, Rear Bumper Side, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52157C Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52167B Bracket, Rear Bumper Extension Mounting, RH
52168B Bracket, Rear Bumper Extension Mounting, LH
52173B Reinforcement, Rear Bumper
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
52751 Moulding, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
