Toyota Carina FF
1984-05 → 1988-04 · chassis AT15#,160,ST150,162,CT150 · catalogue 231110 · Japan
Discontinued model
Data version 1989-02

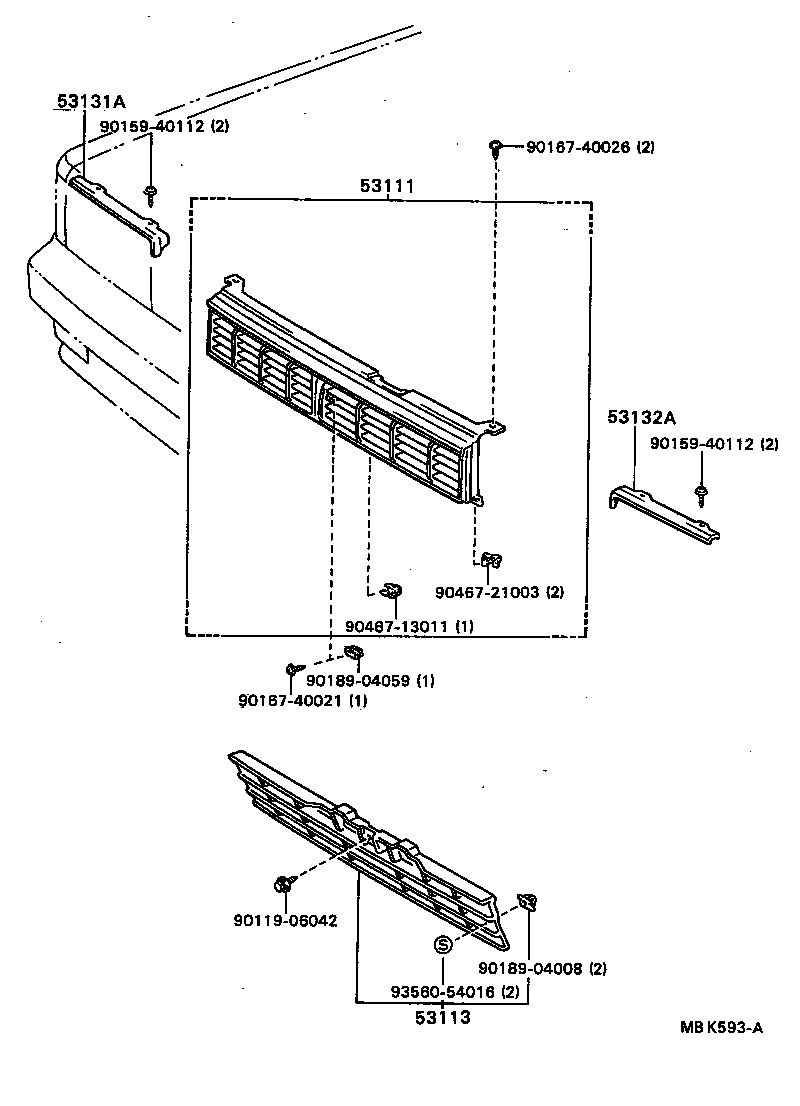

Radiator Grille
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53111 | Grille, Radiator |
| 53113 | Grille, Radiator, LH OR Lower |
| 53121B | Moulding, Radiator Grille, Upper |
| 53122A | Moulding, Radiator Grille, Lower |
| 53131A | Door, Headlamp, RH |
| 53132A | Door, Headlamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
