Toyota Carina FF

1984-05 → 1988-04 · chassis AT15#,160,ST150,162,CT150 · catalogue 231110 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

26 part groups · 2 illustrations

Illustrations

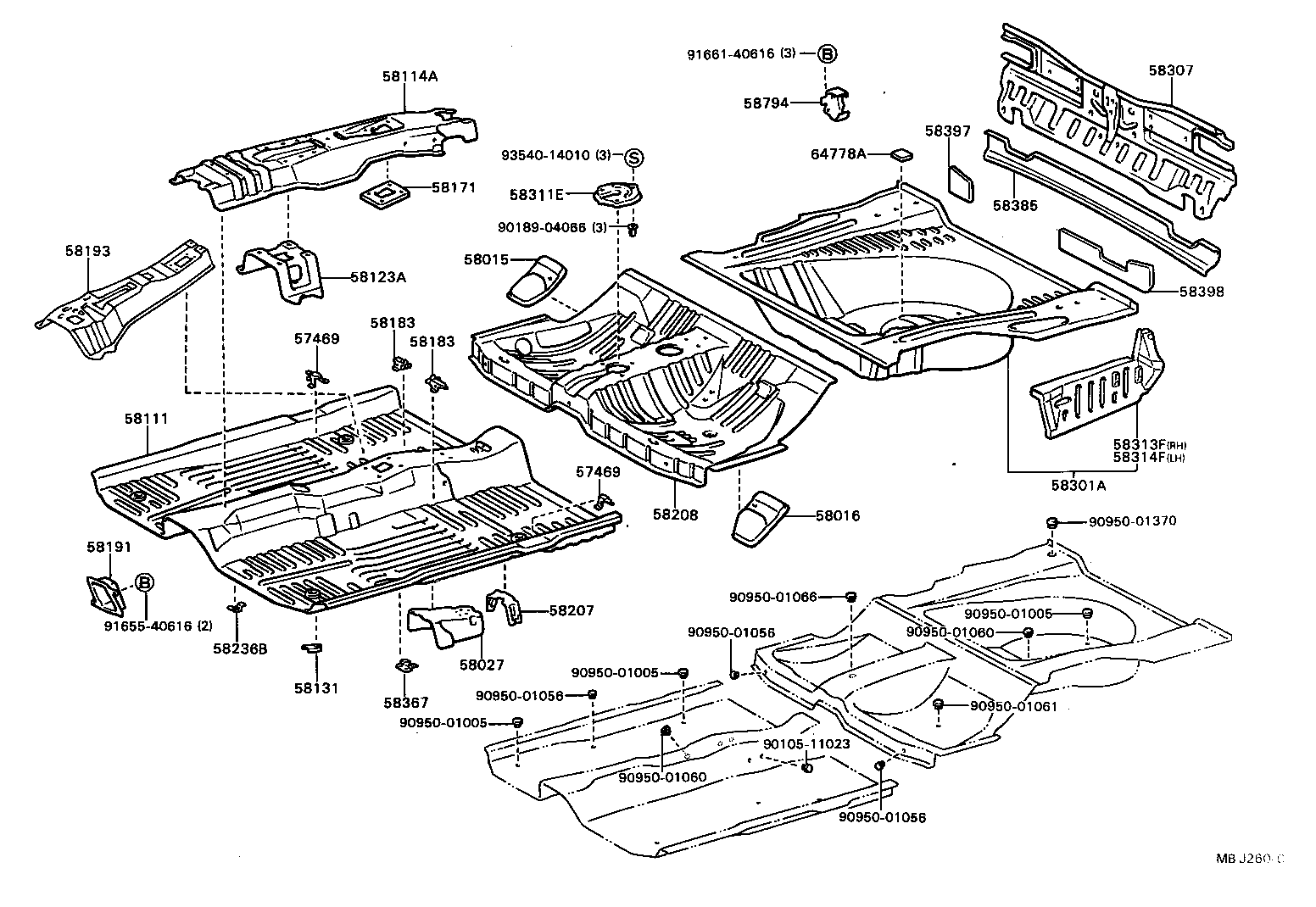

Figure MBG459E MBG459E 1984-05 → — Figure MBJ260C MBJ260C 1985-08 → —

Part groups

PNCDescription
57469 Bracket, Front Seat, Outside
58015 Reinforcement, Belt Anchor TO Floor Pan, RH
58016 Reinforcement, Belt Anchor TO Floor Pan, LH
58027 Reinforcement, Belt Anchor TO Floor Pan, NO.1
58111 Pan, Front Floor
58114A Reinforcement, Front Floor Panel
58123A Support, Shift & Select Lever
58131 Bracket, Front Floor Heat Insulator, NO.1
58171 Reinforcement, Parking Brake Base
58183 Bracket, Front Seat Mounting, Inner
58191 Footrest, Front Floor
58193 Bracket, Instrument Panel Brace Mounting
58207 Bracket Sub-assy, Parking Brake Cable, NO.1
58208 Pan, Center Floor
58236B Bracket, Center Floor Heat Insulator
58301A Panel Sub-assy, Rear Floor
58307 Panel Sub-assy, Body Lower Back
58311E Cover, Rear Floor Service Hole
58313F Extension, Rear Floor Pan TO Quarter Panel, RH
58314F Extension, Rear Floor Pan TO Quarter Panel, LH
58367 Bracket, Fuel Tube Clamp
58385 Panel, Rear Valance
58397 Cover, Lower Back, Outer RH
58398 Cover, Lower Back, Outer LH
58794 Carrier, Jack
64778A Protector, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
