Toyota Carina FF

1984-05 → 1988-04 · chassis AT15#,160,ST150,162,CT150 · catalogue 231110 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

11 part groups · 2 illustrations

Illustrations

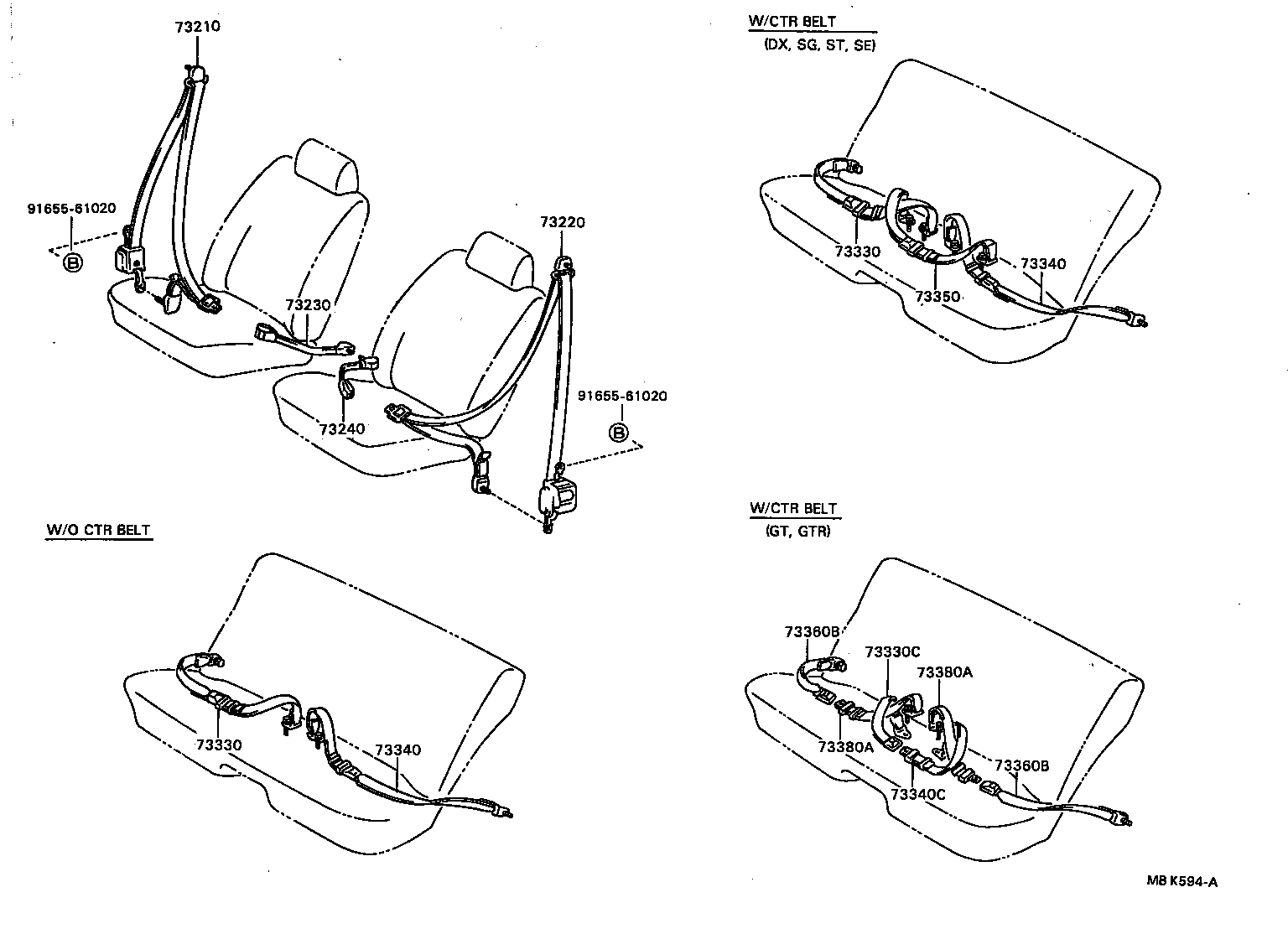

Figure MBG486A MBG486A 1984-05 → 1986-05 Figure MBK594A MBK594A 1986-05 → —

Part groups

PNCDescription
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73330C Belt Assy, Rear Seat Lap Type, Center RH
73340 Belt Assy, Rear Seat Lap Type, LH
73340C Belt Assy, Rear Seat Lap Type, Center LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360B Belt Assy, Rear Seat, Outer
73380A Belt Assy, Rear Seat, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
