Toyota Carina FF

1984-05 → 1988-04 · chassis AT15#,160,ST150,162,CT150 · catalogue 231110 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

27 part groups · 2 illustrations

Illustrations

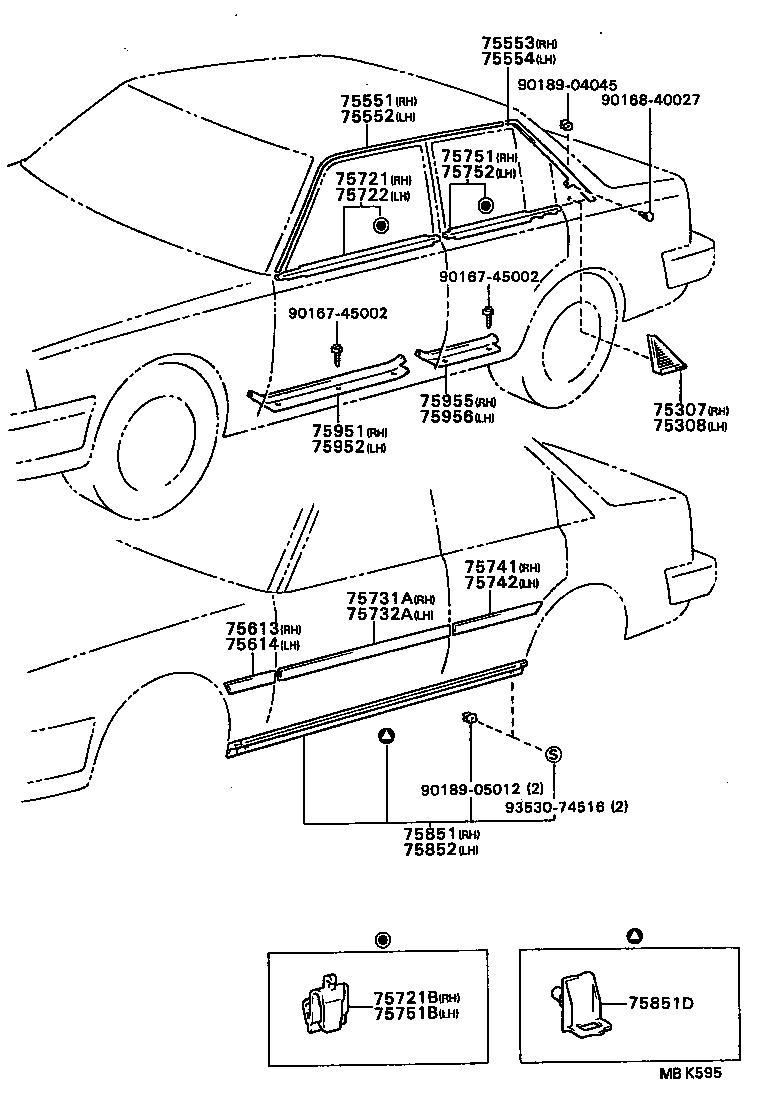

Figure MBG493A MBG493A 1984-05 → 1986-05 Figure MBK595 MBK595 1986-05 → —

Part groups

PNCDescription
75307 Ornament Sub-assy, Quarter Panel, RH
75308 Ornament Sub-assy, Quarter Panel, LH
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75553 Moulding, Roof Drip Side Finish, RH
75554 Moulding, Roof Drip Side Finish, LH
75613 Moulding, Front Fender, Outside RH
75614 Moulding, Front Fender, Outside LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75721 Moulding, Front Door Belt, RH
75721B Clip(FOR FRONT DOOR BELT MOULDING SET)
75722 Moulding, Front Door Belt, LH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75751 Moulding, Rear Door Belt, RH
75751B Clip (FOR REAR DOOR BELT MOULDING SET)
75752 Moulding, Rear Door Belt, LH
75851 Moulding, Rocker Panel, RH
75851D Clip(FOR ROCKER PANEL MOULDING SET)
75852 Moulding, Rocker Panel, LH
75951 Plate, Front Door Scuff, Outside RH
75952 Plate, Front Door Scuff, Outside LH
75955 Plate, Rear Door Scuff, Outside RH
75956 Plate, Rear Door Scuff, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
