Toyota Carina FF

1984-05 → 1988-04 · chassis AT15#,160,ST150,162,CT150 · catalogue 231110 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

12 part groups · 2 illustrations

Illustrations

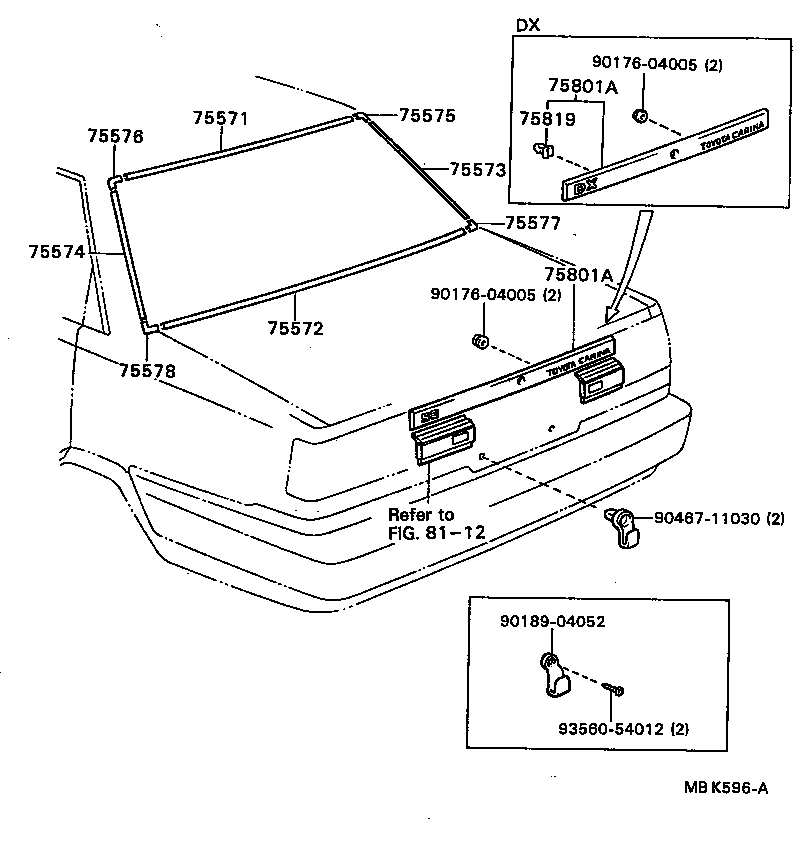

Figure MBG494C MBG494C 1984-05 → 1986-05 Figure MBK596A MBK596A 1986-05 → —

Part groups

PNCDescription
75083 Panel Sub-assy, Lower Back Finish, RH
75084 Panel Sub-assy, Lower Back Finish, LH
75571 Moulding, Back Window, Outside Upper
75572 Moulding, Back Window, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75575 Moulding, Back Window Corner, Upper RH
75576 Moulding, Back Window Corner, Upper LH
75577 Moulding, Back Window Corner, Lower RH
75578 Moulding, Back Window Corner, Lower LH
75801A Moulding Sub-assy, Luggage Compartment Door
75819 Clip, Luggage Compartment Door Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
