Toyota Carina FF

1984-05 → 1988-04 · chassis AT15#,160,ST150,162,CT150 · catalogue 231110 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

32 part groups · 14 illustrations

Illustrations

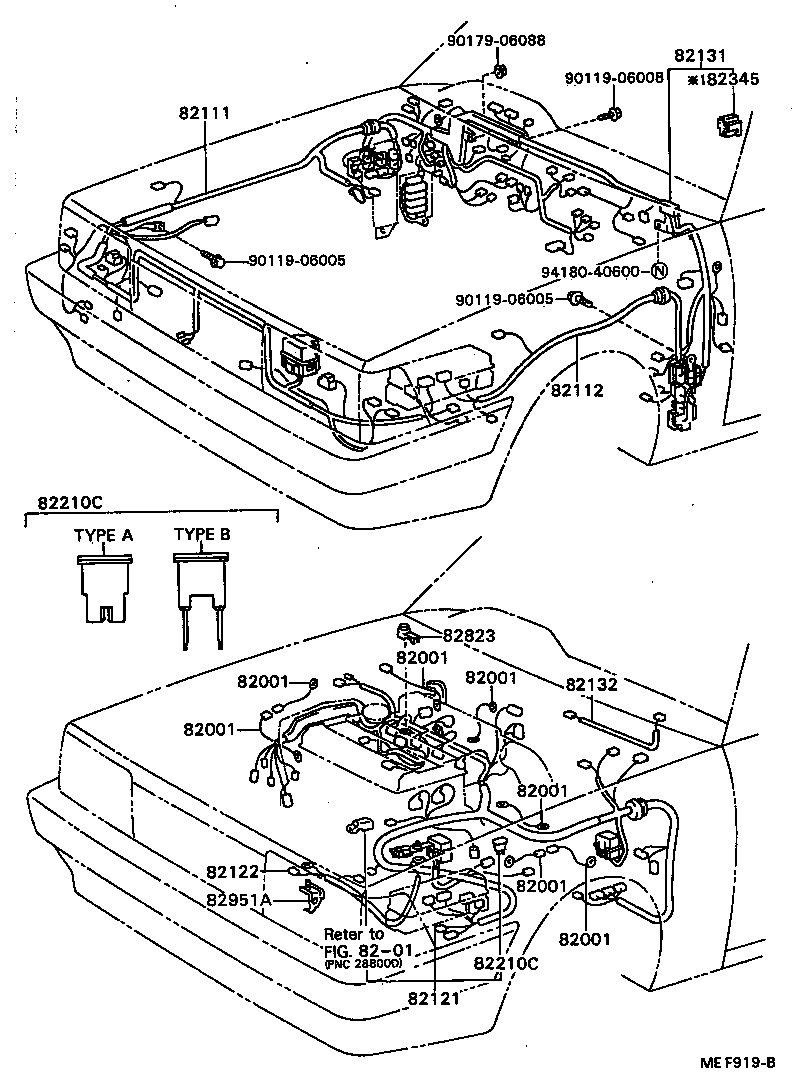

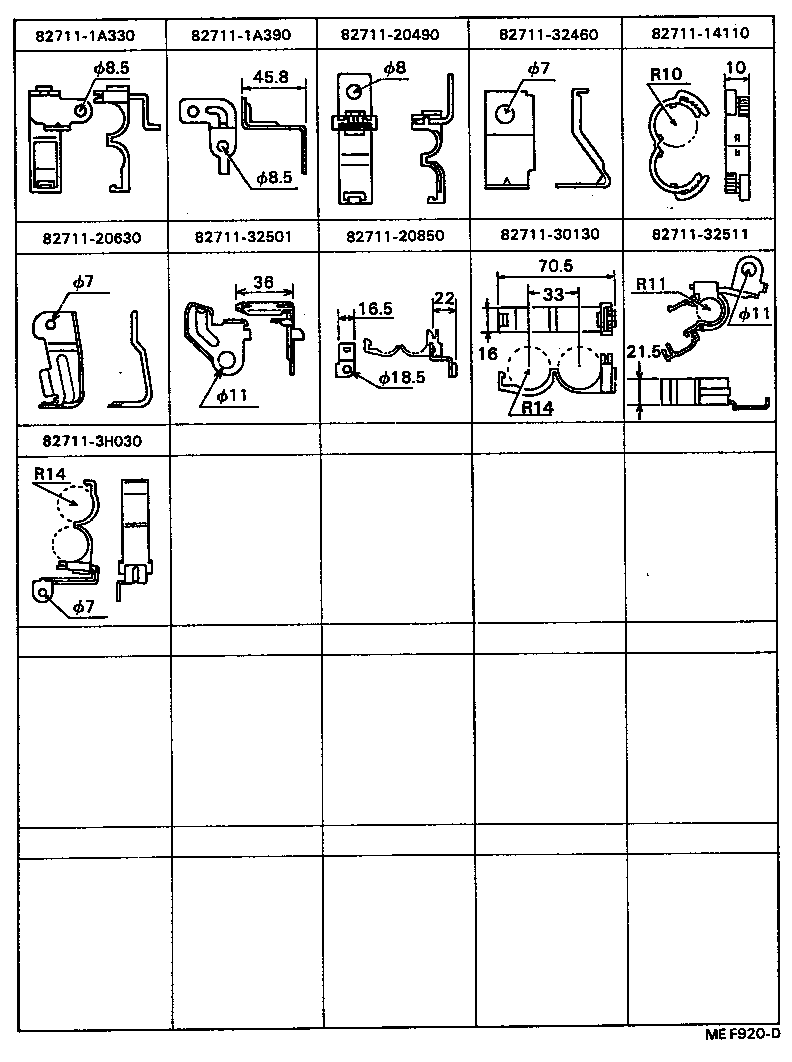

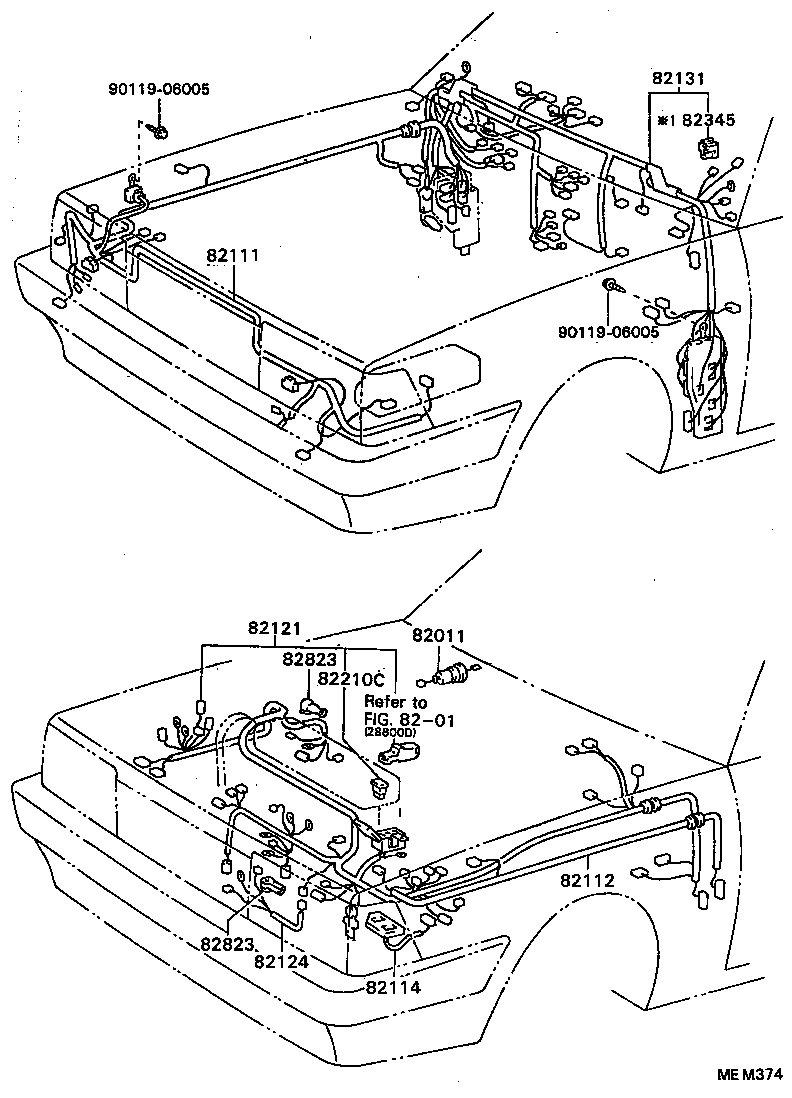

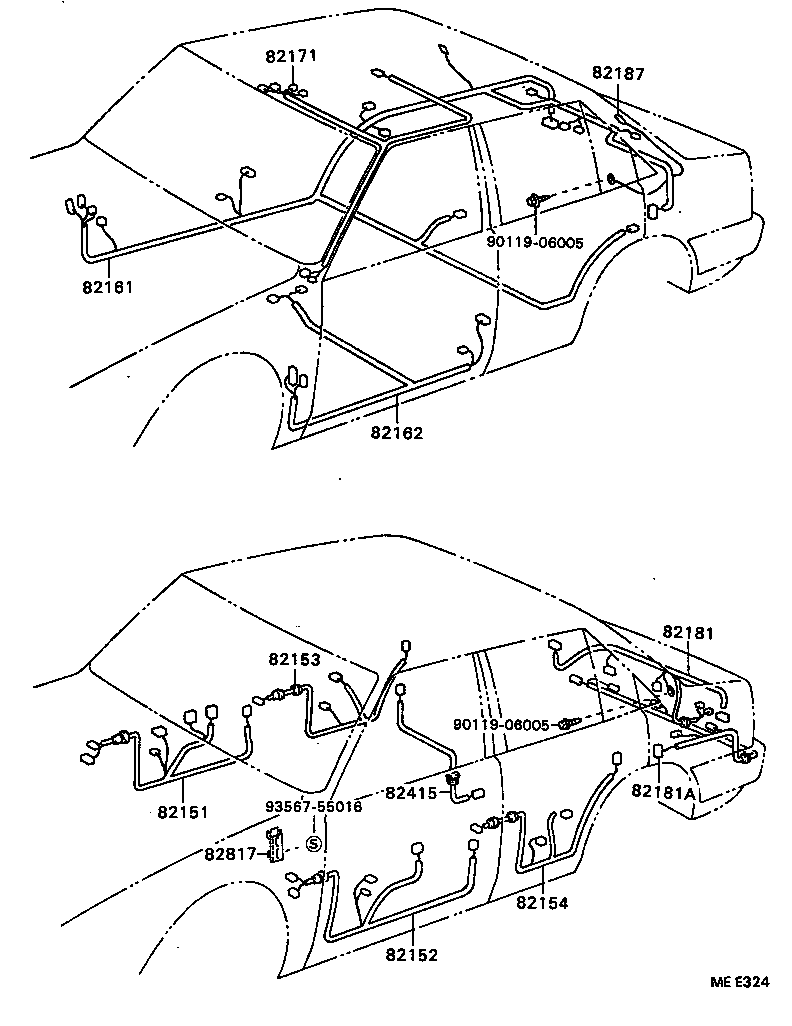

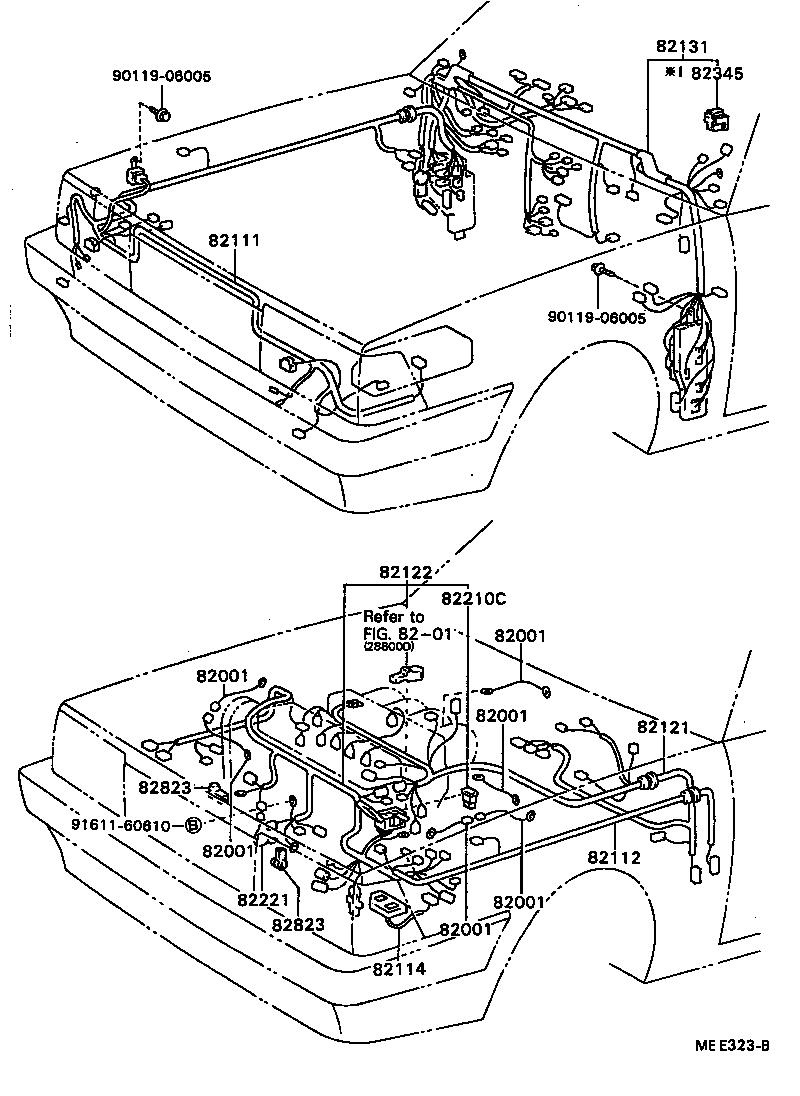

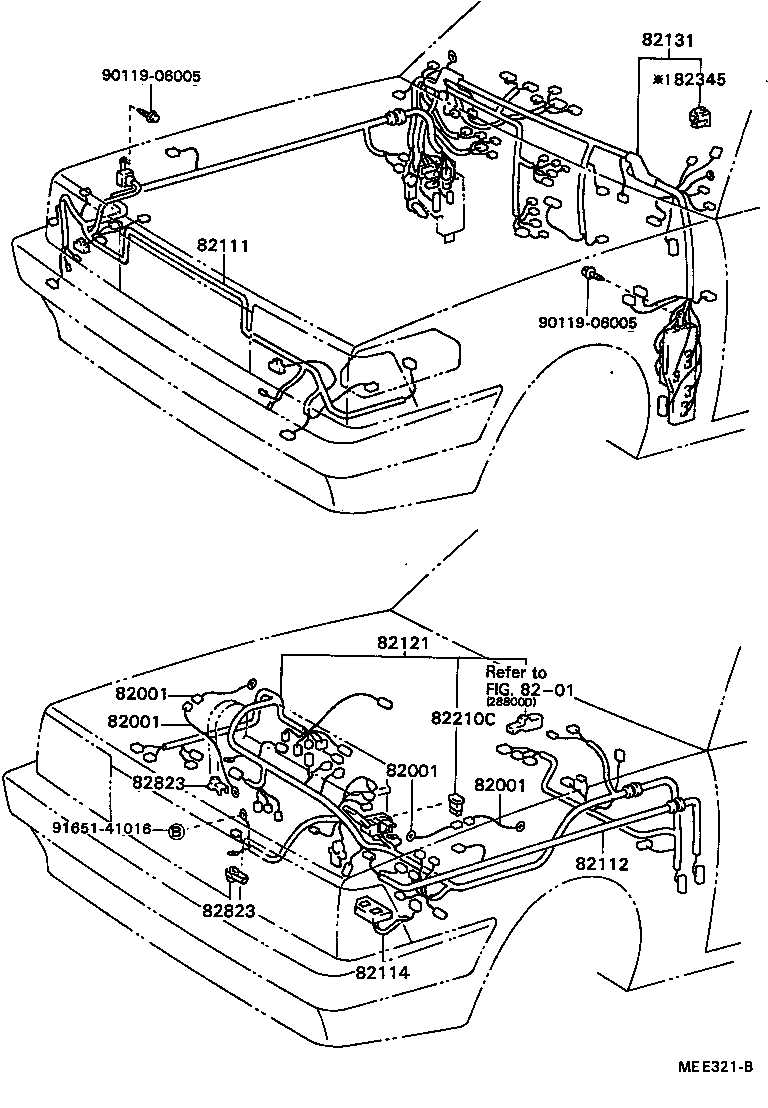

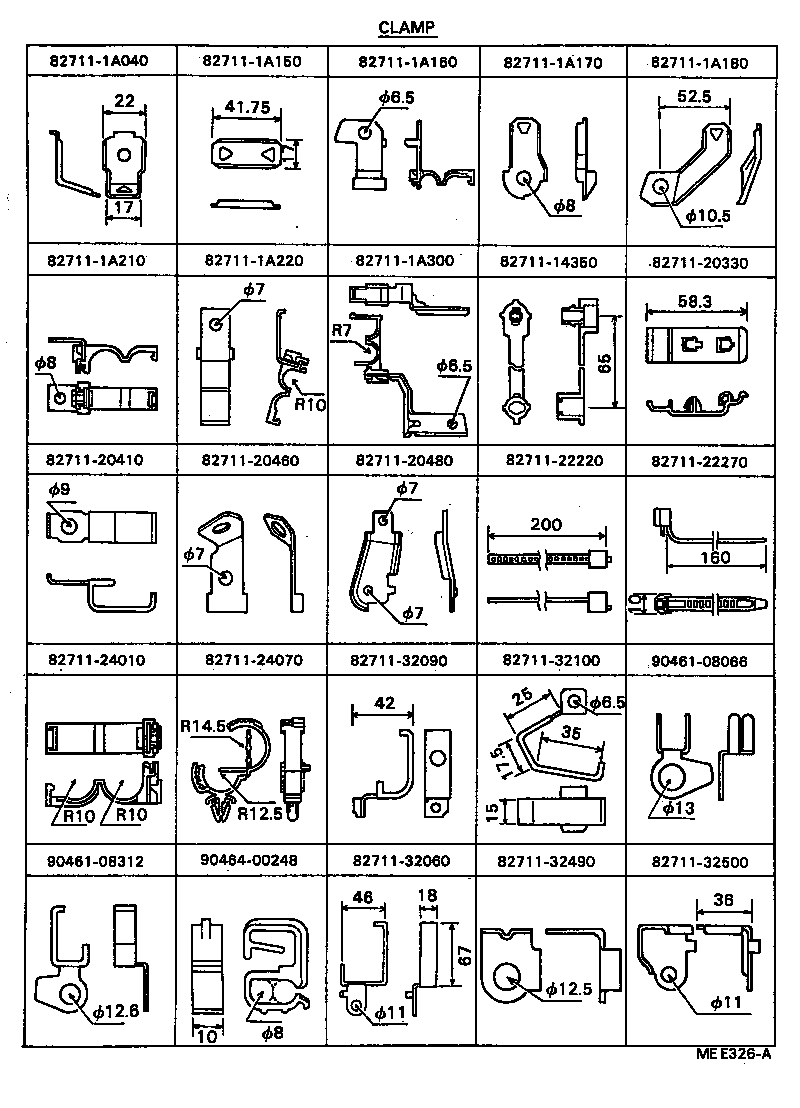

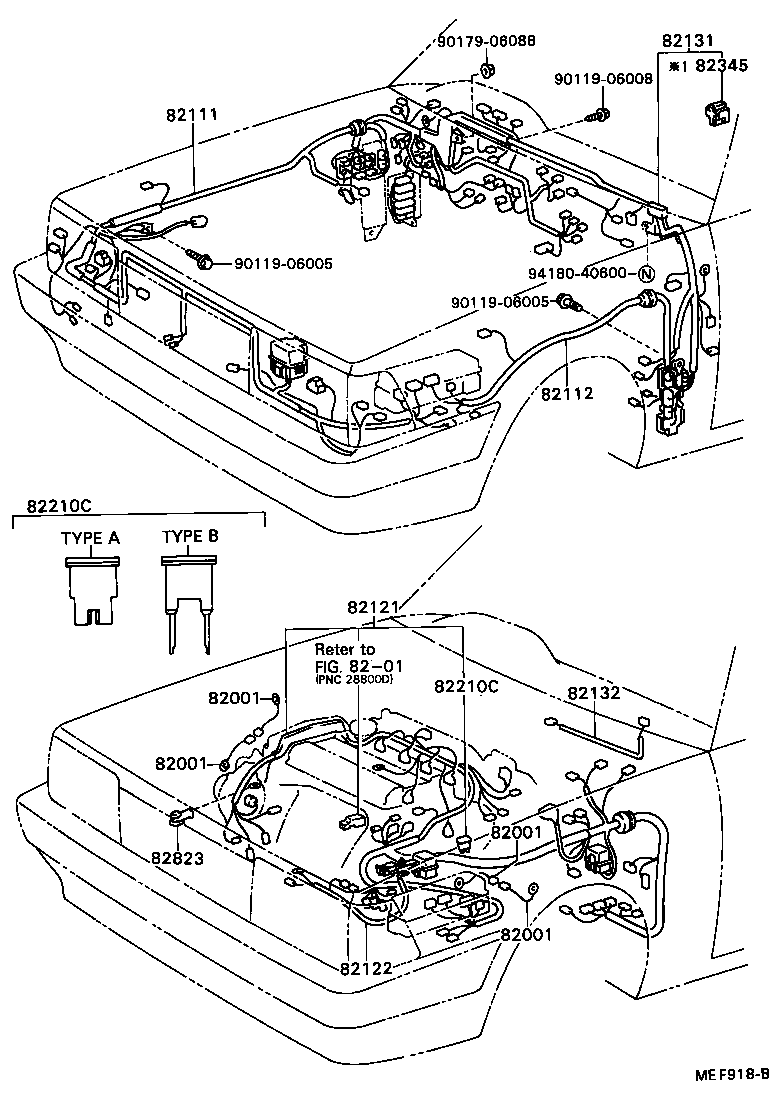

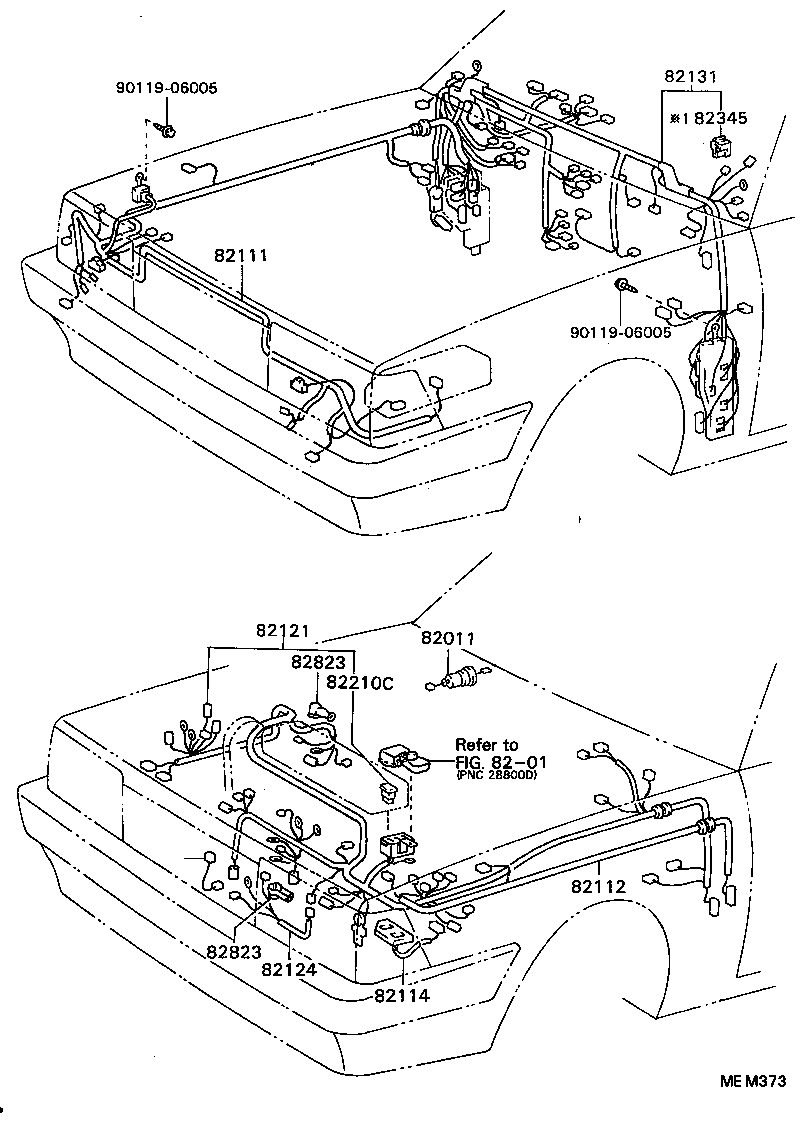

Figure MEE320C MEE320C 1984-05 → — Figure MEE323B MEE323B 1984-05 → — Figure MEF919B MEF919B 1985-08 → — Figure MEE321B MEE321B 1984-05 → — Figure MEF918B MEF918B 1985-08 → — Figure MEM373 MEM373 1985-08 → 1986-10 Figure MEM374 MEM374 1986-10 → — Figure MEJ139 MEJ139 1984-05 → — Figure MEE324 MEE324 1984-05 → — Figure MEE325 MEE325 1984-05 → — Figure MEE472 MEE472 1984-05 → — Figure MEE326A MEE326A 1984-05 → — Figure MEF920D MEF920D 1984-05 → — Figure MEE327 MEE327 1984-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82181A Wire, Luggage Room, NO.2
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82221 Wire, Oil Pressure Switch
82345 Diode
82415 Wire, Fuel Pump
82817 Protector, Wiring Harness, NO.1
82823 Cap, Terminal, NO.1
82951A Bracket, Terminal

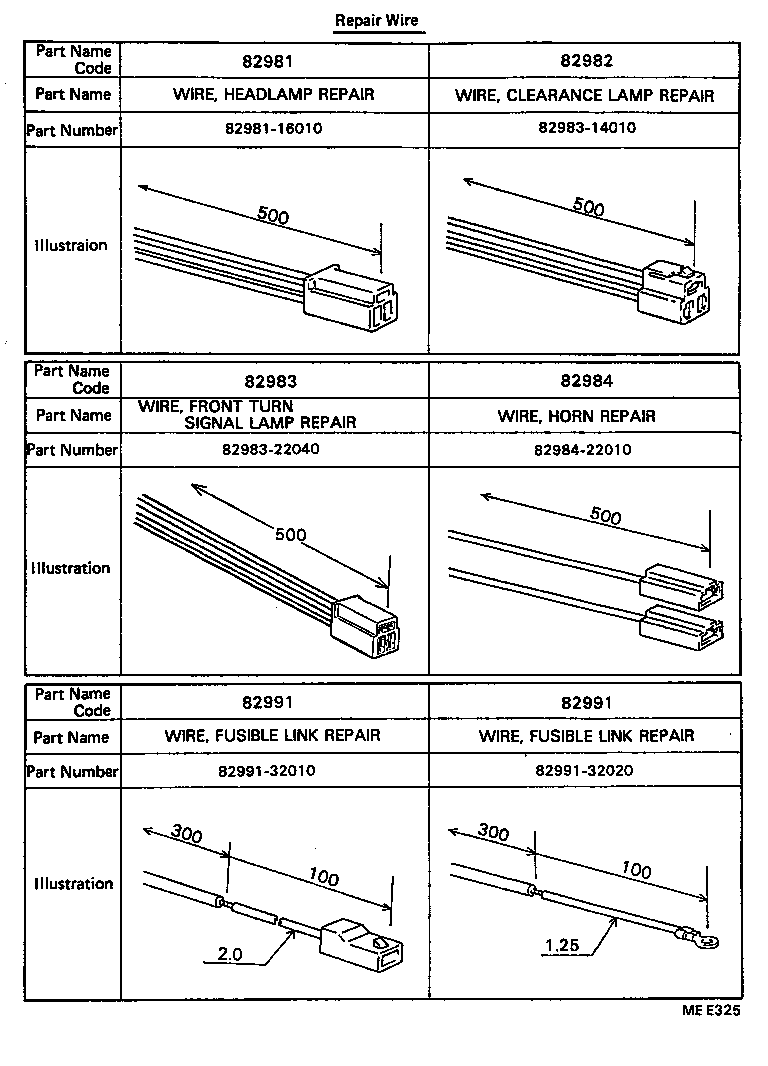

82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
