Toyota Carina FF

1984-05 → 1988-04 · chassis AT15#,160,ST150,162,CT150 · catalogue 231110 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

26 part groups · 7 illustrations

Illustrations

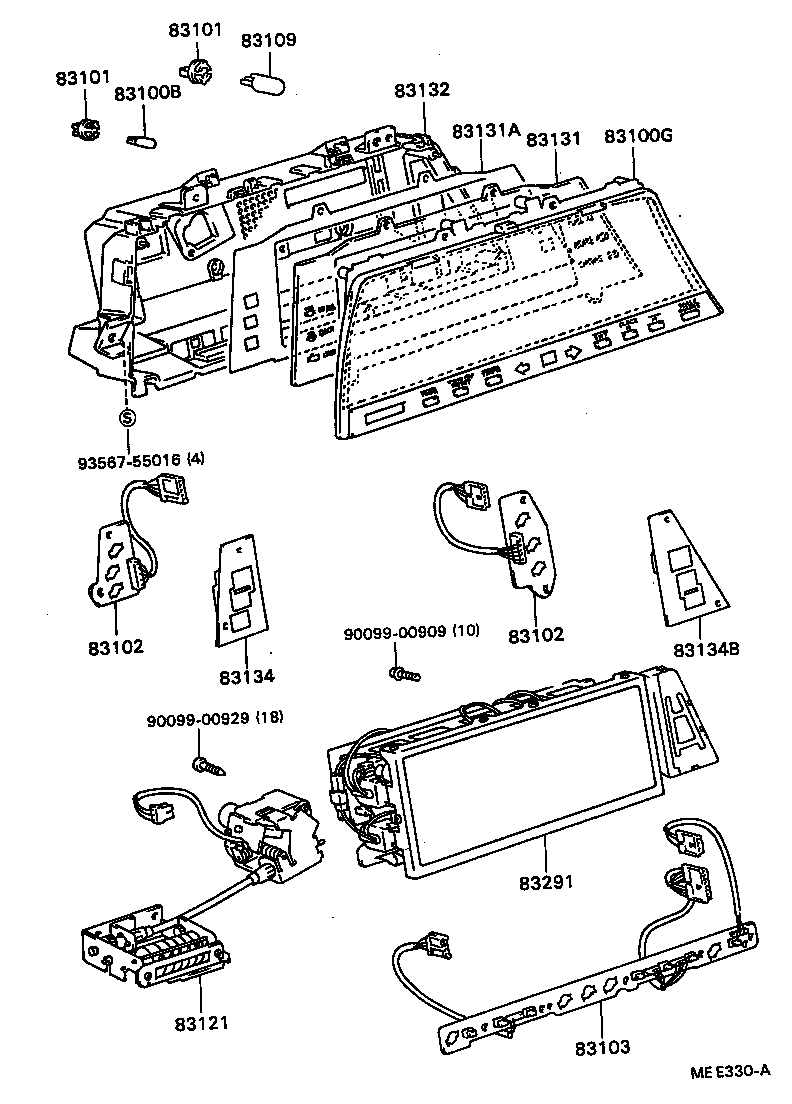

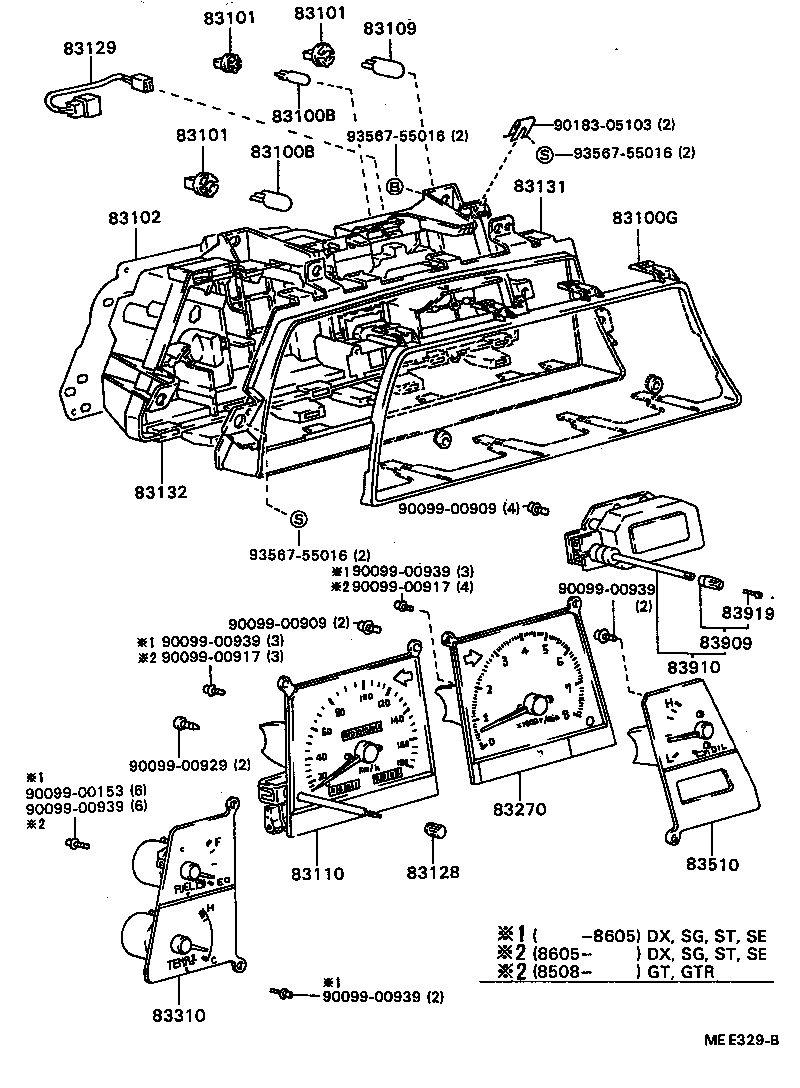

Figure MEE328B MEE328B 1984-05 → — Figure MEE329B MEE329B 1984-05 → — Figure MEE329B MEE329B 1984-10 → 1986-05 Figure MEE329B MEE329B 1986-05 → 1986-12 Figure MEE329B MEE329B 1986-12 → — Figure MEE330A MEE330A 1984-05 → — Figure MEE331A MEE331A 1984-05 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83100G Glass, Combination Meter
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83103 Plate Sub-assy, Combination Meter Circuit, NO.2
83109 Bulb, Combination Meter, NO.2
83110 Speedometer Assy
83121 Counter, Total
83128 Knob, Trip Counter
83129 Wire, Meter
83131 Dial, Meter, NO.1
83131A Dial, Meter, NO.2
83132 Case, Combination Meter
83134 Cover, Combination Meter, NO.1
83134B Cover, Combination Meter, NO.2
83180 Detector Assy, Revolution
83270 Tachometer Assy, Engine
83291 Computer, Combination Meter
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83510 Gage Assy, Oil Pressure Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
83909 Knob, Clock
83910 Clock Assy
83919 Screw, Clock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
