Toyota Carina FF

1984-05 → 1988-04 · chassis AT15#,160,ST150,162,CT150 · catalogue 231110 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

14 part groups · 4 illustrations

Illustrations

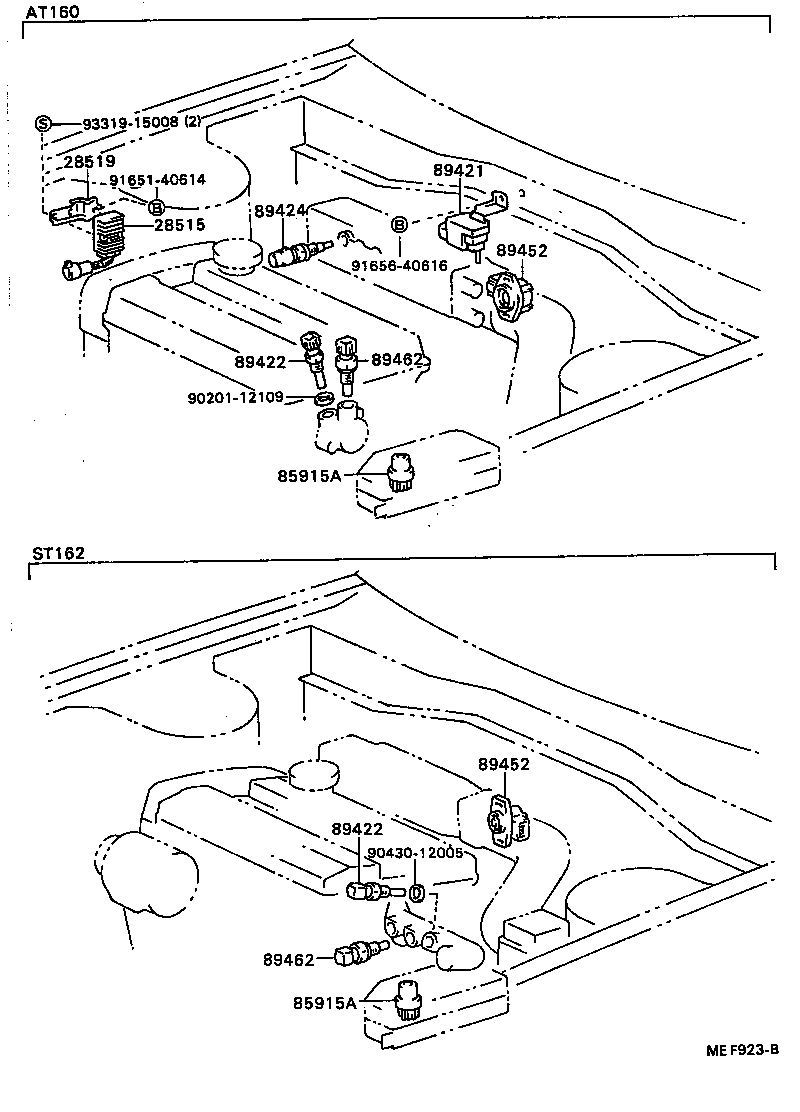

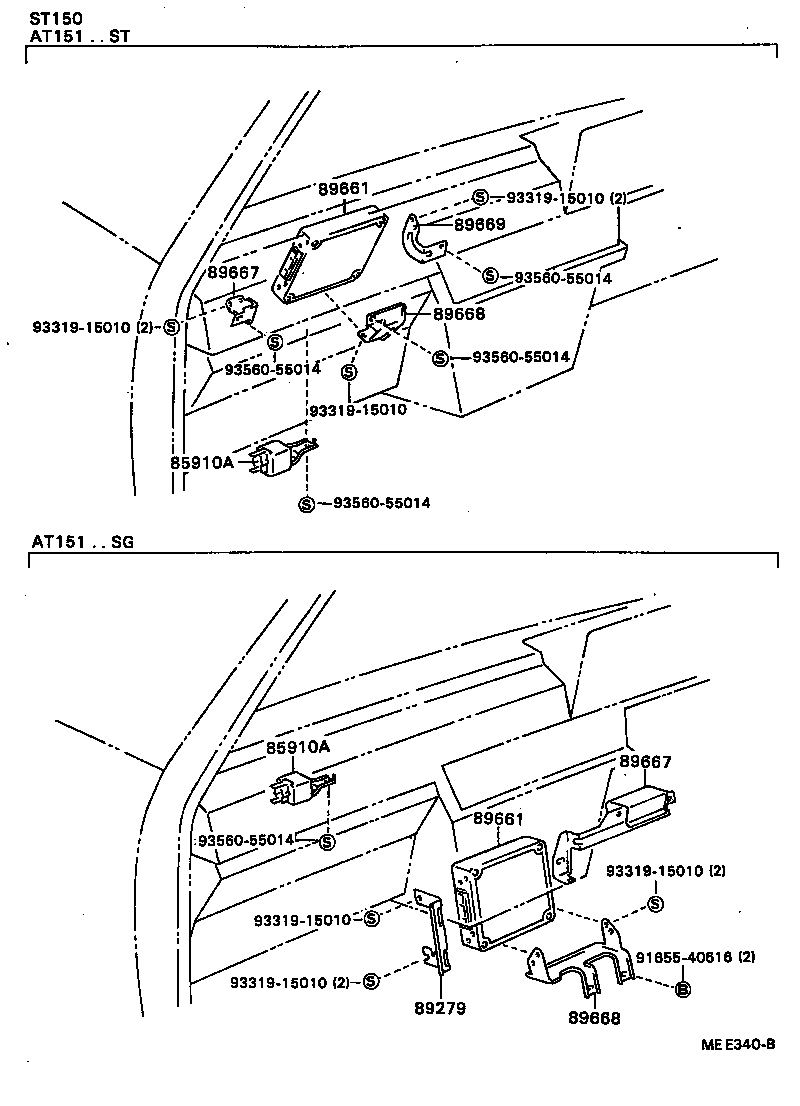

Figure MEE339B MEE339B 1984-05 → — Figure MEF923B MEF923B 1985-08 → — Figure MEE340B MEE340B 1984-05 → — Figure MEF924 MEF924 1985-08 → —

Part groups

PNCDescription
28515 Resistor, Solenoid
28519 Bracket, Solenoid Resistor
85910A Relay Assy, Circuit Opening (FOR EFI)
85915A Relay, Main
89279 Cover, Engine Control Computer
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89424 Sensor, Inlet Air Temperature (FOR E.F.I.)
89452 Sensor, Throttle Position (FOR E.F.I.)
89462 Switch, Start Injector Time
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
