Toyota Carina FF

1984-05 → 1988-04 · chassis AT15#,160,ST150,162,CT150 · catalogue 231110 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controlled Transmission

7 part groups · 2 illustrations

Illustrations

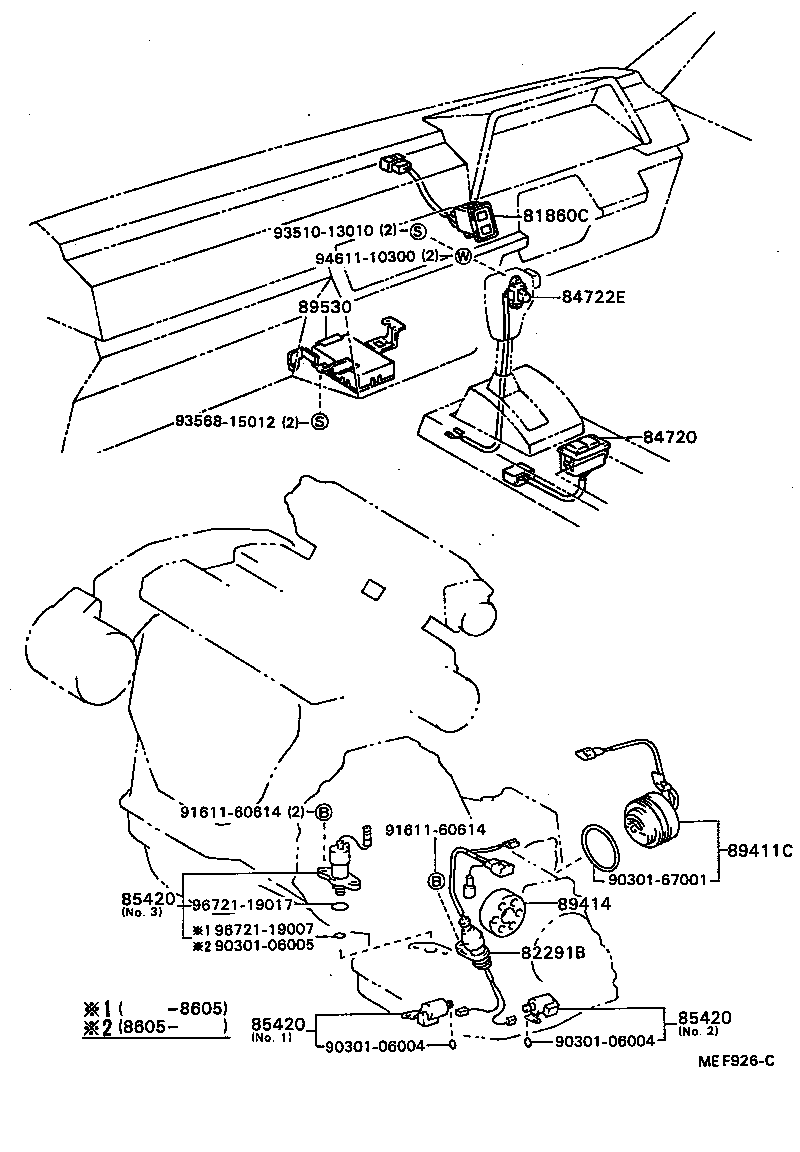

Figure MEF925B MEF925B 1985-08 → — Figure MEF926C MEF926C 1985-08 → —

Part groups

PNCDescription
81860C Lamp Assy, Transmission Indicator
82291B Wire, TO Solenoid (FOR TRANSMISSION)
84722E Switch, Transmission Control
85420 Solenoid Assy, Transmission
89411C Sensor, Speed
89414 Rotor, Sensor
89530 Computer Assy, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
