Toyota Carina FF

1984-05 → 1988-04 · chassis AT15#,160,ST150,162,CT150 · catalogue 231110 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

13 part groups · 2 illustrations

Illustrations

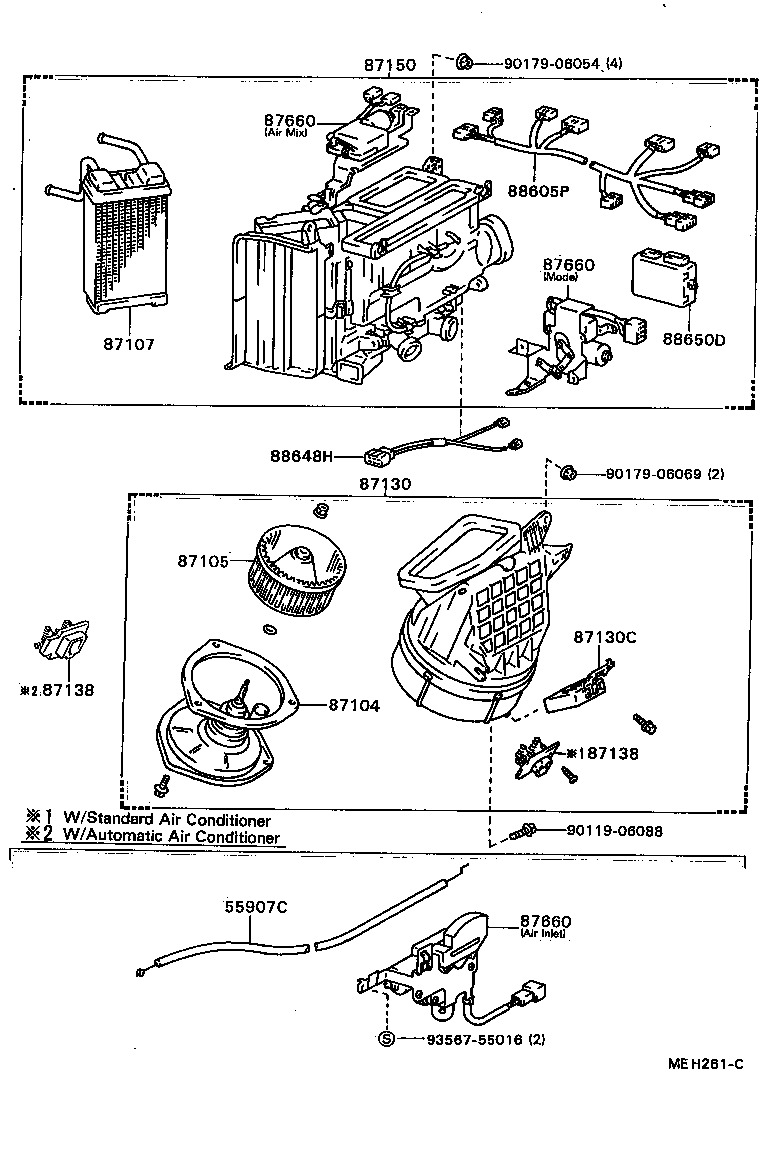

Figure MEE355C MEE355C 1984-05 → — Figure MEH261C MEH261C 1986-05 → —

Part groups

PNCDescription
55907C Cable Sub-assy, Water Valve Control
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87130 Blower Assy, Heater, Front
87130C Relay, Heater Blower Motor
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87660 Servo Assy, Air Conditioner
88585A Shaft, Heater Air Damper
88605P Harness Sub-assy, Air Conditioner Wiring
88648H Wire, Air Conditioner
88650D Amplifier Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
