Toyota Carina FF

1984-05 → 1988-04 · chassis AT15#,160,ST150,162,CT150 · catalogue 231110 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

28 part groups · 5 illustrations

Illustrations

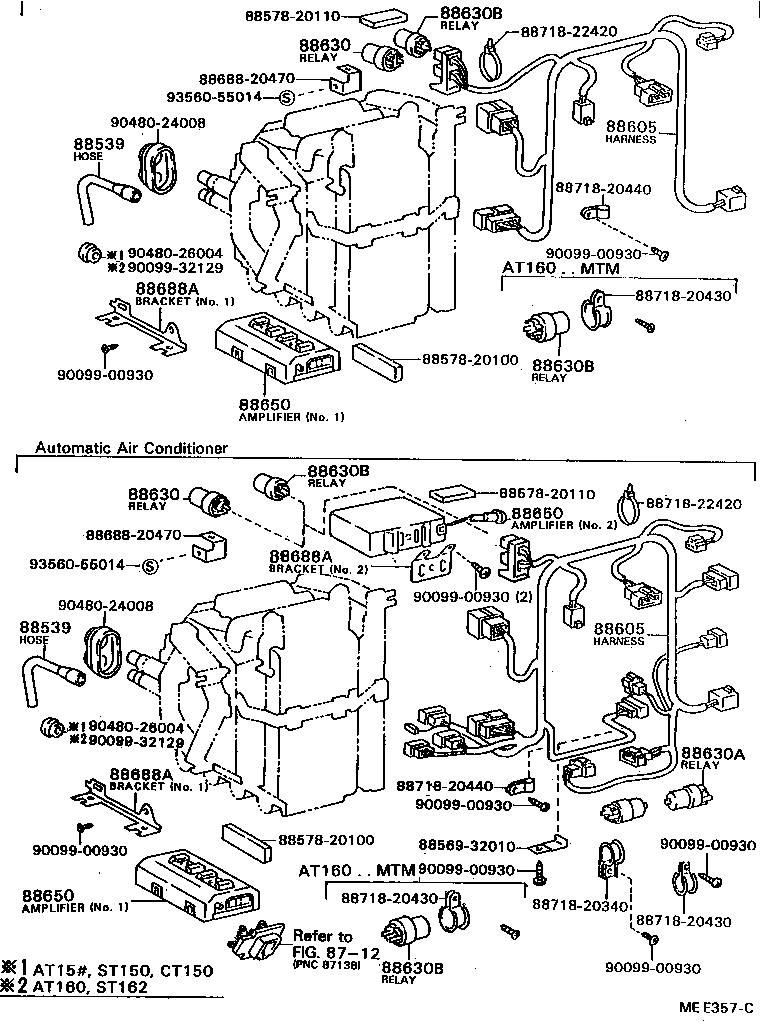

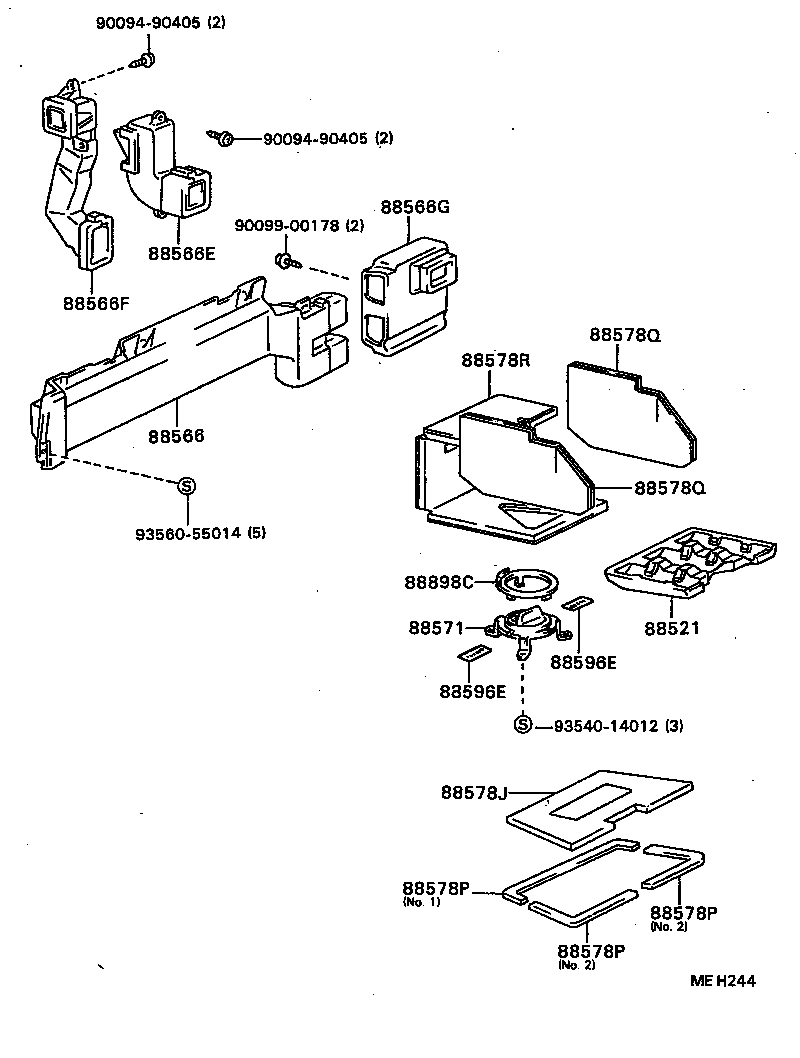

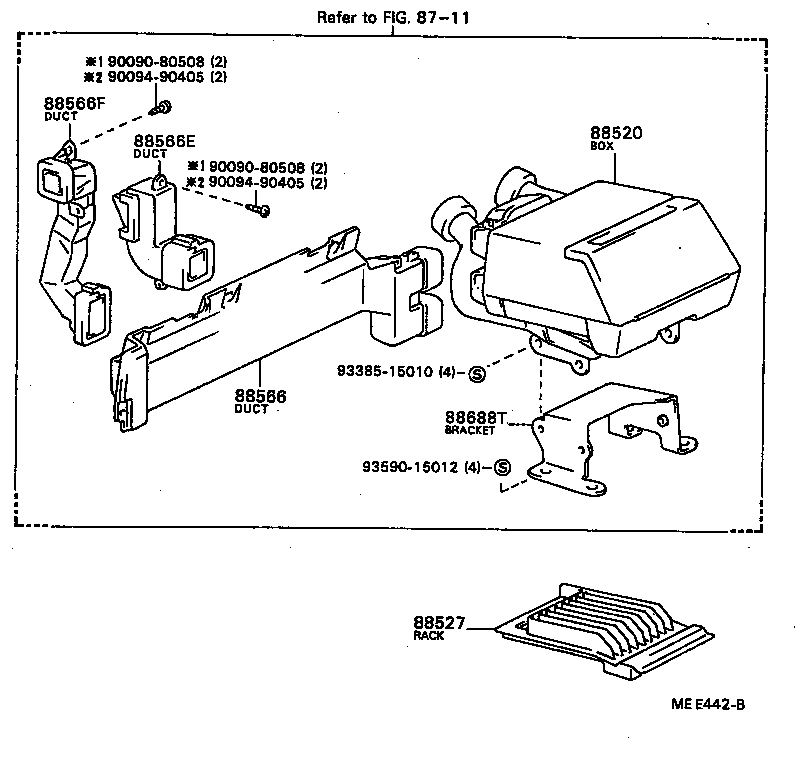

Figure MEE356 MEE356 1984-05 → — Figure MEE357C MEE357C 1984-05 → — Figure MEE442B MEE442B 1984-05 → 1986-05 Figure MEE442B MEE442B 1986-05 → — Figure MEH244 MEH244 1986-05 → —

Part groups

PNCDescription
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88520 Box Assy, Cooling
88521 Case, Cooler Unit
88527 Rack, Cassette
88539 Hose, Cooler Unit Drain, NO.1
88566 Duct, Cooler Air, NO.1
88566E Duct, Cooler Air, NO.2
88566F Duct, Cooler Air, NO.3
88566G Duct, Cooler Air, NO.4
88571 Grille, Air Outlet
88578J Packing, Cool Box, NO.1
88578P Packing, Cool Box, NO.2
88578Q Packing, Cool Box, NO.3
88578R Packing, Cool Box, NO.4
88596E Plate, Caution
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630B Relay Assy, Cooler
88645G Switch, Pressure
88650 Amplifier Assy, Cooler Stabilizer
88688A Bracket, Cooler Stabilizer Amplifier
88688T Bracket (FOR COOL BOX)
88716F Pipe, Cooler Refrigerant Liquid, F
88898C Ring, Cool Box
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
