Toyota Carina FF

1984-05 → 1988-04 · chassis AT15#,160,ST150,162,CT150 · catalogue 231110 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

22 part groups · 4 illustrations

Illustrations

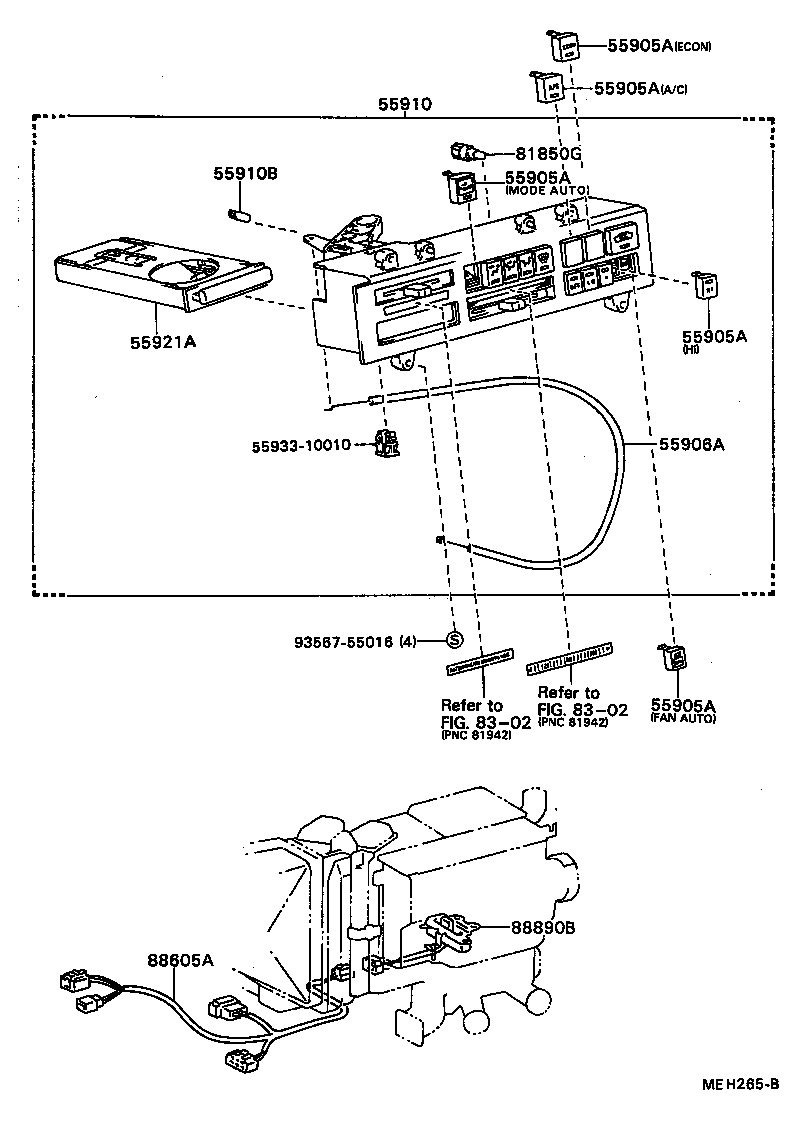

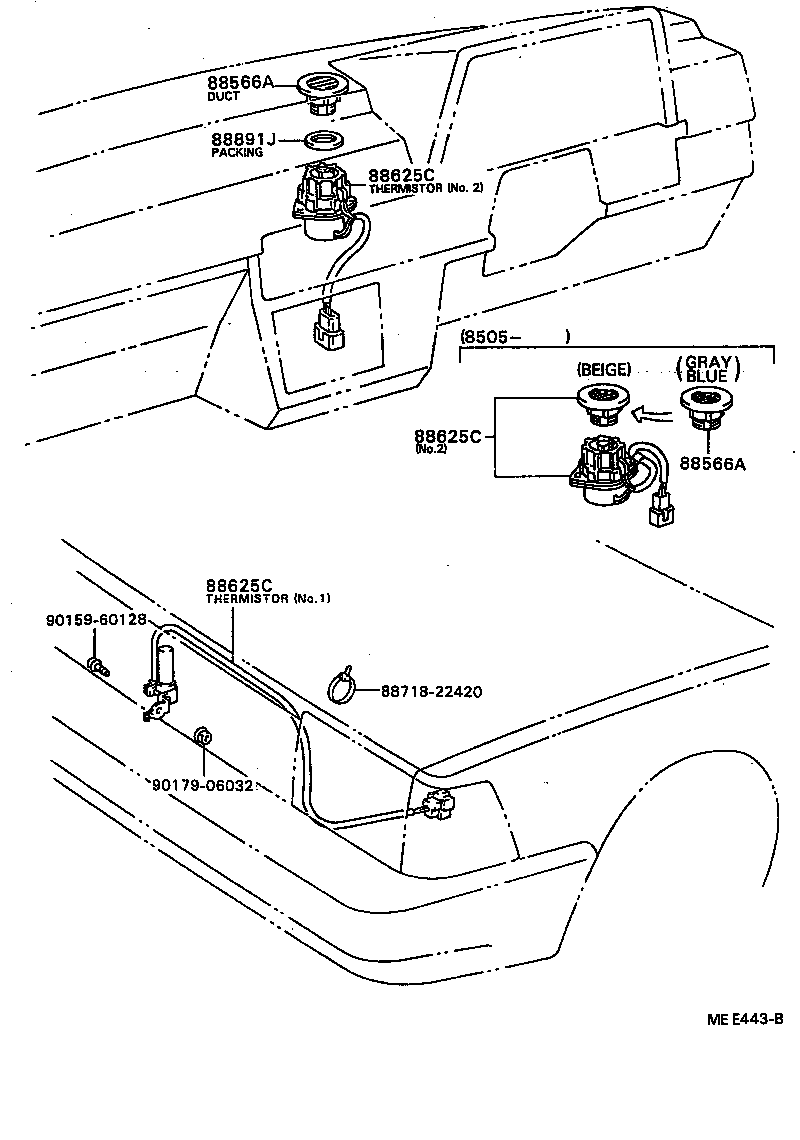

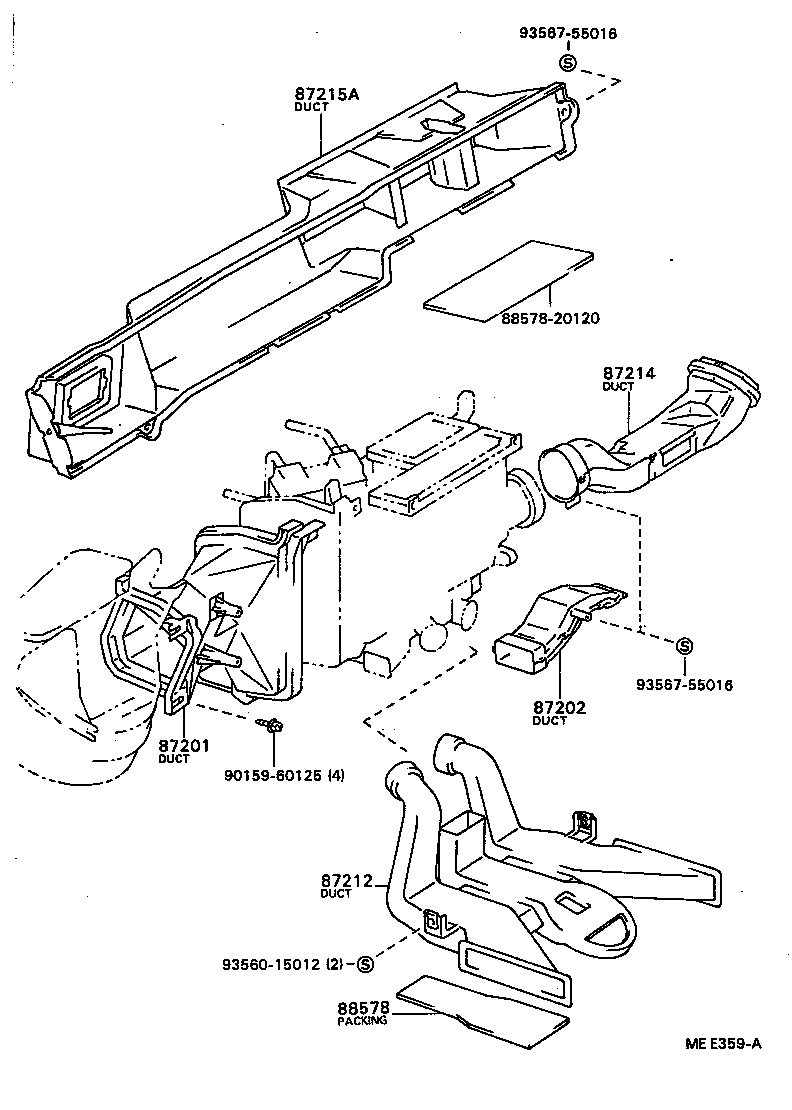

Figure MEE358A MEE358A 1984-05 → — Figure MEH265B MEH265B 1986-05 → — Figure MEE359A MEE359A 1984-05 → — Figure MEE443B MEE443B 1984-05 → —

Part groups

PNCDescription
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910B Bulb, Heater Control
55921A Retainer, Heater Control
55941A Guide, Heater Control
81850G Lamp Assy, Indicator
87201 Duct Sub-assy, Air, NO.1
87202 Duct, Heater Air
87212 Duct, Air, Rear NO.1
87214 Duct, Air, Side NO.1 RH
87215A Duct, Air, Side NO.2 LH
87284 Resistor Sub-assy, Variable
88566A Duct, Cooler Air, NO.1
88578 Paking, Cooler Air Duct
88605A Harness Sub-assy, Cooler Wiring
88625C Thermistor, Cooler
88890B Switch Assy, Thermostat
88891J Packing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
