Toyota Carina FF

1984-05 → 1988-04 · chassis AT15#,160,ST150,162,CT150 · catalogue 231110 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

10 part groups · 13 illustrations

Illustrations

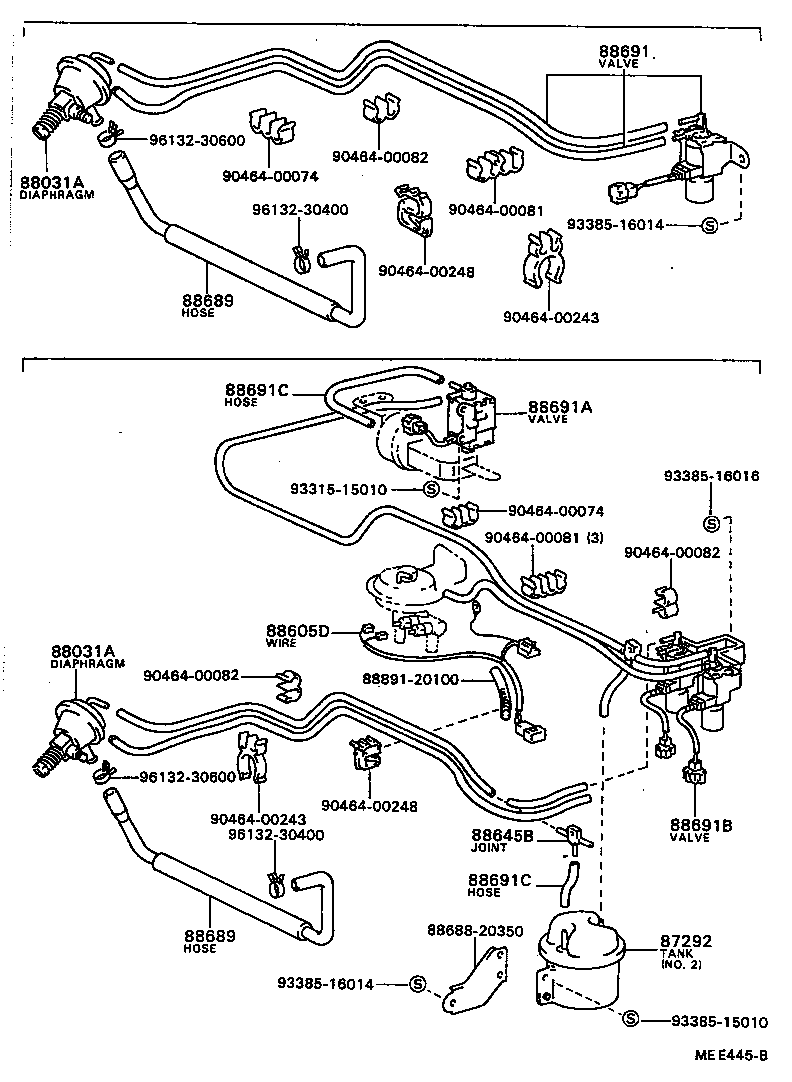

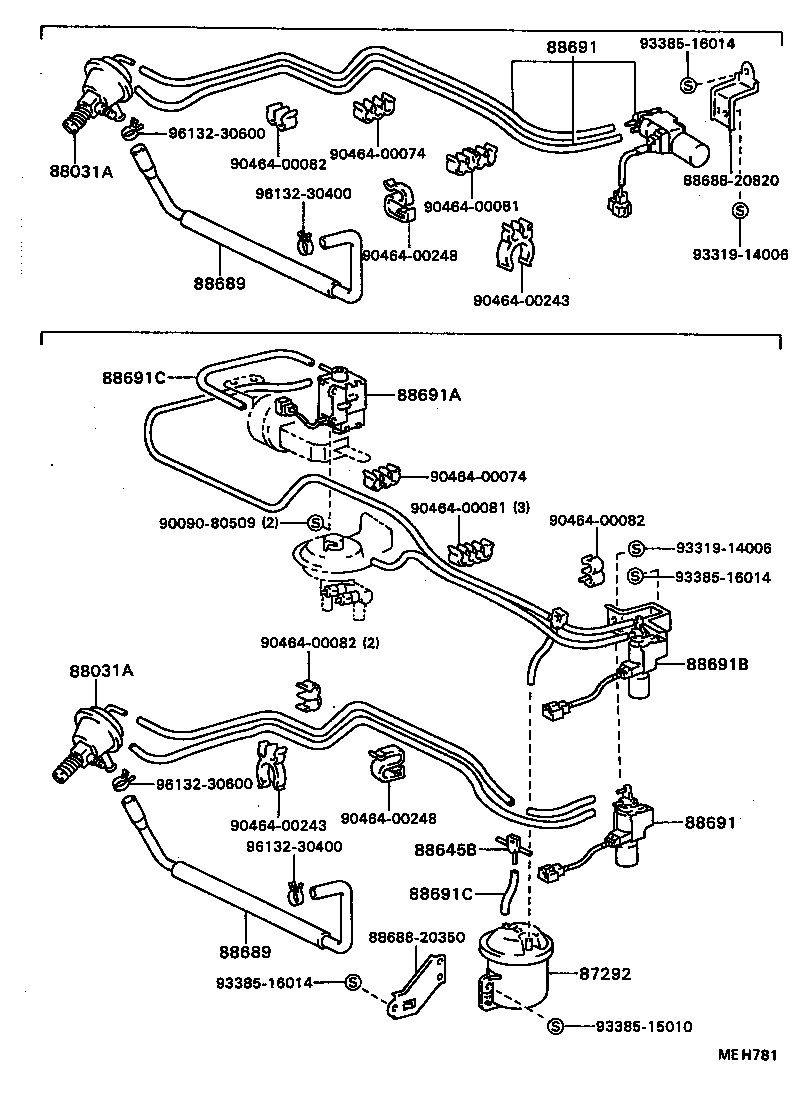

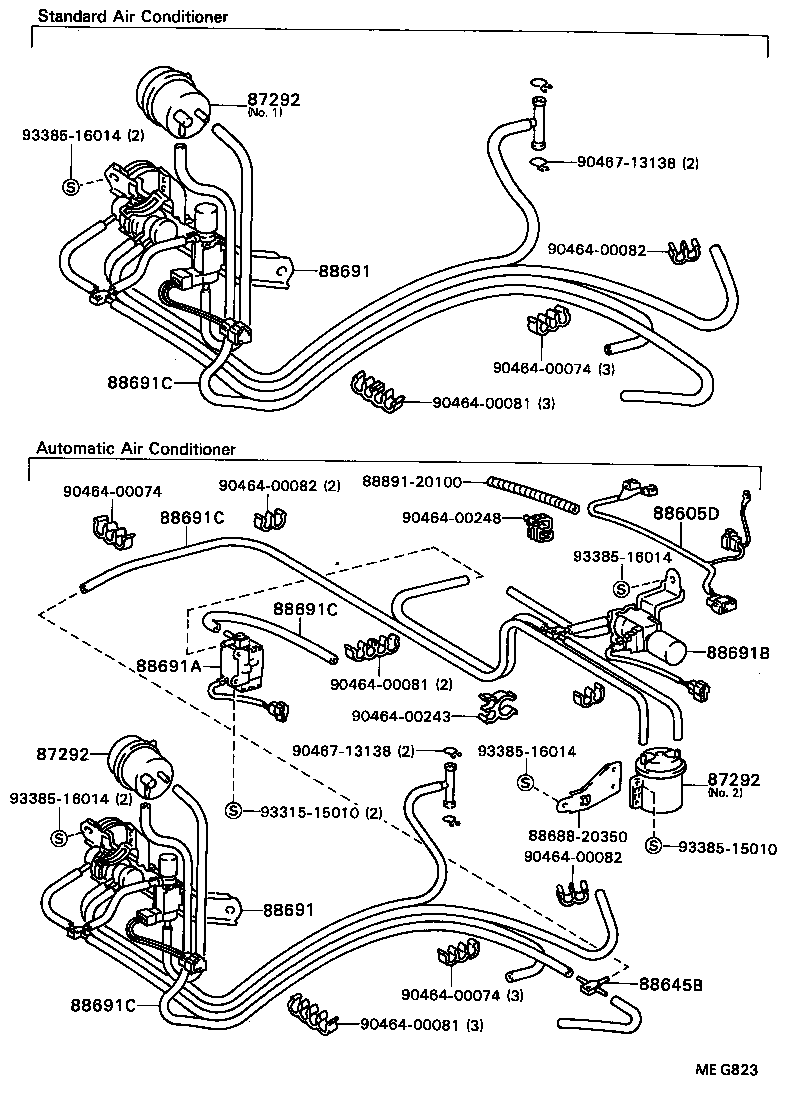

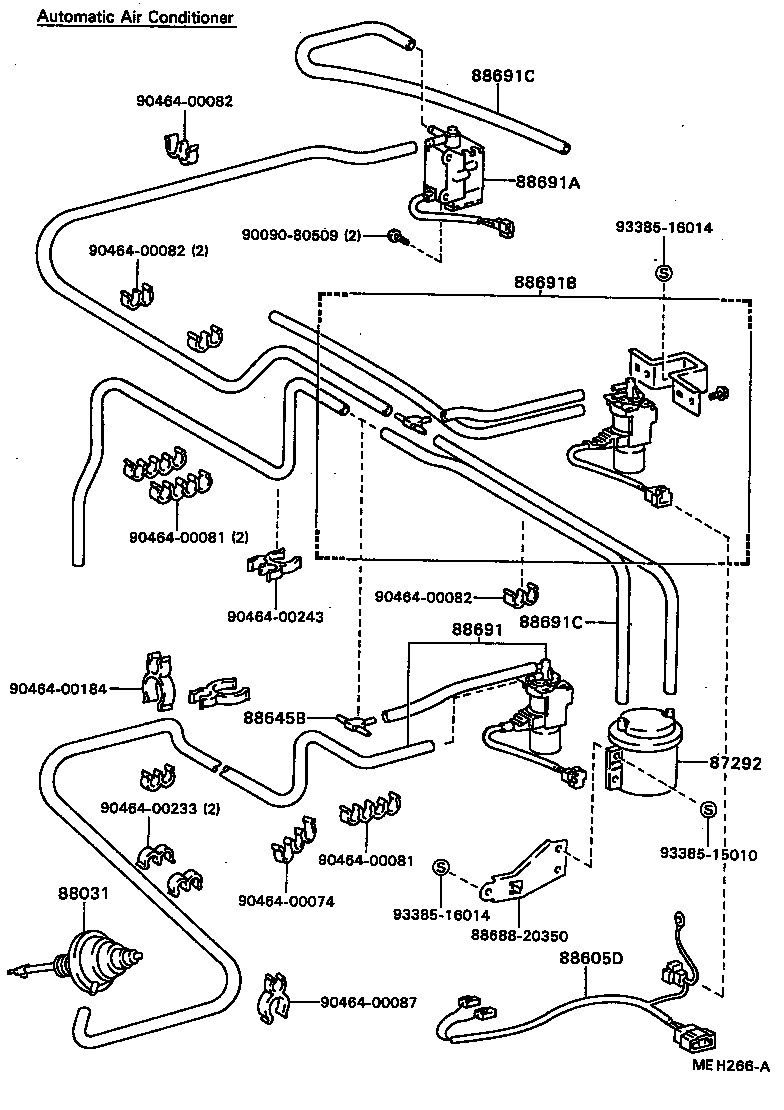

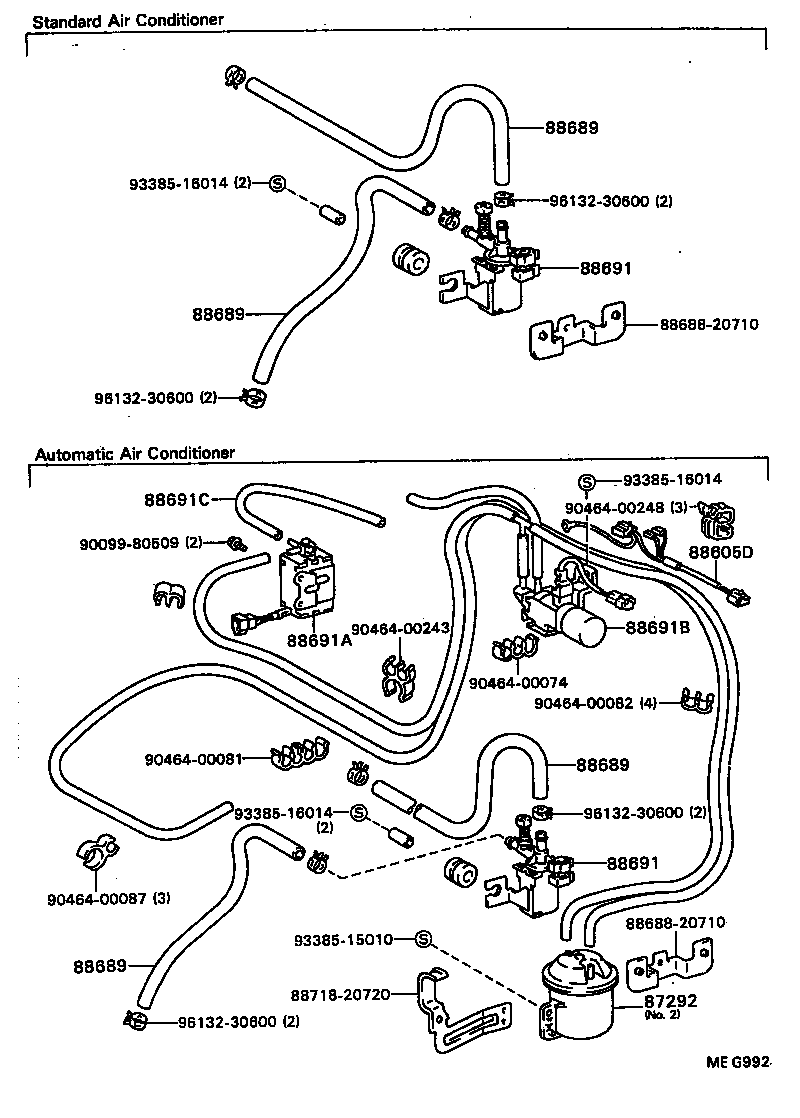

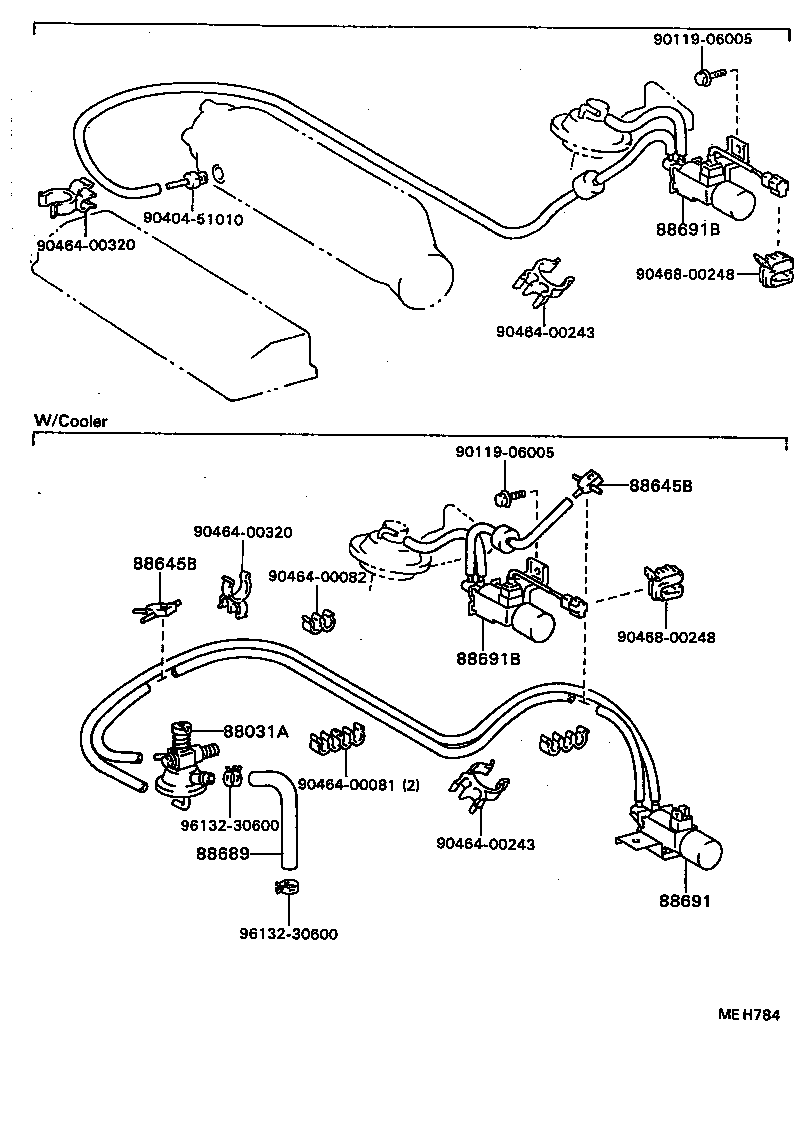

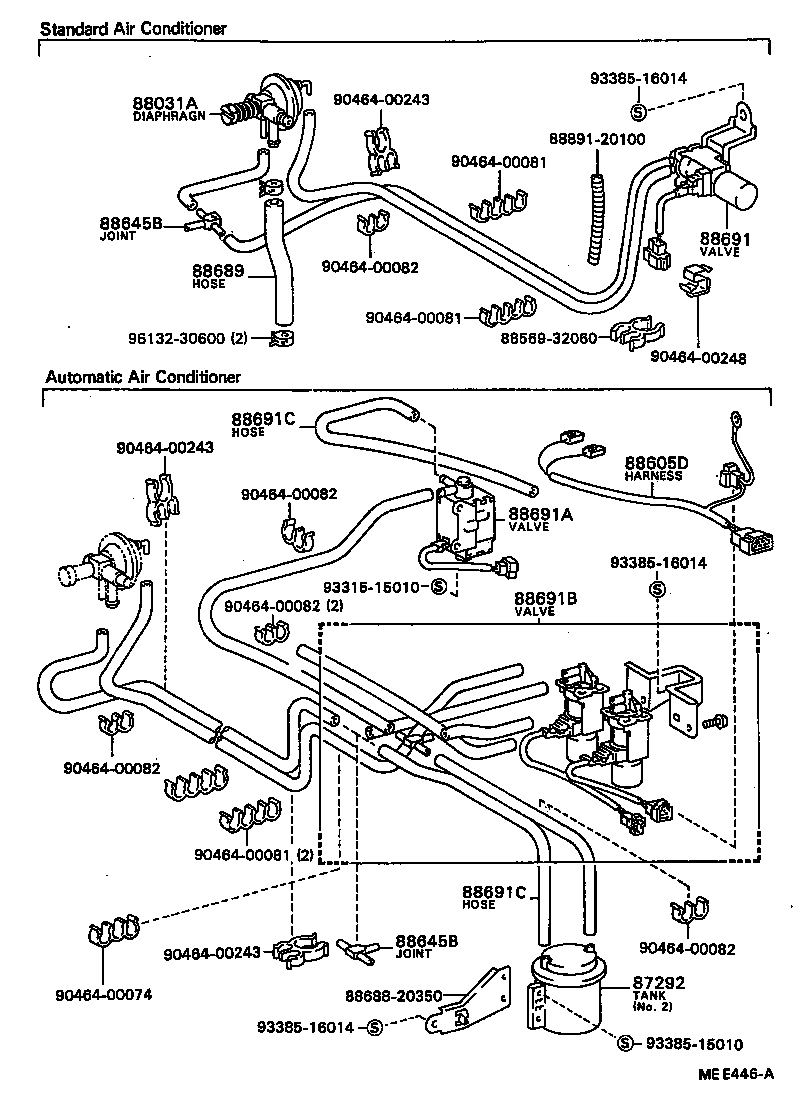

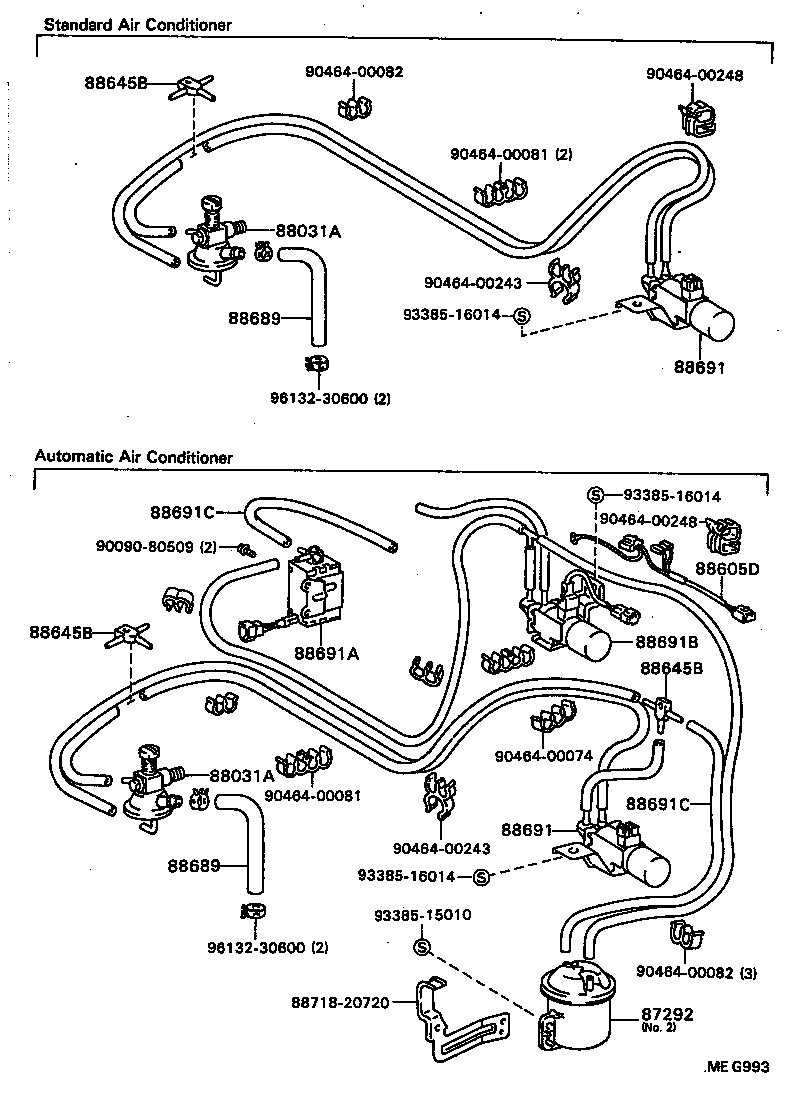

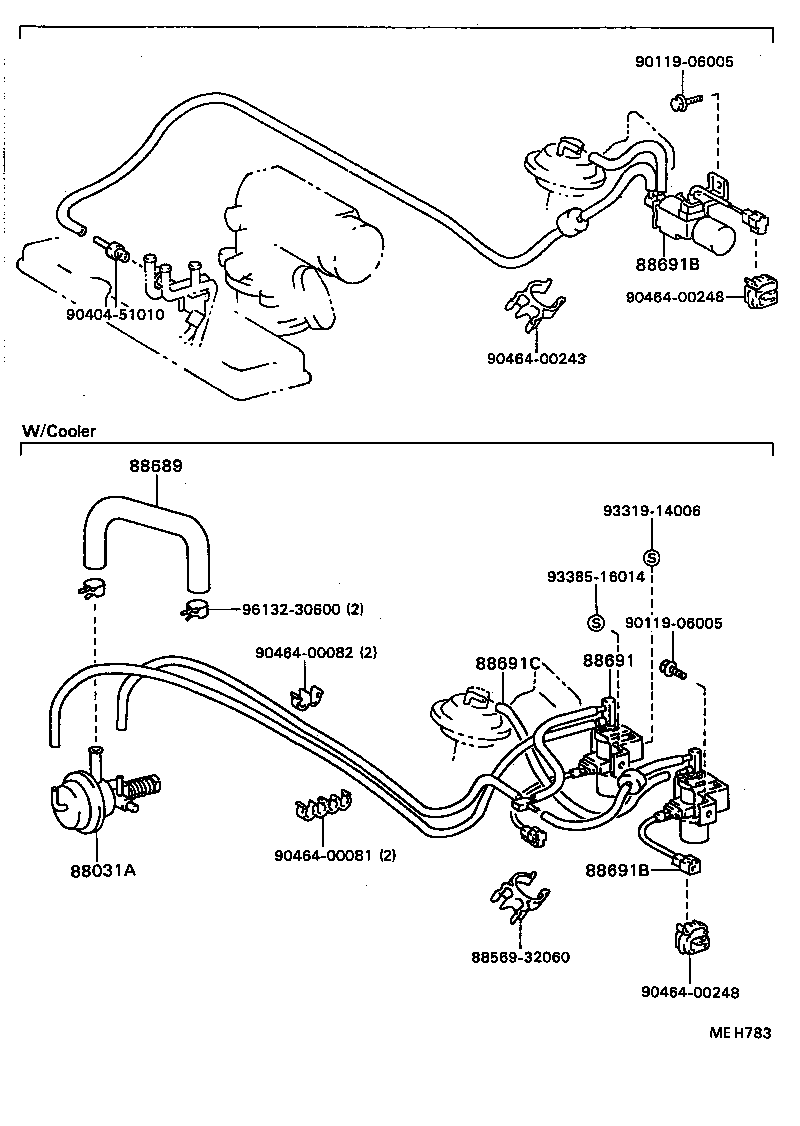

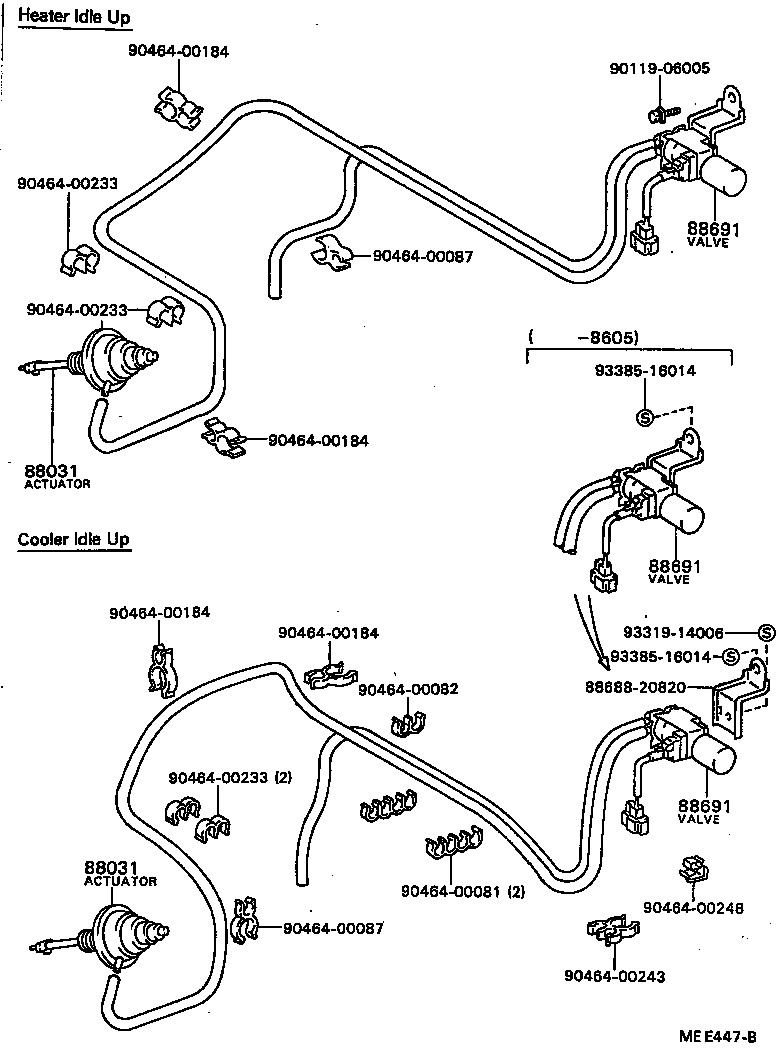

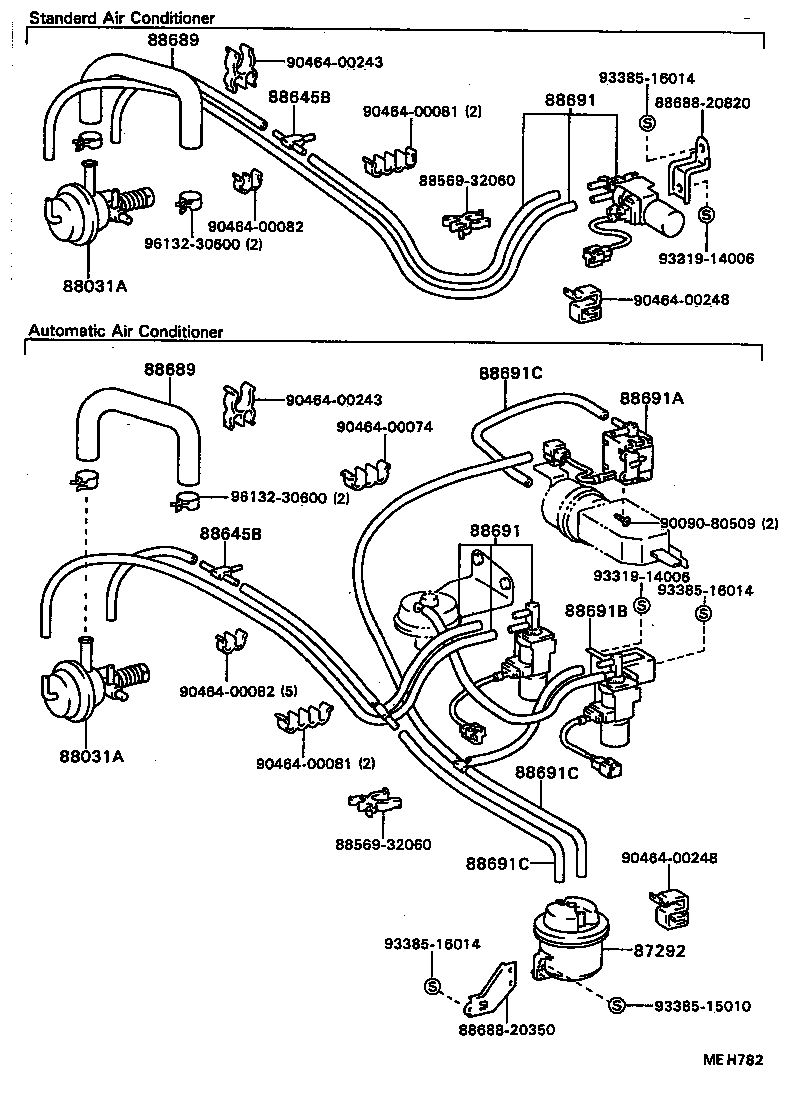

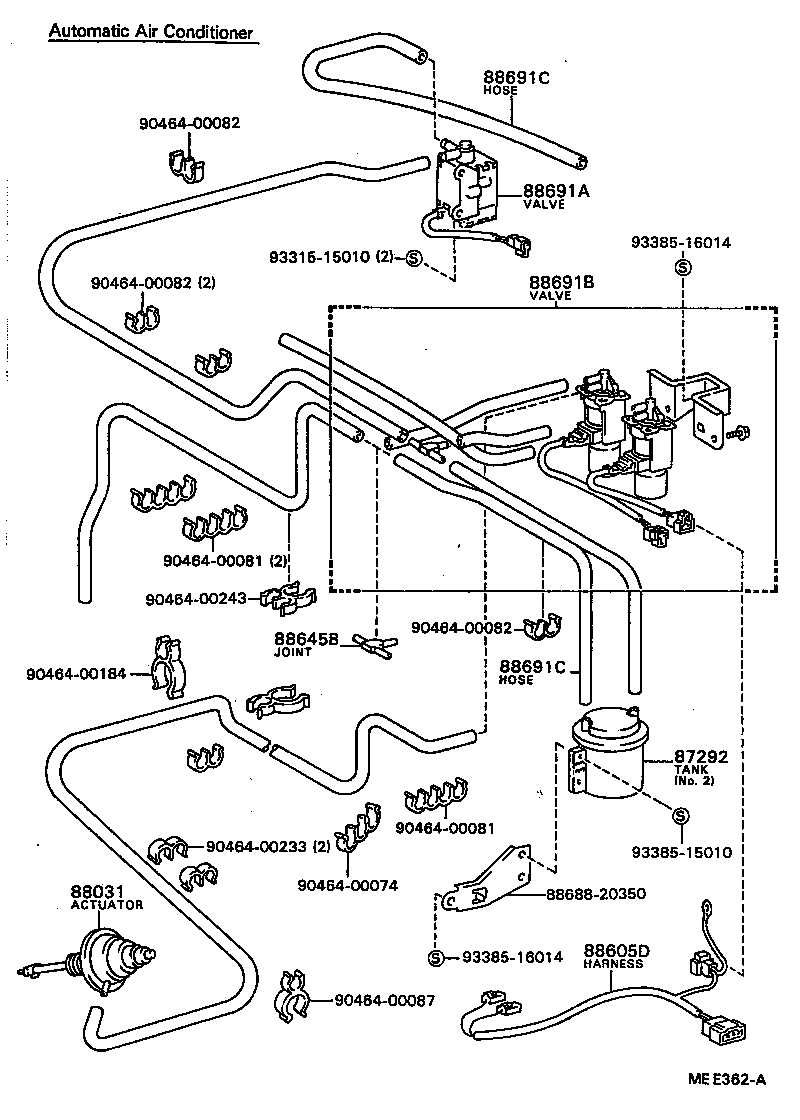

Figure MEE444A MEE444A 1984-05 → 1985-08 Figure MEG823 MEG823 1985-08 → — Figure MEE445B MEE445B 1984-05 → 1986-05 Figure MEH781 MEH781 1986-05 → — Figure MEG992 MEG992 1985-08 → — Figure MEE446A MEE446A 1984-05 → 1986-05 Figure MEH782 MEH782 1986-05 → — Figure MEH783 MEH783 1986-05 → — Figure MEG993 MEG993 1985-08 → 1986-05 Figure MEH784 MEH784 1986-05 → — Figure MEE447B MEE447B 1984-05 → — Figure MEE362A MEE362A 1984-05 → 1986-05 Figure MEH266A MEH266A 1986-05 → —

Part groups

PNCDescription
87292 Tank, Vacuum
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88605D Wire, Air Conditioner
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88689 Hose, Damper Control Diaphragm Vacuum
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691A Valve, Magnet (FOR BLOWER CHANGING-OVER DEVICE)
88691B Valve, Magnet (FOR WATER VALVE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
