Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

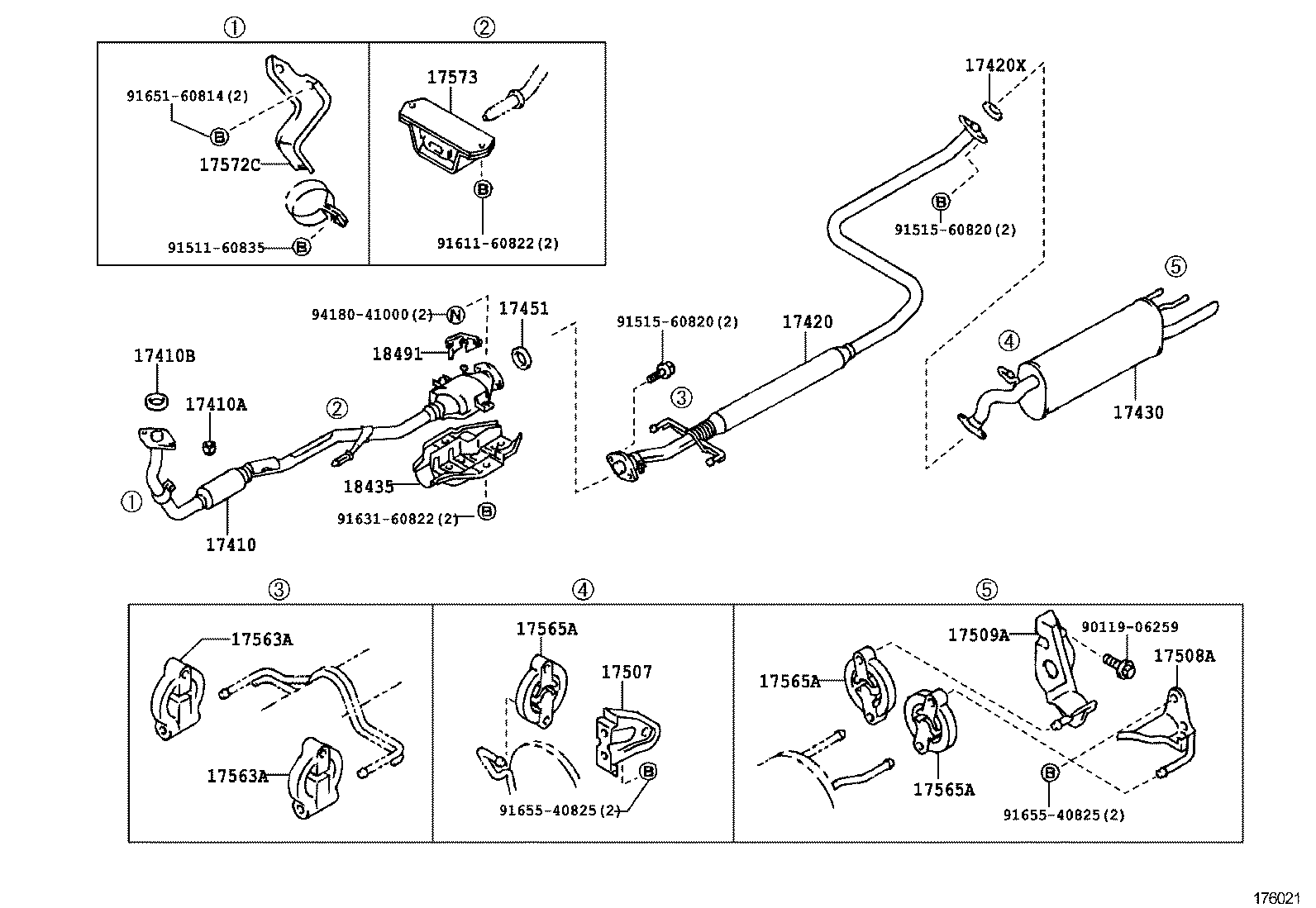

Exploded illustration 176021 17573 — BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER (1 parts) 17420X — GASKET, EXHAUST PIPE, CENTER (7 parts) 9165160814 — not listed in this catalogue 17572C — BRACKET, EXHAUST PIPE FRONT (FOR FRONT) (2 parts) 9151560820 — not listed in this catalogue 9161160822 — not listed in this catalogue 9151160835 — not listed in this catalogue 17451 — GASKET, EXHAUST PIPE (9 parts) 9418041000 — not listed in this catalogue 9151560820 — not listed in this catalogue 17420 — PIPE ASSY, EXHAUST, CENTER (11 parts) 17410B — GASKET, EXHAUST PIPE (9 parts) 18491 — FLANGE, THERMOSENSOR INLET (2 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (24 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (2 parts) 18435 — PROTECTOR, CATALYTIC CONVERTER (1 parts) 9163160822 — not listed in this catalogue 17410 — PIPE ASSY, EXHAUST, FRONT (14 parts) 9011906259 — not listed in this catalogue 17565A — SUPPORT, EXHAUST PIPE, NO.4 (7 parts) 17509A — BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT (5 parts) 17563A — SUPPORT, EXHAUST PIPE, NO.3 (8 parts) 17508A — BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT (4 parts) 17507 — BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT (2 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (7 parts) 17563A — SUPPORT, EXHAUST PIPE, NO.3 (8 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (7 parts) 9165540825 — not listed in this catalogue 9165540825 — not listed in this catalogue
176021 · 19 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
108 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17410-11340 Pipe Assy, Exhaust, Front
1988-05 → 1989-11 ended
3E ET176 ¥48,100
17410-11380 Pipe Assy, Exhaust, Front
1989-11 → 1992-11 ended
3E ET176 ¥20,200
17410-15250 Pipe Assy, Exhaust, Front
1988-05 → 1992-11 ended
4AFE,5AF# AT170,171 ¥24,100
17410-16460 Pipe Assy, Exhaust, Front
1988-05 → 1992-08 ended
4AGE AT171 ¥36,900
17410-16620 Pipe Assy, Exhaust, Front
1988-08 → 1992-08 ended
4AFE AT175 5F ¥28,900
17410-16650 Pipe Assy, Exhaust, Front
1988-08 → 1992-08 ended
4AFE AT175 4FC ¥81,300
17410-16790 Pipe Assy, Exhaust, Front
1990-05 → 1992-08 ended
4AFHE AT171 ¥21,600
17410-64300 Pipe Assy, Exhaust, Front
1988-05 → 1989-11 ended
2C CT170 ¥37,800
17410-64301 Pipe Assy, Exhaust, Front
1989-11 → 1991-04 ended
2C CT170 ¥37,800
17410-64302 Pipe Assy, Exhaust, Front
1991-04 → 1992-11 ended
2C CT170 ¥37,600
17410-64320 Pipe Assy, Exhaust, Front
1988-05 → 1989-11 ended
2C CT176 ¥37,800
17410-64321 Pipe Assy, Exhaust, Front
1989-11 → 1991-04 ended
2C CT176 ¥37,800
17410-64322 Pipe Assy, Exhaust, Front
1991-04 → 1992-11 ended
2C CT176 ¥37,600
17410-74410 Pipe Assy, Exhaust, Front
1988-05 → 1992-11 ended
4SF# ST170 ¥24,100
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1988-05 → 1992-08 ended
4AFHE,4AGE AT171 ¥120
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1988-05 → 1992-11 ended
4AFE,5AF#,2C,3E,4SF# AT17#,CT17#,ET176,ST170 ¥120
17410B — Gasket, Exhaust Pipe
90917-06004 Gasket, Exhaust Pipe
1988-05 → 1989-11 ended
4AFE,5AF,2C,3E AT17#,CT17#,ET176 ¥390
90917-06004 Gasket, Exhaust Pipe
1989-11 → 1990-05 ended
4AFE,5AF,2C AT17#,CT17# ¥390
90917-06004 Gasket, Exhaust Pipe
1988-05 → 1990-05 ended
4AGE AT171 ¥390
90917-06012 Gasket, Exhaust Pipe
1988-05 → 1990-05 ended
4SFI ST170 ¥670
90917-06039 Gasket, Exhaust Pipe
1989-11 → 1990-05 ended
3E ET176 ¥240
90917-06039 Gasket, Exhaust Pipe
1990-05 → 1992-08 ended
4AFHE,4AGE AT171 ¥240
90917-06039 Gasket, Exhaust Pipe
1990-05 → 1992-11 ended
4AFE,5AFE,2C,3E AT170,175,CT17#,ET176 ¥240
90917-06045 Gasket, Exhaust Pipe
1991-04 → 1992-11 ended
4SFE ST170 ¥580
90917-06047 Gasket, Exhaust Pipe
1990-05 → 1991-04 ended
4SFE ST170 ¥550
17420 — Pipe Assy, Exhaust, Center
17420-11100 Pipe Assy, Exhaust, Center
1988-05 → 1989-11 ended
3E ET176 ¥17,300
17420-11150 Pipe Assy, Exhaust, Center
1989-11 → 1992-11 ended
3E ET176 ¥43,700
17420-15100 Pipe Assy, Exhaust, Center
1988-05 → 1990-04 ended
4AFE,5AF AT170,171 ¥17,300
17420-15101 Pipe Assy, Exhaust, Center
1990-04 → 1990-05 ended
4AFE,5AF AT170,171 ¥22,400
17420-15120 Pipe Assy, Exhaust, Center
1990-05 → 1992-11 ended
5AFE AT170 ¥20,600
17420-16270 Pipe Assy, Exhaust, Center
1988-05 → 1990-04 ended
4AGE AT171 ¥19,000
17420-16271 Pipe Assy, Exhaust, Center
1990-04 → 1992-08 ended
4AFHE,4AGE AT171 ¥24,700
17420-16300 Pipe Assy, Exhaust, Center
1988-08 → 1989-11 ended
4AFE AT175 ¥17,100
17420-16301 Pipe Assy, Exhaust, Center
1989-11 → 1992-08 ended
4AFE AT175 ¥22,200
17420-74261 Pipe Assy, Exhaust, Center
1988-05 → 1989-09 ended
4SFI ST170 ¥17,100
17420-74262 Pipe Assy, Exhaust, Center
1989-09 → 1992-11 ended
4SF# ST170 ¥22,300
17420X — Gasket, Exhaust Pipe, Center
90917-06004 Gasket, Exhaust Pipe, Center
1988-05 → 1989-11 ended
4AFE,5AF,3E AT17#,ET176 ¥390
90917-06004 Gasket, Exhaust Pipe, Center
1989-11 → 1990-05 ended
4AFE,5AF AT17# ¥390
90917-06012 Gasket, Exhaust Pipe, Center
1988-05 → 1990-05 ended
4AGE,4SFI AT171,ST170 ¥670
90917-06039 Gasket, Exhaust Pipe, Center
1989-11 → 1990-05 ended
3E ET176 ¥240
90917-06039 Gasket, Exhaust Pipe, Center
1990-05 → 1992-11 ended
4AFE,5AFE,3E AT170,175,ET176 ¥240
90917-06045 Gasket, Exhaust Pipe, Center
1991-04 → 1992-08 ended
4AFHE,4AGE,4SFE AT171,ST170 ¥580
90917-06047 Gasket, Exhaust Pipe, Center
1990-05 → 1991-04 ended
4AFHE,4AGE,4SFE AT171,ST170 ¥550
17430 — Pipe Assy, Exhaust, Tail
17430-11280 Pipe Assy, Exhaust, Tail
1988-05 → 1989-11 ended
3E ET176 ¥20,800
17430-11460 Pipe Assy, Exhaust, Tail
1989-11 → 1992-11 ended
3E ET176 ¥26,300
17430-15430 Pipe Assy, Exhaust, Tail
1988-05 → 1989-09 ended
4AFE,5AF AT170,171 SED ¥24,900
17430-15431 Pipe Assy, Exhaust, Tail
1989-09 → 1990-05 ended
4AFE,5AF AT170,171 SED ¥29,400
17430-15440 Pipe Assy, Exhaust, Tail
1988-05 → 1989-09 ended
5AF AT170 SV ¥25,100
17430-15441 Pipe Assy, Exhaust, Tail
1989-09 → 1990-05 ended
5AF AT170 SV ¥32,500
17430-15510 Pipe Assy, Exhaust, Tail
1990-05 → 1992-08 ended
5AFE AT170 SED ¥30,100
17430-15520 Pipe Assy, Exhaust, Tail
1990-05 → 1992-11 ended
5AFE AT170 SV ¥30,000
17430-16650 Pipe Assy, Exhaust, Tail
1988-05 → 1989-11 ended
4AGE AT171 ¥31,800
17430-16651 Pipe Assy, Exhaust, Tail
1989-11 → 1992-08 ended
4AFHE,4AGE AT171 ¥41,300
17430-16660 Pipe Assy, Exhaust, Tail
1988-08 → 1989-11 ended
4AFE AT175 ¥22,400
17430-16661 Pipe Assy, Exhaust, Tail
1989-11 → 1990-05 ended
4AFE AT175 ¥29,200
17430-1A090 Pipe Assy, Exhaust, Tail
1990-05 → 1992-08 ended
4AFE AT175 ¥31,800
17430-64470 Pipe Assy, Exhaust, Tail
1988-05 → 1989-11 ended
2C CT170 ¥20,800
17430-64471 Pipe Assy, Exhaust, Tail
1989-11 → 1992-08 ended
2C CT170 SED ¥29,200
17430-64490 Pipe Assy, Exhaust, Tail
1988-05 → 1989-10 ended
2C CT176 ¥20,800
17430-64580 Pipe Assy, Exhaust, Tail
1989-11 → 1992-11 ended
2C CT176 ¥24,900
17430-64590 Pipe Assy, Exhaust, Tail
1990-05 → 1992-11 ended
2C CT170 SV ¥27,000
17430-74400 Pipe Assy, Exhaust, Tail
1988-05 → 1989-11 ended
4SFI ST170 SED ¥28,400
17430-74401 Pipe Assy, Exhaust, Tail
1989-11 → 1990-05 ended
4SFI ST170 SED ¥33,400
17430-74480 Pipe Assy, Exhaust, Tail
1988-05 → 1989-09 ended
4SFI ST170 SX ¥28,400
17430-74481 Pipe Assy, Exhaust, Tail
1989-09 → 1990-05 ended
4SFI ST170 SX ¥33,400
17430-74770 Pipe Assy, Exhaust, Tail
1990-05 → 1992-08 ended
4SFE ST170 SED ¥34,000
17430-74860 Pipe Assy, Exhaust, Tail
1990-05 → 1992-11 ended
4SFE ST170 SX ¥30,900
17451 — Gasket, Exhaust Pipe
90917-06004 Gasket, Exhaust Pipe
1988-05 → 1990-05 ended
4AFE,5AF,2C,4SFI AT17#,CT17#,ST170 ¥390
90917-06012 Gasket, Exhaust Pipe
1988-05 → 1989-11 ended
3E ET176 ¥670
90917-06012 Gasket, Exhaust Pipe
1988-05 → 1990-05 ended
4AGE AT171 ¥670
90917-06039 Gasket, Exhaust Pipe
1990-05 → 1992-11 ended
4AFE,5AFE,2C,3E,4SFE AT170,175,CT17#,ET176,ST170 ¥240
90917-06039 Gasket, Exhaust Pipe
1989-11 → 1990-05 ended
3E ET176 ¥240
90917-06041 note Gasket, Exhaust Pipe
1990-05 → 1992-08 ended
4AFHE AT171 ¥570
90917-06045 note Gasket, Exhaust Pipe
1991-04 → 1992-08 ended
4AFHE AT171 ¥580
90917-06047 note Gasket, Exhaust Pipe
1990-05 → 1991-04 ended
4AFHE AT171 ¥550
90917-06047 Gasket, Exhaust Pipe
1990-05 → 1991-04 ended
4AGE AT171 ¥550
17507 — Bracket Sub-assy, Exhaust Pipe NO.2 Support
17507-11030 Bracket Sub-assy, Exhaust Pipe NO.2 Support
1988-05 → 1992-11 ended
2C,3E CT176,ET176 ¥1,090
17507-64030 Bracket Sub-assy, Exhaust Pipe NO.2 Support
1988-05 → 1992-11 ended
2C CT170 ¥1,320
17508A — Bracket Sub-assy, Exhaust Pipe NO.3 Support
17508-11030 Bracket Sub-assy, Exhaust Pipe NO.3 Support
1988-05 → 1990-08 ended
2C,3E CT176,ET176 ¥1,090
17508-11030 Bracket Sub-assy, Exhaust Pipe NO.3 Support
1990-08 → 1992-11 ended
2C,3E CT176,ET176 3FC,4F,5F ¥1,090
17508-64030 Bracket Sub-assy, Exhaust Pipe NO.3 Support
1990-08 → 1992-11 ended
2C CT176 4FC ¥1,320
17508-74020 Bracket Sub-assy, Exhaust Pipe NO.3 Support
1988-08 → 1992-08 ended
4AFE AT175 ¥1,330
17509A — Bracket Sub-assy, Exhaust Pipe NO.4 Support
17509-11030 Bracket Sub-assy, Exhaust Pipe NO.4 Support
1988-05 → 1990-08 ended
2C,3E CT176,ET176 ¥1,540
17509-11030 Bracket Sub-assy, Exhaust Pipe NO.4 Support
1990-08 → 1992-11 ended
2C,3E CT176,ET176 3FC,4F,5F ¥1,540
17509-63060 Bracket Sub-assy, Exhaust Pipe NO.4 Support
1988-05 → 1992-11 ended
4AF#,4AGE,5AF#,2C,4SF# AT170,171,CT170,ST170 ¥1,540
17509-64010 Bracket Sub-assy, Exhaust Pipe NO.4 Support
1990-08 → 1992-11 ended
2C CT176 4FC ¥1,540
17509-74040 Bracket Sub-assy, Exhaust Pipe NO.4 Support
1988-08 → 1992-08 ended
4AFE AT175 ¥1,540
17563A — Support, Exhaust Pipe, NO.3
17563-64050 note Support, Exhaust Pipe, NO.3
1988-05 → 1992-11 ended
2C CT176 ¥390
17565-11100 note Support, Exhaust Pipe, NO.3
1988-05 → 1992-11 ended
2C CT170 ¥1,300
17565-15050 note Support, Exhaust Pipe, NO.3
1988-05 → 1989-05 ended
2C CT170 ¥1,790
17565-15050 Support, Exhaust Pipe, NO.3
1988-05 → 1989-05 ended
4A#,5AF,3E,4SFI AT170,171,ET176,ST170 ¥1,790
17565-15050 note Support, Exhaust Pipe, NO.3
1988-05 → 1989-05 ended
2C CT176 ¥1,790
17565-15070 note Support, Exhaust Pipe, NO.3
1989-05 → 1992-11 ended
2C CT170 ¥1,790
17565-15070 Support, Exhaust Pipe, NO.3
1989-05 → 1992-11 ended
4AF#,4AGE,5AF#,3E,4SF# AT170,171,ET176,ST170 ¥1,790
17565-15070 note Support, Exhaust Pipe, NO.3
1989-05 → 1992-11 ended
2C CT176 ¥1,790
17565A — Support, Exhaust Pipe, NO.4
17565-11100 note Support, Exhaust Pipe, NO.4
1988-08 → 1992-08 ended
4AFE AT175 ¥1,300
17565-63020 note Support, Exhaust Pipe, NO.4
1988-05 → 1992-11 ended
4AF#,4AGE,5AF#,2C,4SF# AT170,171,CT170,ST170 ¥840
17565-63030 Support, Exhaust Pipe, NO.4
1990-05 → 1990-08 ended
2C,3E CT176,ET176 ¥840
17565-63030 Support, Exhaust Pipe, NO.4
1988-05 → 1990-05 ended
2C,3E CT176,ET176 ¥840
17565-63030 note Support, Exhaust Pipe, NO.4
1988-05 → 1992-11 ended
4AF#,4AGE,5AF#,2C,4SF# AT170,171,CT170,ST170 ¥840
17565-63030 Support, Exhaust Pipe, NO.4
1990-08 → 1992-11 ended
2C,3E CT176,ET176 ¥840
17565-63120 note Support, Exhaust Pipe, NO.4
1988-08 → 1992-08 ended
4AFE AT175 ¥790
17572C — Bracket, Exhaust Pipe Front (FOR FRONT)
17571-11110 Bracket, Exhaust Pipe Front (FOR FRONT)
1988-05 → 1989-11 ended
3E ET176 ¥980
17571-64160 Bracket, Exhaust Pipe Front (FOR FRONT)
1988-05 → 1992-11 ended
2C CT17# ¥980
17573 — Bracket, Exhaust Pipe NO.1 Support, Lower
17573-74020 Bracket, Exhaust Pipe NO.1 Support, Lower
1988-05 → 1992-11 ended
4AF#,4AGE,5AF#,3E,4SF# AT17#,ET176,ST170 ¥1,070
18435 — Protector, Catalytic Converter
18407-11010 Protector, Catalytic Converter
1988-05 → 1989-11 ended
3E ET176 ¥7,400
18491 — Flange, Thermosensor Inlet
18491-63010 Flange, Thermosensor Inlet
1988-05 → 1992-08 ended
4AFHE,4AGE AT171 ¥730
18491-72010 Flange, Thermosensor Inlet
1988-05 → 1989-11 ended
3E ET176 ¥1,090
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
