Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

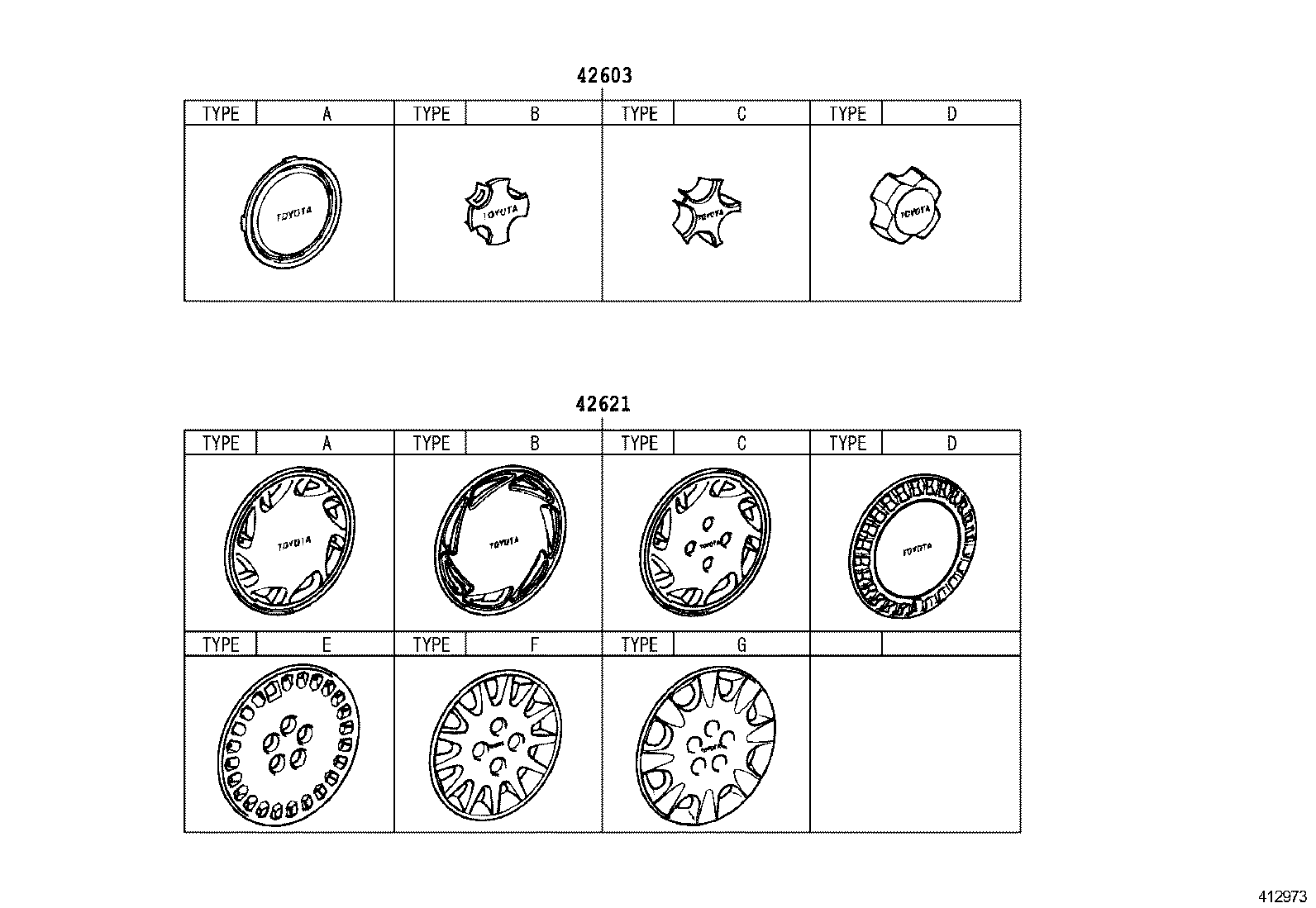

| 42603 — Ornament Sub-assy, Wheel Hub | ||||
| 42603-20210 note |
Ornament Sub-assy, Wheel Hub
1988-05 → 1992-08
ended
|
AT171 EFIS;AT171,175 GLIM,SE,SG,SGEXT | ¥2,560 | |
| 42603-20240 note |
Ornament Sub-assy, Wheel Hub
1990-05 → 1992-11
ended
|
AT170,CT170 SV | ¥5,900 | |
| 42603-20240 note |
Ornament Sub-assy, Wheel Hub
1988-05 → 1992-08
ended
|
AT170,CT170 SG | ¥5,900 | |
| 42603-20250 note |
Ornament Sub-assy, Wheel Hub
1988-05 → 1989-03
ended
|
AT170 SV | ¥5,400 | |
| 42603-20250 note |
Ornament Sub-assy, Wheel Hub
1988-05 → 1989-03
ended
|
AT170,171,CT170,ST170 S,SE,SGEXT,SX | ¥5,400 | |
| 42603-20250 note |
Ornament Sub-assy, Wheel Hub
1990-12 → 1992-11
ended
|
AT170 SV;CT170 SG,SV | ¥5,400 | |
| 42603-20250 note |
Ornament Sub-assy, Wheel Hub
1989-03 → 1992-11
ended
|
ST170 (SE,SX) CI;AT170,CT170,ST170 (SE,SGEXT,SX) +1 | ¥5,400 | |
| 42603-20250 note |
Ornament Sub-assy, Wheel Hub
1989-03 → 1990-12
ended
|
ST170 SGEXT CI;AT170,171,CT170 (S,SV) +1 | ¥5,400 | |
| 42603-20250 note |
Ornament Sub-assy, Wheel Hub
1988-05 → 1990-05
ended
|
AT170 4F SG | ¥5,400 | |
| 42603-20250 note |
Ornament Sub-assy, Wheel Hub
1988-05 → 1990-05
ended
|
AT170 (4FC,5F) SG | ¥5,400 | |
| 42603-20250 note |
Ornament Sub-assy, Wheel Hub
1989-05 → 1989-06
ended
|
AT170,175,CT170 SG,SV | ¥5,400 | |
| 42603-20250 note |
Ornament Sub-assy, Wheel Hub
1989-05 → 1989-06
ended
|
ST170 SX | ¥5,400 | |
| 42638-16200 note |
Ornament Sub-assy, Wheel Hub
1988-05 → 1992-11
ended
|
CT176,ET176;AT170,CT170 DX,SV | ¥2,960 | |
| 42621 — Cap, Wheel | ||||
| 42602-20200 note |
Cap, Wheel
1990-05 → 1990-12
ended
|
AT170,CT170,ST170 SE,SGEXT | ¥8,600 | |
| 42602-20200 note |
Cap, Wheel
1990-12 → 1992-08
ended
|
CT170 SED;AT170,ST170 SE,SGEXT | ¥8,600 | |
| 42602-20210 note |
Cap, Wheel
1990-05 → 1992-08
ended
|
AT171,175 S,SE,SGEXT | ¥9,800 | |
| 42621-20420-03 note |
Cap, Wheel
1989-08 → 1990-05
ended
|
AT170 SG | ¥10,000 | |
| 42621-20420-03 note |
Cap, Wheel
1989-08 → 1990-05
ended
|
ST170 SGEXT | ¥10,000 | |
| 42621-20420-03 note |
Cap, Wheel
1989-03 → 1990-05
ended
|
AT170,CT170,ST170 SG,SGEXT | ¥10,000 | |
| 42621-20420-03 note |
Cap, Wheel
1989-08 → 1990-05
ended
|
CT170 SG | ¥10,000 | |
| 42621-20420-03 note |
Cap, Wheel
1988-05 → 1989-08
ended
|
ST170 SGEXT | ¥10,000 | |
| 42621-20420-03 note |
Cap, Wheel
1988-05 → 1989-03
ended
|
AT170 SG | ¥10,000 | |
| 42621-20430-03 note |
Cap, Wheel
1988-05 → 1989-01
ended
|
ST170 SX | ¥9,900 | |
| 42621-20430-03 note |
Cap, Wheel
1988-05 → 1989-01
ended
|
AT171 S | ¥9,900 | |
| 42621-20430-05 note |
Cap, Wheel
1988-05 → 1989-01
ended
|
AT171,ST170 S,SX | ¥9,900 | |
| 42621-20431-03 note |
Cap, Wheel
1989-03 → —
|
ST170 SGEXT | ¥8,700 | |
| 42621-20431-03 note |
Cap, Wheel
1989-08 → 1990-05
ended
|
ST170 SGEXT | ¥8,700 | |
| 42621-20431-03 note |
Cap, Wheel
1989-08 → 1990-05
ended
|
ST170 SX | ¥8,700 | |
| 42621-20431-03 note |
Cap, Wheel
1989-08 → 1990-05
ended
|
AT171 S | ¥8,700 | |
| 42621-20431-03 note |
Cap, Wheel
1989-01 → 1989-08
ended
|
ST170 SX | ¥8,700 | |
| 42621-20431-03 note |
Cap, Wheel
1989-01 → 1989-08
ended
|
AT171 S | ¥8,700 | |
| 42621-20431-06 note |
Cap, Wheel
1989-08 → 1990-05
ended
|
AT171,ST170 S,SX | ¥8,700 | |
| 42621-20431-06 note |
Cap, Wheel
1989-08 → 1990-05
ended
|
ST170 SGEXT | ¥8,700 | |
| 42621-20431-15 note |
Cap, Wheel
1989-01 → 1989-08
ended
|
AT171,ST170 S,SX | ¥8,700 | |
| 42621-20431-15 note |
Cap, Wheel
1989-03 → —
|
ST170 SGEXT | ¥8,700 | |
| 42621-20440-03 note |
Cap, Wheel
1989-08 → 1990-05
ended
|
AT170,CT170,ST170 SE | ¥10,000 | |
| 42621-20440-03 note |
Cap, Wheel
1988-05 → 1989-08
ended
|
AT170 (4FC,5F) SG | ¥10,000 | |
| 42621-20440-03 note |
Cap, Wheel
1988-05 → 1989-08
ended
|
AT170,CT170,ST170 SE | ¥10,000 | |
| 42621-20440-05 note |
Cap, Wheel
1989-08 → 1990-05
ended
|
AT170,CT170,ST170 SE | ¥10,000 | |
| 42621-20440-05 note |
Cap, Wheel
1988-05 → 1989-08
ended
|
AT170 (4FC,5F) SG | ¥10,000 | |
| 42621-20440-05 note |
Cap, Wheel
1988-05 → 1989-08
ended
|
AT170,CT170,ST170 SE | ¥10,000 | |
| 42621-20440-06 note |
Cap, Wheel
1989-08 → 1990-05
ended
|
AT170,CT170,ST170 SE | ¥10,000 | |
| 42621-20440-06 note |
Cap, Wheel
1989-08 → 1990-05
ended
|
AT170 (4FC,5F) SG | ¥10,000 | |
| 42621-20450 note |
Cap, Wheel
1988-08 → 1992-08
ended
|
AT175 SG | ¥8,600 | |
| 42621-20460 note |
Cap, Wheel
1990-05 → 1992-11
ended
|
ST170 SX | ¥8,600 | |
| 42621-32040 note |
Cap, Wheel
1988-08 → 1990-05
ended
|
AT175 SGEXT | ¥10,800 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
