Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

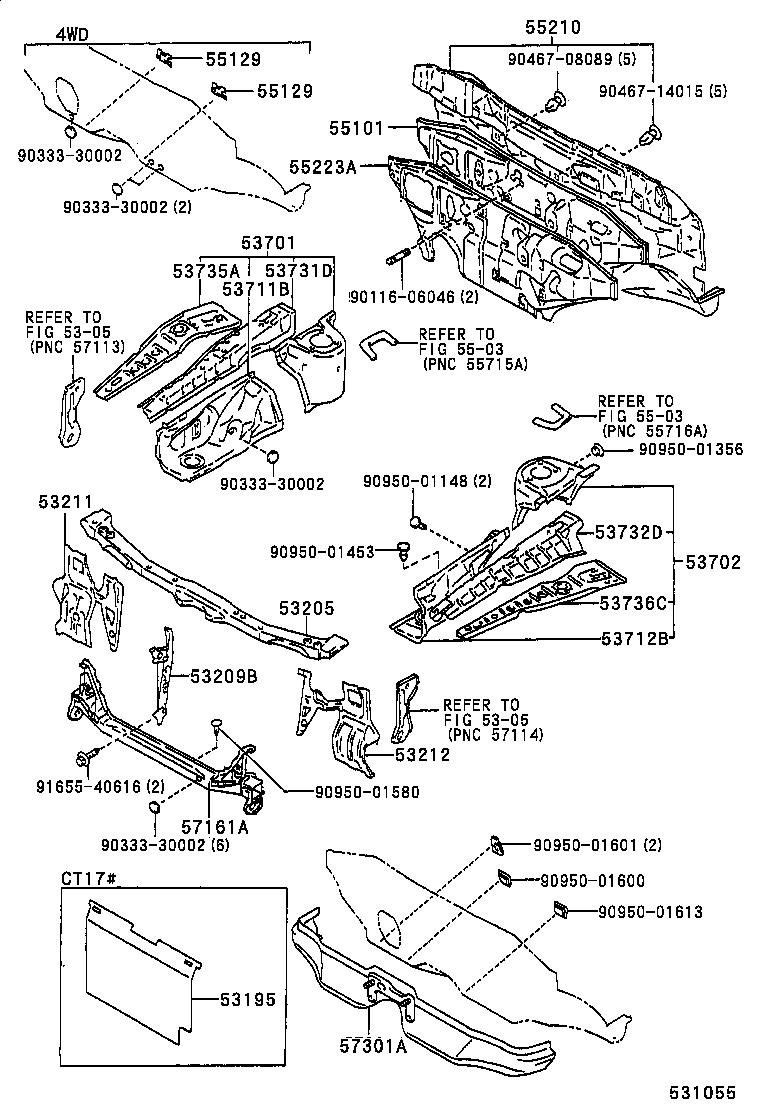

Exploded illustration 531055 55210 — INSULATOR ASSY, DASH PANEL (2 parts) 55129 — COVER, DASH PANEL HOLE (1 parts) 9046708089 — not listed in this catalogue 55129 — COVER, DASH PANEL HOLE (1 parts) 9046714015 — not listed in this catalogue 55101 — PANEL SUB-ASSY, DASH (4 parts) 9033330002 — not listed in this catalogue 55223A — INSULATOR, DASH PANEL, OUTER (1 parts) 9033330002 — not listed in this catalogue 53701 — APRON SUB-ASSY, FRONT FENDER, RH (5 parts) 53735A — MEMBER, FRONT APRON TO COWL SIDE, LOWER RH (1 parts) 53731D — MEMBER, FRONT APRON TO COWL SIDE, UPPER RH (1 parts) 53711B — APRON, FRONT FENDER, FRONT RH (6 parts) 9011606046 — not listed in this catalogue 5305 — not listed in this catalogue 5503 — not listed in this catalogue 5503 — not listed in this catalogue 9095001356 — not listed in this catalogue 9095001148 — not listed in this catalogue 9033330002 — not listed in this catalogue 53211 — SUPPORT, RADIATOR, RH (1 parts) 53732D — MEMBER, FRONT APRON TO COWL SIDE, UPPER LH (1 parts) 9095001453 — not listed in this catalogue 53702 — APRON SUB-ASSY, FRONT FENDER, LH (5 parts) 53736C — MEMBER, FRONT APRON TO COWL SIDE, LOWER LH (1 parts) 53205 — SUPPORT SUB-ASSY, RADIATOR, UPPER (2 parts) 53712B — APRON, FRONT FENDER, FRONT LH (4 parts) 53209B — BRACE SUB-ASSY, HOOD LOCK SUPPORT (3 parts) 5305 — not listed in this catalogue 53212 — SUPPORT, RADIATOR, LH (1 parts) 9165540616 — not listed in this catalogue 9095001580 — not listed in this catalogue 57161A — MEMBER, FRONT CROSS, FRONT W/REAR (1 parts) 9033330002 — not listed in this catalogue 9095001601 — not listed in this catalogue 9095001600 — not listed in this catalogue 9095001613 — not listed in this catalogue 53195 — PLATE, RADIATOR SHUTTER (1 parts) 57301A — MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT (1 parts)
531055 · 20 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
53195 — Plate, Radiator Shutter
53195-20030 Plate, Radiator Shutter
1988-05 → 1992-11 ended
CT17# ¥3,090
53205 — Support Sub-assy, Radiator, Upper
53216-20900 Support Sub-assy, Radiator, Upper
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 DX,S,SE,SG,SGEXT,STD,SV,SX ¥12,400
53216-20902 Support Sub-assy, Radiator, Upper
1988-05 → 1992-08 ended
AT171 GLIM ¥12,400
53209B — Brace Sub-assy, Hood Lock Support
53209-20170 Brace Sub-assy, Hood Lock Support
1990-05 → 1992-11 ended
CT176,ET176 ¥2,110
53209-20170 Brace Sub-assy, Hood Lock Support
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥2,110
53209-20250 Brace Sub-assy, Hood Lock Support
1990-05 → 1992-11 ended
AT17#,CT170,ST170 ¥2,110
53211 — Support, Radiator, RH
53211-20190 Support, Radiator, RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥5,400
53212 — Support, Radiator, LH
53212-20190 Support, Radiator, LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥5,400
53701 — Apron Sub-assy, Front Fender, RH
53701-20650 Apron Sub-assy, Front Fender, RH
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥39,200
53701-20670 note Apron Sub-assy, Front Fender, RH
1990-05 → 1992-08 ended
AT171 EFIS ¥39,200
53701-20670 note Apron Sub-assy, Front Fender, RH
1990-05 → 1992-08 ended
AT170 SE,SG,SGEXT ¥39,200
53701-20670 note Apron Sub-assy, Front Fender, RH
1988-08 → 1990-05 ended
AT170 SE ¥39,200
53701-20690 Apron Sub-assy, Front Fender, RH
1988-08 → 1992-08 ended
AT175 ¥39,200
53702 — Apron Sub-assy, Front Fender, LH
53702-20640 note Apron Sub-assy, Front Fender, LH
1988-05 → 1988-08 ended
AT171 GLIM ¥39,400
53702-20640 note Apron Sub-assy, Front Fender, LH
1988-08 → 1989-07 ended
AT171,ST170 GLIM,S,SE ¥39,400
53702-20641 Apron Sub-assy, Front Fender, LH
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥39,200
53702-20660 note Apron Sub-assy, Front Fender, LH
1988-08 → 1990-05 ended
AT170 SE ¥39,200
53702-20680 Apron Sub-assy, Front Fender, LH
1988-08 → 1992-08 ended
AT175 ¥39,200
53711B — Apron, Front Fender, Front RH
53711-20220 Apron, Front Fender, Front RH
1988-05 → 1989-11 ended
AT17#,CT17#,ET176,ST170 ¥5,700
53711-20220 Apron, Front Fender, Front RH
1989-11 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥5,700
53711-20240 note Apron, Front Fender, Front RH
1990-05 → 1992-08 ended
AT170 SE,SG,SGEXT ¥5,700
53711-20240 note Apron, Front Fender, Front RH
1990-05 → 1992-08 ended
AT171 EFIS ¥5,700
53711-20240 note Apron, Front Fender, Front RH
1988-08 → 1990-05 ended
AT170 SE ¥5,700
53711-20280 Apron, Front Fender, Front RH
1989-11 → 1992-08 ended
AT175 ¥6,100
53712B — Apron, Front Fender, Front LH
53712-20250 note Apron, Front Fender, Front LH
1988-05 → 1988-08 ended
AT171 GLIM ¥5,700
53712-20250 note Apron, Front Fender, Front LH
1988-08 → 1989-07 ended
AT171,ST170 GLIM,S,SE ¥5,700
53712-20251 Apron, Front Fender, Front LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥6,600
53712-20270 note Apron, Front Fender, Front LH
1988-08 → 1990-05 ended
AT170 SE ¥5,700
53731D — Member, Front Apron TO Cowl Side, Upper RH
53731-20070 Member, Front Apron TO Cowl Side, Upper RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥7,400
53732D — Member, Front Apron TO Cowl Side, Upper LH
53732-20070 Member, Front Apron TO Cowl Side, Upper LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥7,400
53735A — Member, Front Apron TO Cowl Side, Lower RH
53735-20050 Member, Front Apron TO Cowl Side, Lower RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥4,100
53736C — Member, Front Apron TO Cowl Side, Lower LH
53736-20060 Member, Front Apron TO Cowl Side, Lower LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥4,100
55101 — Panel Sub-assy, Dash
55101-2B903 Panel Sub-assy, Dash
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 MTM ¥31,400
55101-2B904 Panel Sub-assy, Dash
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ATM ¥29,700
55101-2B908 Panel Sub-assy, Dash
1988-08 → 1992-08 ended
AT175 5F —
55101-2B909 Panel Sub-assy, Dash
1988-08 → 1992-08 ended
AT175 4FC —
55129 — Cover, Dash Panel Hole
55129-16010 Cover, Dash Panel Hole
1988-08 → 1992-08 ended
AT175 ¥310
55210 — Insulator Assy, Dash Panel
55210-20190 Insulator Assy, Dash Panel
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥16,200
55210-20220 Insulator Assy, Dash Panel
1988-08 → 1992-08 ended
AT175 ¥24,400
55223A — Insulator, Dash Panel, Outer
55223-20080 Insulator, Dash Panel, Outer
1988-05 → 1992-11 ended
CT17# ¥35,000
57161A — Member, Front Cross, Front W/Rear
57161-20908 Member, Front Cross, Front W/Rear
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥14,400
57301A — Member Sub-assy, Steering Gear Box Support
57301-20190 Member Sub-assy, Steering Gear Box Support
1988-08 → 1992-08 ended
AT175 ¥46,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
