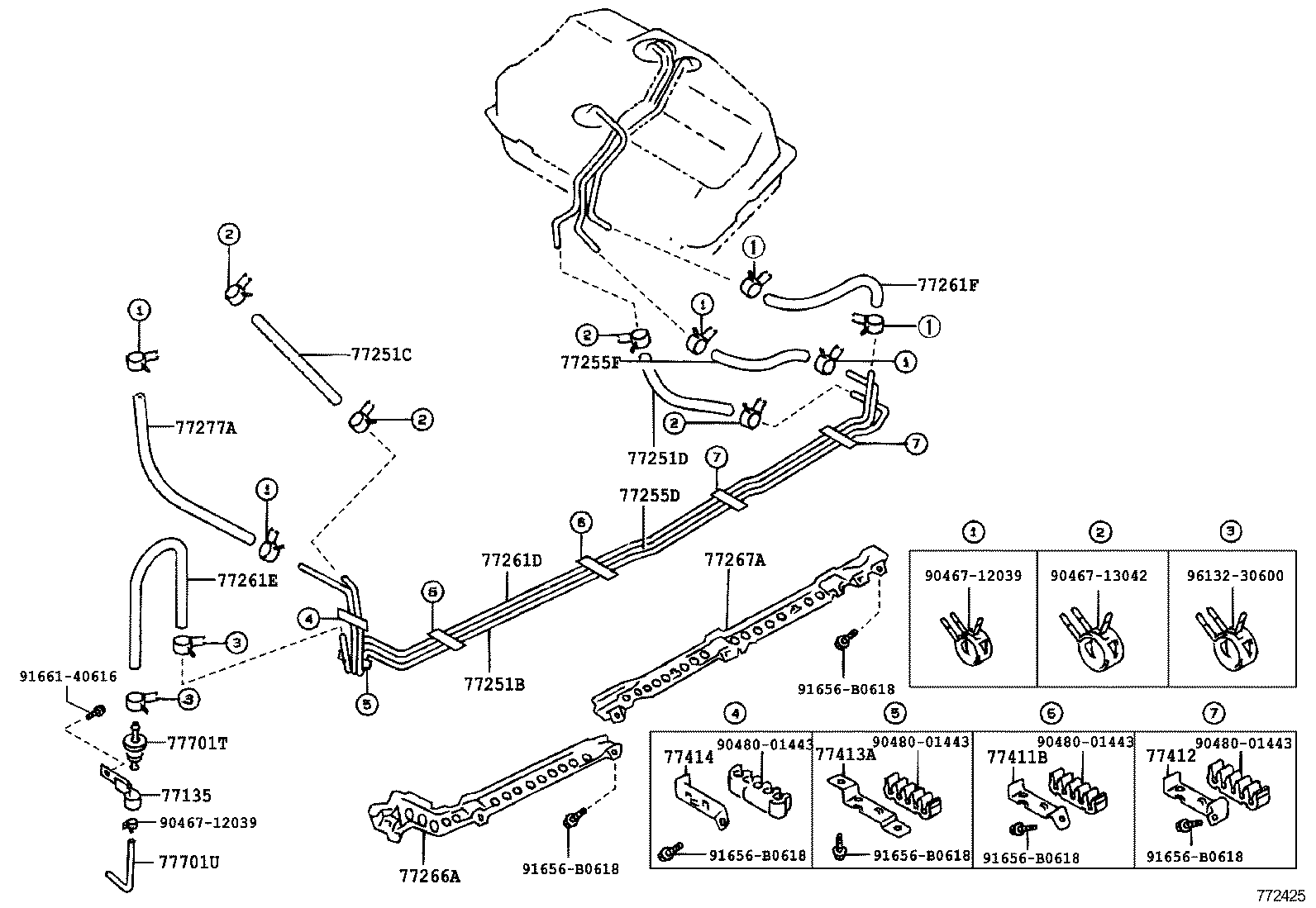

Exploded illustration 772425 9046712039 — not listed in this catalogue 9046713042 — not listed in this catalogue 9613230600 — not listed in this catalogue 91656B0618 — not listed in this catalogue 9048001443 — not listed in this catalogue 9048001443 — not listed in this catalogue 9048001443 — not listed in this catalogue 9048001443 — not listed in this catalogue 91656B0618 — not listed in this catalogue 91656B0618 — not listed in this catalogue 91656B0618 — not listed in this catalogue 91656B0618 — not listed in this catalogue 91656B0618 — not listed in this catalogue 77261F — HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) (3 parts) 77251C — HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) (3 parts) 77255F — HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) (6 parts) 77277A — HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) (9 parts) 77251D — HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) (4 parts) 77255D — TUBE, FUEL RETURN (6 parts) 77267A — PROTECTOR, FUEL TUBE, NO.2 (3 parts) 77261D — TUBE, FUEL TANK TO CANISTER (5 parts) 77261E — HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) (4 parts) 77251B — TUBE, FUEL MAIN (6 parts) 77411B — SUPPORT, FUEL TUBE GROMMET, NO.1 (4 parts) 77413A — SUPPORT, FUEL TUBE GROMMET, NO.3 (1 parts) 77414 — SUPPORT, FUEL TUBE GROMMET, NO.4 (1 parts) 77412 — SUPPORT, FUEL TUBE GROMMET, NO.2 (1 parts) 77266A — PROTECTOR, FUEL TUBE, NO.1 (2 parts) 9046712039 — not listed in this catalogue 9166140616 — not listed in this catalogue 77701U — HOSE, FUEL (FOR CHECK VALVE) (3 parts) 77135 — BRACKET, CHECK VALVE (2 parts) 77701T — VALVE, CHECK (FOR MAIN FUEL TANK) (1 parts)
772425 · 18 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
64 parts on this figure
Part number Description Fitment Price
77135 — Bracket, Check Valve
77135-20050 Bracket, Check Valve
1988-05 → 1992-11 ended
CT176 ¥430
77135-20060 Bracket, Check Valve
1988-05 → 1992-11 ended
CT170 ¥440
77251B — Tube, Fuel Main
77251-20480 Tube, Fuel Main
1988-05 → 1992-11 ended
CT170 ¥3,450
77251-20500 Tube, Fuel Main
1988-05 → 1992-11 ended
AT170,171,ST170 CI,EFI,EFIS ¥3,810
77251-20520 Tube, Fuel Main
1988-05 → 1990-05 ended
AT170 ¥2,870
77251-20570 Tube, Fuel Main
1988-08 → 1992-08 ended
AT175 ¥6,400
77251-95500 Tube, Fuel Main
1988-05 → 1992-11 ended
CT176 ¥3,330
77251-95503 Tube, Fuel Main
1988-05 → 1992-11 ended
ET176 ¥2,930
77251C — Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
95333-06020 note Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
1988-05 → 1990-05 ended
AT170 ¥480
95333-06020 note Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
1988-05 → 1992-11 ended
ET176 ¥480
95333-08030 note Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
1988-05 → 1992-11 ended
CT17# ¥660
77251D — Hose, Fuel, NO.2(FOR FUEL MAIN TUBE)
95333-06020 note Hose, Fuel, NO.2(FOR FUEL MAIN TUBE)
1988-05 → 1992-11 ended
ET176 ¥480
95333-06020 note Hose, Fuel, NO.2(FOR FUEL MAIN TUBE)
1988-05 → 1992-11 ended
AT170,171,ST170 ¥480
95333-08020 note Hose, Fuel, NO.2(FOR FUEL MAIN TUBE)
1988-05 → 1992-11 ended
CT170 ¥320
95333-08020 note Hose, Fuel, NO.2(FOR FUEL MAIN TUBE)
1988-05 → 1992-11 ended
CT176 ¥320
77255D — Tube, Fuel Return
77255-20380 Tube, Fuel Return
1988-05 → 1990-05 ended
AT170 ¥2,170
77255-20390 Tube, Fuel Return
1988-05 → 1992-11 ended
CT170,ST170 ¥2,860
77255-20430 Tube, Fuel Return
1988-08 → 1992-08 ended
AT175 ¥4,770
77255-20440 Tube, Fuel Return
1988-05 → 1992-11 ended
AT170,171 EFI,EFIS ¥2,860
77255-95506 Tube, Fuel Return
1988-05 → 1992-11 ended
CT176 ¥2,820
77255-95509 Tube, Fuel Return
1988-05 → 1992-11 ended
ET176 ¥2,210
77255F — Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
95333-04020 note Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
1988-05 → 1990-05 ended
AT170 ¥510
95333-04020 note Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
1988-05 → 1992-05 ended
ET176 ¥510
95333-06020 note Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
1988-05 → 1992-11 ended
CT170 ¥480
95333-06020 note Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
1988-05 → 1992-11 ended
CT176 ¥480
95333-06030 note Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
1988-08 → 1992-08 ended
AT175 ¥580
95334-04013 note Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
1992-09 → 1992-11 ended
ET176 ¥200
77261D — Tube, Fuel Tank TO Canister
77261-20130 Tube, Fuel Tank TO Canister
1988-05 → 1990-05 ended
AT170 ¥2,920
77261-20170 Tube, Fuel Tank TO Canister
1988-05 → 1992-11 ended
ST170 ¥2,890
77261-20190 Tube, Fuel Tank TO Canister
1988-08 → 1992-08 ended
AT175 ¥4,980
77261-20220 Tube, Fuel Tank TO Canister
1988-05 → 1992-11 ended
AT170,171 EFI,EFIS ¥2,930
77261-95502 Tube, Fuel Tank TO Canister
1988-05 → 1992-11 ended
CT176,ET176 ¥2,780
77261E — Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77259-20060 note Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
1988-08 → 1992-08 ended
AT175 ¥680
77259-20080 Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
1988-05 → 1992-11 ended
AT170,171 EFI,EFIS ¥2,080
95333-06030 note Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
1988-05 → 1992-11 ended
CT176 ¥580
95333-06030 note Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
1988-05 → 1992-11 ended
ST170;AT170,ET176 CBR ¥580
77261F — Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020 note Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
1988-08 → 1992-08 ended
AT175 ¥480
95333-06020 note Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
1988-05 → 1992-11 ended
CT176,ET176 ¥480
95333-06020 note Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
1988-05 → 1992-11 ended
AT170,171,ST170 ¥480
77266A — Protector, Fuel Tube, NO.1
77266-20090 Protector, Fuel Tube, NO.1
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥1,130
77267-20040 Protector, Fuel Tube, NO.1
1988-08 → 1992-08 ended
AT175 ¥1,160
77267A — Protector, Fuel Tube, NO.2
77266-20080 Protector, Fuel Tube, NO.2
1988-08 → 1992-08 ended
AT175 ¥1,610
77267-20050 Protector, Fuel Tube, NO.2
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥1,350
77267-20080 Protector, Fuel Tube, NO.2
1988-05 → 1992-11 ended
CT176,ET176 ¥1,350
77277A — Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
23271-15220 Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1988-05 → 1990-05 ended
AT170 ¥1,260
23271-64130 Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1988-05 → 1992-11 ended
CT17# ¥790
23271-74190 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1990-05 → 1992-11 ended
ST170 ¥860
90447-12043 Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1988-05 → 1992-08 ended
AT171,175 S,SE,SG,SGEXT ¥980
90447-12085 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1988-05 → 1992-02 ended
ST170 CI;AT170 EFI ¥880
90447-12091 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1988-05 → 1989-05 ended
AT171 GLIM ¥1,600
90447-12117 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1989-05 → 1992-08 ended
AT171 GLIM ¥1,510
90447-12141 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1992-02 → 1992-11 ended
AT170 ¥920
95333-04046 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1988-05 → 1992-11 ended
ET176 ¥790
77411B — Support, Fuel Tube Grommet, NO.1
77411-20010 Support, Fuel Tube Grommet, NO.1
1988-05 → 1988-06 ended
AT17#,CT170,ST170 ¥740
77411-20010 Support, Fuel Tube Grommet, NO.1
1988-05 → 1992-11 ended
CT176,ET176 ¥740
77411-20010 note Support, Fuel Tube Grommet, NO.1
1988-06 → 1992-11 ended
AT170,171,CT170,ST170 ¥740
77411-20020 note Support, Fuel Tube Grommet, NO.1
1988-06 → 1992-11 ended
AT170,171,CT170,ST170 ¥740
77412 — Support, Fuel Tube Grommet, NO.2
77412-20010 Support, Fuel Tube Grommet, NO.2
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥740
77413A — Support, Fuel Tube Grommet, NO.3
77413-20010 Support, Fuel Tube Grommet, NO.3
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥740
77414 — Support, Fuel Tube Grommet, NO.4
77414-20010 Support, Fuel Tube Grommet, NO.4
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 ¥740
77701T — Valve, Check (FOR MAIN FUEL TANK)
90917-10069 Valve, Check (FOR MAIN FUEL TANK)
1988-05 → 1992-11 ended
CT17# ¥1,340
77701U — Hose, Fuel (FOR CHECK VALVE)
77249-12050 Hose, Fuel (FOR CHECK VALVE)
1988-05 → 1990-05 ended
CT176 ¥780
95333-06030 note Hose, Fuel (FOR CHECK VALVE)
1988-05 → 1992-11 ended
CT170 ¥580
95333-06030 note Hose, Fuel (FOR CHECK VALVE)
1990-05 → 1992-11 ended
CT176 ¥580
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
