Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

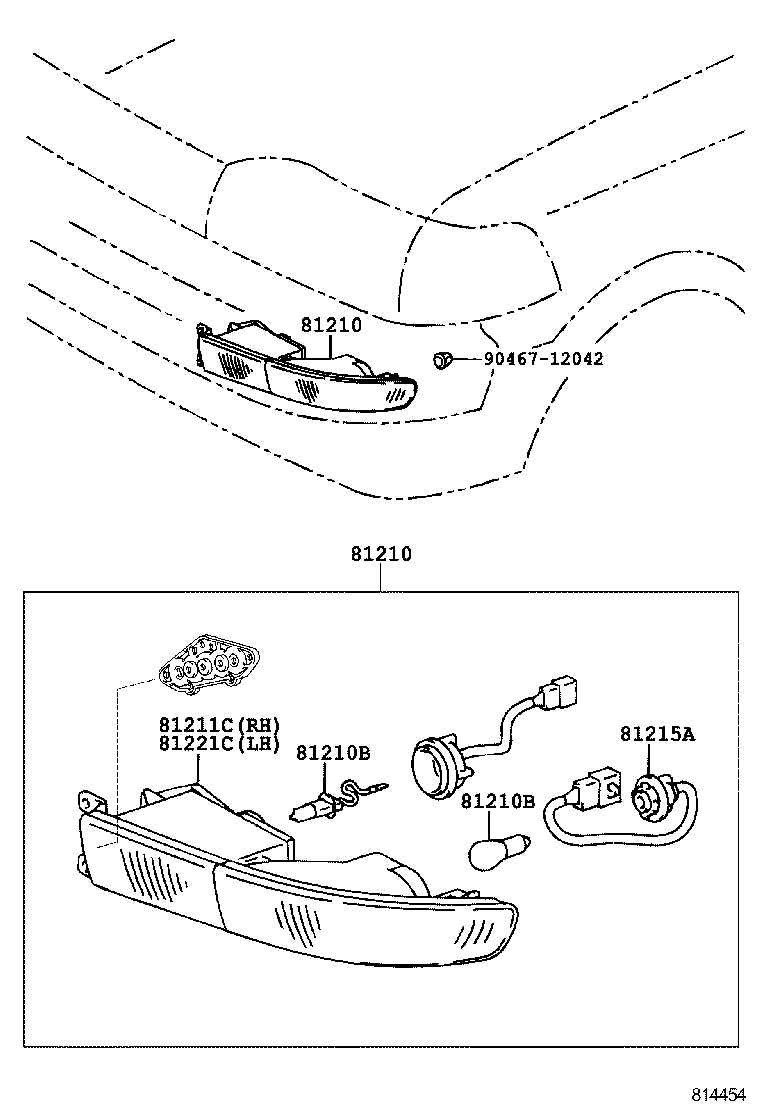

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81210 — Lamp Assy, Fog | ||||
| 81210-20100 note |
Lamp Assy, Fog
1988-05 → 1988-12
ended
|
ST170 SGEXT,SX;AT170,175,CT17#,ET176 | ¥21,300 | |
| 81210-20100 note |
Lamp Assy, Fog
1988-05 → 1988-12
ended
|
AT171,ST170 S,SE | ¥21,300 | |
| 81210-20100 note |
Lamp Assy, Fog
1988-12 → 1989-03
ended
|
AT171,ST170 S,SE;AT175 4FC SGEXT | ¥21,300 | |
| 81210-20100 note |
Lamp Assy, Fog
1988-12 → 1989-03
ended
|
ST170 SGEXT,SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 | ¥21,300 | |
| 81210-20100 note |
Lamp Assy, Fog
1990-05 → 1992-11
ended
|
CT176,ET176 | ¥21,300 | |
| 81210-20100 note |
Lamp Assy, Fog
1989-03 → 1990-05
ended
|
ST170 SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 | ¥21,300 | |
| 81210-20100 note |
Lamp Assy, Fog
1989-03 → 1990-05
ended
|
AT175 4FC SGEXT;AT171,ST170 S,SE,SGEXT | ¥21,300 | |
| 81210-20110 note |
Lamp Assy, Fog
1990-12 → 1992-08
ended
|
CT170 SG;AT170,ST170 SGEXT | ¥16,700 | |
| 81210-20110 note |
Lamp Assy, Fog
1990-12 → 1992-11
ended
|
AT175;CT170 SE,SV;AT170,171 DX,GLIM,SE,SG,SV | ¥16,700 | |
| 81210-20110 note |
Lamp Assy, Fog
1990-05 → 1992-11
ended
|
AT171,ST170 S,SX | ¥16,700 | |
| 81210-20110 note |
Lamp Assy, Fog
1990-05 → 1992-08
ended
|
ST170 SE | ¥16,700 | |
| 81210-20110 note |
Lamp Assy, Fog
1990-05 → 1990-12
ended
|
ST170 SGEXT;AT17#,CT170 DSL,EFI | ¥16,700 | |
| 81210-29115 note |
Lamp Assy, Fog
1988-05 → 1990-05
ended
|
ST170 SE | ¥17,800 | |
| 81210-29115 note |
Lamp Assy, Fog
1988-05 → 1990-05
ended
|
AT171 S | ¥17,800 | |
| 81210-29115 note |
Lamp Assy, Fog
1988-05 → 1990-05
ended
|
AT171 GLIM | ¥17,800 | |
| 81210-29115 note |
Lamp Assy, Fog
1988-12 → 1989-03
ended
|
AT175 4FC SGEXT | ¥17,800 | |
| 81210-29115 note |
Lamp Assy, Fog
1989-05 → 1989-06
ended
|
ST170 SX | ¥17,800 | |
| 81210-29115 note |
Lamp Assy, Fog
1989-03 → 1990-05
ended
|
ST170 SGEXT;AT175 4FC SGEXT | ¥17,800 | |
| 81210-29115 note |
Lamp Assy, Fog
1989-03 → 1992-10
ended
|
ST170 SGEXT CI | ¥17,800 | |
| 81210-29115 note |
Lamp Assy, Fog
1989-05 → 1990-05
ended
|
ST170 SX | ¥17,800 | |
| 81220-20090 note |
Lamp Assy, Fog
1990-05 → 1992-11
ended
|
CT176,ET176 | ¥21,300 | |
| 81220-20090 note |
Lamp Assy, Fog
1988-05 → 1988-12
ended
|
AT171,ST170 S,SE | ¥21,300 | |
| 81220-20090 note |
Lamp Assy, Fog
1988-05 → 1988-12
ended
|
ST170 SGEXT,SX;AT170,175,CT17#,ET176 | ¥21,300 | |
| 81220-20090 note |
Lamp Assy, Fog
1988-12 → 1989-03
ended
|
AT171,ST170 S,SE;AT175 4FC SGEXT | ¥21,300 | |
| 81220-20090 note |
Lamp Assy, Fog
1988-12 → 1989-03
ended
|
ST170 SGEXT,SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 | ¥21,300 | |
| 81220-20090 note |
Lamp Assy, Fog
1989-03 → 1990-05
ended
|
ST170 SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 | ¥21,300 | |
| 81220-20090 note |
Lamp Assy, Fog
1989-03 → 1990-05
ended
|
AT175 4FC SGEXT;AT171,ST170 S,SE,SGEXT | ¥21,300 | |
| 81220-20100 note |
Lamp Assy, Fog
1990-05 → 1990-12
ended
|
ST170 SGEXT;AT17#,CT170 DSL,EFI | ¥16,700 | |
| 81220-20100 note |
Lamp Assy, Fog
1990-05 → 1992-08
ended
|
ST170 SE | ¥16,700 | |
| 81220-20100 note |
Lamp Assy, Fog
1990-12 → 1992-11
ended
|
AT175;CT170 SE,SV;AT170,171 DX,GLIM,SE,SG,SV | ¥16,700 | |
| 81220-20100 note |
Lamp Assy, Fog
1990-12 → 1992-08
ended
|
CT170 SG;AT170,ST170 SGEXT | ¥16,700 | |
| 81220-20100 note |
Lamp Assy, Fog
1990-05 → 1992-11
ended
|
AT171,ST170 S,SX | ¥16,700 | |
| 81220-29065 note |
Lamp Assy, Fog
1988-12 → 1989-03
ended
|
AT175 4FC SGEXT | ¥17,800 | |
| 81220-29065 note |
Lamp Assy, Fog
1989-05 → 1990-05
ended
|
ST170 SX | ¥17,800 | |
| 81220-29065 note |
Lamp Assy, Fog
1988-05 → 1990-05
ended
|
AT171 GLIM | ¥17,800 | |
| 81220-29065 note |
Lamp Assy, Fog
1988-05 → 1990-05
ended
|
ST170 SE | ¥17,800 | |
| 81220-29065 note |
Lamp Assy, Fog
1988-05 → 1990-05
ended
|
AT171 S | ¥17,800 | |
| 81220-29065 note |
Lamp Assy, Fog
1989-05 → 1989-06
ended
|
ST170 SX | ¥17,800 | |
| 81220-29065 note |
Lamp Assy, Fog
1989-03 → 1992-10
ended
|
ST170 SGEXT CI | ¥17,800 | |
| 81220-29065 note |
Lamp Assy, Fog
1989-03 → 1990-05
ended
|
ST170 SGEXT;AT175 4FC SGEXT | ¥17,800 | |
| 81210B — Bulb, Fog Lamp | ||||
| 90981-13018 note |
Bulb, Fog Lamp
1988-12 → 1992-10
ended
|
AT175 SGEXT | ¥1,000 | |
| 90981-13018 note |
Bulb, Fog Lamp
1990-05 → 1990-09
ended
|
ST170 SGEXT;AT17#,CT17#,ET176 CBR,DSL,EFI | ¥1,000 | |
| 90981-13018 note |
Bulb, Fog Lamp
1988-12 → 1989-03
ended
|
ST170 SGEXT,SX;AT175 5F SGEXT;AT17#,CT17#,ET176 +1 | ¥1,000 | |
| 90981-13018 note |
Bulb, Fog Lamp
1990-05 → 1990-09
ended
|
ST170 SE | ¥1,000 | |
| 90981-13018 note |
Bulb, Fog Lamp
1990-05 → 1990-09
ended
|
AT171,ST170 S,SX | ¥1,000 | |
| 90981-13018 note |
Bulb, Fog Lamp
1989-05 → 1990-05
ended
|
ST170 SX | ¥1,000 | |
| 90981-13018 note |
Bulb, Fog Lamp
1989-03 → 1990-05
ended
|
ST170 SX;AT175 5F SGEXT;AT17#,CT17#,ET176 +1 | ¥1,000 | |
| 90981-13018 note |
Bulb, Fog Lamp
1989-03 → 1990-05
ended
|
ST170 SGEXT;AT175 4FC SGEXT | ¥1,000 | |
| 90981-13018 note |
Bulb, Fog Lamp
1988-05 → 1990-05
ended
|
ST170 SE | ¥1,000 | |
| 90981-13018 note |
Bulb, Fog Lamp
1988-05 → 1990-05
ended
|
AT171 S | ¥1,000 | |
| 90981-13018 note |
Bulb, Fog Lamp
1989-05 → 1989-06
ended
|
ST170 SX | ¥1,000 | |
| 90981-13018 note |
Bulb, Fog Lamp
1988-12 → 1989-03
ended
|
AT175 4FC SGEXT | ¥1,000 | |
| 90981-13018 note |
Bulb, Fog Lamp
1988-05 → 1988-12
ended
|
ST170 SGEXT,SX;AT17#,CT17#,ET176 DX,GLIM,SE,SG,SGEXT,STD,SV | ¥1,000 | |
| 90981-13048 note |
Bulb, Fog Lamp
1990-09 → 1990-12
ended
|
ST170 SGEXT;AT17#,CT17#,ET176 CBR,DSL,EFI | ¥1,000 | |
| 90981-13048 note |
Bulb, Fog Lamp
1990-09 → 1992-08
ended
|
ST170 SE | ¥1,000 | |
| 90981-13048 note |
Bulb, Fog Lamp
1990-12 → 1992-08
ended
|
CT170 SG;AT170,ST170 SGEXT | ¥1,000 | |
| 90981-13048 note |
Bulb, Fog Lamp
1990-12 → 1992-11
ended
|
AT175;CT170 SE,SV;AT170,171,CT176,ET176 DX,GLIM,SE,SG,STD,SV | ¥1,000 | |
| 90981-13048 note |
Bulb, Fog Lamp
1990-09 → 1992-11
ended
|
AT171,ST170 S,SX | ¥1,000 | |
| 99132-11210 note |
Bulb, Fog Lamp
1990-12 → 1992-11
ended
|
AT175;CT170 SE,SV;AT170,171 DX,GLIM,SE,SG,SV | ¥170 | |
| 99132-11210 note |
Bulb, Fog Lamp
1990-05 → 1992-08
ended
|
ST170 SE | ¥170 | |
| 99132-11210 note |
Bulb, Fog Lamp
1990-12 → 1992-08
ended
|
CT170 SG;AT170,ST170 SGEXT | ¥170 | |
| 99132-11210 note |
Bulb, Fog Lamp
1990-05 → 1990-12
ended
|
ST170 SGEXT;AT17#,CT170 DSL,EFI | ¥170 | |
| 99132-11210 note |
Bulb, Fog Lamp
1990-05 → 1992-11
ended
|
AT171,ST170 S,SX | ¥170 | |
| 81211C — Lamp Unit, Fog Lamp, RH | ||||
| 81211-20090 note |
Lamp Unit, Fog Lamp, RH
1989-03 → 1990-05
ended
|
ST170 SGEXT;AT175 4FC SGEXT | ¥10,500 | |
| 81211-20090 note |
Lamp Unit, Fog Lamp, RH
1988-05 → 1990-05
ended
|
AT171 S | ¥10,500 | |
| 81211-20090 note |
Lamp Unit, Fog Lamp, RH
1988-05 → 1990-05
ended
|
ST170 SE | ¥10,500 | |
| 81211-20090 |
Lamp Unit, Fog Lamp, RH
1988-05 → 1990-05
ended
|
AT171 GLIM | ¥10,500 | |
| 81211-20090 note |
Lamp Unit, Fog Lamp, RH
1988-12 → 1989-03
ended
|
AT175 4FC SGEXT | ¥10,500 | |
| 81211-20100 |
Lamp Unit, Fog Lamp, RH
1988-12 → 1989-03
ended
|
ST170 SGEXT,SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 | ¥14,700 | |
| 81211-20100 |
Lamp Unit, Fog Lamp, RH
1988-12 → 1989-03
ended
|
AT171,ST170 S,SE;AT175 4FC SGEXT | ¥14,700 | |
| 81211-20100 |
Lamp Unit, Fog Lamp, RH
1988-05 → 1988-12
ended
|
ST170 SGEXT,SX;AT170,175,CT17#,ET176 | ¥14,700 | |
| 81211-20100 |
Lamp Unit, Fog Lamp, RH
1989-03 → 1990-05
ended
|
AT175 4FC SGEXT;AT171,ST170 S,SE,SGEXT | ¥14,700 | |
| 81211-20100 |
Lamp Unit, Fog Lamp, RH
1989-03 → 1990-05
ended
|
ST170 SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 | ¥14,700 | |
| 81211-20100 |
Lamp Unit, Fog Lamp, RH
1990-05 → 1992-11
ended
|
CT176,ET176 | ¥14,700 | |
| 81211-20100 |
Lamp Unit, Fog Lamp, RH
1988-05 → 1988-12
ended
|
AT171,ST170 S,SE | ¥14,700 | |
| 81211-20110 |
Lamp Unit, Fog Lamp, RH
1990-05 → 1990-12
ended
|
ST170 SGEXT;AT17#,CT170 DSL,EFI | ¥13,400 | |
| 81211-20110 note |
Lamp Unit, Fog Lamp, RH
1990-05 → 1992-08
ended
|
ST170 SE | ¥13,400 | |
| 81211-20110 note |
Lamp Unit, Fog Lamp, RH
1990-12 → 1992-08
ended
|
CT170 SG;AT170,ST170 SGEXT | ¥13,400 | |
| 81211-20110 note |
Lamp Unit, Fog Lamp, RH
1990-05 → 1992-11
ended
|
AT171,ST170 S,SX | ¥13,400 | |
| 81211-20110 |
Lamp Unit, Fog Lamp, RH
1990-12 → 1992-11
ended
|
AT175;CT170 SE,SV;AT170,171 DX,GLIM,SE,SG,SV | ¥13,400 | |
| 81215A — Socket & Wire, Fog Lamp | ||||
| 81215-20090 note |
Socket & Wire, Fog Lamp
1989-03 → 1990-05
ended
|
ST170 SGEXT;AT175 4FC SGEXT | ¥710 | |
| 81215-20090 note |
Socket & Wire, Fog Lamp
1988-05 → 1990-05
ended
|
AT171 S | ¥710 | |
| 81215-20090 |
Socket & Wire, Fog Lamp
1988-05 → 1990-05
ended
|
AT171 GLIM | ¥710 | |
| 81215-20090 note |
Socket & Wire, Fog Lamp
1988-12 → 1989-03
ended
|
AT175 4FC SGEXT | ¥710 | |
| 81215-20090 note |
Socket & Wire, Fog Lamp
1988-05 → 1990-05
ended
|
ST170 SE | ¥710 | |
| 81215-20110 |
Socket & Wire, Fog Lamp
1990-05 → 1990-12
ended
|
ST170 SGEXT;AT17#,CT170 DSL,EFI | ¥1,200 | |
| 81215-20110 note |
Socket & Wire, Fog Lamp
1990-05 → 1992-08
ended
|
ST170 SE | ¥1,200 | |
| 81215-20110 note |
Socket & Wire, Fog Lamp
1990-12 → 1992-08
ended
|
CT170 SG;AT170,ST170 SGEXT | ¥1,200 | |
| 81215-20110 note |
Socket & Wire, Fog Lamp
1990-05 → 1992-11
ended
|
AT171,ST170 S,SX | ¥1,200 | |
| 81215-20110 |
Socket & Wire, Fog Lamp
1990-12 → 1992-11
ended
|
AT175;CT170 SE,SV;AT170,171 DX,GLIM,SE,SG,SV | ¥1,200 | |
| 81221C — Lamp Unit, Fog Lamp, LH | ||||
| 81221-20080 |
Lamp Unit, Fog Lamp, LH
1988-05 → 1990-05
ended
|
AT171 GLIM | ¥10,500 | |
| 81221-20080 note |
Lamp Unit, Fog Lamp, LH
1989-05 → 1990-05
ended
|
ST170 SX | ¥10,500 | |
| 81221-20080 note |
Lamp Unit, Fog Lamp, LH
1989-03 → 1990-05
ended
|
ST170 SGEXT;AT175 4FC SGEXT | ¥10,500 | |
| 81221-20080 note |
Lamp Unit, Fog Lamp, LH
1988-05 → 1990-05
ended
|
AT171 S | ¥10,500 | |
| 81221-20080 note |
Lamp Unit, Fog Lamp, LH
1988-05 → 1990-05
ended
|
ST170 SE | ¥10,500 | |
| 81221-20080 note |
Lamp Unit, Fog Lamp, LH
1988-12 → 1989-03
ended
|
AT175 4FC SGEXT | ¥10,500 | |
| 81221-20090 |
Lamp Unit, Fog Lamp, LH
1988-12 → 1989-03
ended
|
ST170 SGEXT,SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 | ¥14,700 | |
| 81221-20090 |
Lamp Unit, Fog Lamp, LH
1988-12 → 1989-03
ended
|
AT171,ST170 S,SE;AT175 4FC SGEXT | ¥14,700 | |
| 81221-20090 |
Lamp Unit, Fog Lamp, LH
1988-05 → 1988-12
ended
|
ST170 SGEXT,SX;AT170,175,CT17#,ET176 | ¥14,700 | |
| 81221-20090 |
Lamp Unit, Fog Lamp, LH
1989-03 → 1990-05
ended
|
AT175 4FC SGEXT;AT171,ST170 S,SE,SGEXT | ¥14,700 | |
| 81221-20090 |
Lamp Unit, Fog Lamp, LH
1989-03 → 1990-05
ended
|
ST170 SX;AT175 5F SGEXT;AT170,175,CT17#,ET176 +1 | ¥14,700 | |
| 81221-20090 |
Lamp Unit, Fog Lamp, LH
1988-05 → 1988-12
ended
|
AT171,ST170 S,SE | ¥14,700 | |
| 81221-20090 |
Lamp Unit, Fog Lamp, LH
1990-05 → 1992-11
ended
|
CT176,ET176 | ¥14,700 | |
| 81221-20100 |
Lamp Unit, Fog Lamp, LH
1990-05 → 1990-12
ended
|
ST170 SGEXT;AT17#,CT170 DSL,EFI | ¥13,400 | |
| 81221-20100 |
Lamp Unit, Fog Lamp, LH
1990-05 → 1992-08
ended
|
ST170 SE | ¥13,400 | |
| 81221-20100 note |
Lamp Unit, Fog Lamp, LH
1990-12 → 1992-08
ended
|
CT170 SG;AT170,ST170 SGEXT | ¥13,400 | |
| 81221-20100 |
Lamp Unit, Fog Lamp, LH
1990-05 → 1992-11
ended
|
AT171,ST170 S,SX | ¥13,400 | |
| 81221-20100 |
Lamp Unit, Fog Lamp, LH
1990-12 → 1992-11
ended
|
AT175;CT170 SE,SV;AT170,171 DX,GLIM,SE,SG,SV | ¥13,400 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
