Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

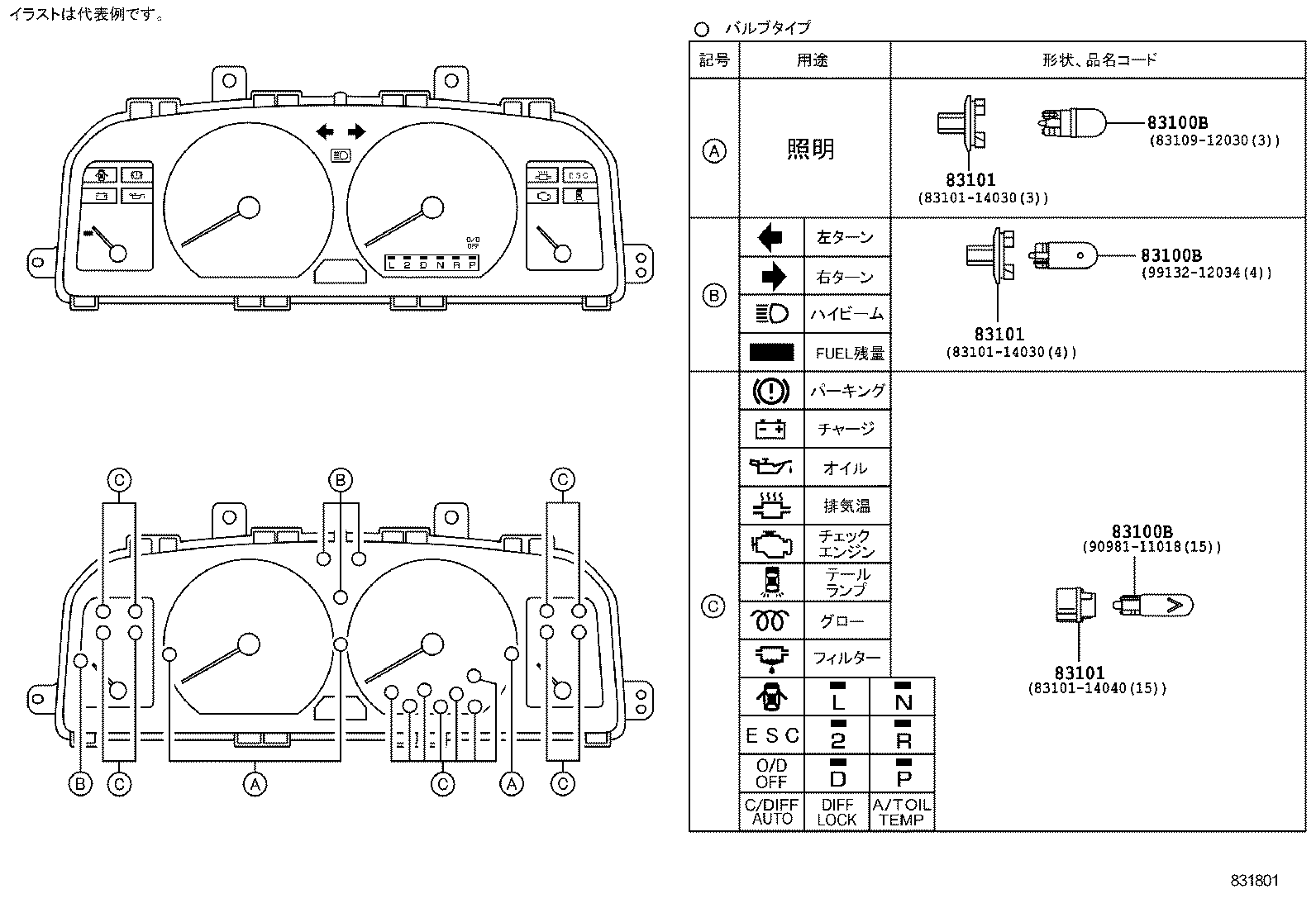

Exploded illustration 831801 83101 — SOCKET SUB-ASSY, COMBINATION METER BULB (27 parts) 83100B — BULB, COMBINATION METER, NO.1 (40 parts) 83101 — SOCKET SUB-ASSY, COMBINATION METER BULB (27 parts) 83100B — BULB, COMBINATION METER, NO.1 (40 parts) 83101 — SOCKET SUB-ASSY, COMBINATION METER BULB (27 parts) 83100B — BULB, COMBINATION METER, NO.1 (40 parts)
831801 · 6 callouts Full size ↗
67 parts on this figure
Part number Description Fitment Price
83100B — Bulb, Combination Meter, NO.1
83109-12030 note Bulb, Combination Meter, NO.1
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥0
83109-20010 note Bulb, Combination Meter, NO.1
1988-05 → 1990-05 ended
ST170 4FC SE —
83109-20010 note Bulb, Combination Meter, NO.1
1990-05 → 1992-08 ended
ST170 4FC SE —
83109-20010 note Bulb, Combination Meter, NO.1
1990-05 → 1992-08 ended
ST170 5F SE —
83109-20010 note Bulb, Combination Meter, NO.1
1988-05 → 1992-08 ended
AT171 GLIM —
83109-20010 note Bulb, Combination Meter, NO.1
1988-05 → 1990-05 ended
ST170 5F SE —
83109-20030 note Bulb, Combination Meter, NO.1
1990-05 → 1992-08 ended
ST170 4FC SE —
83109-20030 note Bulb, Combination Meter, NO.1
1988-05 → 1990-05 ended
ST170 5F SE —
83109-20030 note Bulb, Combination Meter, NO.1
1988-05 → 1992-08 ended
AT171 GLIM —
83109-20030 note Bulb, Combination Meter, NO.1
1990-05 → 1992-08 ended
ST170 5F SE —
83109-20030 note Bulb, Combination Meter, NO.1
1988-05 → 1990-05 ended
ST170 4FC SE —
90981-11018 note Bulb, Combination Meter, NO.1
1988-05 → 1992-08 ended
AT170,175,CT170 SE,SGEXT ¥140
90981-11018 note Bulb, Combination Meter, NO.1
1990-12 → 1992-08 ended
CT170 SG ¥140
90981-11018 note Bulb, Combination Meter, NO.1
1988-05 → 1989-03 ended
AT170 SG ¥140
90981-11018 note Bulb, Combination Meter, NO.1
1990-05 → 1992-11 ended
ST170 5F ¥140
90981-11018 note Bulb, Combination Meter, NO.1
1990-05 → 1992-08 ended
ST170 4FC SE ¥140
90981-11018 note Bulb, Combination Meter, NO.1
1990-05 → 1992-08 ended
ST170 5F SE ¥140
90981-11018 note Bulb, Combination Meter, NO.1
1990-05 → 1992-08 ended
ST170 SGEXT ¥140
90981-11018 note Bulb, Combination Meter, NO.1
1988-05 → 1992-08 ended
AT170,175 SG EFI ¥140
90981-11018 note Bulb, Combination Meter, NO.1
1988-05 → 1992-08 ended
AT171 ¥140
90981-11018 note Bulb, Combination Meter, NO.1
1988-05 → 1992-08 ended
ST170 CI ¥140
90981-11018 note Bulb, Combination Meter, NO.1
1990-05 → 1992-11 ended
ST170 4FC ¥140
90981-11018 note Bulb, Combination Meter, NO.1
1989-03 → 1990-05 ended
CT170 SG ¥140
90981-11018 note Bulb, Combination Meter, NO.1
1989-03 → 1990-05 ended
AT170 SG ¥140
99132-12034 note Bulb, Combination Meter, NO.1
1990-05 → 1992-11 ended
ST170 ¥100
99132-12034 note Bulb, Combination Meter, NO.1
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥100
99132-12034 note Bulb, Combination Meter, NO.1
1990-05 → 1992-11 ended
ET176 ¥100
99132-12034 note Bulb, Combination Meter, NO.1
1991-08 → 1992-11 ended
AT170,CT17# MTM (DX,SG,SV) ¥100
99132-12034 note Bulb, Combination Meter, NO.1
1991-08 → 1992-11 ended
AT170,CT17# 4FC (DX,SG,SV) ¥100
99132-12034 note Bulb, Combination Meter, NO.1
1991-06 → 1992-08 ended
AT175;AT170,171,CT170 GLIM,S,SE,SGEXT ¥100
99132-12034 note Bulb, Combination Meter, NO.1
1991-06 → 1992-08 ended
CT170 SG ¥100
99132-12034 note Bulb, Combination Meter, NO.1
1990-05 → 1992-08 ended
ST170 SE ¥100
99132-12034 note Bulb, Combination Meter, NO.1
1990-05 → 1992-08 ended
AT170 SG;ST170 SGEXT ¥100
99132-12034 note Bulb, Combination Meter, NO.1
1990-05 → 1991-06 ended
AT170 MTM (DX,SG,SV) ¥100
99132-12034 note Bulb, Combination Meter, NO.1
1990-05 → 1991-06 ended
AT170 4FC (DX,SG,SV) ¥100
99132-12034 note Bulb, Combination Meter, NO.1
1990-05 → 1991-06 ended
AT175,CT17#;AT170,171 GLIM,S,SE,SGEXT ¥100
99132-12034 note Bulb, Combination Meter, NO.1
1991-06 → 1991-08 ended
AT170,CT176 MTM (DX,SG,SV) ¥100
99132-12034 note Bulb, Combination Meter, NO.1
1991-06 → 1991-08 ended
AT170,CT176 4FC (DX,SG,SV) ¥100
99132-12034 note Bulb, Combination Meter, NO.1
1990-05 → 1992-08 ended
AT170 5F SGEXT ¥100
99132-12034 note Bulb, Combination Meter, NO.1
1990-05 → 1992-08 ended
AT170 4FC SGEXT ¥100
83101 — Socket Sub-assy, Combination Meter Bulb
83101-14030 Socket Sub-assy, Combination Meter Bulb
1991-06 → 1992-11 ended
AT170,CT17# 4FC (DX,SG,SV) —
83101-14030 Socket Sub-assy, Combination Meter Bulb
1991-06 → 1992-11 ended
AT170,CT17# MTM (DX,SG,SV) —
83101-14030 Socket Sub-assy, Combination Meter Bulb
1990-05 → 1992-11 ended
ET176 —
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1990-05 → 1992-11 ended
ST170 —
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1991-06 → 1992-08 ended
CT170 SE;AT17# GLIM,S,SE,SG,SGEXT —
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1991-06 → 1992-08 ended
CT170 SG —
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1990-05 → 1992-08 ended
ST170 SE —
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1990-05 → 1992-08 ended
ST170 SGEXT —
83101-14030 Socket Sub-assy, Combination Meter Bulb
1990-05 → 1992-08 ended
AT170 4FC SGEXT —
83101-14030 Socket Sub-assy, Combination Meter Bulb
1990-05 → 1992-08 ended
AT170 5F SGEXT —
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 —
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1990-05 → 1991-06 ended
CT17#;AT17# GLIM,S,SE,SG,SGEXT —
83101-14030 Socket Sub-assy, Combination Meter Bulb
1990-05 → 1991-06 ended
AT170 MTM (DX,SG,SV) —
83101-14030 Socket Sub-assy, Combination Meter Bulb
1990-05 → 1991-06 ended
AT170 4FC (DX,SG,SV) —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1990-12 → 1992-08 ended
CT170 SG —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1988-05 → 1989-03 ended
AT170 SG —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1990-05 → 1992-11 ended
ST170 4FC —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1990-05 → 1992-11 ended
ST170 5F —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1989-03 → 1990-05 ended
AT170 SG —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1989-03 → 1990-05 ended
CT170 SG —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1988-05 → 1992-08 ended
AT170,175,CT170 SE,SGEXT —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1990-05 → 1992-08 ended
ST170 4FC SE —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1990-05 → 1992-08 ended
ST170 5F SE —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1990-05 → 1992-08 ended
ST170 SGEXT —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1988-05 → 1992-08 ended
ST170 CI —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1988-05 → 1992-08 ended
AT171 —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1988-05 → 1992-08 ended
AT170,175 SG EFI —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
