Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

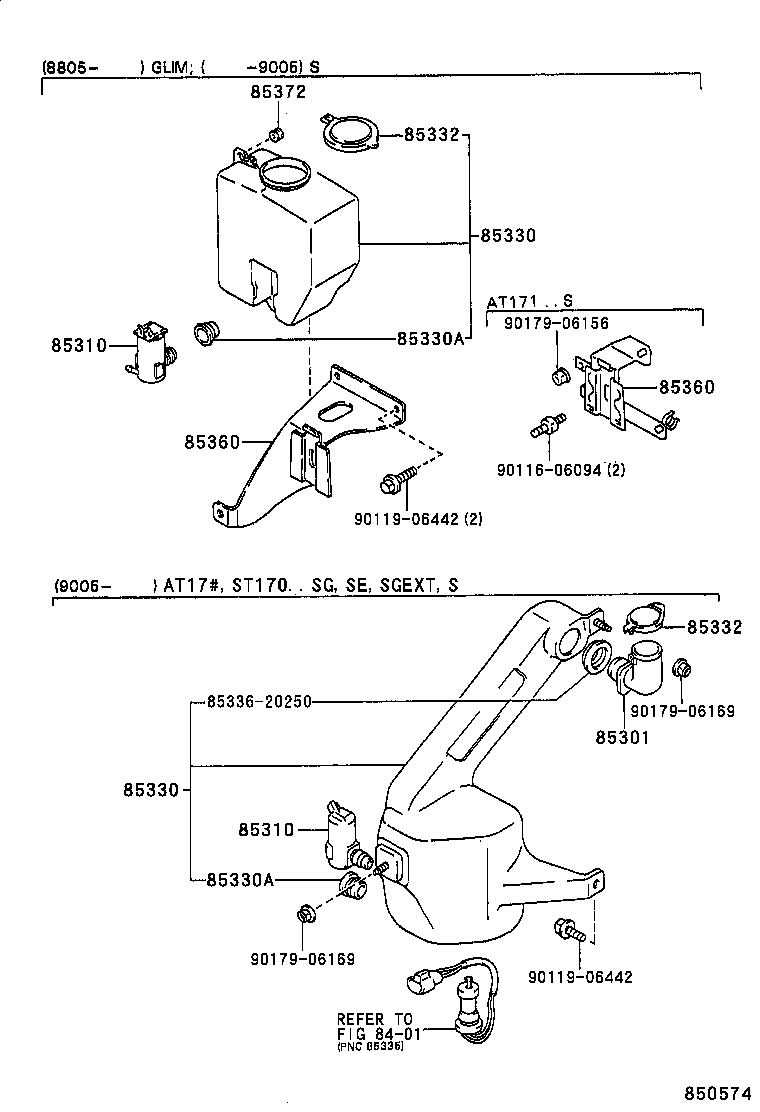

Exploded illustration 850574 85372 — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 (15 parts) 85332 — CAP, WINDSHIELD WASHER JAR (8 parts) 85330 — JAR ASSY, WINDSHIELD WASHER (19 parts) 9017906156 — not listed in this catalogue 85330A — BUSH, WINDSHIELD WASHER JAR (8 parts) 85310 — MOTOR AND PUMP ASSY, WINDSHIELD WASHER (1 parts) 85360 — BRACKET ASSY, WINDSHIELD WASHER (4 parts) 85360 — BRACKET ASSY, WINDSHIELD WASHER (4 parts) 9011606094 — not listed in this catalogue 9011906442 — not listed in this catalogue 85332 — CAP, WINDSHIELD WASHER JAR (8 parts) 8533620250 — not listed in this catalogue 9017906169 — not listed in this catalogue 85301 — INLET SUB-ASSY, WASHER (3 parts) 85330 — JAR ASSY, WINDSHIELD WASHER (19 parts) 85310 — MOTOR AND PUMP ASSY, WINDSHIELD WASHER (1 parts) 85330A — BUSH, WINDSHIELD WASHER JAR (8 parts) 9017906169 — not listed in this catalogue 9011906442 — not listed in this catalogue 8401 — not listed in this catalogue
850574 · 12 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
85301 — Inlet Sub-assy, Washer
85318-20250 Inlet Sub-assy, Washer
1990-05 → 1992-08 ended
AT170,175 SE,SG,SGEXT ¥0
85318-20250 Inlet Sub-assy, Washer
1990-05 → 1992-08 ended
ST170 SED ¥0
85318-20250 Inlet Sub-assy, Washer
1990-05 → 1992-08 ended
AT17# S,SE,SG,SGEXT ¥0
85310 — Motor And Pump Assy, Windshield Washer
85310-22080 Motor And Pump Assy, Windshield Washer
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 —
85330 — Jar Assy, Windshield Washer
85315-20250 note Jar Assy, Windshield Washer
1990-05 → 1992-08 ended
AT17# S,SE,SG,SGEXT —
85330-10240 note Jar Assy, Windshield Washer
1988-05 → 1990-05 ended
AT171 GLIM ¥2,840
85330-10240 note Jar Assy, Windshield Washer
1990-05 → 1992-08 ended
AT171 EFI ¥2,840
85331-20630 Jar Assy, Windshield Washer
1988-05 → 1988-11 ended
CT176,ET176 DX,STD;AT17#,CT170,ST170 DX,GLIM,S,SE,SG,SGEXT,SV —
85331-20631 Jar Assy, Windshield Washer
1988-11 → 1992-11 ended
CT176,ET176 DX,STD;AT17#,CT170,ST170 DX,GLIM,S,SE,SG,SGEXT,SV —
85331-20640 note Jar Assy, Windshield Washer
1988-05 → 1988-08 ended
AT17#,CT170,ST170 SED —
85331-20640 note Jar Assy, Windshield Washer
1988-05 → 1988-08 ended
AT170,CT176,ET176 (VAN,WG) (DX,STD,SV) —
85331-20640 Jar Assy, Windshield Washer
1988-05 → 1988-11 ended
CT176,ET176,ST170 SG,SX —
85331-20640 note Jar Assy, Windshield Washer
1988-08 → 1988-11 ended
AT170,CT176,ET176 (VAN,WG) (DX,STD,SV) —
85331-20640 note Jar Assy, Windshield Washer
1988-08 → 1988-11 ended
AT17#,CT170,ST170 SED —
85331-20641 Jar Assy, Windshield Washer
1988-11 → 1992-11 ended
CT176,ET176,ST170 SG,SX —
85331-20641 note Jar Assy, Windshield Washer
1990-07 → 1992-08 ended
AT17#,ST170 SED —
85331-20641 note Jar Assy, Windshield Washer
1989-08 → 1990-05 ended
AT170,CT176,ET176 (VAN,WG) (DX,STD,SV) —
85331-20641 note Jar Assy, Windshield Washer
1988-11 → 1992-11 ended
AT17#,CT170,ST170 SED —
85331-20641 note Jar Assy, Windshield Washer
1990-05 → 1992-11 ended
AT170,CT17#,ET176 (VAN,WG) (DX,STD,SV) —
85331-20641 note Jar Assy, Windshield Washer
1988-11 → 1989-08 ended
AT170,CT176,ET176 (VAN,WG) (DX,STD,SV) —
85331-20650 note Jar Assy, Windshield Washer
1988-08 → 1990-05 ended
AT170 SE —
85331-20740 note Jar Assy, Windshield Washer
1988-11 → 1990-05 ended
AT171 S —
85331-22310 note Jar Assy, Windshield Washer
1988-08 → 1988-11 ended
AT171 S —
85330A — Bush, Windshield Washer Jar
90099-32089 Bush, Windshield Washer Jar
1990-05 → 1992-11 ended
CT176,ET176,ST170 SG,SX —
90099-32089 Bush, Windshield Washer Jar
1990-05 → 1992-11 ended
AT170,CT17#,ET176 (VAN,WG) (DX,STD,SV) —
90099-32089 Bush, Windshield Washer Jar
1990-07 → 1992-08 ended
AT175;AT170 DX —
90099-32089 Bush, Windshield Washer Jar
1990-07 → 1992-08 ended
AT170,171,ST170 GLIM,S,SE,SG,SGEXT —
90099-32089 Bush, Windshield Washer Jar
1990-05 → 1990-07 ended
AT17#,ST170 GLIM,S,SE,SG,SGEXT —
90099-32089 Bush, Windshield Washer Jar
1988-08 → 1990-05 ended
AT170,171 GLIM,S,SE —
90099-32089 Bush, Windshield Washer Jar
1988-05 → 1988-08 ended
AT171 GLIM —
90099-32089 Bush, Windshield Washer Jar
1990-05 → 1990-07 ended
AT170 DX;CT170 SED —
85332 — Cap, Windshield Washer Jar
85316-20250 note Cap, Windshield Washer Jar
1990-05 → 1992-08 ended
AT17#,ST170 S,SE,SG,SGEXT —
85332-12320 Cap, Windshield Washer Jar
1988-05 → 1988-08 ended
AT171 GLIM —
85332-12320 note Cap, Windshield Washer Jar
1988-08 → 1988-11 ended
AT171 —
85332-12650 note Cap, Windshield Washer Jar
1988-11 → 1990-05 ended
AT171 —
85332-12650 note Cap, Windshield Washer Jar
1990-05 → 1992-08 ended
AT171 EFI —
85332-20650 note Cap, Windshield Washer Jar
1988-11 → 1990-05 ended
AT170 SE —
85332-32130 note Cap, Windshield Washer Jar
1988-08 → 1988-11 ended
AT170 SE —
85332-32161 Cap, Windshield Washer Jar
1988-11 → 1992-11 ended
AT17#,CT17#,ET176,ST170 —
85360 — Bracket Assy, Windshield Washer
85360-20060 note Bracket Assy, Windshield Washer
1990-05 → 1992-08 ended
AT171 EFI ¥2,360
85360-20060 Bracket Assy, Windshield Washer
1988-05 → 1988-08 ended
AT171 GLIM ¥2,360
85360-20060 note Bracket Assy, Windshield Washer
1988-08 → 1990-05 ended
AT171 GLIM ¥2,360
85360-20070 note Bracket Assy, Windshield Washer
1988-08 → 1990-05 ended
AT171 S ¥3,280
85372 — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1990-07 → 1992-11 ended
CT17#,ET176 DX,STD,SV;AT17#,ST170 DX,GLIM,S,SE,SG,SGEXT,SV —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1990-05 → 1992-11 ended
AT170,CT17#,ET176 (VAN,WG) (DX,STD,SV) —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1990-05 → 1992-11 ended
CT176,ET176,ST170 SG,SX —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1990-05 → 1992-08 ended
AT171 EFI —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1990-05 → 1990-07 ended
CT176,ET176 DX,STD;AT17#,CT170,ST170 DX,GLIM,S,SE,SG,SGEXT,SV —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1989-08 → 1990-05 ended
CT176 SG;CT176 5F DX;AT170,ET176,ST170 +1 —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1989-08 → 1990-05 ended
CT176 4FC DX —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1988-08 → 1990-05 ended
AT171 GLIM —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1988-05 → 1990-05 ended
CT176,ET176 DX,STD;AT17#,CT170,ST170 DX,GLIM,S,SE,SG,SGEXT,SV —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1988-08 → 1989-08 ended
AT170,CT176,ET176 (VAN,WG) (DX,STD,SV) —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1988-08 → 1989-08 ended
CT176,ET176,ST170 SG,SX —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1988-05 → 1988-08 ended
AT170,CT176,ET176,ST170 VAN,WG —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1988-05 → 1988-08 ended
AT171 GLIM —
90099-33084 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1988-08 → 1990-05 ended
AT171 S —
90099-33201 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1988-08 → 1990-05 ended
AT170 SE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
