Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

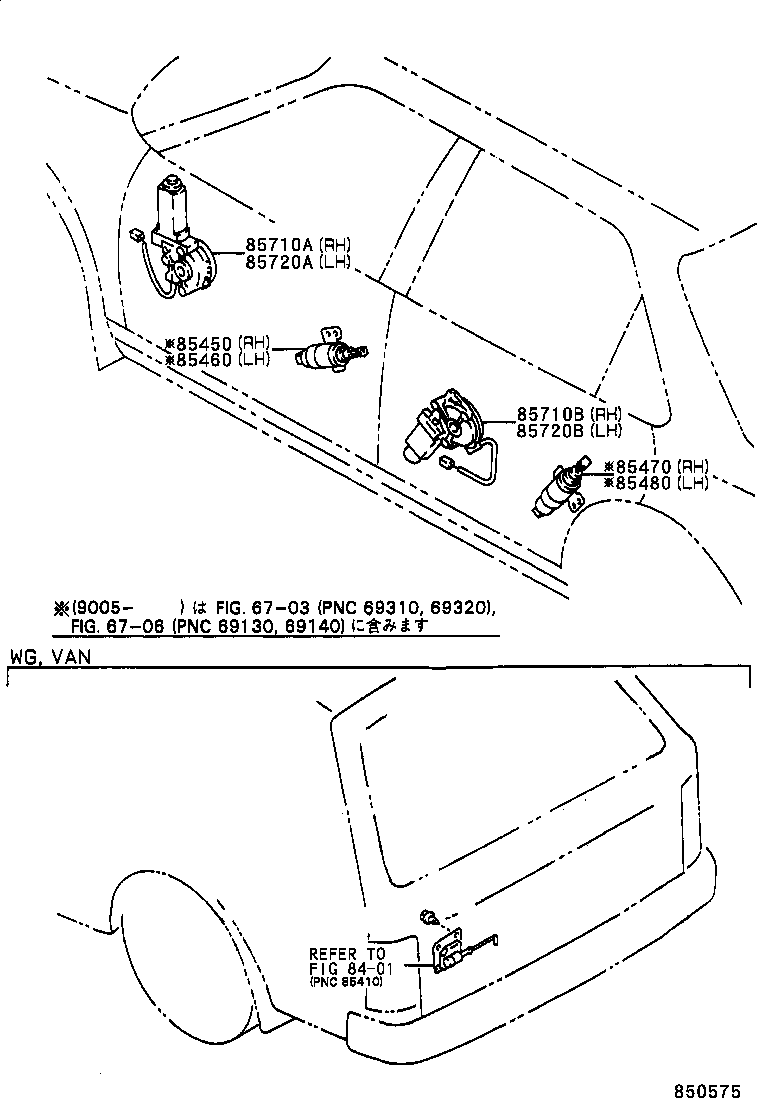

Exploded illustration 850575 85710A — MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH (8 parts) 85720A — MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH (8 parts) 85450 — SOLENOID ASSY, DOOR CONTROL, FRONT RH (3 parts) 85460 — SOLENOID ASSY, DOOR CONTROL, FRONT LH (3 parts) 85710B — MOTOR ASSY, POWER WINDOW REGULATOR, REAR RH (9 parts) 85720B — MOTOR ASSY, POWER WINDOW REGULATOR, REAR LH (9 parts) 85470 — SOLENOID ASSY, DOOR CONTROL, REAR RH (2 parts) 85480 — SOLENOID ASSY, DOOR CONTROL, REAR LH (2 parts) 8401 — not listed in this catalogue
850575 · 8 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
44 parts on this figure
Part number Description Fitment Price
85450 — Solenoid Assy, Door Control, Front RH
85450-20060 note Solenoid Assy, Door Control, Front RH
1988-09 → 1989-03 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SX ¥19,200
85450-20060 note Solenoid Assy, Door Control, Front RH
1989-03 → 1990-05 ended
AT175 SGEXT;AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥19,200
85450-20130 note Solenoid Assy, Door Control, Front RH
1988-05 → 1988-09 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SX ¥19,000
85460 — Solenoid Assy, Door Control, Front LH
85450-16020 Solenoid Assy, Door Control, Front LH
1988-05 → 1988-09 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SX ¥18,300
85450-20210 Solenoid Assy, Door Control, Front LH
1988-09 → 1989-03 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SX ¥18,300
85450-20210 Solenoid Assy, Door Control, Front LH
1989-03 → 1990-05 ended
AT175 SGEXT;AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥18,300
85470 — Solenoid Assy, Door Control, Rear RH
85450-30530 Solenoid Assy, Door Control, Rear RH
1988-05 → 1989-03 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SX ¥18,200
85450-30530 Solenoid Assy, Door Control, Rear RH
1989-03 → 1990-05 ended
AT175 SGEXT;AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥18,200
85480 — Solenoid Assy, Door Control, Rear LH
85450-30540 Solenoid Assy, Door Control, Rear LH
1988-05 → 1989-03 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SX ¥18,200
85450-30540 Solenoid Assy, Door Control, Rear LH
1989-03 → 1990-05 ended
AT175 SGEXT;AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥18,200
85710A — Motor Assy, Power Window Regulator, Front RH
85710-20080 note Motor Assy, Power Window Regulator, Front RH
1989-03 → 1992-10 ended
ST170 SGEXT CI ¥25,500
85710-20080 Motor Assy, Power Window Regulator, Front RH
1989-03 → 1992-11 ended
AT170,CT170 (SE,SG) (CBR,DSL);AT17#,ST170 (GLIM,S,SE,SGEXT,SX) +1 ¥25,500
85710-20080 note Motor Assy, Power Window Regulator, Front RH
1990-12 → 1992-10 ended
AT170,ST170 SGEXT ¥25,500
85710-20080 note Motor Assy, Power Window Regulator, Front RH
1990-12 → 1992-10 ended
CT170 SG ¥25,500
85710-20080 note Motor Assy, Power Window Regulator, Front RH
1989-09 → 1992-10 ended
AT170,CT170 SG (CBR,DSL) ¥25,500
85710-20080 note Motor Assy, Power Window Regulator, Front RH
1989-09 → 1992-10 ended
ST170 SGEXT CI ¥25,500
85710-20080 note Motor Assy, Power Window Regulator, Front RH
1989-03 → 1992-10 ended
AT170,CT170 SG (CBR,DSL) ¥25,500
85710-20080 Motor Assy, Power Window Regulator, Front RH
1988-05 → 1989-03 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SX ¥25,500
85710B — Motor Assy, Power Window Regulator, Rear RH
85720-20120 Motor Assy, Power Window Regulator, Rear RH
1988-05 → 1989-03 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SX ¥26,800
85720-20120 Motor Assy, Power Window Regulator, Rear RH
1989-03 → 1989-04 ended
AT175 SGEXT;AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥26,800
85720-20120 note Motor Assy, Power Window Regulator, Rear RH
1989-03 → 1992-10 ended
AT170,CT170 SG (CBR,DSL) ¥26,800
85720-20120 note Motor Assy, Power Window Regulator, Rear RH
1989-03 → 1992-10 ended
ST170 SGEXT CI ¥26,800
85720-20121 note Motor Assy, Power Window Regulator, Rear RH
1989-09 → 1992-10 ended
ST170 SGEXT CI ¥23,900
85720-20121 Motor Assy, Power Window Regulator, Rear RH
1989-04 → 1992-11 ended
AT170,CT170 (SE,SG) (CBR,DSL);AT17#,ST170 (GLIM,S,SE,SGEXT,SX) +1 ¥23,900
85720-20121 note Motor Assy, Power Window Regulator, Rear RH
1990-12 → 1992-10 ended
AT170,ST170 SGEXT ¥23,900
85720-20121 note Motor Assy, Power Window Regulator, Rear RH
1989-09 → 1992-10 ended
AT170,CT170 SG (CBR,DSL) ¥23,900
85720-20121 note Motor Assy, Power Window Regulator, Rear RH
1990-12 → 1992-10 ended
CT170 SG ¥23,900
85720A — Motor Assy, Power Window Regulator, Front LH
85720-20080 Motor Assy, Power Window Regulator, Front LH
1989-03 → 1992-11 ended
AT170,CT170 (SE,SG) (CBR,DSL);AT17#,ST170 (GLIM,S,SE,SGEXT,SX) +1 ¥25,500
85720-20080 note Motor Assy, Power Window Regulator, Front LH
1990-12 → 1992-10 ended
AT170,ST170 SGEXT ¥25,500
85720-20080 note Motor Assy, Power Window Regulator, Front LH
1990-12 → 1992-10 ended
CT170 SG ¥25,500
85720-20080 note Motor Assy, Power Window Regulator, Front LH
1989-09 → 1992-10 ended
AT170,CT170 SG (CBR,DSL) ¥25,500
85720-20080 note Motor Assy, Power Window Regulator, Front LH
1989-09 → 1992-10 ended
ST170 SGEXT CI ¥25,500
85720-20080 note Motor Assy, Power Window Regulator, Front LH
1989-03 → 1992-10 ended
ST170 SGEXT CI ¥25,500
85720-20080 note Motor Assy, Power Window Regulator, Front LH
1989-03 → 1992-10 ended
AT170,CT170 SG (CBR,DSL) ¥25,500
85720-20080 Motor Assy, Power Window Regulator, Front LH
1988-05 → 1989-03 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SX ¥25,500
85720B — Motor Assy, Power Window Regulator, Rear LH
85710-20100 Motor Assy, Power Window Regulator, Rear LH
1988-05 → 1989-03 ended
AT175,CT170 SE,SGEXT;AT170,171,ST170 GLIM,S,SE,SG,SGEXT,SX ¥26,800
85710-20100 Motor Assy, Power Window Regulator, Rear LH
1989-03 → 1989-04 ended
AT175 SGEXT;AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥26,800
85710-20100 note Motor Assy, Power Window Regulator, Rear LH
1989-03 → 1992-10 ended
AT170,CT170 SG (CBR,DSL) ¥26,800
85710-20100 note Motor Assy, Power Window Regulator, Rear LH
1989-03 → 1992-10 ended
ST170 SGEXT CI ¥26,800
85710-20101 note Motor Assy, Power Window Regulator, Rear LH
1989-09 → 1992-10 ended
ST170 SGEXT CI ¥23,900
85710-20101 note Motor Assy, Power Window Regulator, Rear LH
1989-09 → 1992-10 ended
AT170,CT170 SG (CBR,DSL) ¥23,900
85710-20101 note Motor Assy, Power Window Regulator, Rear LH
1990-12 → 1992-10 ended
CT170 SG ¥23,900
85710-20101 note Motor Assy, Power Window Regulator, Rear LH
1990-12 → 1992-10 ended
AT170,ST170 SGEXT ¥23,900
85710-20101 Motor Assy, Power Window Regulator, Rear LH
1989-04 → 1992-11 ended
AT170,CT170 (SE,SG) (CBR,DSL);AT17#,ST170 (GLIM,S,SE,SGEXT,SX) +1 ¥23,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
