Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

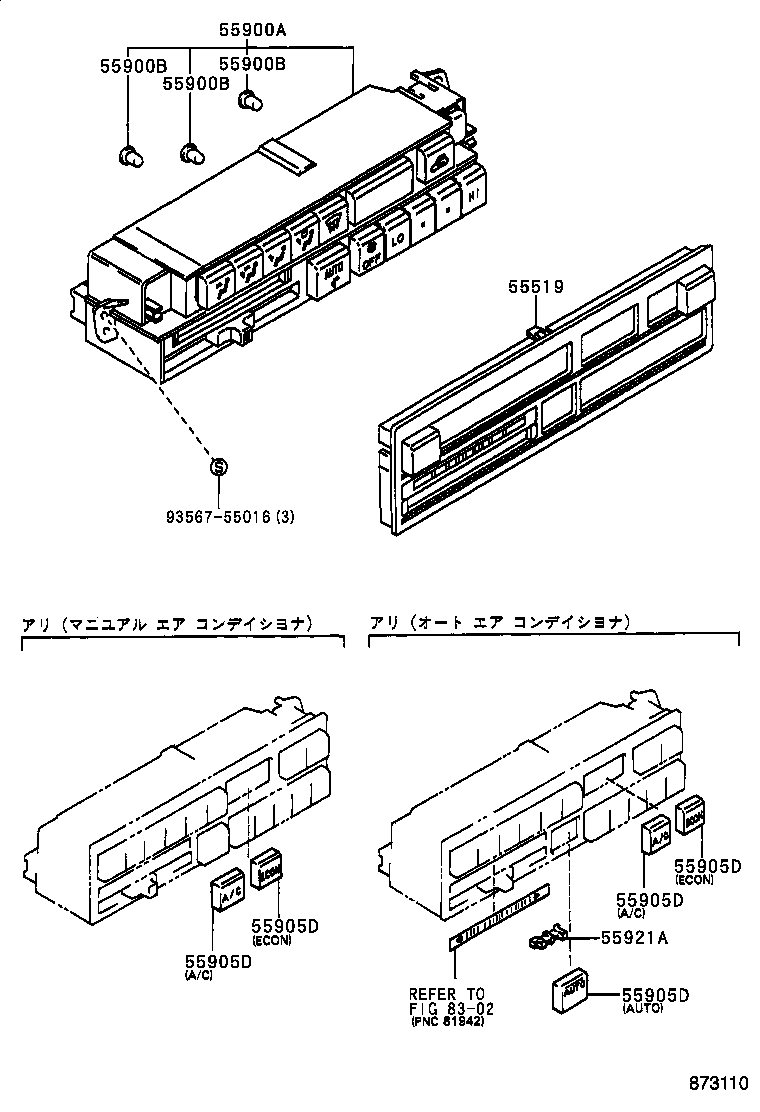

Exploded illustration 873110 55900A — CONTROL & ACCESSORY ASSY, HEATER (8 parts) 55900B — BULB, AIR CONDITIONER CONTROL (9 parts) 55900B — BULB, AIR CONDITIONER CONTROL (9 parts) 55900B — BULB, AIR CONDITIONER CONTROL (9 parts) 55519 — PLATE, HEATER CONTROL NAME (8 parts) 9356755016 — not listed in this catalogue 55905D — KNOB SUB-ASSY, CONTROL (29 parts) 55905D — KNOB SUB-ASSY, CONTROL (29 parts) 55905D — KNOB SUB-ASSY, CONTROL (29 parts) 55921A — RETAINER, HEATER CONTROL (9 parts) 55905D — KNOB SUB-ASSY, CONTROL (29 parts) 55905D — KNOB SUB-ASSY, CONTROL (29 parts) 8302 — not listed in this catalogue
873110 · 11 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
55519 — Plate, Heater Control Name
55519-20270 Plate, Heater Control Name
1989-03 → 1990-05 ended
ST170 SGEXT ¥3,790
55519-20270 note Plate, Heater Control Name
1989-03 → 1990-05 ended
AT170,CT170 SG ¥3,790
55519-20270 note Plate, Heater Control Name
1989-05 → 1990-05 ended
ST170 SX ¥3,790
55519-20270 Plate, Heater Control Name
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥3,790
55519-20270 note Plate, Heater Control Name
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥3,790
55519-20270 note Plate, Heater Control Name
1988-05 → 1992-11 ended
AT171,ST170 (S,SX) (EFI,EFIS) ¥3,790
55519-20270 Plate, Heater Control Name
1988-05 → 1990-05 ended
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT ¥3,790
55519-20300 Plate, Heater Control Name
1990-05 → 1992-11 ended
AT17#,ST170 S,SGEXT,SX ¥2,550
55900A — Control & Accessory Assy, Heater
55900-20600 note Control & Accessory Assy, Heater
1989-03 → 1990-05 ended
AT170,CT170 SG ¥23,800
55900-20600 note Control & Accessory Assy, Heater
1988-05 → 1992-11 ended
AT171,ST170 (S,SX) (EFI,EFIS) ¥23,800
55900-20600 note Control & Accessory Assy, Heater
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥23,800
55900-20600 Control & Accessory Assy, Heater
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥23,800
55900-20600 note Control & Accessory Assy, Heater
1989-05 → 1990-05 ended
ST170 SX ¥23,800
55900-20600 Control & Accessory Assy, Heater
1989-03 → 1990-05 ended
ST170 SGEXT ¥23,800
55900-20600 Control & Accessory Assy, Heater
1988-05 → 1990-05 ended
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT ¥23,800
55900-20850 Control & Accessory Assy, Heater
1990-05 → 1992-11 ended
AT17#,ST170 S,SGEXT,SX ¥25,900
55900B — Bulb, Air Conditioner Control
81936-20030 note Bulb, Air Conditioner Control
1989-03 → 1990-05 ended
ST170 SGEXT ¥500
81936-20030 note Bulb, Air Conditioner Control
1988-05 → 1992-11 ended
AT171,ST170 (S,SX) (EFI,EFIS) ¥500
81936-20030 note Bulb, Air Conditioner Control
1990-12 → 1992-08 ended
AT170,ST170 SGEXT ¥500
81936-20030 note Bulb, Air Conditioner Control
1990-12 → 1992-08 ended
CT170 SG ¥500
81936-20030 note Bulb, Air Conditioner Control
1990-05 → 1992-08 ended
AT170,175,CT170,ST170 SE ¥500
81936-20030 note Bulb, Air Conditioner Control
1989-05 → 1990-05 ended
ST170 SX ¥500
81936-20030 note Bulb, Air Conditioner Control
1989-03 → 1990-05 ended
AT170,CT170 SG ¥500
81936-20030 note Bulb, Air Conditioner Control
1988-05 → 1990-05 ended
AT171,175 GLIM,SGEXT ¥500
81936-20030 note Bulb, Air Conditioner Control
1988-05 → 1990-05 ended
AT170,CT170,ST170 SE ¥500
55905D — Knob Sub-assy, Control
55905-20280 note Knob Sub-assy, Control
1988-05 → 1990-05 ended
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT ¥440
55905-20280 note Knob Sub-assy, Control
1988-05 → 1992-11 ended
AT171,ST170 (S,SX) (EFI,EFIS) ¥440
55905-20280 note Knob Sub-assy, Control
1989-03 → 1990-05 ended
ST170 SGEXT ¥440
55905-20280 note Knob Sub-assy, Control
1989-03 → 1990-05 ended
AT170,CT170 SG ¥440
55905-20280 note Knob Sub-assy, Control
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥440
55905-20280 note Knob Sub-assy, Control
1989-05 → 1990-05 ended
ST170 SX ¥440
55905-20280 note Knob Sub-assy, Control
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥440
55905-20290 note Knob Sub-assy, Control
1989-03 → 1990-05 ended
AT170,CT170 SG ¥440
55905-20290 note Knob Sub-assy, Control
1988-05 → 1992-11 ended
AT171,ST170 (S,SX) (EFI,EFIS) ¥440
55905-20290 note Knob Sub-assy, Control
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥440
55905-20290 note Knob Sub-assy, Control
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥440
55905-20290 note Knob Sub-assy, Control
1988-05 → 1990-05 ended
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT ¥440
55905-20290 note Knob Sub-assy, Control
1989-05 → 1990-05 ended
ST170 SX ¥440
55905-20290 note Knob Sub-assy, Control
1989-03 → 1990-05 ended
ST170 SGEXT ¥440
55905-20300 note Knob Sub-assy, Control
1989-05 → 1990-05 ended
ST170 SX ¥440
55905-20300 note Knob Sub-assy, Control
1988-05 → 1992-11 ended
AT171,ST170 (S,SX) (EFI,EFIS) ¥440
55905-20300 note Knob Sub-assy, Control
1989-03 → 1990-05 ended
AT170,CT170 SG ¥440
55905-20300 note Knob Sub-assy, Control
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥440
55905-20300 note Knob Sub-assy, Control
1989-03 → 1990-05 ended
ST170 SGEXT ¥440
55905-20300 note Knob Sub-assy, Control
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥440
55905-20300 note Knob Sub-assy, Control
1988-05 → 1990-05 ended
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT ¥440
55905-20390 note Knob Sub-assy, Control
1990-05 → 1990-12 ended
AT171,ST170 S,SX ¥440
55905-20390 note Knob Sub-assy, Control
1990-12 → 1992-11 ended
AT170,171,ST170 S,SGEXT,SX ¥440
55905-20390 note Knob Sub-assy, Control
1990-12 → 1992-08 ended
AT175 SGEXT ¥440
55905-20390 note Knob Sub-assy, Control
1990-05 → 1990-12 ended
AT170,175,ST170 SGEXT ¥440
55905-20400 note Knob Sub-assy, Control
1990-12 → 1992-08 ended
AT175 SGEXT ¥440
55905-20400 note Knob Sub-assy, Control
1990-05 → 1990-12 ended
AT170,175,ST170 SGEXT ¥440
55905-20400 note Knob Sub-assy, Control
1990-05 → 1990-12 ended
AT171,ST170 S,SX ¥440
55905-20400 note Knob Sub-assy, Control
1990-12 → 1992-11 ended
AT170,171,ST170 S,SGEXT,SX ¥440
55921A — Retainer, Heater Control
55921-20100 Retainer, Heater Control
1988-05 → 1990-05 ended
ST170 SE;AT17#,CT170 GLIM,SE,SGEXT ¥170
55921-20100 note Retainer, Heater Control
1989-03 → 1990-05 ended
ST170 SGEXT ¥170
55921-20100 note Retainer, Heater Control
1989-03 → 1990-05 ended
AT170,CT170 SG ¥170
55921-20100 Retainer, Heater Control
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥170
55921-20100 note Retainer, Heater Control
1990-12 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥170
55921-20100 note Retainer, Heater Control
1988-05 → 1992-11 ended
AT171,ST170 (S,SX) (EFI,EFIS) ¥170
55921-20110 Retainer, Heater Control
1988-05 → 1992-11 ended
AT170,175,CT17#,ET176 DX,SG,STD,SV ¥210
55921-20110 Retainer, Heater Control
1988-05 → 1992-11 ended
ST170 (SGEXT,SX) CI ¥210
55921-20110 Retainer, Heater Control
1989-09 → 1992-11 ended
AT171 S EFI ¥210
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
