Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

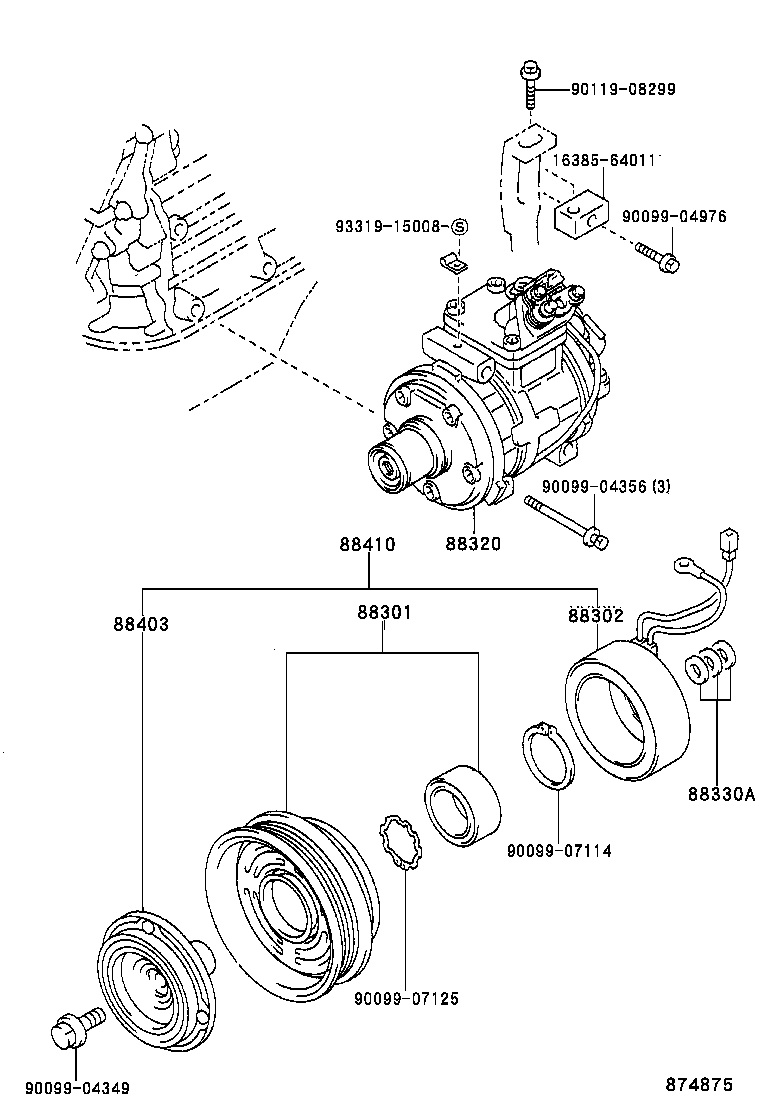

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88301 — Rotor Sub-assy, Magnet Clutch | ||||
| 88412-20090 |
Rotor Sub-assy, Magnet Clutch
1988-05 → 1992-11
ended
|
CT17# | — | |
| 88412-20100 |
Rotor Sub-assy, Magnet Clutch
1990-05 → 1992-11
ended
|
ST170 | — | |
| 88412-20110 |
Rotor Sub-assy, Magnet Clutch
1988-05 → 1992-11
ended
|
ET176 | — | |
| 88412-20120 |
Rotor Sub-assy, Magnet Clutch
1988-05 → 1992-11
ended
|
AT171 S | — | |
| 88412-20120 |
Rotor Sub-assy, Magnet Clutch
1988-05 → 1992-11
ended
|
AT170,175 | — | |
| 88412-20140 |
Rotor Sub-assy, Magnet Clutch
1988-05 → 1990-05
ended
|
ST170 | — | |
| 88412-20150 |
Rotor Sub-assy, Magnet Clutch
1988-05 → 1992-11
ended
|
AT171 GLIM | — | |
| 88302 — Stator Sub-assy, Magnet Clutch | ||||
| 88411-20140 |
Stator Sub-assy, Magnet Clutch
1988-05 → 1990-05
ended
|
CT17# | — | |
| 88411-20150 |
Stator Sub-assy, Magnet Clutch
1988-05 → 1990-05
ended
|
AT171 S | — | |
| 88411-20150 |
Stator Sub-assy, Magnet Clutch
1988-05 → 1990-05
ended
|
AT170,175 | — | |
| 88411-20150 |
Stator Sub-assy, Magnet Clutch
1988-05 → 1990-05
ended
|
AT171 GLIM | — | |
| 88411-20160 |
Stator Sub-assy, Magnet Clutch
1988-05 → 1990-05
ended
|
ET176,ST170 | — | |
| 88411-20220 |
Stator Sub-assy, Magnet Clutch
1990-05 → 1992-11
ended
|
AT171 EFIS | — | |
| 88411-20220 |
Stator Sub-assy, Magnet Clutch
1990-05 → 1992-11
ended
|
AT170,175 | — | |
| 88320 — Compressor Assy, Cooler | ||||
| 88320-20630 |
Compressor Assy, Cooler
1989-03 → 1990-05
ended
|
AT170 4F SG | — | |
| 88320-20630 |
Compressor Assy, Cooler
1989-03 → 1990-05
ended
|
AT170 4FC SG | — | |
| 88320-20630 |
Compressor Assy, Cooler
1989-03 → 1990-05
ended
|
AT170 5F SG | — | |
| 88320-20630 |
Compressor Assy, Cooler
1990-12 → 1992-11
ended
|
AT170,171 S,SGEXT,SV | — | |
| 88320-20630 |
Compressor Assy, Cooler
1988-05 → 1990-12
ended
|
AT170,171 (S,SV) (EFI,EFIS) | — | |
| 88320-20630 |
Compressor Assy, Cooler
1988-05 → 1990-12
ended
|
AT170,175 SED EFI;AT170 (DX,SE,SV) +1 | — | |
| 88320-20630 |
Compressor Assy, Cooler
1990-12 → 1992-08
ended
|
AT175;AT170 DX,SE,SG | — | |
| 88320-20630 |
Compressor Assy, Cooler
1988-05 → 1989-03
ended
|
AT170 4F SG | — | |
| 88320-20630 |
Compressor Assy, Cooler
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | — | |
| 88320-20640 |
Compressor Assy, Cooler
1988-05 → 1989-01
ended
|
ST170 | — | |
| 88320-20640 |
Compressor Assy, Cooler
1989-01 → 1990-05
ended
|
ST170 SE | — | |
| 88320-20640 note |
Compressor Assy, Cooler
1989-01 → 1990-05
ended
|
ST170 SGEXT,SX | — | |
| 88320-20650 |
Compressor Assy, Cooler
1989-03 → 1990-05
ended
|
CT170 SG | — | |
| 88320-20650 |
Compressor Assy, Cooler
1989-03 → 1990-05
ended
|
CT176 5F SG | — | |
| 88320-20650 |
Compressor Assy, Cooler
1988-05 → 1989-03
ended
|
CT17# SG | — | |
| 88320-20650 |
Compressor Assy, Cooler
1988-05 → 1990-05
ended
|
CT170 SE | — | |
| 88320-20650 note |
Compressor Assy, Cooler
1988-05 → 1990-05
ended
|
CT176 5F DX | — | |
| 88320-20660 |
Compressor Assy, Cooler
1988-05 → 1990-05
ended
|
CT176 5F DX | — | |
| 88320-20670 note |
Compressor Assy, Cooler
1988-05 → 1990-05
ended
|
ET176 | — | |
| 88320-20680 |
Compressor Assy, Cooler
1988-05 → 1990-05
ended
|
ET176 | — | |
| 88320-20690 |
Compressor Assy, Cooler
1988-05 → 1990-05
ended
|
AT171 GLIM | — | |
| 88320-20820 |
Compressor Assy, Cooler
1990-05 → 1990-12
ended
|
ST170 SX | — | |
| 88320-20820 |
Compressor Assy, Cooler
1990-12 → 1992-08
ended
|
ST170 SE | — | |
| 88320-20820 |
Compressor Assy, Cooler
1990-05 → 1990-12
ended
|
ST170 SED | — | |
| 88320-20820 |
Compressor Assy, Cooler
1990-12 → 1992-11
ended
|
ST170 SGEXT,SX | — | |
| 88320-20840 note |
Compressor Assy, Cooler
1990-05 → 1992-11
ended
|
ET176 | — | |
| 88320-20850 |
Compressor Assy, Cooler
1990-05 → 1992-11
ended
|
ET176 | — | |
| 88320-20860 note |
Compressor Assy, Cooler
1990-05 → 1990-11
ended
|
CT17# 5F (DX,SV) | — | |
| 88320-20860 |
Compressor Assy, Cooler
1990-05 → 1990-11
ended
|
CT170 SE | — | |
| 88320-20860 |
Compressor Assy, Cooler
1990-05 → 1990-11
ended
|
CT17# SG | — | |
| 88320-20860 |
Compressor Assy, Cooler
1990-11 → 1992-08
ended
|
CT170 5F SG | — | |
| 88320-20861 |
Compressor Assy, Cooler
1990-11 → 1992-08
ended
|
CT170 SE | — | |
| 88320-20861 note |
Compressor Assy, Cooler
1990-11 → 1992-11
ended
|
CT170 5F SV | — | |
| 88320-20861 note |
Compressor Assy, Cooler
1990-11 → 1992-11
ended
|
CT176 5F DX | — | |
| 88320-20861 note |
Compressor Assy, Cooler
1990-12 → 1992-08
ended
|
CT170 5F SG | — | |
| 88320-20861 |
Compressor Assy, Cooler
1990-12 → 1992-08
ended
|
CT170 4FC SG | — | |
| 88320-20861 |
Compressor Assy, Cooler
1990-12 → 1992-11
ended
|
CT176 SG | — | |
| 88320-20861 note |
Compressor Assy, Cooler
1990-11 → 1990-12
ended
|
CT170 5F SG | — | |
| 88320-20861 |
Compressor Assy, Cooler
1990-11 → 1990-12
ended
|
CT176 SG;CT170 4FC SG | — | |
| 88320-20861 note |
Compressor Assy, Cooler
1990-05 → 1990-11
ended
|
CT170 5F SV | — | |
| 88320-20870 |
Compressor Assy, Cooler
1990-05 → 1990-11
ended
|
CT176 5F DX | — | |
| 88320-20870 note |
Compressor Assy, Cooler
1990-05 → 1992-11
ended
|
CT170 4FC SV | — | |
| 88320-20870 |
Compressor Assy, Cooler
1990-05 → 1990-11
ended
|
CT170 5F SV | — | |
| 88320-20871 |
Compressor Assy, Cooler
1990-11 → 1992-11
ended
|
CT170 5F SV | — | |
| 88320-20871 |
Compressor Assy, Cooler
1990-11 → 1992-11
ended
|
CT176 5F DX | — | |
| 88320-20871 note |
Compressor Assy, Cooler
1990-11 → 1992-11
ended
|
CT170 4FC SV | — | |
| 88320-20880 note |
Compressor Assy, Cooler
1990-05 → 1992-11
ended
|
CT170 4FC SV | — | |
| 88320-20880 note |
Compressor Assy, Cooler
1990-05 → 1992-11
ended
|
CT176 4FC | — | |
| 88320-20890 |
Compressor Assy, Cooler
1988-05 → 1992-11
ended
|
CT176 4FC | — | |
| 88320-20890 |
Compressor Assy, Cooler
1990-05 → 1990-11
ended
|
CT170 4FC SV | — | |
| 88320-20890 |
Compressor Assy, Cooler
1990-11 → 1992-11
ended
|
CT170 4FC SV | — | |
| 88320-2B060 |
Compressor Assy, Cooler
1990-05 → 1992-08
ended
|
AT171 EFI | — | |
| 88320-60310 |
Compressor Assy, Cooler
1989-04 → 1990-05
ended
|
ST170 SX | — | |
| 88320-60310 |
Compressor Assy, Cooler
1989-04 → 1990-05
ended
|
ST170 SED | — | |
| 88320-60310 |
Compressor Assy, Cooler
1989-01 → 1989-04
ended
|
ST170 | — | |
| 88330A — Washer (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
Washer (FOR MAGNET CLUTCH)
1988-05 → 1992-11
ended
|
AT17#,CT17#,ET176,ST170 | — | |
| 88403 — Hub Sub-assy, Magnet Clutch | ||||
| 88403-16011 |
Hub Sub-assy, Magnet Clutch
1990-12 → 1992-11
ended
|
AT170,171 S,SGEXT,SV | — | |
| 88403-16011 |
Hub Sub-assy, Magnet Clutch
1989-03 → 1992-11
ended
|
AT170 MTM SG CBR | — | |
| 88403-16011 |
Hub Sub-assy, Magnet Clutch
1989-03 → 1992-11
ended
|
CT170 SG | — | |
| 88403-16011 |
Hub Sub-assy, Magnet Clutch
1989-03 → 1992-11
ended
|
CT176 | — | |
| 88403-16011 |
Hub Sub-assy, Magnet Clutch
1988-05 → 1992-11
ended
|
CT170 SE | — | |
| 88403-16011 |
Hub Sub-assy, Magnet Clutch
1990-12 → 1992-08
ended
|
AT175;AT170 DX,SE,SG | — | |
| 88403-16011 |
Hub Sub-assy, Magnet Clutch
1990-05 → 1990-12
ended
|
AT170,175 SED | — | |
| 88403-16011 |
Hub Sub-assy, Magnet Clutch
1990-05 → 1990-12
ended
|
AT170,171 S,SV | — | |
| 88403-16011 |
Hub Sub-assy, Magnet Clutch
1988-05 → 1989-03
ended
|
CT17# DX,SG | — | |
| 88403-16011 |
Hub Sub-assy, Magnet Clutch
1988-05 → 1992-11
ended
|
AT17#,ET176,ST170 | — | |
| 88410 — Clutch Assy, Magnet | ||||
| 88410-20230 note |
Clutch Assy, Magnet
1990-05 → 1992-08
ended
|
AT170 MTM SGEXT | ¥41,800 | |
| 88410-20250 |
Clutch Assy, Magnet
1989-03 → 1990-05
ended
|
CT170 SG | ¥41,800 | |
| 88410-20250 |
Clutch Assy, Magnet
1989-03 → 1990-05
ended
|
CT176 5F | ¥41,800 | |
| 88410-20250 |
Clutch Assy, Magnet
1988-05 → 1989-03
ended
|
CT17# DX,SG | ¥41,800 | |
| 88410-20250 |
Clutch Assy, Magnet
1988-05 → 1990-05
ended
|
CT170 SE | ¥41,800 | |
| 88410-20260 |
Clutch Assy, Magnet
1988-05 → 1990-05
ended
|
ET176 | ¥41,800 | |
| 88410-20270 |
Clutch Assy, Magnet
1988-05 → 1989-03
ended
|
AT170 4F SG | ¥41,800 | |
| 88410-20270 |
Clutch Assy, Magnet
1988-05 → 1990-05
ended
|
AT171 S | ¥41,800 | |
| 88410-20270 |
Clutch Assy, Magnet
1988-05 → 1990-05
ended
|
AT175;AT170 DX,SE,SV | ¥41,800 | |
| 88410-20270 |
Clutch Assy, Magnet
1988-05 → 1989-03
ended
|
AT170 (4FC,5F) SG | ¥41,800 | |
| 88410-20270 |
Clutch Assy, Magnet
1989-03 → 1990-05
ended
|
AT170 4F SG | ¥41,800 | |
| 88410-20270 |
Clutch Assy, Magnet
1989-03 → 1990-05
ended
|
AT170 4FC SG | ¥41,800 | |
| 88410-20270 |
Clutch Assy, Magnet
1989-03 → 1990-05
ended
|
AT170 5F SG | ¥41,800 | |
| 88410-20290 note |
Clutch Assy, Magnet
1989-01 → 1990-05
ended
|
ST170 SE | ¥41,800 | |
| 88410-20290 note |
Clutch Assy, Magnet
1989-01 → 1990-05
ended
|
ST170 SGEXT,SX | ¥41,800 | |
| 88410-20290 |
Clutch Assy, Magnet
1988-05 → 1989-01
ended
|
ST170 | ¥41,800 | |
| 88410-20310 |
Clutch Assy, Magnet
1988-05 → 1990-05
ended
|
AT171 GLIM | ¥41,800 | |
| 88410-20400 |
Clutch Assy, Magnet
1988-05 → 1990-12
ended
|
CT176 4FC DX | ¥41,300 | |
| 88410-20400 |
Clutch Assy, Magnet
1990-05 → 1990-12
ended
|
CT176 5F | ¥41,300 | |
| 88410-20400 |
Clutch Assy, Magnet
1990-05 → 1990-12
ended
|
CT170 SG | ¥41,300 | |
| 88410-20400 |
Clutch Assy, Magnet
1990-12 → 1992-11
ended
|
CT176 | ¥41,300 | |
| 88410-20400 |
Clutch Assy, Magnet
1990-12 → 1992-08
ended
|
CT170 SG | ¥41,300 | |
| 88410-20400 |
Clutch Assy, Magnet
1990-05 → 1992-11
ended
|
CT170 SE,SV | ¥41,300 | |
| 88410-20450 |
Clutch Assy, Magnet
1990-05 → 1990-12
ended
|
AT170,171 S,SV;AT170 MTM SGEXT | ¥41,300 | |
| 88410-20450 |
Clutch Assy, Magnet
1990-05 → 1990-12
ended
|
AT175;AT170 SED 4FC;AT170 MTM +1 | ¥41,300 | |
| 88410-20450 |
Clutch Assy, Magnet
1990-12 → 1992-11
ended
|
AT170,171 S,SGEXT,SV | ¥41,300 | |
| 88410-20450 |
Clutch Assy, Magnet
1990-12 → 1992-08
ended
|
AT175;AT170 DX,SE,SG | ¥41,300 | |
| 88410-20490 |
Clutch Assy, Magnet
1989-04 → 1990-05
ended
|
ST170 SX | ¥41,800 | |
| 88410-20490 |
Clutch Assy, Magnet
1989-04 → 1990-05
ended
|
ST170 SED | ¥41,800 | |
| 88410-20490 |
Clutch Assy, Magnet
1989-01 → 1989-04
ended
|
ST170 | ¥41,800 | |
| 88410-20550 |
Clutch Assy, Magnet
1990-12 → 1992-11
ended
|
ST170 SGEXT,SX | ¥41,300 | |
| 88410-20550 |
Clutch Assy, Magnet
1990-12 → 1992-08
ended
|
ST170 SE | ¥41,300 | |
| 88410-20550 |
Clutch Assy, Magnet
1990-05 → 1990-12
ended
|
ST170 SX | ¥41,300 | |
| 88410-20550 |
Clutch Assy, Magnet
1990-05 → 1990-12
ended
|
ST170 SED | ¥41,300 | |
| 88410-20560 note |
Clutch Assy, Magnet
1990-05 → 1992-11
ended
|
ET176 | ¥41,300 | |
| 88410-20570 |
Clutch Assy, Magnet
1990-05 → 1992-11
ended
|
ET176 | ¥41,300 | |
| 88410-2B020 |
Clutch Assy, Magnet
1990-05 → 1992-08
ended
|
AT171 EFI | ¥41,300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
