Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

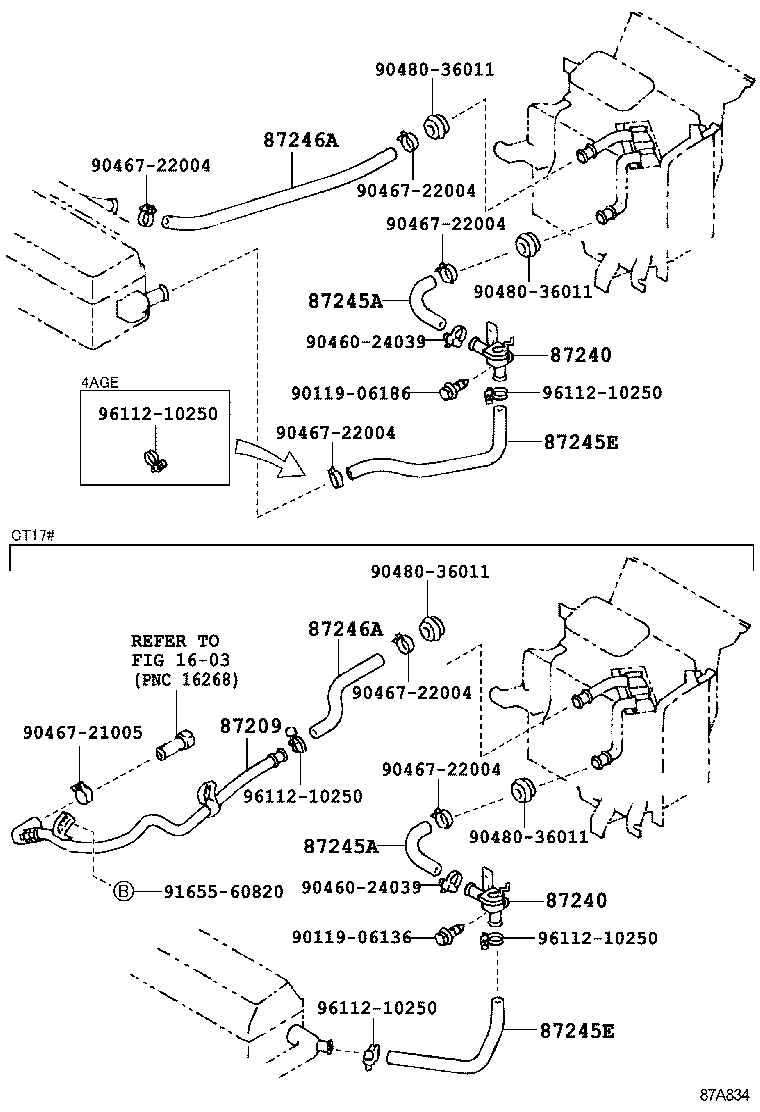

Exploded illustration 87A834 87246A — HOSE, HEATER WATER, OUTLET A (10 parts) 87245A — HOSE, HEATER WATER, INLET A (1 parts) 87240 — VALVE ASSY, HEATER WATER (1 parts) 87245E — HOSE, HEATER WATER, INLET E (6 parts) 87246A — HOSE, HEATER WATER, OUTLET A (10 parts) 87245E — HOSE, HEATER WATER, INLET E (6 parts) 87209 — HOSE SUB-ASSY, WATER (3 parts) 9048036011 — not listed in this catalogue 9046722004 — not listed in this catalogue 9046722004 — not listed in this catalogue 9048036011 — not listed in this catalogue 9046722004 — not listed in this catalogue 9046024039 — not listed in this catalogue 9611210250 — not listed in this catalogue 9011906186 — not listed in this catalogue 9046722004 — not listed in this catalogue 9611210250 — not listed in this catalogue 9611210250 — not listed in this catalogue 9046721005 — not listed in this catalogue 9611210250 — not listed in this catalogue 9165560820 — not listed in this catalogue 1603 — not listed in this catalogue 87245A — HOSE, HEATER WATER, INLET A (1 parts) 87240 — VALVE ASSY, HEATER WATER (1 parts) 9048036011 — not listed in this catalogue 9046722004 — not listed in this catalogue 9048036011 — not listed in this catalogue 9046722004 — not listed in this catalogue 9046024039 — not listed in this catalogue 9611210250 — not listed in this catalogue 9011906136 — not listed in this catalogue
87A834 · 9 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
21 parts on this figure
Part number Description Fitment Price
87209 — Hose Sub-assy, Water
87209-12400 Hose Sub-assy, Water
1991-06 → 1992-11 ended
CT176 ¥3,460
87209-12400 Hose Sub-assy, Water
1988-05 → 1991-06 ended
CT17# ¥3,460
87209-12440 Hose Sub-assy, Water
1991-06 → 1992-11 ended
CT170 ¥4,910
87240 — Valve Assy, Heater Water
87240-20230 Valve Assy, Heater Water
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥3,210
87245A — Hose, Heater Water, Inlet A
87245-2B220 Hose, Heater Water, Inlet A
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥810
87245E — Hose, Heater Water, Inlet E
87245-2B240 Hose, Heater Water, Inlet E
1988-05 → 1992-11 ended
AT17# DX,S,SE,SG,SGEXT,SV ¥1,650
87245-2B250 Hose, Heater Water, Inlet E
1988-05 → 1990-05 ended
ST170 ¥2,290
87245-2B260 Hose, Heater Water, Inlet E
1990-05 → 1992-11 ended
ST170 ¥1,940
87245-2B270 Hose, Heater Water, Inlet E
1988-05 → 1992-11 ended
CT17# ¥1,590
87245-2B280 Hose, Heater Water, Inlet E
1988-05 → 1992-11 ended
ET176 ¥1,690
87245-2B410 Hose, Heater Water, Inlet E
1988-05 → 1992-08 ended
AT171 GLIM ¥2,680
87246A — Hose, Heater Water, Outlet A
87245-2B290 Hose, Heater Water, Outlet A
1988-05 → 1991-06 ended
AT170,171 DX,S,SE,SG,SGEXT,SV ¥2,760
87245-2B291 Hose, Heater Water, Outlet A
1991-06 → 1991-09 ended
AT170,171 DX,S,SE,SG,SGEXT,SV ¥2,560
87245-2B292 Hose, Heater Water, Outlet A
1991-09 → 1992-11 ended
AT170,171 DX,S,SE,SG,SGEXT,SV ¥2,530
87245-2B300 Hose, Heater Water, Outlet A
1988-05 → 1992-11 ended
ST170 ¥1,700
87245-2B310 Hose, Heater Water, Outlet A
1988-05 → 1992-11 ended
CT17# ¥1,240
87245-2B320 Hose, Heater Water, Outlet A
1988-05 → 1992-11 ended
ET176 ¥2,530
87245-2B420 Hose, Heater Water, Outlet A
1988-05 → 1992-08 ended
AT171 GLIM ¥1,540
87245-2B470 Hose, Heater Water, Outlet A
1988-08 → 1991-06 ended
AT175 ¥2,060
87245-2B471 Hose, Heater Water, Outlet A
1991-06 → 1991-09 ended
AT175 ¥2,820
87245-2B472 Hose, Heater Water, Outlet A
1991-09 → 1992-08 ended
AT175 ¥2,790
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
