Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

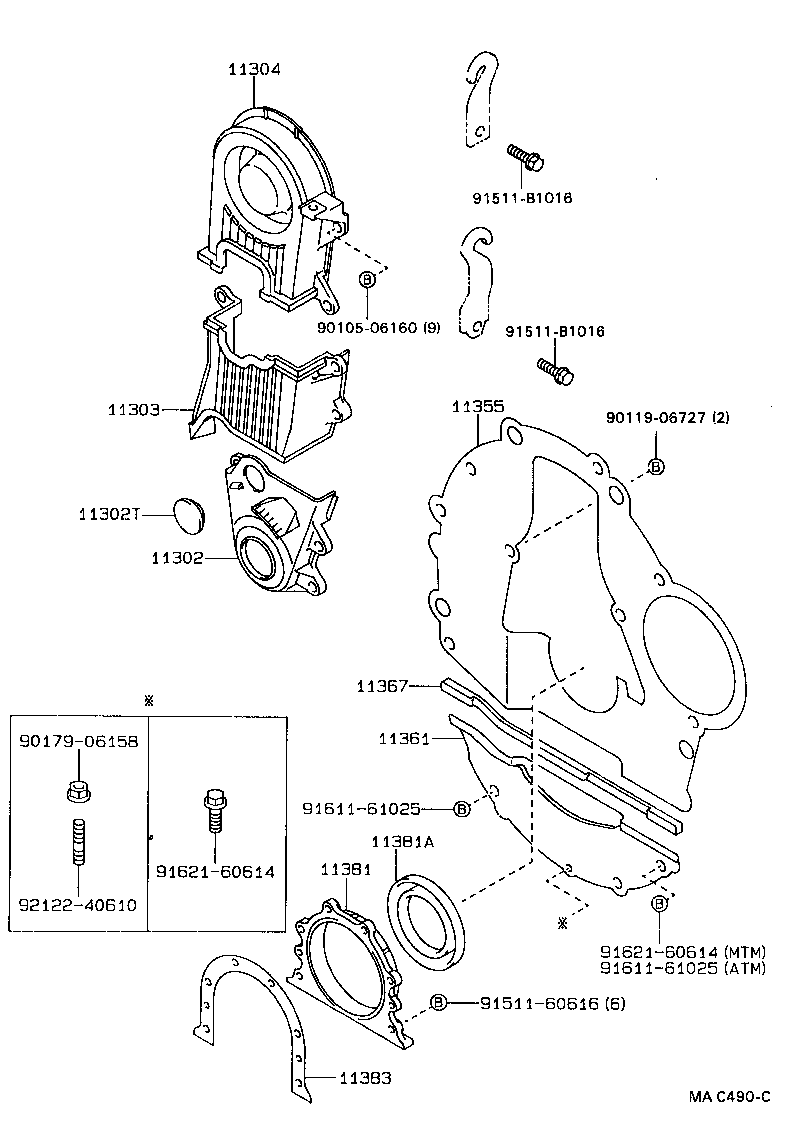

Exploded illustration MAC490C 11304 — COVER, TIMING CHAIN OR BELT, NO.2 (2 parts) 91511B1016 — not listed in this catalogue 9010506160 — not listed in this catalogue 91511B1016 — not listed in this catalogue 11355 — PLATE, REAR END (13 parts) 11303 — COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY (1 parts) 9011906727 — not listed in this catalogue 11302T — PLUG, HOLE (1 parts) 11302 — COVER SUB-ASSY, TIMING CHAIN OR BELT (4 parts) 11367 — GASKET, FLYWHEEL HOUSING UNDER (1 parts) 11361 — COVER, FLYWHEEL HOUSING UNDER (1 parts) 9017906158 — not listed in this catalogue 9161161025 — not listed in this catalogue 11381A — SEAL, ENGINE REAR OIL (10 parts) 11381 — RETAINER, ENGINE REAR OIL SEAL (5 parts) 9161260614 — not listed in this catalogue 9212240610 — not listed in this catalogue 9162160614 — not listed in this catalogue 9161161025 — not listed in this catalogue 9151160616 — not listed in this catalogue 11383 — GASKET, ENGINE REAR OIL SEAL RETAINER (7 parts)
MAC490C · 10 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
45 parts on this figure
Part number Description Fitment Price
11302 — Cover Sub-assy, Timing Chain OR Belt
11302-11031 Cover Sub-assy, Timing Chain OR Belt
1988-05 → 1992-11 ended
3E ET176 ¥5,100
11302-15041 Cover Sub-assy, Timing Chain OR Belt
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥2,910
11302-74010 Cover Sub-assy, Timing Chain OR Belt
1988-05 → 1989-06 ended
4SFI ST170 ¥5,100
11302-74011 Cover Sub-assy, Timing Chain OR Belt
1989-06 → 1992-11 ended
4SF# ST170 ¥5,100
11302T — Plug, Hole
90950-01391 Plug, Hole
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥240
11303 — Cover Sub-assy, Crankshaft Gear OR Pulley
11303-15040 Cover Sub-assy, Crankshaft Gear OR Pulley
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥2,910
11304 — Cover, Timing Chain OR Belt, NO.2
11303-74010 Cover, Timing Chain OR Belt, NO.2
1988-05 → 1992-11 ended
4SF# ST170 ¥5,100
11304-15020 Cover, Timing Chain OR Belt, NO.2
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥2,910
11355 — Plate, Rear End
11355-10011 Plate, Rear End
1988-05 → 1992-11 ended
3E ET176 MTM ¥3,450
11355-11011 Plate, Rear End
1988-05 → 1992-11 ended
3E ET176 3FC ¥3,450
11355-15060 Plate, Rear End
1988-05 → 1992-08 ended
4AGE AT171 ¥3,760
11355-15070 Plate, Rear End
1988-05 → 1992-11 ended
4AF#,5AF# AT170,171 MTM ¥5,500
11355-15080 Plate, Rear End
1988-05 → 1992-11 ended
4AF#,5AF# AT170,171 4FC ¥5,200
11355-16010 Plate, Rear End
1988-08 → 1992-08 ended
4AFE AT175 ¥5,700
11355-64032 Plate, Rear End
1988-05 → 1989-04 ended
2C CT17# 5F ¥6,000
11355-64042 Plate, Rear End
1988-05 → 1989-04 ended
2C CT170 4FC ¥6,000
11355-64050 Plate, Rear End
1989-04 → 1991-10 ended
2C CT17# 5F ¥6,000
11355-64051 Plate, Rear End
1991-10 → 1992-11 ended
2C CT17# 5F ¥6,000
11355-64060 Plate, Rear End
1989-04 → 1991-10 ended
2C CT17# 4FC ¥6,000
11355-64061 Plate, Rear End
1991-10 → 1992-11 ended
2C CT17# 4FC ¥6,000
11355-74010 Plate, Rear End
1988-05 → 1992-11 ended
4SF# ST170 ¥2,870
11361 — Cover, Flywheel Housing Under
11361-16040 Cover, Flywheel Housing Under
1988-05 → 1992-08 ended
4AFE,4AGE AT171,175 GLIM,SE,SG,SGEXT ¥1,340
11367 — Gasket, Flywheel Housing Under
11367-15030 Gasket, Flywheel Housing Under
1988-05 → 1992-08 ended
4AFE,4AGE AT171,175 GLIM,SE,SG,SGEXT ¥580
11381 — Retainer, Engine Rear Oil Seal
11381-10020 Retainer, Engine Rear Oil Seal
1988-05 → 1992-11 ended
3E ET176 ¥3,450
11381-15010 Retainer, Engine Rear Oil Seal
1988-05 → 1992-11 ended
4AF#,4AGE,5AF# AT17# ¥3,920
11381-63011 Retainer, Engine Rear Oil Seal
1988-05 → 1989-07 ended
4SFI ST170 ¥4,300
11381-63012 Retainer, Engine Rear Oil Seal
1989-07 → 1992-11 ended
4SF# ST170 ¥4,250
11381-64012 Retainer, Engine Rear Oil Seal
1988-05 → 1992-11 ended
2C CT17# ¥4,280
11381A — Seal, Engine Rear Oil
90311-70004 Seal, Engine Rear Oil
1988-05 → 1991-06 ended
4AF#,4AGE,5AF# AT17# ¥1,080
90311-70007 Seal, Engine Rear Oil
1991-06 → 1992-11 ended
4AF#,4AGE,5AFE AT17# ¥1,080
90311-80007 Seal, Engine Rear Oil
1988-05 → 1990-05 ended
3E ET176 ¥890
90311-80007 note Seal, Engine Rear Oil
1990-05 → 1991-08 ended
3E ET176 ¥890
90311-80012 note Seal, Engine Rear Oil
1990-10 → 1992-11 ended
3E ET176 ¥1,270
90311-80012 note Seal, Engine Rear Oil
1991-08 → 1992-11 ended
3E ET176 ¥1,270
90311-85003 Seal, Engine Rear Oil
1988-05 → 1990-10 ended
4SF# ST170 ¥1,270
90311-85006 Seal, Engine Rear Oil
1990-10 → 1992-11 ended
4SFE ST170 ¥1,260
90311-90003 Seal, Engine Rear Oil
1988-05 → 1990-02 ended
2C CT17# ¥1,080
90311-90005 Seal, Engine Rear Oil
1990-02 → 1992-11 ended
2C CT17# ¥1,080
11383 — Gasket, Engine Rear Oil Seal Retainer
11383-15010 Gasket, Engine Rear Oil Seal Retainer
1988-05 → 1989-12 ended
4A#,5AF AT17# ¥510
11383-15011 Gasket, Engine Rear Oil Seal Retainer
1989-12 → 1992-05 ended
4AF#,4AGE,5AF# AT17# ¥500
11383-16010 Gasket, Engine Rear Oil Seal Retainer
1992-05 → 1992-11 ended
4AF#,4AGE,5AFE AT17# ¥480
11383-63010 Gasket, Engine Rear Oil Seal Retainer
1988-05 → 1989-07 ended
4SFI ST170 ¥500
11383-63011 Gasket, Engine Rear Oil Seal Retainer
1989-07 → 1991-11 ended
4SF# ST170 ¥500
11383-74020 Gasket, Engine Rear Oil Seal Retainer
1991-11 → 1992-02 ended
4SFE ST170 ¥500
11383-74021 Gasket, Engine Rear Oil Seal Retainer
1992-02 → 1992-11 ended
4SFE ST170 ¥480
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
