Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

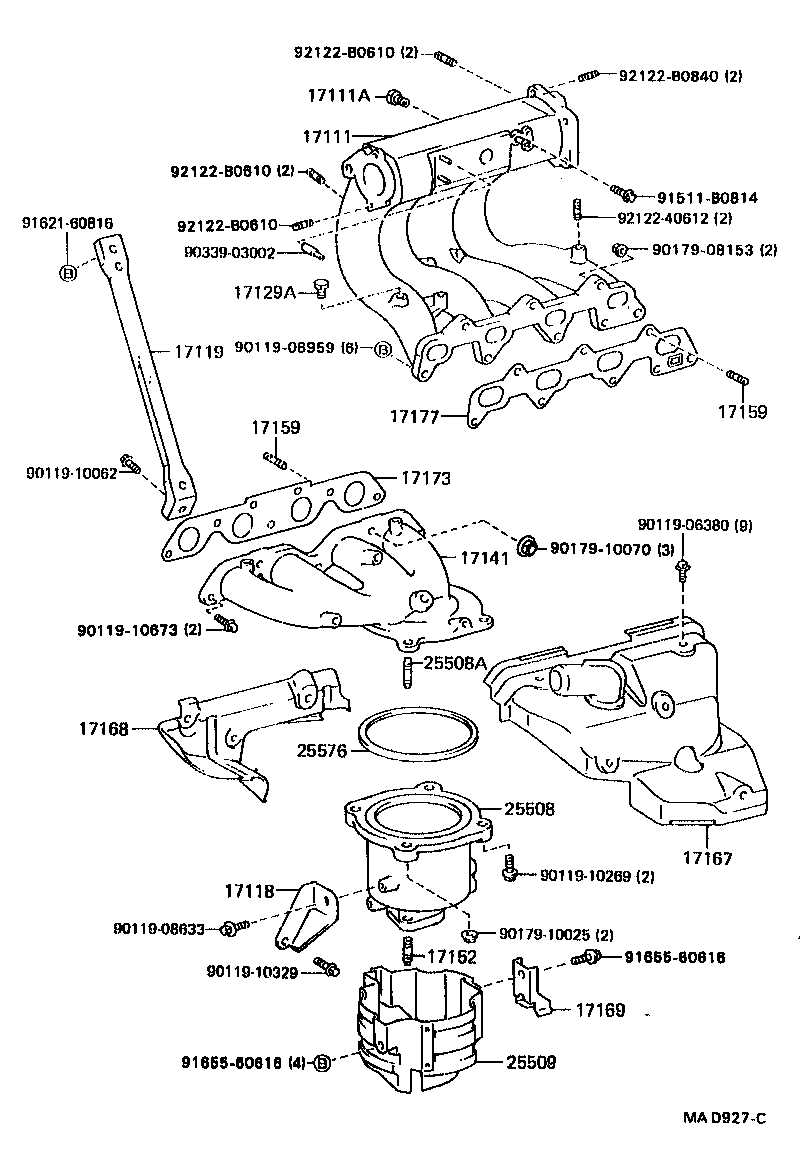

Exploded illustration MAD927C 92122B0610 — not listed in this catalogue 92122B0840 — not listed in this catalogue 17111A — PLUG, NO.1 (10 parts) 17111 — MANIFOLD, INTAKE (15 parts) 92122B0610 — not listed in this catalogue 91511B0814 — not listed in this catalogue 9212240612 — not listed in this catalogue 9162160816 — not listed in this catalogue 92122B0610 — not listed in this catalogue 9017908153 — not listed in this catalogue 9033903002 — not listed in this catalogue 17129A — UNION, NO.1 (2 parts) 9011908959 — not listed in this catalogue 17119 — STAY, MANIFOLD, NO.2 (8 parts) 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (14 parts) 17177 — GASKET, INTAKE MANIFOLD TO HEAD, NO.1 (16 parts) 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (14 parts) 9011910062 — not listed in this catalogue 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (11 parts) 9011906380 — not listed in this catalogue 9017910070 — not listed in this catalogue 17141 — MANIFOLD, EXHAUST (13 parts) 9011910673 — not listed in this catalogue 25508A — BOLT, STUD(FOR MANIFOLD CONVERTER) (4 parts) 17168 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 (6 parts) 25576 — GASKET, MANIFOLD CONVERTER (10 parts) 25508 — CONVERTER SUB-ASSY, MANIFOLD (4 parts) 17167 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 (11 parts) 9011910269 — not listed in this catalogue 17118 — STAY, MANIFOLD (8 parts) 9011908633 — not listed in this catalogue 9017910025 — not listed in this catalogue 17152 — BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) (9 parts) 9165560616 — not listed in this catalogue 9011910329 — not listed in this catalogue 17169 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 (1 parts) 25509 — INSULATOR SUB-ASSY, MANIFOLD CONVERTOR (2 parts) 9165560616 — not listed in this catalogue
MAD927C · 18 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
144 parts on this figure
Part number Description Fitment Price
17111 — Manifold, Intake
17101-11130 Manifold, Intake
1988-05 → 1989-10 ended
3E ET176 ¥22,500
17101-11190 Manifold, Intake
1989-10 → 1992-11 ended
3E ET176 ¥21,200
17101-15020 Manifold, Intake
1988-05 → 1990-05 ended
5AF AT170 ¥26,800
17101-15050 Manifold, Intake
1990-05 → 1992-11 ended
5AFE AT170 ¥41,200
17101-16130 Manifold, Intake
1988-05 → 1989-08 ended
4AGE AT171 ¥42,400
17101-16150 Manifold, Intake
1988-05 → 1992-08 ended
4AF# AT171,175 ¥42,200
17101-16210 Manifold, Intake
1989-08 → 1992-08 ended
4AGE AT171 ¥41,800
17101-74100 Manifold, Intake
1988-05 → 1990-05 ended
4SFI ST170 ¥28,400
17101-74170 Manifold, Intake
1990-05 → 1992-11 ended
4SFE ST170 ¥67,300
17111-64080 Manifold, Intake
1988-05 → 1989-11 ended
2C CT170 4FC ¥18,000
17111-64090 Manifold, Intake
1988-05 → 1989-11 ended
2C CT17# 5F ¥18,000
17111-64150 Manifold, Intake
1989-11 → 1991-04 ended
2C CT176;2C CT170 5F ¥17,900
17111-64150 Manifold, Intake
1991-04 → 1992-11 ended
2C CT176 ¥17,900
17111-64160 Manifold, Intake
1990-05 → 1991-04 ended
2C CT170 4FC ¥18,100
17111-64180 Manifold, Intake
1991-04 → 1992-11 ended
2C CT170 ¥18,000
17111A — Plug, NO.1
90344-51014 Plug, NO.1
1988-05 → 1990-05 ended
4SFI ST170 ¥200
90344-52004 note Plug, NO.1
1989-10 → 1992-11 ended
3E ET176 ¥70
90344-53011 Plug, NO.1
1988-05 → 1990-05 ended
5AF AT170 ¥240
90344-53015 Plug, NO.1
1988-05 → 1989-10 ended
3E ET176 ¥300
90344-53015 note Plug, NO.1
1989-10 → 1992-11 ended
3E ET176 ¥300
90345-51006 Plug, NO.1
1992-08 → 1992-11 ended
4SFE ST170 ¥100
90345-51006 Plug, NO.1
1988-08 → 1992-08 ended
4SFE ST170 ¥100
90345-51006 Plug, NO.1
1988-08 → 1992-08 ended
4AFE,5AFE AT170,175 ¥100
90345-51006 Plug, NO.1
1988-05 → 1992-08 ended
4AF# AT171 ¥100
96411-43500 Plug, NO.1
1988-05 → 1992-08 ended
4AGE AT171 ¥260
17118 — Stay, Manifold
17118-11090 Stay, Manifold
1988-05 → 1989-10 ended
3E ET176 ¥2,490
17118-11160 Stay, Manifold
1989-10 → 1992-11 ended
3E ET176 ¥1,950
17118-15070 Stay, Manifold
1988-05 → 1992-11 ended
4AFE,5AF# AT17# ¥1,280
17118-16040 Stay, Manifold
1990-05 → 1992-08 ended
4AFHE AT171 ¥1,620
17118-74060 note Stay, Manifold
1988-05 → 1990-05 ended
4SFI ST170 ¥2,780
17118-74100 note Stay, Manifold
1988-05 → 1992-11 ended
4SF# ST170 ¥1,130
17118-74150 note Stay, Manifold
1990-05 → 1992-11 ended
4SFE ST170 ¥2,020
17139-16040 Stay, Manifold
1988-05 → 1992-08 ended
4AGE AT171 ¥1,780
17119 — Stay, Manifold, NO.2
17118-16040 Stay, Manifold, NO.2
1988-05 → 1992-08 ended
4AGE AT171 ¥1,620
17139-15020 Stay, Manifold, NO.2
1988-05 → 1990-05 ended
5AF AT170 ¥2,590
17139-15030 note Stay, Manifold, NO.2
1988-05 → 1992-08 ended
4AFHE AT171 ¥3,000
17139-15030 Stay, Manifold, NO.2
1988-05 → 1992-08 ended
4AFE AT171 ¥3,000
17139-16030 Stay, Manifold, NO.2
1990-05 → 1992-11 ended
5AFE AT170 ¥2,360
17139-16040 note Stay, Manifold, NO.2
1990-05 → 1992-08 ended
4AFHE AT171 ¥1,780
17139-16050 Stay, Manifold, NO.2
1988-08 → 1992-08 ended
4AFE AT175 ¥2,560
17139-16070 note Stay, Manifold, NO.2
1990-05 → 1992-08 ended
4AFE AT175 5F ¥1,950
17129A — Union, NO.1
90345-51006 Union, NO.1
1990-05 → 1992-08 ended
5AFE AT170 ¥100
90404-51010 Union, NO.1
1988-08 → 1992-08 ended
4AFE AT175 ¥250
17141 — Manifold, Exhaust
17141-11070 Manifold, Exhaust
1989-10 → 1992-11 ended
3E ET176 ¥25,100
17141-11140 Manifold, Exhaust
1988-05 → 1989-10 ended
3E ET176 ¥25,300
17141-15120 Manifold, Exhaust
1988-05 → 1992-11 ended
4AFE,5AF# AT17# ¥25,100
17141-15130 Manifold, Exhaust
1990-05 → 1992-08 ended
4AFHE AT171 ¥25,100
17141-16210 Manifold, Exhaust
1988-05 → 1992-08 ended
4AGE AT171 ¥28,600
17141-64090 Manifold, Exhaust
1988-05 → 1989-06 ended
2C CT170 4FC ¥20,200
17141-64091 Manifold, Exhaust
1991-04 → 1992-11 ended
2C CT170 ¥20,100
17141-64091 Manifold, Exhaust
1989-06 → 1991-04 ended
2C CT170 4FC ¥20,100
17141-64100 Manifold, Exhaust
1988-05 → 1989-06 ended
2C CT17# 5F ¥20,200
17141-64101 Manifold, Exhaust
1991-04 → 1992-11 ended
2C CT176 ¥20,100
17141-64101 Manifold, Exhaust
1989-06 → 1991-04 ended
2C CT176;2C CT170 5F ¥20,100
17141-74080 Manifold, Exhaust
1988-05 → 1989-09 ended
4SFI ST170 ¥25,300
17141-74081 Manifold, Exhaust
1989-09 → 1992-11 ended
4SF# ST170 ¥25,300
17152 — Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1988-05 → 1992-11 ended
3E ET176 ¥230
90116-10058 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1988-05 → 1989-04 ended
4AGE AT171 ¥390
90116-10058 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1988-05 → 1992-11 ended
2C CT17# ¥390
90116-10058 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1988-05 → 1992-11 ended
4SF# ST170 ¥390
90116-10146 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1989-04 → 1990-12 ended
4AFHE,4AGE AT171 ¥190
90116-10146 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1990-12 → 1991-04 ended
4AFHE AT171 ¥190
90116-10146 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1991-04 → 1992-08 ended
4AFHE,4AGE AT171 ¥190
90116-10146 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1988-05 → 1992-11 ended
4AFE,5AF# AT17# ¥190
90126-10003 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1990-12 → 1991-04 ended
4AGE AT171 ¥680
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90116-08218 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1988-05 → 1989-08 ended
4AGE AT171 ¥240
90116-08317 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1989-08 → 1992-08 ended
4AGE AT171 ¥180
90116-10037 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1988-05 → 1992-08 ended
4AGE AT171 ¥260
90116-10063 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1988-05 → 1992-11 ended
4SF# ST170 ¥230
90116-10095 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1990-05 → 1992-11 ended
2C CT17# ¥160
90116-10095 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1988-05 → 1990-05 ended
2C CT17# ¥160
90116-10131 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1988-05 → 1992-11 ended
3E ET176 ¥240
90116-10132 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1988-05 → 1992-11 ended
3E ET176 ¥310
92112-60825 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥160
92112-61028 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1989-07 → 1992-11 ended
4AF#,5AF# AT17# ¥240
92112-61032 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1988-05 → 1989-07 ended
4AFE,5AF AT17# ¥230
92122-60820 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1988-05 → 1990-05 ended
2C CT17# ¥190
92122-60822 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1988-05 → 1992-11 ended
4SF# ST170 ¥170
92132-60825 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1988-05 → 1992-11 ended
3E ET176 ¥200
17167 — Insulator, Exhaust Manifold Heat, NO.1
17107-11120 Insulator, Exhaust Manifold Heat, NO.1
1988-05 → 1989-10 ended
3E ET176 ¥7,400
17107-11130 Insulator, Exhaust Manifold Heat, NO.1
1989-10 → 1992-11 ended
3E ET176 ¥8,200
17107-15010 Insulator, Exhaust Manifold Heat, NO.1
1988-05 → 1990-05 ended
5AF AT170 ¥8,800
17167-15070 Insulator, Exhaust Manifold Heat, NO.1
1988-05 → 1991-09 ended
4AFE,5AFE AT17# ¥7,400
17167-15071 Insulator, Exhaust Manifold Heat, NO.1
1991-09 → 1992-11 ended
4AFE,5AFE AT170,175 ¥7,300
17167-16050 Insulator, Exhaust Manifold Heat, NO.1
1988-05 → 1992-08 ended
4AFHE,4AGE AT171 ¥5,500
17167-64031 Insulator, Exhaust Manifold Heat, NO.1
1988-05 → 1991-06 ended
2C CT17# ¥1,550
17167-64031 Insulator, Exhaust Manifold Heat, NO.1
1991-06 → 1992-11 ended
2C CT176 ¥1,550
17167-64070 Insulator, Exhaust Manifold Heat, NO.1
1991-06 → 1992-11 ended
2C CT170 ¥1,890
17167-74040 Insulator, Exhaust Manifold Heat, NO.1
1988-05 → 1989-08 ended
4SFI ST170 ¥11,600
17167-74140 Insulator, Exhaust Manifold Heat, NO.1
1989-08 → 1992-11 ended
4SF# ST170 ¥11,300
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-11031 Insulator, Exhaust Manifold Heat, NO.2
1988-05 → 1992-11 ended
3E ET176 ¥4,590
17168-15010 Insulator, Exhaust Manifold Heat, NO.2
1988-05 → 1992-11 ended
4AFE,5AF# AT17# ¥2,430
17168-15020 Insulator, Exhaust Manifold Heat, NO.2
1990-05 → 1992-08 ended
4AFHE AT171 ¥7,500
17168-16060 Insulator, Exhaust Manifold Heat, NO.2
1988-05 → 1992-08 ended
4AGE AT171 ¥8,100
17168-64050 Insulator, Exhaust Manifold Heat, NO.2
1988-05 → 1992-11 ended
2C CT17# ¥2,120
17168-74020 Insulator, Exhaust Manifold Heat, NO.2
1988-05 → 1992-11 ended
4SF# ST170 ¥10,300
17169 — Insulator, Exhaust Manifold Heat, NO.3
17169-15010 Insulator, Exhaust Manifold Heat, NO.3
1989-01 → 1992-11 ended
4AFE,5AF# AT17# ¥670
17173 — Gasket, Exhaust Manifold TO Head
17173-11020 Gasket, Exhaust Manifold TO Head
1988-05 → 1990-10 ended
3E ET176 ¥680
17173-11021 Gasket, Exhaust Manifold TO Head
1990-10 → 1992-11 ended
3E ET176 ¥670
17173-15010 Gasket, Exhaust Manifold TO Head
1988-05 → 1989-12 ended
4AFE,5AF AT17# ¥2,100
17173-15011 Gasket, Exhaust Manifold TO Head
1989-12 → 1991-07 ended
4AF#,5AF# AT17# ¥2,090
17173-15040 Gasket, Exhaust Manifold TO Head
1991-07 → 1992-11 ended
4AF#,5AFE AT17# ¥2,190
17173-16010 Gasket, Exhaust Manifold TO Head
1988-05 → 1989-05 ended
4AGE AT171 ¥1,470
17173-16011 Gasket, Exhaust Manifold TO Head
1989-05 → 1992-08 ended
4AGE AT171 ¥1,390
17173-64020 Gasket, Exhaust Manifold TO Head
1988-05 → 1989-06 ended
2C CT17# ¥1,470
17173-64060 Gasket, Exhaust Manifold TO Head
1989-06 → 1992-11 ended
2C CT17# ¥1,820
17173-74040 Gasket, Exhaust Manifold TO Head
1989-07 → 1992-11 ended
4SF# ST170 ¥2,260
17173-88360 Gasket, Exhaust Manifold TO Head
1988-05 → 1989-07 ended
4SFI ST170 ¥3,250
17177 — Gasket, Intake Manifold TO Head, NO.1
17171-15020 Gasket, Intake Manifold TO Head, NO.1
1988-05 → 1989-12 ended
5AF AT170 ¥1,020
17171-15021 Gasket, Intake Manifold TO Head, NO.1
1989-12 → 1990-05 ended
5AF AT170 ¥1,010
17171-16030 Gasket, Intake Manifold TO Head, NO.1
1988-05 → 1989-12 ended
4AFE AT171,175 ¥1,020
17171-16031 Gasket, Intake Manifold TO Head, NO.1
1989-12 → 1992-11 ended
4AF#,5AFE AT17# ¥1,020
17171-16040 Gasket, Intake Manifold TO Head, NO.1
1989-08 → 1992-08 ended
4AGE AT171 ¥1,010
17177-11010 Gasket, Intake Manifold TO Head, NO.1
1988-05 → 1990-07 ended
3E ET176 ¥850
17177-11011 Gasket, Intake Manifold TO Head, NO.1
1990-07 → 1991-04 ended
3E ET176 ¥850
17177-11040 Gasket, Intake Manifold TO Head, NO.1
1991-04 → 1992-11 ended
3E ET176 ¥820
17177-16012 Gasket, Intake Manifold TO Head, NO.1
1988-05 → 1989-08 ended
4AGE AT171 ¥510
17177-64010 Gasket, Intake Manifold TO Head, NO.1
1988-05 → 1989-03 ended
2C CT17# ¥600
17177-64020 Gasket, Intake Manifold TO Head, NO.1
1989-11 → 1990-05 ended
2C CT176;2C CT170 5F ¥520
17177-64020 Gasket, Intake Manifold TO Head, NO.1
1989-03 → 1989-11 ended
2C CT17# ¥520
17177-64020 Gasket, Intake Manifold TO Head, NO.1
1990-05 → 1992-11 ended
2C CT17# ¥520
17177-74040 Gasket, Intake Manifold TO Head, NO.1
1988-05 → 1989-07 ended
4SFI ST170 ¥1,000
17177-74041 Gasket, Intake Manifold TO Head, NO.1
1989-07 → 1990-06 ended
4SF# ST170 ¥1,020
17177-74070 Gasket, Intake Manifold TO Head, NO.1
1990-06 → 1992-11 ended
4SFE ST170 ¥970
25508 — Converter Sub-assy, Manifold
25508-11080 Converter Sub-assy, Manifold
1989-10 → 1992-11 ended
3E ET176 ¥74,000
25508-15020 Converter Sub-assy, Manifold
1988-05 → 1992-11 ended
4AFE,5AF# AT170,171 ¥66,600
25508-16030 Converter Sub-assy, Manifold
1988-08 → 1992-08 ended
4AFE AT175 ¥61,200
25508-74050 Converter Sub-assy, Manifold
1988-05 → 1992-11 ended
4SF# ST170 ¥77,300
25508A — Bolt, Stud(FOR MANIFOLD CONVERTER)
90116-08171 Bolt, Stud(FOR MANIFOLD CONVERTER)
1988-05 → 1992-11 ended
4SF# ST170 ¥270
90116-10056 Bolt, Stud(FOR MANIFOLD CONVERTER)
1989-10 → 1990-05 ended
3E ET176 ¥370
90116-10087 Bolt, Stud(FOR MANIFOLD CONVERTER)
1990-05 → 1992-11 ended
3E ET176 ¥350
90116-10146 Bolt, Stud(FOR MANIFOLD CONVERTER)
1988-05 → 1992-11 ended
4AFE,5AF# AT17# ¥190
25509 — Insulator Sub-assy, Manifold Convertor
25509-15020 Insulator Sub-assy, Manifold Convertor
1988-05 → 1989-01 ended
4AFE,5AF AT17# ¥2,060
25509-15021 Insulator Sub-assy, Manifold Convertor
1989-01 → 1992-11 ended
4AFE,5AF# AT17# ¥2,050
25576 — Gasket, Manifold Converter
25576-11020 Gasket, Manifold Converter
1989-10 → 1991-10 ended
3E ET176 ¥1,280
25576-15010 Gasket, Manifold Converter
1988-05 → 1991-07 ended
4SF# ST170 ¥1,200
25576-15010 Gasket, Manifold Converter
1988-05 → 1991-07 ended
4AFE,5AF# AT17# ¥1,200
25576-15010 Gasket, Manifold Converter
1991-07 → 1991-09 ended
4SFE ST170 ¥1,200
25576-15020 Gasket, Manifold Converter
1991-07 → 1991-09 ended
4AFE,5AFE AT170,175 ¥1,120
25576-15020 Gasket, Manifold Converter
1991-09 → 1991-10 ended
4SFE ST170 ¥1,120
25576-15020 Gasket, Manifold Converter
1991-09 → 1991-10 ended
4AFE,5AFE AT170,175 ¥1,120
25576-15020 Gasket, Manifold Converter
1991-10 → 1992-11 ended
3E ET176 ¥1,120
25576-15020 Gasket, Manifold Converter
1991-10 → 1992-11 ended
4SFE ST170 ¥1,120
25576-15020 Gasket, Manifold Converter
1991-10 → 1992-11 ended
4AFE,5AFE AT170,175 ¥1,120
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
