Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

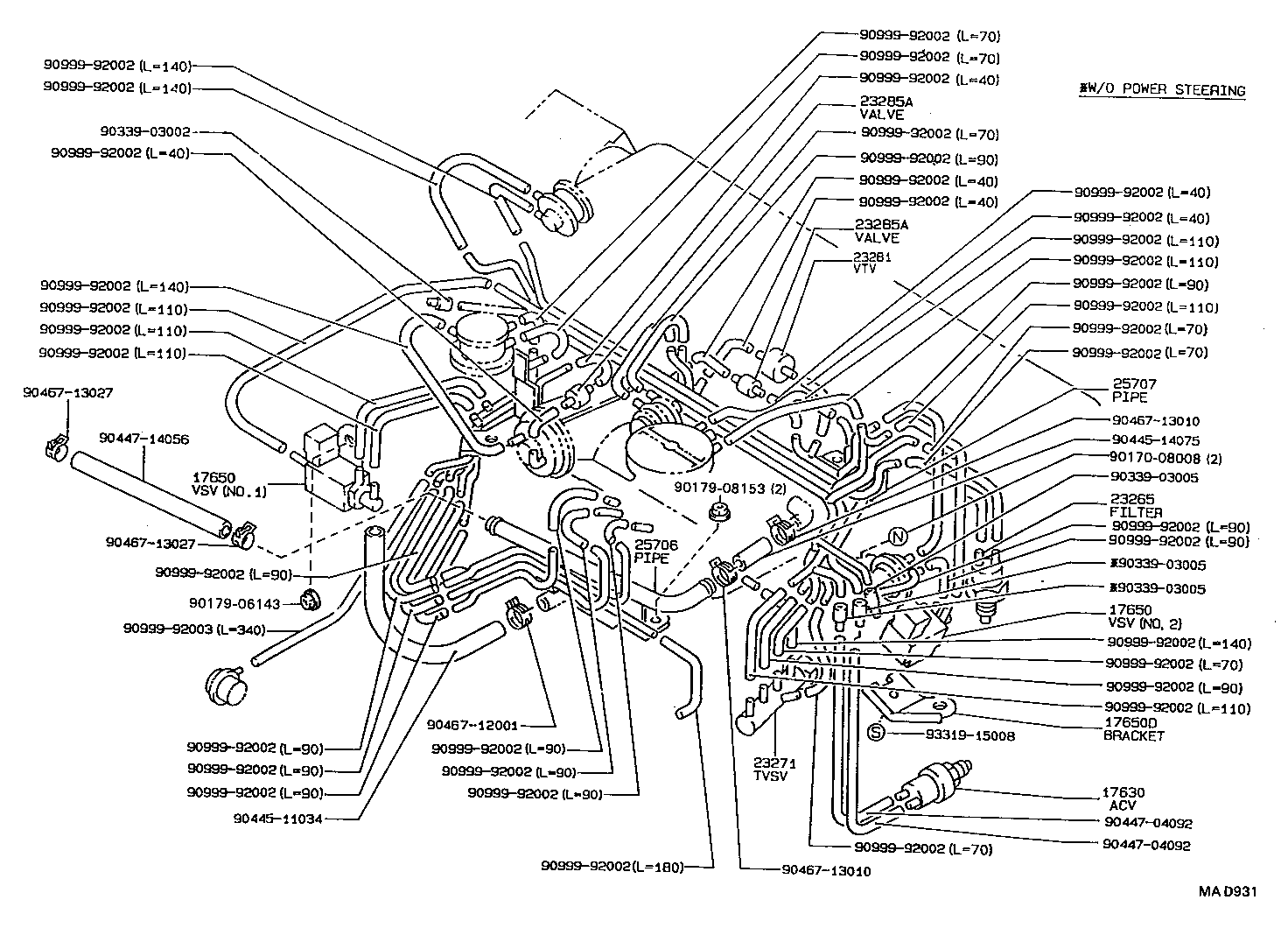

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17630 — Valve Assy, Air Control | ||||
| 17630-15021 |
Valve Assy, Air Control
1988-05 → 1990-05
ended
|
5AF AT170 | ¥14,700 | |
| 17630-15040 note |
Valve Assy, Air Control
1988-05 → 1990-05
ended
|
4AFE AT171 | ¥7,600 | |
| 17630-15050 note |
Valve Assy, Air Control
1990-05 → 1992-08
ended
|
5AFE AT170 DX | ¥7,600 | |
| 17630-15050 note |
Valve Assy, Air Control
1990-05 → 1992-11
ended
|
4AFHE,5AFE AT170,171 S,SE,SG,SGEXT,SV | ¥7,600 | |
| 17630-15060 note |
Valve Assy, Air Control
1988-08 → 1992-08
ended
|
4AFE AT175 | ¥7,600 | |
| 17630-15070 note |
Valve Assy, Air Control
1990-05 → 1992-11
ended
|
5AFE AT170 | ¥7,600 | |
| 17630-16040 note |
Valve Assy, Air Control
1988-05 → 1992-08
ended
|
4AGE AT171 | ¥7,600 | |
| 17630-16060 note |
Valve Assy, Air Control
1988-08 → 1992-08
ended
|
4AFE AT175;4AFHE AT171 | ¥7,600 | |
| 17630-16080 note |
Valve Assy, Air Control
1989-08 → 1992-08
ended
|
4AGE AT171 | ¥7,600 | |
| 17630-28020 |
Valve Assy, Air Control
1988-05 → 1992-11
ended
|
3E ET176 | ¥15,300 | |
| 17630-64010 |
Valve Assy, Air Control
1990-05 → 1992-11
ended
|
2C CT17# 4FC | ¥7,600 | |
| 17630-70010 note |
Valve Assy, Air Control
1988-05 → 1990-05
ended
|
4AFE AT171 | ¥15,100 | |
| 17630-70020 |
Valve Assy, Air Control
1988-05 → 1992-11
ended
|
4SF# ST170 | ¥7,600 | |
| 17650 — Valve Assy, Vacuum Switching | ||||
| 90910-12008 note |
Valve Assy, Vacuum Switching
1988-05 → 1992-11
ended
|
3E ET176 | ¥4,640 | |
| 90910-12009 note |
Valve Assy, Vacuum Switching
1988-05 → 1992-11
ended
|
3E ET176 | ¥4,640 | |
| 90910-12026 note |
Valve Assy, Vacuum Switching
1988-05 → 1990-05
ended
|
5AF AT170 | — | |
| 90910-12055 note |
Valve Assy, Vacuum Switching
1988-05 → 1990-05
ended
|
5AF AT170 | — | |
| 90910-12060 |
Valve Assy, Vacuum Switching
1988-05 → 1989-08
ended
|
4AGE AT171 | — | |
| 90910-12071 |
Valve Assy, Vacuum Switching
1988-05 → 1990-05
ended
|
4SFI ST170 | ¥4,690 | |
| 17650D — Bracket, Vacuum Switching Valve | ||||
| 21999-11011 |
Bracket, Vacuum Switching Valve
1988-05 → 1992-11
ended
|
3E ET176 | ¥2,260 | |
| 25861-15010 |
Bracket, Vacuum Switching Valve
1988-05 → 1990-05
ended
|
5AF AT170 | — | |
| 23265 — Filter, Gas, NO.1 | ||||
| 90917-11021 |
Filter, Gas, NO.1
1988-05 → 1992-08
ended
|
4AF# AT171,175 | ¥1,030 | |
| 90917-11021 |
Filter, Gas, NO.1
1988-05 → 1992-08
ended
|
4SFI ST170 | ¥1,030 | |
| 90917-11022 |
Filter, Gas, NO.1
1990-05 → 1990-08
ended
|
5AFE AT170 | ¥1,020 | |
| 90917-11022 |
Filter, Gas, NO.1
1990-08 → 1992-11
ended
|
4SFE ST170 | ¥1,020 | |
| 90917-11022 |
Filter, Gas, NO.1
1990-08 → 1992-11
ended
|
5AFE AT170 | ¥1,020 | |
| 90917-11023 |
Filter, Gas, NO.1
1988-05 → 1990-05
ended
|
5AF AT170 | ¥1,650 | |
| 90917-11024 |
Filter, Gas, NO.1
1988-05 → 1989-10
ended
|
3E ET176 | ¥1,730 | |
| 90917-11024 note |
Filter, Gas, NO.1
1989-10 → 1990-04
ended
|
3E ET176 | ¥1,730 | |
| 90917-11027 |
Filter, Gas, NO.1
1988-05 → 1989-10
ended
|
4AGE AT171 | ¥1,560 | |
| 90917-11027 |
Filter, Gas, NO.1
1989-10 → 1992-11
ended
|
4AGE AT171 | ¥1,560 | |
| 90917-11027 |
Filter, Gas, NO.1
1989-10 → 1992-11
ended
|
3E ET176 | ¥1,560 | |
| 90917-11032 |
Filter, Gas, NO.1
1990-05 → 1990-08
ended
|
4SFE ST170 | ¥1,460 | |
| 23271 — Valve, Thermostatic Vacuum Switching, NO.1 | ||||
| 90925-02082 |
Valve, Thermostatic Vacuum Switching, NO.1
1988-05 → 1990-05
ended
|
5AF AT170 | ¥9,000 | |
| 23281 — Valve, Vacuum Transmitting, NO.1 | ||||
| 90925-01015 |
Valve, Vacuum Transmitting, NO.1
1988-05 → 1990-05
ended
|
4SFI ST170 | ¥2,080 | |
| 90925-01021 note |
Valve, Vacuum Transmitting, NO.1
1989-10 → 1991-09
ended
|
3E ET176 | ¥1,300 | |
| 90925-01029 note |
Valve, Vacuum Transmitting, NO.1
1988-05 → 1989-10
ended
|
3E ET176 | ¥2,060 | |
| 90925-01041 note |
Valve, Vacuum Transmitting, NO.1
1988-05 → 1989-10
ended
|
3E ET176 | ¥1,970 | |
| 90925-01091 note |
Valve, Vacuum Transmitting, NO.1
1991-09 → 1992-11
ended
|
3E ET176 3FC | ¥2,250 | |
| 90925-01095 note |
Valve, Vacuum Transmitting, NO.1
1988-05 → 1990-05
ended
|
5AF AT170 4FC | ¥2,230 | |
| 90925-01099 note |
Valve, Vacuum Transmitting, NO.1
1989-10 → 1991-09
ended
|
3E ET176 | ¥2,110 | |
| 90925-01100 note |
Valve, Vacuum Transmitting, NO.1
1991-09 → 1992-11
ended
|
3E ET176 3FC | ¥2,500 | |
| 90925-01101 |
Valve, Vacuum Transmitting, NO.1
1988-05 → 1990-05
ended
|
5AF AT170 | ¥2,120 | |
| 90925-01101 note |
Valve, Vacuum Transmitting, NO.1
1991-09 → 1992-11
ended
|
3E ET176 MTM | ¥2,120 | |
| 90925-02084 note |
Valve, Vacuum Transmitting, NO.1
1989-10 → 1992-11
ended
|
3E ET176 | ¥6,300 | |
| 23285A — Valve, Check, NO.1 | ||||
| 90917-10049 |
Valve, Check, NO.1
1988-05 → 1989-10
ended
|
5AF AT170 | ¥810 | |
| 90917-10049 |
Valve, Check, NO.1
1988-05 → 1989-10
ended
|
3E ET176 | ¥810 | |
| 90917-10049 note |
Valve, Check, NO.1
1988-05 → 1990-05
ended
|
5AF AT170 MTM | ¥810 | |
| 90917-10049 |
Valve, Check, NO.1
1989-10 → 1990-05
ended
|
5AF AT170 | ¥810 | |
| 90917-10049 |
Valve, Check, NO.1
1989-10 → 1992-11
ended
|
3E ET176 | ¥810 | |
| 25706 — Pipe Sub-assy, Vacuum Transmitting, NO.1 | ||||
| 25706-16340 |
Pipe Sub-assy, Vacuum Transmitting, NO.1
1988-05 → 1990-05
ended
|
5AF AT170 | ¥5,100 | |
| 25706-16380 |
Pipe Sub-assy, Vacuum Transmitting, NO.1
1988-05 → 1992-08
ended
|
4AGE AT171 | ¥1,160 | |
| 25706-64050 |
Pipe Sub-assy, Vacuum Transmitting, NO.1
1991-04 → 1992-11
ended
|
2C CT170 | ¥3,130 | |
| 25707 — Pipe Sub-assy, Vacuum Transmitting, NO.2 | ||||
| 25707-16121 |
Pipe Sub-assy, Vacuum Transmitting, NO.2
1988-05 → 1990-05
ended
|
5AF AT170 | ¥10,800 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
