Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

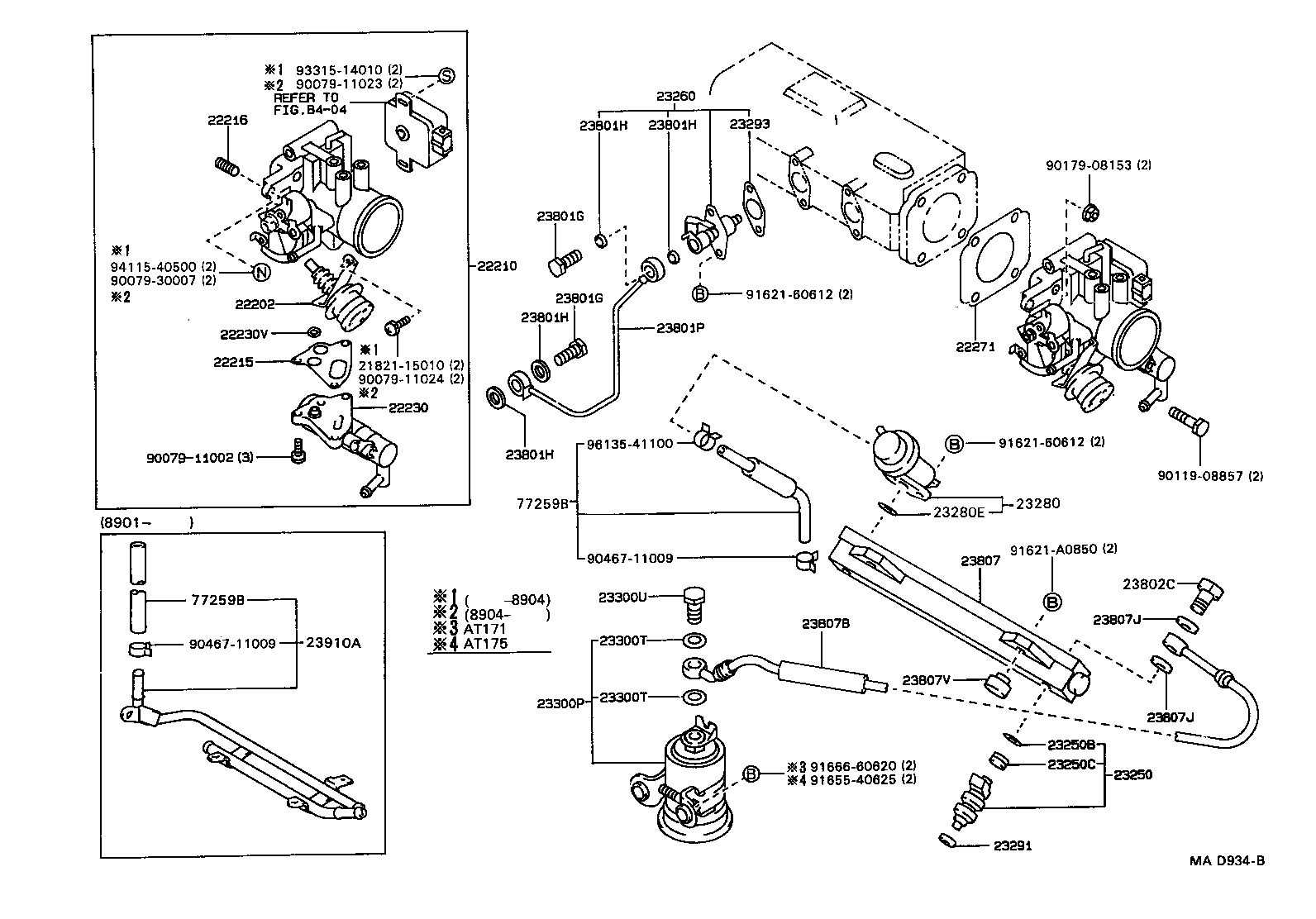

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 22202 — Dash Pot Sub-assy | ||||
| 22202-15010 |
Dash Pot Sub-assy
1988-05 → 1992-08
ended
|
4AFE AT171;4AFE AT175 5F | ¥7,600 | |
| 22202-15020 |
Dash Pot Sub-assy
1988-08 → 1992-08
ended
|
4AFE AT175 4FC | ¥7,800 | |
| 22202-15030 |
Dash Pot Sub-assy
1990-05 → 1990-06
ended
|
4AFHE AT171 | ¥7,400 | |
| 22202-15030 |
Dash Pot Sub-assy
1990-06 → 1992-11
ended
|
4AFHE AT171;5AFE AT170 MTM | ¥7,400 | |
| 22202-15040 |
Dash Pot Sub-assy
1990-05 → 1992-11
ended
|
5AFE AT170 4FC | ¥7,600 | |
| 22210 — Body Assy, Throttle | ||||
| 22200-74010 |
Body Assy, Throttle
1988-05 → 1988-10
ended
|
4SFI ST170 | ¥71,600 | |
| 22200-74013 |
Body Assy, Throttle
1988-10 → 1989-02
ended
|
4SFI ST170 | ¥71,800 | |
| 22200-74014 |
Body Assy, Throttle
1989-02 → 1989-04
ended
|
4SFI ST170 | ¥71,800 | |
| 22200-74016 |
Body Assy, Throttle
1989-04 → 1990-05
ended
|
4SFI ST170 | ¥72,000 | |
| 22200-74020 note |
Body Assy, Throttle
1988-05 → 1988-10
ended
|
4SFI ST170 | ¥71,600 | |
| 22200-74023 note |
Body Assy, Throttle
1988-10 → 1989-02
ended
|
4SFI ST170 | ¥71,800 | |
| 22200-74024 note |
Body Assy, Throttle
1989-02 → 1989-04
ended
|
4SFI ST170 | ¥71,800 | |
| 22200-74026 note |
Body Assy, Throttle
1989-04 → 1990-05
ended
|
4SFI ST170 | ¥72,000 | |
| 22210-15050 |
Body Assy, Throttle
1990-05 → 1992-11
ended
|
5AFE AT170 MTM | ¥50,500 | |
| 22210-15060 |
Body Assy, Throttle
1990-05 → 1992-11
ended
|
5AFE AT170 4FC | ¥50,500 | |
| 22210-16190 |
Body Assy, Throttle
1988-05 → 1989-08
ended
|
4AGE AT171 | ¥71,000 | |
| 22210-16250 |
Body Assy, Throttle
1988-08 → 1992-08
ended
|
4AFE AT175 5F | ¥70,300 | |
| 22210-16370 |
Body Assy, Throttle
1988-05 → 1990-05
ended
|
4AFE AT171 5F | ¥71,200 | |
| 22210-16380 |
Body Assy, Throttle
1988-05 → 1990-05
ended
|
4AFE AT171 4FC | ¥71,200 | |
| 22210-16390 |
Body Assy, Throttle
1988-08 → 1992-08
ended
|
4AFE AT175 4FC | ¥70,300 | |
| 22210-16450 |
Body Assy, Throttle
1989-08 → 1989-11
ended
|
4AGE AT171 | ¥70,300 | |
| 22210-16560 |
Body Assy, Throttle
1989-11 → 1992-08
ended
|
4AGE AT171 | ¥70,300 | |
| 22210-16580 |
Body Assy, Throttle
1990-05 → 1992-08
ended
|
4AFHE AT171 | ¥50,500 | |
| 22210-74341 |
Body Assy, Throttle
1990-05 → 1991-06
ended
|
4SFE ST170 5F | ¥91,200 | |
| 22210-74501 |
Body Assy, Throttle
1990-05 → 1992-11
ended
|
4SFE ST170 4FC | ¥90,400 | |
| 22210-74690 |
Body Assy, Throttle
1991-06 → 1992-11
ended
|
4SFE ST170 5F | ¥90,400 | |
| 22215 — Gasket, Throttle Body Cover | ||||
| 22215-15010 |
Gasket, Throttle Body Cover
1988-05 → 1990-04
ended
|
4AFE AT171,175 | ¥370 | |
| 22215-15011 |
Gasket, Throttle Body Cover
1990-04 → 1992-08
ended
|
4AFE AT171,175 | ¥350 | |
| 22215-74400 |
Gasket, Throttle Body Cover
1990-05 → 1992-11
ended
|
4SFE ST170 | ¥440 | |
| 22216 — Screw, Dash Pot Adjusting | ||||
| 22216-74010 |
Screw, Dash Pot Adjusting
1988-05 → 1992-11
ended
|
4AF#,5AFE AT17# | ¥270 | |
| 22216-74010 |
Screw, Dash Pot Adjusting
1988-05 → 1992-11
ended
|
4SFI ST170 | ¥270 | |
| 22230 — Valve Assy, Auxiliary Air | ||||
| 22230-16110 |
Valve Assy, Auxiliary Air
1988-05 → 1989-08
ended
|
4AGE AT171 | ¥21,000 | |
| 22230-16120 |
Valve Assy, Auxiliary Air
1988-08 → 1992-08
ended
|
4AFE AT175 5F | ¥21,000 | |
| 22230-16130 |
Valve Assy, Auxiliary Air
1988-08 → 1992-08
ended
|
4AFE AT175 4FC | ¥21,000 | |
| 22230-16140 |
Valve Assy, Auxiliary Air
1988-05 → 1990-05
ended
|
4AFE AT171 4FC | ¥21,000 | |
| 22230-16180 |
Valve Assy, Auxiliary Air
1988-05 → 1990-05
ended
|
4AFE AT171 5F | ¥21,200 | |
| 22230-16220 |
Valve Assy, Auxiliary Air
1989-08 → 1989-09
ended
|
4AGE AT171 | ¥21,000 | |
| 22230-16230 |
Valve Assy, Auxiliary Air
1989-09 → 1992-08
ended
|
4AGE AT171 | ¥21,000 | |
| 22230V — Ring, O(FOR AUXILIARY AIR VALVE) | ||||
| 96711-19009 |
Ring, O(FOR AUXILIARY AIR VALVE)
1988-05 → 1989-08
ended
|
4AFE AT171,175 | ¥120 | |
| 96711-19009 |
Ring, O(FOR AUXILIARY AIR VALVE)
1988-05 → 1989-08
ended
|
4AGE AT171 | ¥120 | |
| 96711-19009 |
Ring, O(FOR AUXILIARY AIR VALVE)
1989-08 → 1992-08
ended
|
4AFE,4AGE AT171,175 | ¥120 | |
| 22271 — Gasket, Throttle Body | ||||
| 22271-15010 |
Gasket, Throttle Body
1988-05 → 1989-12
ended
|
4AFE AT171,175 | ¥580 | |
| 22271-15011 |
Gasket, Throttle Body
1989-12 → 1992-11
ended
|
4AF#,5AFE AT17# | ¥530 | |
| 22271-16020 |
Gasket, Throttle Body
1988-05 → 1992-08
ended
|
4AGE AT171 | ¥390 | |
| 22271-74021 |
Gasket, Throttle Body
1990-05 → 1990-09
ended
|
4SFE ST170 4FC | ¥210 | |
| 22271-74021 |
Gasket, Throttle Body
1990-09 → 1992-11
ended
|
4SFE ST170 | ¥210 | |
| 22271-74040 |
Gasket, Throttle Body
1988-05 → 1989-07
ended
|
4SFI ST170 | ¥350 | |
| 22271-74041 |
Gasket, Throttle Body
1989-07 → 1990-05
ended
|
4SFI ST170 | ¥370 | |
| 23250 — Injector Assy, Fuel | ||||
| 23209-15010 |
Injector Assy, Fuel
1990-05 → 1992-11
ended
|
5AFE AT170 | ¥20,500 | |
| 23209-16070 |
Injector Assy, Fuel
1988-05 → 1989-08
ended
|
4AGE AT171 | ¥20,600 | |
| 23209-16100 |
Injector Assy, Fuel
1988-05 → 1992-08
ended
|
4AFE AT171,175 | ¥20,500 | |
| 23209-16110 |
Injector Assy, Fuel
1989-08 → 1992-08
ended
|
4AGE AT171 | ¥20,500 | |
| 23209-16120 |
Injector Assy, Fuel
1990-05 → 1992-08
ended
|
4AFHE AT171 | ¥20,600 | |
| 23209-74070 |
Injector Assy, Fuel
1988-05 → 1990-05
ended
|
4SFI ST170 | ¥20,900 | |
| 23209-74110 |
Injector Assy, Fuel
1990-05 → 1992-11
ended
|
4SFE ST170 | ¥20,500 | |
| 23250B — Ring, O(FOR FUEL INJECTOR) | ||||
| 90099-14082 note |
Ring, O(FOR FUEL INJECTOR)
1988-05 → 1990-05
ended
|
4SFI ST170 | — | |
| 90099-14083 note |
Ring, O(FOR FUEL INJECTOR)
1988-05 → 1990-05
ended
|
4SFI ST170 | — | |
| 90301-07001 |
Ring, O(FOR FUEL INJECTOR)
1988-05 → 1992-11
ended
|
4SFE ST170 | ¥350 | |
| 90301-07001 |
Ring, O(FOR FUEL INJECTOR)
1988-05 → 1992-11
ended
|
4AF#,4AGE,5AFE AT17# | ¥350 | |
| 23250C — Grommet(FOR FUEL INJECTOR) | ||||
| 90099-32124 |
Grommet(FOR FUEL INJECTOR)
1988-05 → 1990-05
ended
|
4SFI ST170 | — | |
| 90480-13005 |
Grommet(FOR FUEL INJECTOR)
1988-05 → 1992-11
ended
|
4SFE ST170 | ¥230 | |
| 90480-13005 |
Grommet(FOR FUEL INJECTOR)
1988-05 → 1992-11
ended
|
4AF#,4AGE,5AFE AT17# | ¥230 | |
| 23260 — Injector Assy, Cold Start Fuel | ||||
| 23260-19085 |
Injector Assy, Cold Start Fuel
1988-05 → 1989-12
ended
|
4AFE AT171,175 | ¥10,500 | |
| 23260-19086 |
Injector Assy, Cold Start Fuel
1989-12 → 1990-05
ended
|
4AFE AT171,175 | ¥10,500 | |
| 23260-19095 |
Injector Assy, Cold Start Fuel
1988-05 → 1989-08
ended
|
4AGE AT171 | ¥10,500 | |
| 23260-19106 |
Injector Assy, Cold Start Fuel
1990-05 → 1992-08
ended
|
4AFE AT175 | ¥10,200 | |
| 23260-19115 |
Injector Assy, Cold Start Fuel
1989-08 → 1992-08
ended
|
4AGE AT171 | ¥10,200 | |
| 23280 — Regulator Assy, Fuel Pressure | ||||
| 23280-15010 |
Regulator Assy, Fuel Pressure
1988-05 → 1989-01
ended
|
4AFE AT171,175 | ¥10,000 | |
| 23280-16080 |
Regulator Assy, Fuel Pressure
1988-05 → 1992-08
ended
|
4AGE AT171 | ¥9,900 | |
| 23280-16120 |
Regulator Assy, Fuel Pressure
1989-01 → 1992-11
ended
|
4AF#,5AFE AT17# | ¥9,800 | |
| 23280-74031 |
Regulator Assy, Fuel Pressure
1990-05 → 1990-09
ended
|
4SFE ST170 | ¥9,900 | |
| 23280-74060 |
Regulator Assy, Fuel Pressure
1988-05 → 1990-05
ended
|
4SFI ST170 | ¥10,000 | |
| 23280-74100 |
Regulator Assy, Fuel Pressure
1990-09 → 1992-11
ended
|
4SFE ST170 | ¥9,900 | |
| 23280E — Ring, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
Ring, O(FOR FUEL PRESSURE REGULATOR)
1988-05 → 1992-11
ended
|
4SFI ST170 | ¥350 | |
| 90301-07001 |
Ring, O(FOR FUEL PRESSURE REGULATOR)
1988-05 → 1992-11
ended
|
4AF#,4AGE,5AFE AT17# | ¥350 | |
| 23291 — Insulator, Injector Vibration | ||||
| 23291-16020 |
Insulator, Injector Vibration
1989-08 → 1992-08
ended
|
4AGE AT171 | ¥170 | |
| 23291-41010 |
Insulator, Injector Vibration
1988-05 → 1989-08
ended
|
4A# AT171,175 | ¥340 | |
| 23291-41010 |
Insulator, Injector Vibration
1989-08 → 1992-11
ended
|
4AF#,5AFE AT17# | ¥340 | |
| 23291-41010 |
Insulator, Injector Vibration
1989-08 → 1992-11
ended
|
4SFE ST170 | ¥340 | |
| 23293 — Gasket, Cold Start Injector | ||||
| 23293-16010 |
Gasket, Cold Start Injector
1988-05 → 1992-01
ended
|
4AGE AT171 | ¥180 | |
| 23293-16020 |
Gasket, Cold Start Injector
1992-01 → 1992-08
ended
|
4AGE AT171 | ¥180 | |
| 23293-62020 |
Gasket, Cold Start Injector
1989-12 → 1992-08
ended
|
4AF# AT171,175 | ¥350 | |
| 23293-74010 |
Gasket, Cold Start Injector
1988-05 → 1989-12
ended
|
4AFE AT171,175 | ¥350 | |
| 23300P — Filter, Fuel(FOR EFI) | ||||
| 23300-19145 |
Filter, Fuel(FOR EFI)
1988-08 → 1992-08
ended
|
4AFE AT175 | ¥7,100 | |
| 23300-19205 |
Filter, Fuel(FOR EFI)
1988-05 → 1992-11
ended
|
4AF#,4AGE,5AFE AT170,171 | ¥7,100 | |
| 23300-79175 |
Filter, Fuel(FOR EFI)
1988-05 → 1992-11
ended
|
4SF# ST170 | ¥7,200 | |
| 23300T — Gasket(FOR FUEL FILTER) | ||||
| 90430-12005 |
Gasket(FOR FUEL FILTER)
1988-05 → 1991-08
ended
|
4SF# ST170 | ¥110 | |
| 90430-12005 |
Gasket(FOR FUEL FILTER)
1988-05 → 1991-08
ended
|
4AF#,4AGE,5AFE AT17# | ¥110 | |
| 90430-12005 |
Gasket(FOR FUEL FILTER)
1991-08 → 1991-10
ended
|
4AGE AT171 | ¥110 | |
| 90430-12026 |
Gasket(FOR FUEL FILTER)
1991-08 → 1991-10
ended
|
4SFE ST170 | ¥90 | |
| 90430-12026 |
Gasket(FOR FUEL FILTER)
1991-08 → 1991-10
ended
|
4AF#,5AFE AT17# | ¥90 | |
| 90430-12026 |
Gasket(FOR FUEL FILTER)
1991-10 → 1992-11
ended
|
4SFE ST170 | ¥90 | |
| 90430-12026 |
Gasket(FOR FUEL FILTER)
1991-10 → 1992-11
ended
|
4AF#,4AGE,5AFE AT17# | ¥90 | |
| 23300U — Bolt, Union(FOR FUEL FILTER) | ||||
| 90401-12097 |
Bolt, Union(FOR FUEL FILTER)
1988-05 → 1992-11
ended
|
4SF# ST170 | ¥310 | |
| 90401-12097 |
Bolt, Union(FOR FUEL FILTER)
1988-05 → 1992-11
ended
|
4AF#,4AGE,5AFE AT17# | ¥310 | |
| 23801G — Bolt, Union(FOR FUEL PIPE) | ||||
| 90401-08003 |
Bolt, Union(FOR FUEL PIPE)
1988-05 → 1992-08
ended
|
4AFE,4AGE AT171,175 | ¥140 | |
| 90401-12097 |
Bolt, Union(FOR FUEL PIPE)
1988-05 → 1988-08
ended
|
4SFI ST170 | ¥310 | |
| 23801H — Gasket(FOR FUEL PIPE) | ||||
| 90430-08005 |
Gasket(FOR FUEL PIPE)
1990-09 → 1992-08
ended
|
4AFE AT175 | ¥140 | |
| 90430-08005 |
Gasket(FOR FUEL PIPE)
1988-05 → 1990-09
ended
|
4AFE,4AGE AT171,175 | ¥140 | |
| 90430-08012 |
Gasket(FOR FUEL PIPE)
1990-09 → 1992-08
ended
|
4AGE AT171 | ¥120 | |
| 90430-12005 |
Gasket(FOR FUEL PIPE)
1988-05 → 1990-05
ended
|
4SFI ST170 | ¥110 | |
| 23801P — Pipe Sub-assy, Fuel, NO.1 | ||||
| 23801-15050 |
Pipe Sub-assy, Fuel, NO.1
1988-05 → 1990-05
ended
|
4AFE AT171,175 | ¥2,010 | |
| 23801-16030 |
Pipe Sub-assy, Fuel, NO.1
1990-05 → 1992-08
ended
|
4AFE AT175 | ¥2,010 | |
| 23801-74031 |
Pipe Sub-assy, Fuel, NO.1
1988-05 → 1988-07
ended
|
4SFI ST170 | ¥6,700 | |
| 23801-74032 |
Pipe Sub-assy, Fuel, NO.1
1988-07 → 1990-05
ended
|
4SFI ST170 | ¥6,700 | |
| 23901-16070 note |
Pipe Sub-assy, Fuel, NO.1
1988-05 → 1992-08
ended
|
4AGE AT171 | ¥4,230 | |
| 23902-16070 |
Pipe Sub-assy, Fuel, NO.1
1988-05 → 1989-08
ended
|
4AGE AT171 | ¥16,100 | |
| 23902-16170 |
Pipe Sub-assy, Fuel, NO.1
1989-08 → 1989-09
ended
|
4AGE AT171 | ¥16,500 | |
| 23902-16180 note |
Pipe Sub-assy, Fuel, NO.1
1989-12 → 1992-08
ended
|
4AGE AT171 | ¥16,500 | |
| 23802C — Bolt, Union(FOR FUEL PIPE NO.2) | ||||
| 90401-08004 |
Bolt, Union(FOR FUEL PIPE NO.2)
1990-05 → 1992-11
ended
|
4SFE ST170 | ¥270 | |
| 90401-12097 |
Bolt, Union(FOR FUEL PIPE NO.2)
1988-05 → 1992-11
ended
|
4AF#,5AFE AT17# | ¥310 | |
| 23807 — Pipe Sub-assy, Fuel Delivery | ||||
| 23807-15010 |
Pipe Sub-assy, Fuel Delivery
1988-05 → 1989-04
ended
|
4AFE AT171,175 | ¥14,000 | |
| 23807-16050 |
Pipe Sub-assy, Fuel Delivery
1988-05 → 1989-08
ended
|
4AGE AT171 | ¥12,900 | |
| 23807-16070 |
Pipe Sub-assy, Fuel Delivery
1989-04 → 1992-08
ended
|
4AFE AT171,175 | ¥13,000 | |
| 23807-16090 |
Pipe Sub-assy, Fuel Delivery
1989-08 → 1992-08
ended
|
4AGE AT171 | ¥13,300 | |
| 23807-74040 |
Pipe Sub-assy, Fuel Delivery
1990-05 → 1992-11
ended
|
4SFE ST170 | ¥14,100 | |
| 23814-15030 |
Pipe Sub-assy, Fuel Delivery
1990-05 → 1992-11
ended
|
4AFHE,5AFE AT170,171 | ¥7,600 | |
| 23807B — Hose, Fuel Delivery Pipe | ||||
| 23271-15250 |
Hose, Fuel Delivery Pipe
1990-05 → 1992-11
ended
|
4AFHE,5AFE AT170,171 | ¥9,400 | |
| 23271-16080 |
Hose, Fuel Delivery Pipe
1988-05 → 1990-05
ended
|
4AFE AT171 | ¥10,900 | |
| 23271-16110 |
Hose, Fuel Delivery Pipe
1988-08 → 1992-08
ended
|
4AFE AT175 | ¥10,900 | |
| 23271-74122 |
Hose, Fuel Delivery Pipe
1990-05 → 1992-11
ended
|
4SFE ST170 | ¥10,300 | |
| 23807J — Gasket, Pipe Fuel Delivary Inlet | ||||
| 90201-12109 |
Gasket, Pipe Fuel Delivary Inlet
1988-05 → 1990-09
ended
|
4AF#,4AGE,5AFE AT17# | ¥200 | |
| 90201-12109 |
Gasket, Pipe Fuel Delivary Inlet
1990-09 → 1991-09
ended
|
4AF#,5AFE AT17# | ¥200 | |
| 90430-12026 |
Gasket, Pipe Fuel Delivary Inlet
1990-09 → 1991-09
ended
|
4AGE AT171 | ¥90 | |
| 90430-12026 |
Gasket, Pipe Fuel Delivary Inlet
1991-09 → 1992-11
ended
|
4AF#,4AGE,5AFE AT17# | ¥90 | |
| 23807V — Spacer, NO.1(FOR DELIVERY PIPE) | ||||
| 90560-11020 |
Spacer, NO.1(FOR DELIVERY PIPE)
1990-05 → 1992-11
ended
|
4SFE ST170 | ¥130 | |
| 90561-08009 |
Spacer, NO.1(FOR DELIVERY PIPE)
1988-05 → 1992-08
ended
|
4AGE AT171 | ¥200 | |
| 90561-08021 |
Spacer, NO.1(FOR DELIVERY PIPE)
1988-05 → 1992-11
ended
|
4AF#,5AFE AT17# | ¥180 | |
| 23910A — Tube Sub-assy, Fuel | ||||
| 23901-16100 |
Tube Sub-assy, Fuel
1989-01 → 1992-01
ended
|
4AF# AT171,175 | ¥13,400 | |
| 23901-16101 |
Tube Sub-assy, Fuel
1992-01 → 1992-08
ended
|
4AF# AT171,175 | ¥13,400 | |
| 77259B — Hose, Fuel | ||||
| 77259-12110 |
Hose, Fuel
1988-05 → 1989-01
ended
|
AT171,175 S,SG,SGEXT | ¥1,570 | |
| 95333-06020 |
Hose, Fuel
1989-01 → 1992-08
ended
|
AT171,175 S,SE,SG,SGEXT | ¥480 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
