Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

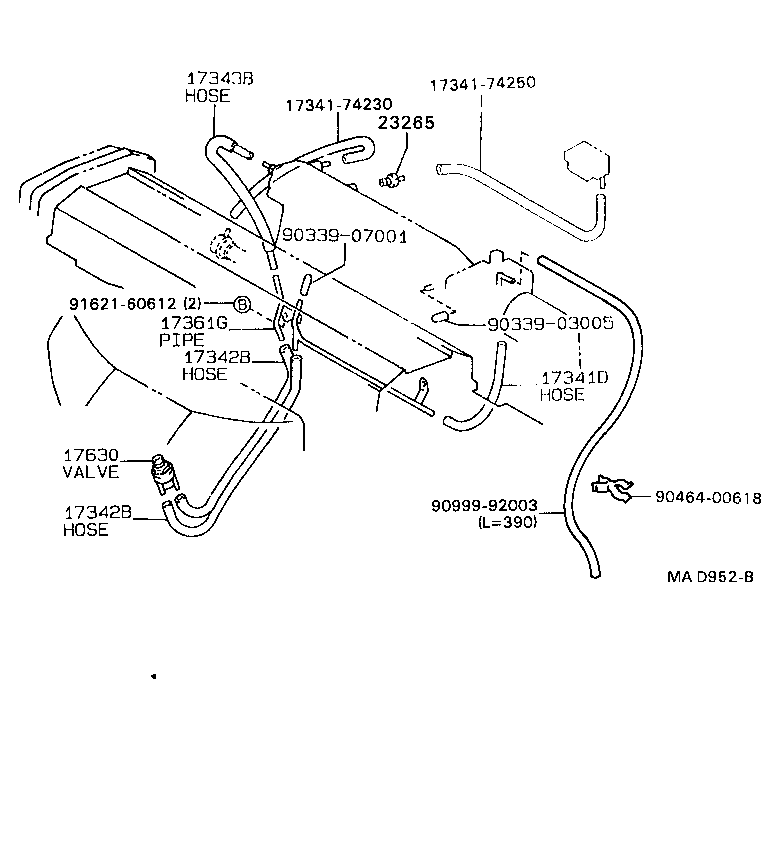

Exploded illustration MAD952B 17343B — HOSE, NO.3(FOR IDLE-UP) (2 parts) 1734174250 — not listed in this catalogue 1734174230 — not listed in this catalogue 23265 — FILTER, GAS, NO.1 (12 parts) 9033907001 — not listed in this catalogue 9162160612 — not listed in this catalogue 17361G — TUBE, AIR(FOR IDLE-UP) (2 parts) 9033903005 — not listed in this catalogue 17342B — HOSE, NO.2(FOR IDLE-UP) (6 parts) 17341D — HOSE, NO.1(FOR IDLE-UP) (7 parts) 17630 — VALVE ASSY, AIR CONTROL (13 parts) 9046400618 — not listed in this catalogue 9099992003 — not listed in this catalogue 17342B — HOSE, NO.2(FOR IDLE-UP) (6 parts)
MAD952B · 7 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
17341D — Hose, NO.1(FOR IDLE-UP)
17302-16010 Hose, NO.1(FOR IDLE-UP)
1990-05 → 1992-11 ended
5AFE AT170 ¥1,950
17302-16020 Hose, NO.1(FOR IDLE-UP)
1989-11 → 1992-08 ended
4AF# AT171,175 ¥3,550
17341-15150 Hose, NO.1(FOR IDLE-UP)
1988-05 → 1989-11 ended
4AFE AT171,175 ¥2,500
17341-16160 Hose, NO.1(FOR IDLE-UP)
1988-05 → 1992-08 ended
4AGE AT171 ¥870
17341-74040 Hose, NO.1(FOR IDLE-UP)
1990-05 → 1991-06 ended
4SFE ST170 ¥880
17341-74060 Hose, NO.1(FOR IDLE-UP)
1988-05 → 1990-05 ended
4SFI ST170 ¥590
17341-74340 Hose, NO.1(FOR IDLE-UP)
1991-06 → 1992-11 ended
4SFE ST170 ¥950
17342B — Hose, NO.2(FOR IDLE-UP)
17342-15070 Hose, NO.2(FOR IDLE-UP)
1988-05 → 1990-05 ended
4AFE AT171 ¥670
17342-16090 Hose, NO.2(FOR IDLE-UP)
1988-08 → 1992-08 ended
4AFE AT175;4AFHE AT171 ¥660
17342-88360 Hose, NO.2(FOR IDLE-UP)
1988-05 → 1988-08 ended
4SFI ST170 ¥1,090
17342-88360 Hose, NO.2(FOR IDLE-UP)
1988-08 → 1992-11 ended
4SFE ST170 ¥1,090
17343-74011 Hose, NO.2(FOR IDLE-UP)
1988-08 → 1990-05 ended
4SFI ST170 ¥660
90445-10029 Hose, NO.2(FOR IDLE-UP)
1990-05 → 1992-11 ended
5AFE AT170 ¥440
17343B — Hose, NO.3(FOR IDLE-UP)
17343-74040 Hose, NO.3(FOR IDLE-UP)
1990-05 → 1992-11 ended
4SFE ST170 ¥1,070
17343-74050 Hose, NO.3(FOR IDLE-UP)
1988-05 → 1990-05 ended
4SFI ST170 ¥1,270
17361G — Tube, Air(FOR IDLE-UP)
17361-16100 Tube, Air(FOR IDLE-UP)
1989-08 → 1992-08 ended
4AGE AT171 ¥1,010
17361-74030 Tube, Air(FOR IDLE-UP)
1990-05 → 1992-11 ended
4SFE ST170 ¥6,400
17630 — Valve Assy, Air Control
17630-15021 Valve Assy, Air Control
1988-05 → 1990-05 ended
5AF AT170 ¥14,700
17630-15040 note Valve Assy, Air Control
1988-05 → 1990-05 ended
4AFE AT171 ¥7,600
17630-15050 note Valve Assy, Air Control
1990-05 → 1992-11 ended
4AFHE,5AFE AT170,171 S,SE,SG,SGEXT,SV ¥7,600
17630-15050 note Valve Assy, Air Control
1990-05 → 1992-08 ended
5AFE AT170 DX ¥7,600
17630-15060 note Valve Assy, Air Control
1988-08 → 1992-08 ended
4AFE AT175 ¥7,600
17630-15070 note Valve Assy, Air Control
1990-05 → 1992-11 ended
5AFE AT170 ¥7,600
17630-16040 note Valve Assy, Air Control
1988-05 → 1992-08 ended
4AGE AT171 ¥7,600
17630-16060 note Valve Assy, Air Control
1988-08 → 1992-08 ended
4AFE AT175;4AFHE AT171 ¥7,600
17630-16080 note Valve Assy, Air Control
1989-08 → 1992-08 ended
4AGE AT171 ¥7,600
17630-28020 Valve Assy, Air Control
1988-05 → 1992-11 ended
3E ET176 ¥15,300
17630-64010 Valve Assy, Air Control
1990-05 → 1992-11 ended
2C CT17# 4FC ¥7,600
17630-70010 note Valve Assy, Air Control
1988-05 → 1990-05 ended
4AFE AT171 ¥15,100
17630-70020 Valve Assy, Air Control
1988-05 → 1992-11 ended
4SF# ST170 ¥7,600
23265 — Filter, Gas, NO.1
90917-11021 Filter, Gas, NO.1
1988-05 → 1992-08 ended
4AF# AT171,175 ¥1,030
90917-11021 Filter, Gas, NO.1
1988-05 → 1992-08 ended
4SFI ST170 ¥1,030
90917-11022 Filter, Gas, NO.1
1990-08 → 1992-11 ended
5AFE AT170 ¥1,020
90917-11022 Filter, Gas, NO.1
1990-08 → 1992-11 ended
4SFE ST170 ¥1,020
90917-11022 Filter, Gas, NO.1
1990-05 → 1990-08 ended
5AFE AT170 ¥1,020
90917-11023 Filter, Gas, NO.1
1988-05 → 1990-05 ended
5AF AT170 ¥1,650
90917-11024 note Filter, Gas, NO.1
1989-10 → 1990-04 ended
3E ET176 ¥1,730
90917-11024 Filter, Gas, NO.1
1988-05 → 1989-10 ended
3E ET176 ¥1,730
90917-11027 Filter, Gas, NO.1
1989-10 → 1992-11 ended
4AGE AT171 ¥1,560
90917-11027 Filter, Gas, NO.1
1989-10 → 1992-11 ended
3E ET176 ¥1,560
90917-11027 Filter, Gas, NO.1
1988-05 → 1989-10 ended
4AGE AT171 ¥1,560
90917-11032 Filter, Gas, NO.1
1990-05 → 1990-08 ended
4SFE ST170 ¥1,460
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
