Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

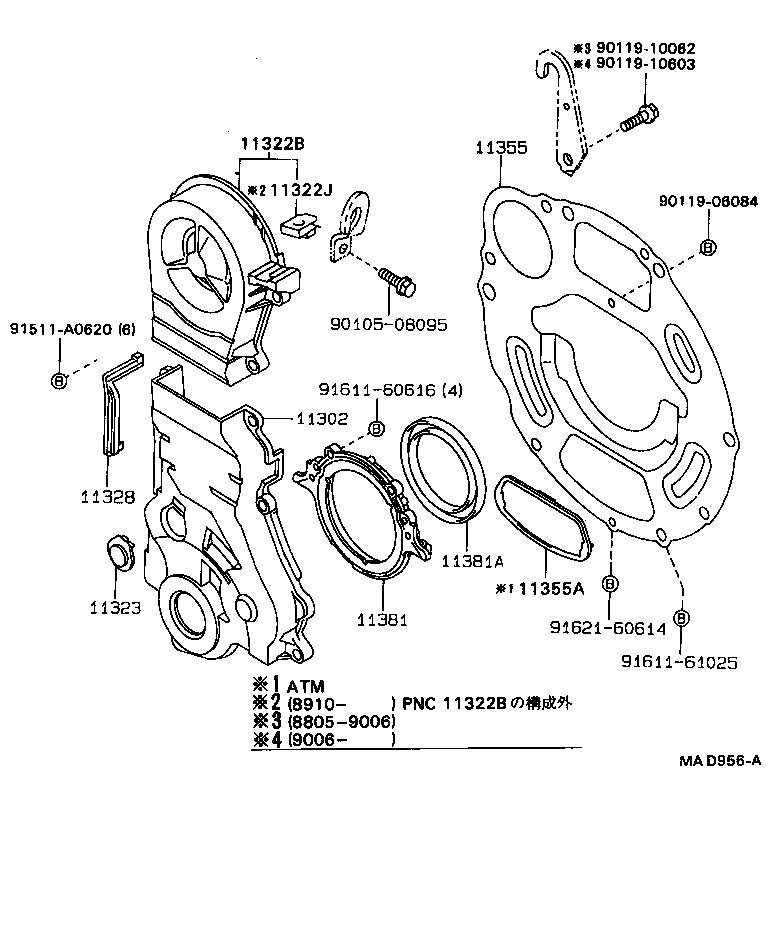

Exploded illustration MAD956A 9011910062 — not listed in this catalogue 9011910603 — not listed in this catalogue 11322B — COVER, TIMING BELT, NO.2 (4 parts) 11355 — PLATE, REAR END (13 parts) 11322J — RETAINER(FOR TIMING BELT COVER) (1 parts) 9011906084 — not listed in this catalogue 9010508095 — not listed in this catalogue 91511A0620 — not listed in this catalogue 9161160616 — not listed in this catalogue 11302 — COVER SUB-ASSY, TIMING CHAIN OR BELT (4 parts) 11328 — GASKET, TIMING GEAR OR CHAIN COVER (2 parts) 11381A — SEAL, ENGINE REAR OIL (10 parts) 11355A — PLUG, HOLE(FOR REAR END PLATE) (7 parts) 11323 — COVER, TIMING GEAR, NO.3 (1 parts) 11381 — RETAINER, ENGINE REAR OIL SEAL (5 parts) 9162160614 — not listed in this catalogue 9161161025 — not listed in this catalogue
MAD956A · 9 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
47 parts on this figure
Part number Description Fitment Price
11302 — Cover Sub-assy, Timing Chain OR Belt
11302-11031 Cover Sub-assy, Timing Chain OR Belt
1988-05 → 1992-11 ended
3E ET176 ¥5,100
11302-15041 Cover Sub-assy, Timing Chain OR Belt
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥2,910
11302-74010 Cover Sub-assy, Timing Chain OR Belt
1988-05 → 1989-06 ended
4SFI ST170 ¥5,100
11302-74011 Cover Sub-assy, Timing Chain OR Belt
1989-06 → 1992-11 ended
4SF# ST170 ¥5,100
11322B — Cover, Timing Belt, NO.2
11303-11020 Cover, Timing Belt, NO.2
1988-05 → 1989-10 ended
3E ET176 ¥3,950
11303-11021 Cover, Timing Belt, NO.2
1989-10 → 1992-11 ended
3E ET176 ¥3,910
11303-16021 Cover, Timing Belt, NO.2
1988-05 → 1992-08 ended
4AGE AT171 ¥3,030
11322-64010 Cover, Timing Belt, NO.2
1988-05 → 1992-11 ended
2C CT17# ¥2,440
11322J — Retainer(FOR TIMING BELT COVER)
52565-16020 Retainer(FOR TIMING BELT COVER)
1988-05 → 1990-05 ended
3E ET176 ¥280
11323 — Cover, Timing Gear, NO.3
11323-10011 Cover, Timing Gear, NO.3
1988-05 → 1992-11 ended
3E ET176 ¥390
11328 — Gasket, Timing Gear OR Chain Cover
11328-11020 Gasket, Timing Gear OR Chain Cover
1988-05 → 1992-11 ended
3E ET176 ¥510
11328-74010 Gasket, Timing Gear OR Chain Cover
1988-05 → 1992-11 ended
4SF# ST170 ¥870
11355 — Plate, Rear End
11355-10011 Plate, Rear End
1988-05 → 1992-11 ended
3E ET176 MTM ¥3,450
11355-11011 Plate, Rear End
1988-05 → 1992-11 ended
3E ET176 3FC ¥3,450
11355-15060 Plate, Rear End
1988-05 → 1992-08 ended
4AGE AT171 ¥3,760
11355-15070 Plate, Rear End
1988-05 → 1992-11 ended
4AF#,5AF# AT170,171 MTM ¥5,500
11355-15080 Plate, Rear End
1988-05 → 1992-11 ended
4AF#,5AF# AT170,171 4FC ¥5,200
11355-16010 Plate, Rear End
1988-08 → 1992-08 ended
4AFE AT175 ¥5,700
11355-64032 Plate, Rear End
1988-05 → 1989-04 ended
2C CT17# 5F ¥6,000
11355-64042 Plate, Rear End
1988-05 → 1989-04 ended
2C CT170 4FC ¥6,000
11355-64050 Plate, Rear End
1989-04 → 1991-10 ended
2C CT17# 5F ¥6,000
11355-64051 Plate, Rear End
1991-10 → 1992-11 ended
2C CT17# 5F ¥6,000
11355-64060 Plate, Rear End
1989-04 → 1991-10 ended
2C CT17# 4FC ¥6,000
11355-64061 Plate, Rear End
1991-10 → 1992-11 ended
2C CT17# 4FC ¥6,000
11355-74010 Plate, Rear End
1988-05 → 1992-11 ended
4SF# ST170 ¥2,870
11355A — Plug, Hole(FOR REAR END PLATE)
90950-01264 Plug, Hole(FOR REAR END PLATE)
1988-05 → 1992-11 ended
4AF#,5AF# AT170,171 4FC ¥710
90950-01548 Plug, Hole(FOR REAR END PLATE)
1988-05 → 1989-10 ended
3E ET176 3FC ¥260
90950-01548 Plug, Hole(FOR REAR END PLATE)
1988-05 → 1989-10 ended
2C CT170 4FC ¥260
90950-01548 Plug, Hole(FOR REAR END PLATE)
1989-10 → 1990-05 ended
3E ET176 3FC ¥260
90950-01548 Plug, Hole(FOR REAR END PLATE)
1990-05 → 1992-11 ended
3E ET176 3FC ¥260
90950-01548 Plug, Hole(FOR REAR END PLATE)
1990-05 → 1992-11 ended
2C CT17# 4FC ¥260
90950-01738 Plug, Hole(FOR REAR END PLATE)
1989-10 → 1990-05 ended
2C CT17# 4FC ¥260
11381 — Retainer, Engine Rear Oil Seal
11381-10020 Retainer, Engine Rear Oil Seal
1988-05 → 1992-11 ended
3E ET176 ¥3,450
11381-15010 Retainer, Engine Rear Oil Seal
1988-05 → 1992-11 ended
4AF#,4AGE,5AF# AT17# ¥3,920
11381-63011 Retainer, Engine Rear Oil Seal
1988-05 → 1989-07 ended
4SFI ST170 ¥4,300
11381-63012 Retainer, Engine Rear Oil Seal
1989-07 → 1992-11 ended
4SF# ST170 ¥4,250
11381-64012 Retainer, Engine Rear Oil Seal
1988-05 → 1992-11 ended
2C CT17# ¥4,280
11381A — Seal, Engine Rear Oil
90311-70004 Seal, Engine Rear Oil
1988-05 → 1991-06 ended
4AF#,4AGE,5AF# AT17# ¥1,080
90311-70007 Seal, Engine Rear Oil
1991-06 → 1992-11 ended
4AF#,4AGE,5AFE AT17# ¥1,080
90311-80007 Seal, Engine Rear Oil
1988-05 → 1990-05 ended
3E ET176 ¥890
90311-80007 note Seal, Engine Rear Oil
1990-05 → 1991-08 ended
3E ET176 ¥890
90311-80012 note Seal, Engine Rear Oil
1990-10 → 1992-11 ended
3E ET176 ¥1,270
90311-80012 note Seal, Engine Rear Oil
1991-08 → 1992-11 ended
3E ET176 ¥1,270
90311-85003 Seal, Engine Rear Oil
1988-05 → 1990-10 ended
4SF# ST170 ¥1,270
90311-85006 Seal, Engine Rear Oil
1990-10 → 1992-11 ended
4SFE ST170 ¥1,260
90311-90003 Seal, Engine Rear Oil
1988-05 → 1990-02 ended
2C CT17# ¥1,080
90311-90005 Seal, Engine Rear Oil
1990-02 → 1992-11 ended
2C CT17# ¥1,080
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
