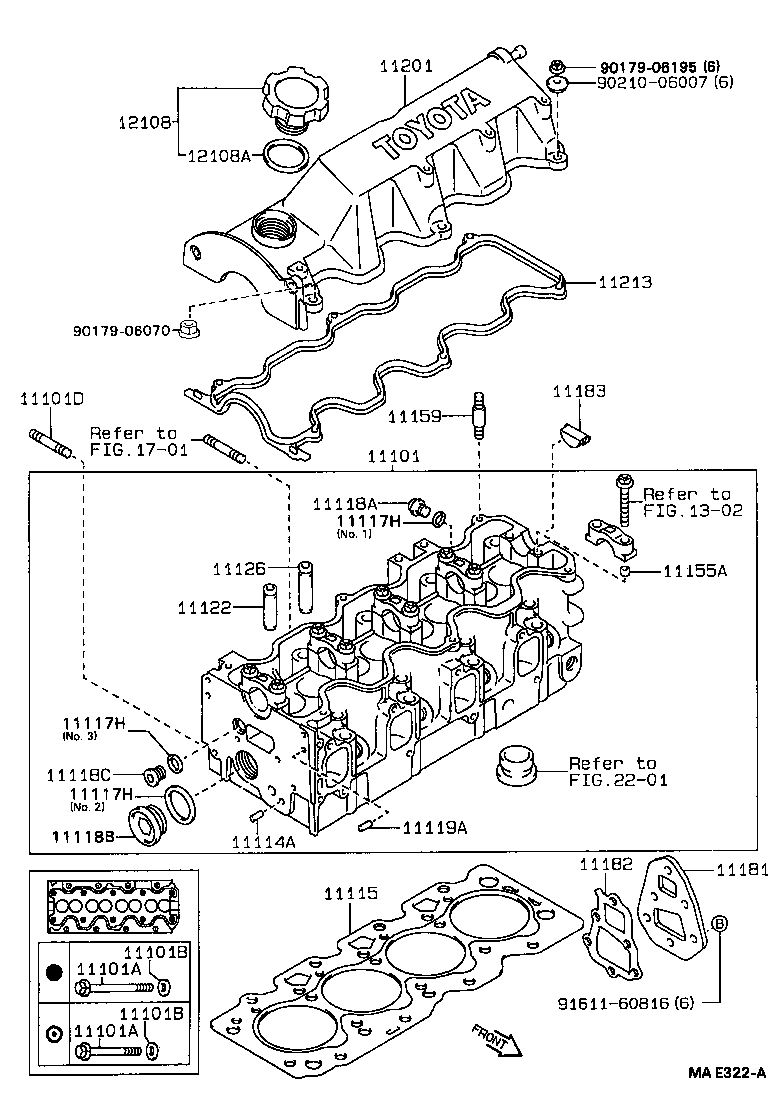

Exploded illustration MAE322A 11201 — COVER SUB-ASSY, CYLINDER HEAD (11 parts) 9017906195 — not listed in this catalogue 9021006007 — not listed in this catalogue 12108 — CAP SUB-ASSY, OIL FILLER (10 parts) 12108A — GASKET(FOR OIL FILLER CAP) (4 parts) 11213 — GASKET, CYLINDER HEAD COVER (7 parts) 9017906070 — not listed in this catalogue 11183 — PLUG, SEMICIRCULAR (3 parts) 11101D — BOLT, STUD(FOR WATER OUTLET) (2 parts) 11159 — BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP) (1 parts) 1701 — not listed in this catalogue 11101 — HEAD SUB-ASSY, CYLINDER (14 parts) 11118A — PLUG, STRAIGHT, NO.1 (1 parts) 1302 — not listed in this catalogue 11117H — GASKET(FOR WATER HOLE) (8 parts) 11126 — BUSH, EXHAUST VALVE GUIDE (14 parts) 11155A — PIN, RING W/HEAD (5 parts) 11122 — BUSH, INTAKE VALVE GUIDE (14 parts) 11117H — GASKET(FOR WATER HOLE) (8 parts) 11118C — PLUG, STRAIGHT, NO.3 (1 parts) 2201 — not listed in this catalogue 11117H — GASKET(FOR WATER HOLE) (8 parts) 11119A — PIN, STRAIGHT, NO.1 (2 parts) 11118B — PLUG, STRAIGHT, NO.2 (1 parts) 11114A — PIN, STRAIGHT (1 parts) 11182 — GASKET, CYLINDER HEAD REAR PLATE (4 parts) 11181 — PLATE, CYLINDER HEAD, REAR (3 parts) 11115 — GASKET, CYLINDER HEAD (11 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (7 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (10 parts) 9161160816 — not listed in this catalogue 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (7 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (10 parts)
MAE322A · 26 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
134 parts on this figure
Part number Description Fitment Price
11101 — Head Sub-assy, Cylinder
11101-16030 Head Sub-assy, Cylinder
1988-05 → 1989-08 ended
4AGE AT171 ¥140,000
11101-16110 Head Sub-assy, Cylinder
1989-08 → 1992-08 ended
4AGE AT171 ¥136,000
11101-19195 Head Sub-assy, Cylinder
1988-05 → 1990-08 ended
3E ET176 ¥93,500
11101-19196 Head Sub-assy, Cylinder
1990-08 → 1992-11 ended
3E ET176 ¥79,400
11101-19215 Head Sub-assy, Cylinder
1988-05 → 1992-08 ended
4AF# AT171,175 ¥120,000
11101-19255 Head Sub-assy, Cylinder
1990-05 → 1992-11 ended
5AFE AT170 ¥142,000
11101-19275 Head Sub-assy, Cylinder
1988-05 → 1990-05 ended
5AF AT170 ¥130,000
11101-64120 Head Sub-assy, Cylinder
1988-05 → 1989-01 ended
2C CT17# ¥119,000
11101-64121 Head Sub-assy, Cylinder
1989-01 → 1992-11 ended
2C CT17# ¥118,000
11101-74030 Head Sub-assy, Cylinder
1990-05 → 1992-01 ended
4SFE ST170 ¥155,000
11101-74030 note Head Sub-assy, Cylinder
1992-01 → 1992-08 ended
4SFE ST170 ¥155,000
11101-74070 Head Sub-assy, Cylinder
1988-05 → 1990-05 ended
4SFI ST170 ¥142,000
11101-74190 Head Sub-assy, Cylinder
1992-01 → 1992-08 ended
4SFE ST170 ¥155,000
11101-74901 Head Sub-assy, Cylinder
1992-08 → 1992-11 ended
4SFE ST170 ¥155,000
11101A — Bolt(FOR CYLINDER HEAD SET)
90105-09002 Bolt(FOR CYLINDER HEAD SET)
1988-05 → 1990-08 ended
3E ET176 ¥310
90105-11018 note Bolt(FOR CYLINDER HEAD SET)
1988-05 → 1990-02 ended
2C CT17# ¥460
90105-11019 note Bolt(FOR CYLINDER HEAD SET)
1988-05 → 1990-02 ended
2C CT17# ¥580
90109-10058 note Bolt(FOR CYLINDER HEAD SET)
1988-05 → 1992-11 ended
4AF#,4AGE,5AF# AT17# ¥350
90109-10059 note Bolt(FOR CYLINDER HEAD SET)
1988-05 → 1992-11 ended
4AF#,4AGE,5AF# AT17# ¥350
90109-10132 Bolt(FOR CYLINDER HEAD SET)
1989-07 → 1992-11 ended
4SF# ST170 ¥390
90110-10006 Bolt(FOR CYLINDER HEAD SET)
1988-05 → 1989-07 ended
4SFI ST170 ¥330
90910-02097 note Bolt(FOR CYLINDER HEAD SET)
1990-02 → 1992-11 ended
2C CT17# ¥460
90910-02099 note Bolt(FOR CYLINDER HEAD SET)
1990-02 → 1992-11 ended
2C CT17# ¥510
90910-02101 Bolt(FOR CYLINDER HEAD SET)
1990-08 → 1992-11 ended
3E ET176 ¥310
11101B — Washer, Plate(FOR CYLINDER HEAD SET)
90201-09015 Washer, Plate(FOR CYLINDER HEAD SET)
1988-05 → 1990-08 ended
3E ET176 ¥200
90201-09024 Washer, Plate(FOR CYLINDER HEAD SET)
1990-08 → 1992-11 ended
3E ET176 ¥110
90201-10344 Washer, Plate(FOR CYLINDER HEAD SET)
1988-05 → 1989-07 ended
4SFI ST170 ¥110
90201-10344 Washer, Plate(FOR CYLINDER HEAD SET)
1988-05 → 1989-07 ended
4A#,5AF AT17# ¥110
90201-10344 Washer, Plate(FOR CYLINDER HEAD SET)
1989-07 → 1992-11 ended
4AF#,4AGE,5AF# AT17# ¥110
90201-11026 Washer, Plate(FOR CYLINDER HEAD SET)
1989-07 → 1992-11 ended
4SF# ST170 ¥220
90201-12222 Washer, Plate(FOR CYLINDER HEAD SET)
1988-05 → 1992-11 ended
2C CT17# ¥220
11101D — Bolt, Stud(FOR WATER OUTLET)
92122-60820 Bolt, Stud(FOR WATER OUTLET)
1988-05 → 1990-05 ended
2C CT17# ¥190
92122-60820 Bolt, Stud(FOR WATER OUTLET)
1990-05 → 1992-11 ended
2C CT17# ¥190
11114A — Pin, Straight
90250-06068 note Pin, Straight
1988-05 → 1992-11 ended
2C CT17# ¥260
11115 — Gasket, Cylinder Head
11115-11010 note Gasket, Cylinder Head
1988-05 → 1992-11 ended
3E ET176 ¥4,560
11115-15071 Gasket, Cylinder Head
1988-05 → 1989-05 ended
5AF AT170 ¥2,140
11115-15072 Gasket, Cylinder Head
1989-05 → 1992-01 ended
5AF# AT170 ¥3,060
11115-15073 Gasket, Cylinder Head
1992-01 → 1992-11 ended
5AFE AT170 ¥5,500
11115-16070 note Gasket, Cylinder Head
1988-05 → 1992-08 ended
4AGE AT171 ¥5,500
11115-16081 Gasket, Cylinder Head
1988-05 → 1988-09 ended
4AFE AT171,175 ¥5,300
11115-16082 Gasket, Cylinder Head
1988-09 → 1992-08 ended
4AF# AT171,175 ¥5,300
11115-64100 Gasket, Cylinder Head
1988-05 → 1991-01 ended
2C CT17# ¥7,400
11115-64121 Gasket, Cylinder Head
1991-01 → 1992-11 ended
2C CT17# ¥7,200
11115-74050 Gasket, Cylinder Head
1988-05 → 1990-06 ended
4SFI ST170 ¥2,890
11115-74060 note Gasket, Cylinder Head
1990-05 → 1992-11 ended
4SFE ST170 ¥6,100
11117H — Gasket(FOR WATER HOLE)
90430-10204 note Gasket(FOR WATER HOLE)
1988-05 → 1990-05 ended
2C CT17# ¥230
90430-10204 note Gasket(FOR WATER HOLE)
1990-05 → 1992-11 ended
2C CT17# ¥230
90430-12010 note Gasket(FOR WATER HOLE)
1988-05 → 1990-05 ended
2C CT17# ¥200
90430-20004 Gasket(FOR WATER HOLE)
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥200
90430-24007 note Gasket(FOR WATER HOLE)
1988-05 → 1992-08 ended
4AGE AT171 ¥190
90430-24246 Gasket(FOR WATER HOLE)
1988-05 → 1992-11 ended
4SF# ST170 ¥160
90430-33133 note Gasket(FOR WATER HOLE)
1988-05 → 1990-05 ended
2C CT17# ¥200
90430-33133 note Gasket(FOR WATER HOLE)
1988-05 → 1992-08 ended
4AGE AT171 ¥200
11118A — Plug, Straight, NO.1
90341-10005 Plug, Straight, NO.1
1988-05 → 1992-11 ended
2C CT17# ¥200
11118B — Plug, Straight, NO.2
90341-32070 Plug, Straight, NO.2
1988-05 → 1992-11 ended
2C CT17# ¥810
11118C — Plug, Straight, NO.3
90341-12013 Plug, Straight, NO.3
1988-05 → 1992-11 ended
2C CT17# ¥230
11119A — Pin, Straight, NO.1
90250-06003 note Pin, Straight, NO.1
1988-05 → 1992-11 ended
4SF# ST170 ¥90
90250-06068 note Pin, Straight, NO.1
1988-05 → 1992-11 ended
2C CT17# ¥260
11122 — Bush, Intake Valve Guide
11122-10040 note Bush, Intake Valve Guide
1988-05 → 1992-11 ended
3E ET176 ¥820
11122-15030 note Bush, Intake Valve Guide
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥820
11122-16010 note Bush, Intake Valve Guide
1990-05 → 1992-08 ended
4AGE AT171 ¥850
11122-16020 note Bush, Intake Valve Guide
1988-05 → 1990-05 ended
4AGE AT171 ¥870
11122-16020 note Bush, Intake Valve Guide
1988-05 → 1990-05 ended
4SFI ST170 ¥870
11122-16020 note Bush, Intake Valve Guide
1990-05 → 1992-11 ended
4SFE ST170 ¥870
11122-64010 note Bush, Intake Valve Guide
1988-05 → 1992-11 ended
2C CT17# ¥900
11123-10040 note Bush, Intake Valve Guide
1988-05 → 1992-11 ended
3E ET176 ¥820
11123-15030 note Bush, Intake Valve Guide
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥820
11123-16010 note Bush, Intake Valve Guide
1990-05 → 1992-08 ended
4AGE AT171 ¥850
11123-16020 note Bush, Intake Valve Guide
1988-05 → 1990-05 ended
4SFI ST170 ¥860
11123-16020 note Bush, Intake Valve Guide
1990-05 → 1992-11 ended
4SFE ST170 ¥860
11123-16020 note Bush, Intake Valve Guide
1988-05 → 1990-05 ended
4AGE AT171 ¥860
11123-64010 note Bush, Intake Valve Guide
1988-05 → 1992-11 ended
2C CT17# ¥900
11126 — Bush, Exhaust Valve Guide
11122-10040 note Bush, Exhaust Valve Guide
1988-05 → 1992-11 ended
3E ET176 ¥820
11122-15030 note Bush, Exhaust Valve Guide
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥820
11122-16010 note Bush, Exhaust Valve Guide
1990-05 → 1992-08 ended
4AGE AT171 ¥850
11122-16020 note Bush, Exhaust Valve Guide
1988-05 → 1990-05 ended
4AGE AT171 ¥870
11122-16020 note Bush, Exhaust Valve Guide
1988-05 → 1990-05 ended
4SFI ST170 ¥870
11122-16020 note Bush, Exhaust Valve Guide
1990-05 → 1992-11 ended
4SFE ST170 ¥870
11123-10040 note Bush, Exhaust Valve Guide
1988-05 → 1992-11 ended
3E ET176 ¥820
11123-15030 note Bush, Exhaust Valve Guide
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥820
11123-16010 note Bush, Exhaust Valve Guide
1990-05 → 1992-08 ended
4AGE AT171 ¥850
11123-16020 note Bush, Exhaust Valve Guide
1990-05 → 1992-11 ended
4SFE ST170 ¥860
11123-16020 note Bush, Exhaust Valve Guide
1988-05 → 1990-05 ended
4SFI ST170 ¥860
11123-16020 note Bush, Exhaust Valve Guide
1988-05 → 1990-05 ended
4AGE AT171 ¥860
11126-64010 note Bush, Exhaust Valve Guide
1988-05 → 1992-11 ended
2C CT17# ¥860
11127-64010 note Bush, Exhaust Valve Guide
1988-05 → 1992-11 ended
2C CT17# ¥860
11155A — Pin, Ring W/Head
90253-09001 Pin, Ring W/Head
1988-05 → 1992-08 ended
4AGE AT171 ¥120
90253-09001 Pin, Ring W/Head
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥120
90253-10004 Pin, Ring W/Head
1988-05 → 1992-11 ended
4SF# ST170 ¥120
90253-11021 Pin, Ring W/Head
1988-05 → 1992-11 ended
3E ET176 ¥120
90253-11021 Pin, Ring W/Head
1988-05 → 1992-11 ended
2C CT17# ¥120
11159 — Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP)
90116-06023 Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP)
1988-05 → 1992-11 ended
2C CT17# ¥370
11181 — Plate, Cylinder Head, Rear
11181-16130 Plate, Cylinder Head, Rear
1988-05 → 1989-05 ended
4AGE AT171 ¥6,600
11181-16140 Plate, Cylinder Head, Rear
1989-05 → 1992-08 ended
4AGE AT171 ¥4,540
11181-64010 Plate, Cylinder Head, Rear
1988-05 → 1992-11 ended
2C CT17# ¥1,260
11182 — Gasket, Cylinder Head Rear Plate
11182-16010 Gasket, Cylinder Head Rear Plate
1988-05 → 1989-05 ended
4AGE AT171 ¥490
11182-16020 Gasket, Cylinder Head Rear Plate
1989-05 → 1992-08 ended
4AGE AT171 ¥500
11182-64010 Gasket, Cylinder Head Rear Plate
1988-05 → 1989-03 ended
2C CT17# ¥800
11182-64020 Gasket, Cylinder Head Rear Plate
1989-03 → 1992-11 ended
2C CT17# ¥740
11183 — Plug, Semicircular
11183-15020 Plug, Semicircular
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥630
11183-64010 Plug, Semicircular
1988-05 → 1992-11 ended
2C CT17# ¥670
11183-74010 Plug, Semicircular
1988-05 → 1992-11 ended
4SF# ST170 ¥610
11201 — Cover Sub-assy, Cylinder Head
11201-10010 Cover Sub-assy, Cylinder Head
1988-05 → 1992-11 ended
3E ET176 ¥8,500
11201-64050 Cover Sub-assy, Cylinder Head
1988-05 → 1992-11 ended
2C CT17# ¥14,300
11201-74020 Cover Sub-assy, Cylinder Head
1988-05 → 1992-11 ended
4SF# ST170 ¥25,700
11210-15050 Cover Sub-assy, Cylinder Head
1988-05 → 1990-05 ended
5AF AT170 ¥21,600
11210-16090 note Cover Sub-assy, Cylinder Head
1988-05 → 1988-10 ended
4AGE AT171 ¥20,100
11210-16100 Cover Sub-assy, Cylinder Head
1988-05 → 1992-11 ended
4AF#,5AFE AT17# ¥18,500
11210-16140 note Cover Sub-assy, Cylinder Head
1988-10 → 1989-05 ended
4AGE AT171 ¥20,100
11210-16150 note Cover Sub-assy, Cylinder Head
1989-05 → 1989-12 ended
4AGE AT171 ¥20,100
11210-16160 note Cover Sub-assy, Cylinder Head
1989-12 → 1992-08 ended
4AGE AT171 ¥20,100
11212-16010 note Cover Sub-assy, Cylinder Head
1988-05 → 1988-10 ended
4AGE AT171 ¥20,200
11212-16050 note Cover Sub-assy, Cylinder Head
1988-10 → 1992-08 ended
4AGE AT171 ¥20,100
11213 — Gasket, Cylinder Head Cover
11213-10010 Gasket, Cylinder Head Cover
1988-05 → 1991-06 ended
3E ET176 ¥2,090
11213-10011 Gasket, Cylinder Head Cover
1991-06 → 1992-11 ended
3E ET176 ¥2,110
11213-15050 Gasket, Cylinder Head Cover
1988-05 → 1992-11 ended
4AF#,5AF# AT17# ¥1,880
11213-16010 Gasket, Cylinder Head Cover
1988-05 → 1992-08 ended
4AGE AT171 ¥1,690
11213-64020 Gasket, Cylinder Head Cover
1988-05 → 1991-01 ended
2C CT17# ¥2,160
11213-64040 Gasket, Cylinder Head Cover
1991-01 → 1992-11 ended
2C CT17# ¥2,080
11213-74020 Gasket, Cylinder Head Cover
1988-05 → 1992-11 ended
4SF# ST170 ¥1,860
12108 — Cap Sub-assy, Oil Filler
12180-11020 Cap Sub-assy, Oil Filler
1988-05 → 1991-03 ended
3E ET176 ¥1,000
12180-11021 Cap Sub-assy, Oil Filler
1991-03 → 1992-11 ended
3E ET176 ¥980
12180-13030 Cap Sub-assy, Oil Filler
1988-05 → 1989-08 ended
4AGE AT171 ¥730
12180-13030 Cap Sub-assy, Oil Filler
1988-05 → 1989-08 ended
4SFI ST170 ¥730
12180-13030 Cap Sub-assy, Oil Filler
1988-05 → 1989-08 ended
2C CT17# ¥730
12180-13030 Cap Sub-assy, Oil Filler
1989-08 → 1992-11 ended
2C CT17# ¥730
12180-13030 Cap Sub-assy, Oil Filler
1989-08 → 1992-11 ended
4SF# ST170 ¥730
12180-13030 Cap Sub-assy, Oil Filler
1989-08 → 1992-11 ended
4AF#,4AGE,5AFE AT17# ¥730
12180-62010 Cap Sub-assy, Oil Filler
1988-05 → 1989-08 ended
4AFE,5AF AT17# ¥1,000
12180-62010 Cap Sub-assy, Oil Filler
1989-08 → 1990-05 ended
5AF AT170 ¥1,000
12108A — Gasket(FOR OIL FILLER CAP)
12195-71020 Gasket(FOR OIL FILLER CAP)
1988-05 → 1992-11 ended
3E ET176 ¥910
90430-37140 Gasket(FOR OIL FILLER CAP)
1988-05 → 1992-11 ended
2C CT17# ¥210
90430-37140 Gasket(FOR OIL FILLER CAP)
1988-05 → 1992-11 ended
4SF# ST170 ¥210
90430-37140 Gasket(FOR OIL FILLER CAP)
1988-05 → 1992-11 ended
4AF#,4AGE,5AF# AT17# ¥210
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
