Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

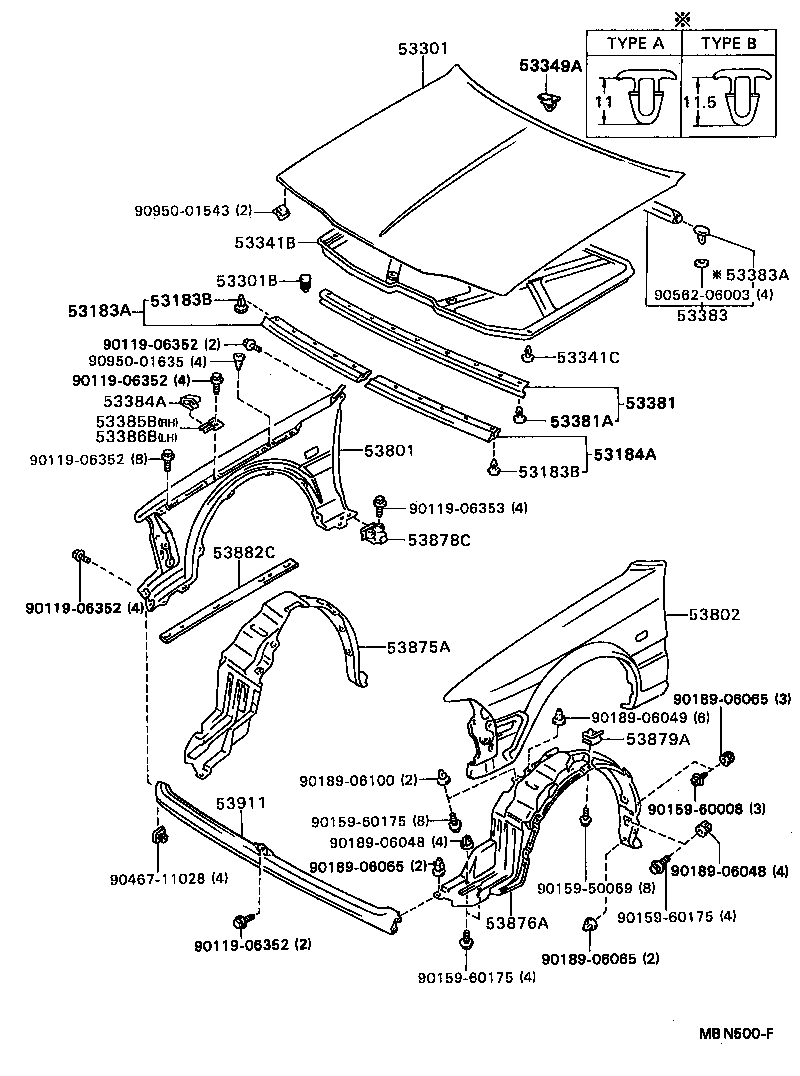

Exploded illustration MBN500F 53301 — HOOD SUB-ASSY (2 parts) 53349A — RETAINER, HOOD INSULATOR (1 parts) 9095001543 — not listed in this catalogue 53341B — INSULATOR, HOOD (2 parts) 53383A — CLIP(FOR HOOD TO COWL TOP SEAL) (2 parts) 53301B — CUSHION, HOOD BUMPER (1 parts) 9056206003 — not listed in this catalogue 53183B — CLIP(FOR HEADLAMP COVER SEAL) (1 parts) 53183A — SEAL, HEADLAMP COVER, RH (1 parts) 53383 — SEAL, HOOD TO COWL TOP (3 parts) 9011906352 — not listed in this catalogue 53341C — CLIP(FOR HOOD INSULATOR) (1 parts) 9095001635 — not listed in this catalogue 9011906352 — not listed in this catalogue 53384A — BUMPER, FENDER TO HOOD (1 parts) 53381 — SEAL, HOOD TO RADIATOR SUPPORT (1 parts) 53385B — BRACKET, FENDER TO HOOD BUMPER, RH (1 parts) 53381A — CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) (1 parts) 53386B — BRACKET, FENDER TO HOOD BUMPER, LH (1 parts) 53801 — FENDER SUB-ASSY, FRONT RH (15 parts) 53184A — SEAL, HEADLAMP COVER, LH (1 parts) 9011906352 — not listed in this catalogue 53183B — CLIP(FOR HEADLAMP COVER SEAL) (1 parts) 9011906353 — not listed in this catalogue 53878C — SPACER, FRONT FENDER (1 parts) 53882C — SEAL, FRONT FENDER MAIN (1 parts) 9011906352 — not listed in this catalogue 53802 — FENDER SUB-ASSY, FRONT LH (15 parts) 53875A — LINER, FRONT FENDER, RH (2 parts) 9018906065 — not listed in this catalogue 9018906049 — not listed in this catalogue 53879A — RETAINER, FRONT FENDER LINER (1 parts) 9018906100 — not listed in this catalogue 53911 — PANEL, FRONT VALANCE (3 parts) 9015960008 — not listed in this catalogue 9015960175 — not listed in this catalogue 9018906048 — not listed in this catalogue 9018906065 — not listed in this catalogue 9018906048 — not listed in this catalogue 9046711028 — not listed in this catalogue 9015950069 — not listed in this catalogue 9015960175 — not listed in this catalogue 53876A — LINER, FRONT FENDER, LH (2 parts) 9011906352 — not listed in this catalogue 9018906065 — not listed in this catalogue 9015960175 — not listed in this catalogue
MBN500F · 24 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
53183A — Seal, Headlamp Cover, RH
53183-20040 Seal, Headlamp Cover, RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥750
53183B — Clip(FOR HEADLAMP COVER SEAL)
90467-06084 Clip(FOR HEADLAMP COVER SEAL)
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥80
53184A — Seal, Headlamp Cover, LH
53184-20020 Seal, Headlamp Cover, LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥750
53301 — Hood Sub-assy
53301-20300 Hood Sub-assy
1988-05 → 1989-11 ended
AT17#,CT17#,ET176,ST170 ¥49,300
53301-20301 Hood Sub-assy
1989-11 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥48,800
53301B — Cushion, Hood Bumper
90541-15012 Cushion, Hood Bumper
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥330
53341B — Insulator, Hood
53341-20150 Insulator, Hood
1988-05 → 1990-05 ended
CT17# ¥12,600
53341-20151 Insulator, Hood
1990-05 → 1992-11 ended
CT17# ¥12,100
53341C — Clip(FOR HOOD INSULATOR)
90467-09006 Clip(FOR HOOD INSULATOR)
1988-05 → 1992-11 ended
CT17# ¥110
53349A — Retainer, Hood Insulator
53349-20030 Retainer, Hood Insulator
1989-11 → 1990-05 ended
CT17# ¥300
53381 — Seal, Hood TO Radiator Support
53381-20090 Seal, Hood TO Radiator Support
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥2,080
53381A — Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011 Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥100
53383 — Seal, Hood TO Cowl Top
53383-20110 Seal, Hood TO Cowl Top
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥1,460
53383-20130 note Seal, Hood TO Cowl Top
1990-05 → 1992-11 ended
CT176 5F;AT17#,CT170,ET176,ST170 ¥1,460
53383-20130 note Seal, Hood TO Cowl Top
1990-05 → 1992-11 ended
CT176 4FC ¥1,460
53383A — Clip(FOR HOOD TO COWL TOP SEAL)
90467-08044 note Clip(FOR HOOD TO COWL TOP SEAL)
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥170
90467-08050 note Clip(FOR HOOD TO COWL TOP SEAL)
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥120
53384A — Bumper, Fender TO Hood
53384-14030 Bumper, Fender TO Hood
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥300
53385B — Bracket, Fender TO Hood Bumper, RH
53385-20020 Bracket, Fender TO Hood Bumper, RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥370
53386B — Bracket, Fender TO Hood Bumper, LH
53386-20020 Bracket, Fender TO Hood Bumper, LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥370
53801 — Fender Sub-assy, Front RH
53811-2B350 note Fender Sub-assy, Front RH
1988-05 → 1990-05 ended
AT171 S ¥37,200
53811-2B350 note Fender Sub-assy, Front RH
1988-05 → 1990-05 ended
ST170 SE ¥37,200
53811-2B350 Fender Sub-assy, Front RH
1988-05 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥37,200
53811-2B360 note Fender Sub-assy, Front RH
1988-05 → 1992-11 ended
AT170,CT176,ET176 DX,STD ¥37,200
53811-2B370 note Fender Sub-assy, Front RH
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥37,200
53811-2B370 note Fender Sub-assy, Front RH
1988-05 → 1989-03 ended
AT170 4F SG ¥37,200
53811-2B370 note Fender Sub-assy, Front RH
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥37,200
53811-2B370 note Fender Sub-assy, Front RH
1989-03 → 1990-05 ended
AT170 4F SG ¥37,200
53811-2B370 note Fender Sub-assy, Front RH
1988-08 → 1992-08 ended
AT170,175 SG EFI ¥37,200
53811-2B370 note Fender Sub-assy, Front RH
1988-05 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥37,200
53811-2B380 Fender Sub-assy, Front RH
1988-05 → 1992-11 ended
AT170,CT176,ET176 DX,STD ¥37,200
53811-95R00 note Fender Sub-assy, Front RH
1988-05 → 1992-11 ended
AT170,CT170 SV ¥37,200
53811-95R00 Fender Sub-assy, Front RH
1988-05 → 1992-11 ended
CT176,ET176 SG ¥37,200
53811-95R01 Fender Sub-assy, Front RH
1988-05 → 1992-11 ended
AT170,CT170 SV ¥37,200
53811-95R01 note Fender Sub-assy, Front RH
1988-05 → 1992-11 ended
CT176,ET176 SG ¥37,200
53802 — Fender Sub-assy, Front LH
53812-2B340 note Fender Sub-assy, Front LH
1988-05 → 1990-05 ended
AT171 S ¥37,200
53812-2B340 note Fender Sub-assy, Front LH
1988-05 → 1990-05 ended
ST170 SE ¥37,200
53812-2B340 Fender Sub-assy, Front LH
1988-05 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥37,200
53812-2B350 note Fender Sub-assy, Front LH
1988-05 → 1992-11 ended
AT170,CT176,ET176 DX,STD ¥37,200
53812-2B360 note Fender Sub-assy, Front LH
1988-05 → 1989-03 ended
AT170 (4FC,5F) SG ¥37,200
53812-2B360 note Fender Sub-assy, Front LH
1988-05 → 1989-03 ended
AT170 4F SG ¥37,200
53812-2B360 note Fender Sub-assy, Front LH
1989-03 → 1990-05 ended
AT170 (4FC,5F) SG ¥37,200
53812-2B360 note Fender Sub-assy, Front LH
1989-03 → 1990-05 ended
AT170 4F SG ¥37,200
53812-2B360 note Fender Sub-assy, Front LH
1988-08 → 1992-08 ended
AT170,175 SG EFI ¥37,200
53812-2B360 note Fender Sub-assy, Front LH
1988-05 → 1992-11 ended
CT170 SED;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥37,200
53812-2B370 Fender Sub-assy, Front LH
1988-05 → 1992-11 ended
AT170,CT176,ET176 DX,STD ¥37,200
53812-95R00 Fender Sub-assy, Front LH
1988-05 → 1992-11 ended
CT176,ET176 SG ¥37,200
53812-95R00 note Fender Sub-assy, Front LH
1988-05 → 1992-11 ended
AT170,CT170 SV ¥37,200
53812-95R01 Fender Sub-assy, Front LH
1988-05 → 1992-11 ended
AT170,CT170 SV ¥37,200
53812-95R01 note Fender Sub-assy, Front LH
1988-05 → 1992-11 ended
CT176,ET176 SG ¥37,200
53875A — Liner, Front Fender, RH
53875-20160 Liner, Front Fender, RH
1988-05 → 1990-11 ended
AT17#,CT17#,ET176,ST170 ¥6,700
53875-20220 Liner, Front Fender, RH
1990-11 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥6,600
53876A — Liner, Front Fender, LH
53876-20170 Liner, Front Fender, LH
1988-05 → 1990-11 ended
AT17#,CT17#,ET176,ST170 ¥6,700
53876-20230 Liner, Front Fender, LH
1990-11 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥6,600
53878C — Spacer, Front Fender
53878-20030 Spacer, Front Fender
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥240
53879A — Retainer, Front Fender Liner
53879-14010 Retainer, Front Fender Liner
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥230
53882C — Seal, Front Fender Main
53882-20080 Seal, Front Fender Main
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥520
53911 — Panel, Front Valance
53911-20170 Panel, Front Valance
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥11,200
53911-20170 Panel, Front Valance
1990-05 → 1992-11 ended
CT176,ET176 ¥11,200
53911-20190 Panel, Front Valance
1990-05 → 1992-11 ended
AT17#,CT170,ST170 ¥11,200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
