Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

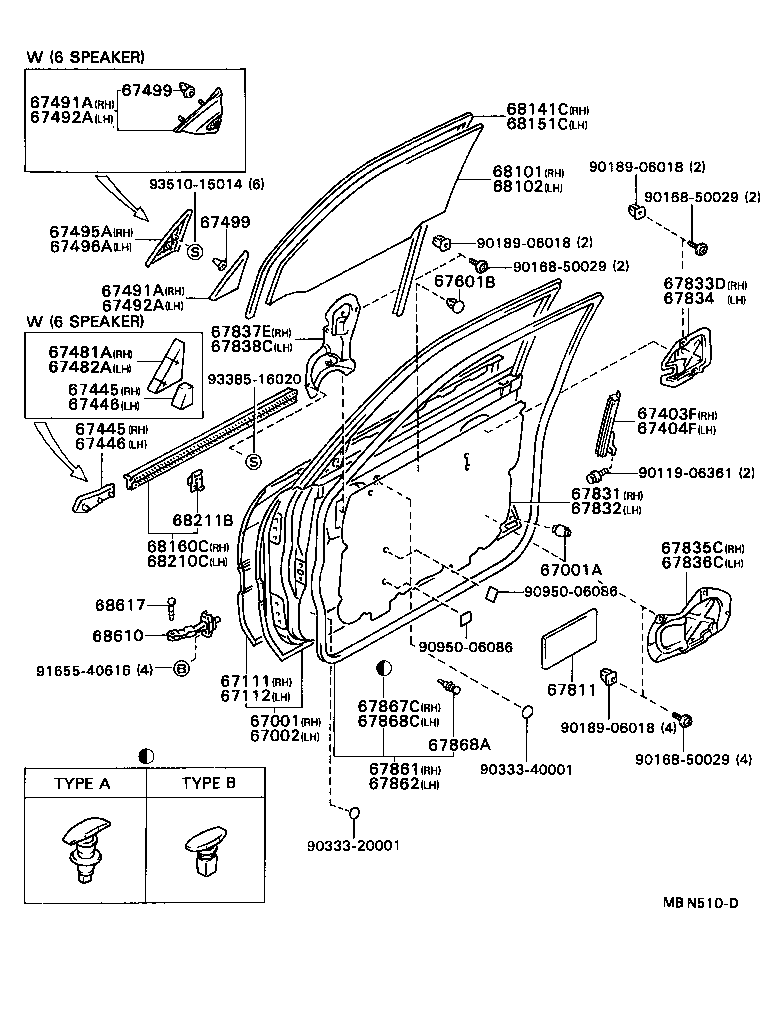

Exploded illustration MBN510D 67499 — RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH (7 parts) 67491A — GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH (10 parts) 68141C — RUN, FRONT DOOR GLASS, RH (2 parts) 67492A — GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH (10 parts) 68151C — RUN, FRONT DOOR GLASS, LH (2 parts) 9018906018 — not listed in this catalogue 68101 — GLASS SUB-ASSY, FRONT DOOR, RH (16 parts) 9351015014 — not listed in this catalogue 68102 — GLASS SUB-ASSY, FRONT DOOR, LH (16 parts) 9016850029 — not listed in this catalogue 67499 — RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH (7 parts) 67495A — COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH (8 parts) 9018906018 — not listed in this catalogue 67496A — COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH (8 parts) 9016850029 — not listed in this catalogue 67601B — CLIP(FOR FRONT DOOR TRIM BOARD) (4 parts) 67833D — COVER, FRONT DOOR SERVICE HOLE, NO.2 RH (3 parts) 67491A — GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH (10 parts) 67834 — COVER, FRONT DOOR SERVICE HOLE, NO.2 LH (3 parts) 67492A — GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH (10 parts) 67837E — COVER, FRONT DOOR SERVICE HOLE, NO.4 RH (3 parts) 67838C — COVER, FRONT DOOR SERVICE HOLE, NO.4 LH (3 parts) 67481A — SEAL, FRONT DOOR FRONT LOWER FRAME, RH (3 parts) 67482A — SEAL, FRONT DOOR FRONT LOWER FRAME, LH (3 parts) 9338516020 — not listed in this catalogue 67445 — PLATE, FRONT DOOR WINDOW OPENING, INNER RH (4 parts) 67446 — PLATE, FRONT DOOR WINDOW OPENING, INNER LH (4 parts) 67403F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH (7 parts) 67404F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH (1 parts) 67445 — PLATE, FRONT DOOR WINDOW OPENING, INNER RH (4 parts) 67446 — PLATE, FRONT DOOR WINDOW OPENING, INNER LH (4 parts) 9011906361 — not listed in this catalogue 67831 — COVER, FRONT DOOR SERVICE HOLE, RH (5 parts) 67832 — COVER, FRONT DOOR SERVICE HOLE, LH (5 parts) 68211B — CLIP(FOR FRONT DOOR GLASS WEATHERSTRIP) (5 parts) 68160C — WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH (1 parts) 67835C — COVER, FRONT DOOR SERVICE HOLE, NO.3 RH (3 parts) 68210C — WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH (1 parts) 67836C — COVER, FRONT DOOR SERVICE HOLE, NO.3 LH (3 parts) 67001A — CUSHION, FRONT DOOR PANEL (1 parts) 9095006086 — not listed in this catalogue 68617 — PIN, FRONT DOOR CHECK (1 parts) 68610 — CHECK ASSY, FRONT DOOR (1 parts) 9095006086 — not listed in this catalogue 9165540616 — not listed in this catalogue 67111 — PANEL, FRONT DOOR, OUTER RH (1 parts) 67811 — PAD, FRONT DOOR SILENCER (2 parts) 67112 — PANEL, FRONT DOOR, OUTER LH (1 parts) 67867C — RETAINER, FRONT DOOR WEATHERSTRIP, RH (5 parts) 67001 — PANEL SUB-ASSY, FRONT DOOR, RH (18 parts) 67868C — RETAINER, FRONT DOOR WEATHERSTRIP, LH (3 parts) 9018906018 — not listed in this catalogue 67002 — PANEL SUB-ASSY, FRONT DOOR, LH (18 parts) 67868A — CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) (1 parts) 9016850029 — not listed in this catalogue 67861 — WEATHERSTRIP, FRONT DOOR, RH (1 parts) 9033340001 — not listed in this catalogue 67862 — WEATHERSTRIP, FRONT DOOR, LH (1 parts) 9033320001 — not listed in this catalogue
MBN510D · 45 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
194 parts on this figure
Part number Description Fitment Price
67001 — Panel Sub-assy, Front Door, RH
67001-20800 note Panel Sub-assy, Front Door, RH
1988-05 → 1989-02 ended
AT170 4F SG ¥60,200
67001-20800 note Panel Sub-assy, Front Door, RH
1988-05 → 1990-05 ended
AT170 SV ¥60,200
67001-20800 note Panel Sub-assy, Front Door, RH
1988-05 → 1990-05 ended
CT170;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥60,200
67001-20800 note Panel Sub-assy, Front Door, RH
1989-02 → 1990-05 ended
AT170 (4FC,5F) SG ¥60,200
67001-20800 note Panel Sub-assy, Front Door, RH
1989-02 → 1990-05 ended
AT170 4F SG ¥60,200
67001-20800 note Panel Sub-assy, Front Door, RH
1988-05 → 1989-02 ended
AT170 (4FC,5F) SG ¥60,200
67001-20800 note Panel Sub-assy, Front Door, RH
1990-05 → 1992-11 ended
CT170 SG;AT17#,ST170 S,SGEXT,SX ¥60,200
67001-20800 note Panel Sub-assy, Front Door, RH
1990-05 → 1992-11 ended
AT170,CT170 SV ¥60,200
67001-20800 note Panel Sub-assy, Front Door, RH
1988-05 → 1992-11 ended
CT176,ET176 SG ¥60,200
67001-20810 Panel Sub-assy, Front Door, RH
1988-05 → 1992-11 ended
CT170 SV;AT170,175,CT176,ET176 DX,SG,STD,SV ¥60,200
67001-20810 Panel Sub-assy, Front Door, RH
1988-05 → 1992-11 ended
ST170 SGEXT CI;AT171,CT170,ST170 S,SG,SX ¥60,200
67001-20840 note Panel Sub-assy, Front Door, RH
1990-05 → 1992-11 ended
ST170 SX ¥60,200
67001-20840 note Panel Sub-assy, Front Door, RH
1990-05 → 1992-08 ended
AT170,175,CT170,ST170 SE ¥60,200
67001-20840 note Panel Sub-assy, Front Door, RH
1990-05 → 1992-08 ended
AT171 EFIS ¥60,200
67001-20840 note Panel Sub-assy, Front Door, RH
1990-05 → 1992-08 ended
AT171 EFI ¥60,200
67001-20870 note Panel Sub-assy, Front Door, RH
1990-05 → 1992-08 ended
AT171 EFI ¥60,200
67001-20870 note Panel Sub-assy, Front Door, RH
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥60,200
67001-20870 note Panel Sub-assy, Front Door, RH
1990-05 → 1992-08 ended
AT170,175,CT170,ST170 SE ¥60,200
67001A — Cushion, Front Door Panel
90541-09064 Cushion, Front Door Panel
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥200
67002 — Panel Sub-assy, Front Door, LH
67002-20760 note Panel Sub-assy, Front Door, LH
1988-05 → 1990-05 ended
CT170;AT17#,ST170 GLIM,S,SE,SGEXT,SX ¥60,200
67002-20760 note Panel Sub-assy, Front Door, LH
1988-05 → 1992-11 ended
CT176,ET176 SG ¥60,200
67002-20760 note Panel Sub-assy, Front Door, LH
1990-05 → 1992-11 ended
AT170,CT170 SV ¥60,200
67002-20760 note Panel Sub-assy, Front Door, LH
1990-05 → 1992-11 ended
CT170 SG;AT17#,ST170 S,SGEXT,SX ¥60,200
67002-20760 note Panel Sub-assy, Front Door, LH
1989-02 → 1990-05 ended
AT170 4F SG ¥60,200
67002-20760 note Panel Sub-assy, Front Door, LH
1989-02 → 1990-05 ended
AT170 (4FC,5F) SG ¥60,200
67002-20760 note Panel Sub-assy, Front Door, LH
1988-05 → 1990-05 ended
AT170 SV ¥60,200
67002-20760 note Panel Sub-assy, Front Door, LH
1988-05 → 1989-02 ended
AT170 4F SG ¥60,200
67002-20760 note Panel Sub-assy, Front Door, LH
1988-05 → 1989-02 ended
AT170 (4FC,5F) SG ¥60,200
67002-20770 Panel Sub-assy, Front Door, LH
1988-05 → 1992-11 ended
CT170 SV;AT170,175,CT176,ET176 DX,SG,STD,SV ¥60,200
67002-20770 Panel Sub-assy, Front Door, LH
1988-05 → 1992-11 ended
ST170 SGEXT CI;AT171,CT170,ST170 S,SG,SX ¥60,200
67002-20800 note Panel Sub-assy, Front Door, LH
1990-05 → 1992-11 ended
ST170 SX ¥60,200
67002-20800 note Panel Sub-assy, Front Door, LH
1990-05 → 1992-08 ended
AT171 EFIS ¥60,200
67002-20800 note Panel Sub-assy, Front Door, LH
1990-05 → 1992-08 ended
AT170,175,CT170,ST170 SE ¥60,200
67002-20800 note Panel Sub-assy, Front Door, LH
1990-05 → 1992-08 ended
AT171 EFI ¥60,200
67002-20830 note Panel Sub-assy, Front Door, LH
1990-05 → 1992-08 ended
AT171 EFI ¥60,200
67002-20830 note Panel Sub-assy, Front Door, LH
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥60,200
67002-20830 note Panel Sub-assy, Front Door, LH
1990-05 → 1992-08 ended
AT170,175,CT170,ST170 SE ¥60,200
67111 — Panel, Front Door, Outer RH
67111-20280 Panel, Front Door, Outer RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥25,300
67112 — Panel, Front Door, Outer LH
67112-20290 Panel, Front Door, Outer LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥25,300
67403F — Frame Sub-assy, Front Door, Rear Lower RH
67403-20040 Frame Sub-assy, Front Door, Rear Lower RH
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥1,300
67403-20040 Frame Sub-assy, Front Door, Rear Lower RH
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 DX,S,SG,STD,SV,SX ¥1,300
67403-20090 Frame Sub-assy, Front Door, Rear Lower RH
1990-05 → 1990-12 ended
AT17#,CT170,ST170 GLIM,SE,SGEXT ¥1,950
67403-20090 note Frame Sub-assy, Front Door, Rear Lower RH
1990-05 → 1990-12 ended
AT171,ST170 S,SX ¥1,950
67403-20091 Frame Sub-assy, Front Door, Rear Lower RH
1990-12 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE,SGEXT ¥2,360
67403-20091 note Frame Sub-assy, Front Door, Rear Lower RH
1990-12 → 1992-11 ended
AT171,ST170 S,SX ¥2,360
67403-20091 note Frame Sub-assy, Front Door, Rear Lower RH
1990-12 → 1992-08 ended
CT170 SG ¥2,360
67404F — Frame Sub-assy, Front Door, Rear Lower LH
67404-20040 Frame Sub-assy, Front Door, Rear Lower LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥1,300
67445 — Plate, Front Door Window Opening, Inner RH
67445-20010 Plate, Front Door Window Opening, Inner RH
1990-05 → 1992-08 ended
ST170 SE ¥350
67445-20010 Plate, Front Door Window Opening, Inner RH
1990-05 → 1992-08 ended
AT17#,CT170 GLIM,SE ¥350
67445-20010 Plate, Front Door Window Opening, Inner RH
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥350
67445-95R00 Plate, Front Door Window Opening, Inner RH
1988-05 → 1992-11 ended
CT176,ET176 DX,STD ¥660
67446 — Plate, Front Door Window Opening, Inner LH
67445-20010 Plate, Front Door Window Opening, Inner LH
1990-05 → 1992-08 ended
ST170 SE ¥350
67445-20010 Plate, Front Door Window Opening, Inner LH
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥350
67445-20010 Plate, Front Door Window Opening, Inner LH
1990-05 → 1992-08 ended
AT17#,CT170 GLIM,SE ¥350
67446-95R00 Plate, Front Door Window Opening, Inner LH
1988-05 → 1992-11 ended
CT176,ET176 DX,STD ¥660
67481A — Seal, Front Door Front Lower Frame, RH
67481-20120 Seal, Front Door Front Lower Frame, RH
1990-05 → 1992-08 ended
ST170 SE ¥300
67481-20120 Seal, Front Door Front Lower Frame, RH
1990-05 → 1992-08 ended
AT17#,CT170 GLIM,SE ¥300
67481-20120 Seal, Front Door Front Lower Frame, RH
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥300
67482A — Seal, Front Door Front Lower Frame, LH
67481-20120 Seal, Front Door Front Lower Frame, LH
1990-05 → 1992-08 ended
ST170 SE ¥300
67481-20120 Seal, Front Door Front Lower Frame, LH
1990-05 → 1992-08 ended
AT17#,CT170 GLIM,SE ¥300
67481-20120 Seal, Front Door Front Lower Frame, LH
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥300
67491A — Garnish, Front Door Lower Frame Bracket, RH
67491-20180 Garnish, Front Door Lower Frame Bracket, RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥790
67491-20240-03 note Garnish, Front Door Lower Frame Bracket, RH
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥1,550
67491-20240-03 note Garnish, Front Door Lower Frame Bracket, RH
1990-05 → 1992-08 ended
AT17#,CT170 GLIM,SE ¥1,550
67491-20240-03 note Garnish, Front Door Lower Frame Bracket, RH
1990-05 → 1992-08 ended
ST170 SE ¥1,550
67491-20240-04 note Garnish, Front Door Lower Frame Bracket, RH
1990-05 → 1992-08 ended
AT171 EFIS ¥1,550
67491-20240-04 note Garnish, Front Door Lower Frame Bracket, RH
1990-05 → 1992-08 ended
ST170 SE ¥1,550
67491-20240-04 note Garnish, Front Door Lower Frame Bracket, RH
1990-05 → 1992-08 ended
AT170,175,CT170 SE ¥1,550
67491-20240-06 note Garnish, Front Door Lower Frame Bracket, RH
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥1,550
67491-20240-06 note Garnish, Front Door Lower Frame Bracket, RH
1990-05 → 1992-08 ended
ST170 SE ¥1,550
67491-20240-06 note Garnish, Front Door Lower Frame Bracket, RH
1990-05 → 1992-08 ended
AT170,175,CT170 SE ¥1,550
67492A — Garnish, Front Door Lower Frame Bracket, LH
67492-20200 Garnish, Front Door Lower Frame Bracket, LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥790
67492-20260-03 note Garnish, Front Door Lower Frame Bracket, LH
1990-05 → 1992-08 ended
ST170 SE ¥1,550
67492-20260-03 note Garnish, Front Door Lower Frame Bracket, LH
1990-05 → 1992-08 ended
AT17#,CT170 GLIM,SE ¥1,550
67492-20260-03 note Garnish, Front Door Lower Frame Bracket, LH
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥1,550
67492-20260-04 note Garnish, Front Door Lower Frame Bracket, LH
1990-05 → 1992-08 ended
AT171 EFIS ¥1,550
67492-20260-04 note Garnish, Front Door Lower Frame Bracket, LH
1990-05 → 1992-08 ended
ST170 SE ¥1,550
67492-20260-04 note Garnish, Front Door Lower Frame Bracket, LH
1990-05 → 1992-08 ended
AT170,175,CT170 SE ¥1,550
67492-20260-06 note Garnish, Front Door Lower Frame Bracket, LH
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥1,550
67492-20260-06 note Garnish, Front Door Lower Frame Bracket, LH
1990-05 → 1992-08 ended
AT170,175,CT170 SE ¥1,550
67492-20260-06 note Garnish, Front Door Lower Frame Bracket, LH
1990-05 → 1992-08 ended
ST170 SE ¥1,550
67495A — Cover, Front Door Front Lower Frame, Upper RH
67495-20080 Cover, Front Door Front Lower Frame, Upper RH
1988-05 → 1990-05 ended
AT171 S ¥760
67495-20080 Cover, Front Door Front Lower Frame, Upper RH
1988-05 → 1990-05 ended
AT170 (4FC,5F) SG ¥760
67495-20080 Cover, Front Door Front Lower Frame, Upper RH
1988-05 → 1990-05 ended
AT170 4F SG ¥760
67495-20080 Cover, Front Door Front Lower Frame, Upper RH
1988-05 → 1992-11 ended
ST170 7#,ET176 SGEXT;AT170 GLIM,SE,SG,SGEXT,SV +5 ¥760
67495-20080 Cover, Front Door Front Lower Frame, Upper RH
1990-05 → 1992-11 ended
AT171,ST170 S,SE,SX ¥760
67495-20080 note Cover, Front Door Front Lower Frame, Upper RH
1990-11 → —
CT176,ET176 DX ¥760
67495-95R00 Cover, Front Door Front Lower Frame, Upper RH
1988-05 → 1988-07 ended
CT176,ET176 DX,STD ¥800
67495-95R01 Cover, Front Door Front Lower Frame, Upper RH
1988-07 → 1992-11 ended
CT176,ET176 DX,STD ¥790
67496A — Cover, Front Door Front Lower Frame, Upper LH
67496-20050 Cover, Front Door Front Lower Frame, Upper LH
1988-05 → 1990-05 ended
AT170 (4FC,5F) SG ¥760
67496-20050 note Cover, Front Door Front Lower Frame, Upper LH
1990-11 → —
CT176,ET176 DX ¥760
67496-20050 Cover, Front Door Front Lower Frame, Upper LH
1990-05 → 1992-11 ended
AT171,ST170 S,SE,SX ¥760
67496-20050 Cover, Front Door Front Lower Frame, Upper LH
1988-05 → 1992-11 ended
ST170 7#,ET176 SGEXT;AT170 GLIM,SE,SG,SGEXT,SV +5 ¥760
67496-20050 Cover, Front Door Front Lower Frame, Upper LH
1988-05 → 1990-05 ended
AT170 4F SG ¥760
67496-20050 Cover, Front Door Front Lower Frame, Upper LH
1988-05 → 1990-05 ended
AT171 S ¥760
67496-95R00 Cover, Front Door Front Lower Frame, Upper LH
1988-05 → 1988-07 ended
CT176,ET176 DX,STD ¥800
67496-95R01 Cover, Front Door Front Lower Frame, Upper LH
1988-07 → 1992-11 ended
CT176,ET176 DX,STD ¥790
67499 — Retainer, Front Door Lower Frame Bracket Garnish
67499-30020 Retainer, Front Door Lower Frame Bracket Garnish
1989-02 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥200
67499-30020 note Retainer, Front Door Lower Frame Bracket Garnish
1990-05 → 1992-08 ended
AT171 EFI ¥200
67499-30020 Retainer, Front Door Lower Frame Bracket Garnish
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 DX,S,SE,SG,SGEXT,STD,SV,SX ¥200
67499-32010 Retainer, Front Door Lower Frame Bracket Garnish
1988-05 → 1989-02 ended
AT17#,CT17#,ET176,ST170 ¥260
67499-32010 note Retainer, Front Door Lower Frame Bracket Garnish
1990-05 → 1992-11 ended
AT171,ST170 S,SX ¥260
67499-32010 Retainer, Front Door Lower Frame Bracket Garnish
1990-05 → 1992-08 ended
AT171 EFI ¥260
67499-32010 note Retainer, Front Door Lower Frame Bracket Garnish
1990-05 → 1992-08 ended
AT170,175,CT170,ST170 SE ¥260
67601B — Clip(FOR FRONT DOOR TRIM BOARD)
90467-08051-01 note Clip(FOR FRONT DOOR TRIM BOARD)
1988-05 → 1990-05 ended
CT176,ET176 DX ¥70
90467-08051-01 note Clip(FOR FRONT DOOR TRIM BOARD)
1988-05 → 1990-05 ended
AT170 4F DX ¥70
90467-08051-01 note Clip(FOR FRONT DOOR TRIM BOARD)
1990-05 → 1992-11 ended
CT176,ET176 DX,STD ¥70
90467-08051-01 note Clip(FOR FRONT DOOR TRIM BOARD)
1988-05 → 1990-05 ended
ET176 STD ¥70
67811 — Pad, Front Door Silencer
67812-12010 Pad, Front Door Silencer
1988-05 → 1990-05 ended
CT176 SG;CT176 5F DX;AT17#,CT170,ET176,ST170 ¥640
67812-12010 Pad, Front Door Silencer
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥640
67831 — Cover, Front Door Service Hole, RH
67831-20340 Cover, Front Door Service Hole, RH
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥1,060
67831-20340 Cover, Front Door Service Hole, RH
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 DX,S,SG,SGEXT,STD,SV,SX ¥1,060
67831-20400 Cover, Front Door Service Hole, RH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥1,060
67831-20400 note Cover, Front Door Service Hole, RH
1990-05 → 1992-08 ended
AT171 EFIS ¥1,060
67831-20400 note Cover, Front Door Service Hole, RH
1990-05 → 1992-11 ended
ST170 SX ¥1,060
67832 — Cover, Front Door Service Hole, LH
67831-20400 Cover, Front Door Service Hole, LH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥1,060
67831-20400 note Cover, Front Door Service Hole, LH
1990-05 → 1992-11 ended
ST170 SX ¥1,060
67831-20400 note Cover, Front Door Service Hole, LH
1990-05 → 1992-08 ended
AT171 EFIS ¥1,060
67832-20200 Cover, Front Door Service Hole, LH
1990-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 DX,S,SG,SGEXT,STD,SV,SX ¥1,060
67832-20200 Cover, Front Door Service Hole, LH
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 ¥1,060
67833D — Cover, Front Door Service Hole, NO.2 RH
67833-20060 Cover, Front Door Service Hole, NO.2 RH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥2,170
67833-20060 note Cover, Front Door Service Hole, NO.2 RH
1990-05 → 1992-08 ended
AT171 EFIS ¥2,170
67833-20060 note Cover, Front Door Service Hole, NO.2 RH
1990-05 → 1992-11 ended
ST170 SX ¥2,170
67834 — Cover, Front Door Service Hole, NO.2 LH
67834-20050 Cover, Front Door Service Hole, NO.2 LH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥2,170
67834-20050 note Cover, Front Door Service Hole, NO.2 LH
1990-05 → 1992-08 ended
AT171 EFIS ¥2,170
67834-20050 note Cover, Front Door Service Hole, NO.2 LH
1990-05 → 1992-11 ended
ST170 SX ¥2,170
67835C — Cover, Front Door Service Hole, NO.3 RH
67835-20050 Cover, Front Door Service Hole, NO.3 RH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥3,110
67835-20050 note Cover, Front Door Service Hole, NO.3 RH
1990-05 → 1992-11 ended
ST170 SX ¥3,110
67835-20050 note Cover, Front Door Service Hole, NO.3 RH
1990-05 → 1992-08 ended
AT171 EFIS ¥3,110
67836C — Cover, Front Door Service Hole, NO.3 LH
67836-20090 Cover, Front Door Service Hole, NO.3 LH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥2,890
67836-20090 note Cover, Front Door Service Hole, NO.3 LH
1990-05 → 1992-08 ended
AT171 EFIS ¥2,890
67836-20090 note Cover, Front Door Service Hole, NO.3 LH
1990-05 → 1992-11 ended
ST170 SX ¥2,890
67837E — Cover, Front Door Service Hole, NO.4 RH
67837-20100 Cover, Front Door Service Hole, NO.4 RH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥1,750
67837-20100 note Cover, Front Door Service Hole, NO.4 RH
1990-05 → 1992-08 ended
AT171 EFIS ¥1,750
67837-20100 note Cover, Front Door Service Hole, NO.4 RH
1990-05 → 1992-11 ended
ST170 SX ¥1,750
67838C — Cover, Front Door Service Hole, NO.4 LH
67838-20090 Cover, Front Door Service Hole, NO.4 LH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 GLIM,SE ¥1,750
67838-20090 note Cover, Front Door Service Hole, NO.4 LH
1990-05 → 1992-08 ended
AT171 EFIS ¥1,750
67838-20090 note Cover, Front Door Service Hole, NO.4 LH
1990-05 → 1992-11 ended
ST170 SX ¥1,750
67861 — Weatherstrip, Front Door, RH
67861-20310 Weatherstrip, Front Door, RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥8,200
67862 — Weatherstrip, Front Door, LH
67862-20310 Weatherstrip, Front Door, LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥8,200
67867C — Retainer, Front Door Weatherstrip, RH
67868-20060 note Retainer, Front Door Weatherstrip, RH
1988-06 → 1988-08 ended
AT17#,CT170,ST170 SED ¥180
67868-20060 Retainer, Front Door Weatherstrip, RH
1988-06 → 1988-08 ended
AT170,CT176,ET176,ST170 VAN,WG ¥180
67868-20060 note Retainer, Front Door Weatherstrip, RH
1988-08 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥180
67868-30040 note Retainer, Front Door Weatherstrip, RH
1988-06 → 1988-08 ended
AT17#,CT170,ST170 SED ¥110
67868-30040 note Retainer, Front Door Weatherstrip, RH
1988-08 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥110
67868A — Clip, Door Glass Weatherstrip(FOR FRONT DOOR)
67869-20020 Clip, Door Glass Weatherstrip(FOR FRONT DOOR)
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥190
67868C — Retainer, Front Door Weatherstrip, LH
67868-20060 Retainer, Front Door Weatherstrip, LH
1988-05 → 1988-06 ended
AT17#,CT17#,ET176,ST170 ¥180
67868-20060 note Retainer, Front Door Weatherstrip, LH
1988-06 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥180
67868-30040 note Retainer, Front Door Weatherstrip, LH
1988-06 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥110
68101 — Glass Sub-assy, Front Door, RH
68111-20440 note Glass Sub-assy, Front Door, RH
1988-05 → 1992-11 ended
CT176,ET176 SG;AT17#,CT170,ST170 ¥17,500
68111-20450 note Glass Sub-assy, Front Door, RH
1988-05 → 1989-02 ended
AT170 4F SG ¥21,000
68111-20450 note Glass Sub-assy, Front Door, RH
1988-05 → 1989-02 ended
AT170 (4FC,5F) SG ¥21,000
68111-20450 note Glass Sub-assy, Front Door, RH
1988-05 → 1992-11 ended
AT171 EFIS;AT17#,CT170,ST170 GLIM,SE,SGEXT,SX ¥21,000
68111-20450 note Glass Sub-assy, Front Door, RH
1990-12 → 1992-08 ended
CT170 SG ¥21,000
68111-20450 note Glass Sub-assy, Front Door, RH
1989-02 → 1990-05 ended
AT170 4F SG ¥21,000
68111-20450 note Glass Sub-assy, Front Door, RH
1989-02 → 1990-05 ended
AT170 (4FC,5F) SG ¥21,000
68111-20450 note Glass Sub-assy, Front Door, RH
1989-02 → 1990-05 ended
CT170 SG ¥21,000
68111-20460 note Glass Sub-assy, Front Door, RH
1988-05 → 1992-11 ended
CT176,ET176 DX,STD ¥17,300
68111-20500 note Glass Sub-assy, Front Door, RH
1989-02 → 1990-05 ended
CT170 SG ¥22,600
68111-20500 note Glass Sub-assy, Front Door, RH
1989-02 → 1990-05 ended
AT170 (4FC,5F) SG ¥22,600
68111-20500 note Glass Sub-assy, Front Door, RH
1989-02 → 1990-05 ended
AT170 4F SG ¥22,600
68111-20500 note Glass Sub-assy, Front Door, RH
1990-12 → 1992-08 ended
CT170 SG ¥22,600
68111-20500 note Glass Sub-assy, Front Door, RH
1988-05 → 1989-02 ended
AT170 4F SG ¥22,600
68111-20500 note Glass Sub-assy, Front Door, RH
1988-05 → 1989-02 ended
AT170 (4FC,5F) SG ¥22,600
68111-20500 note Glass Sub-assy, Front Door, RH
1988-05 → 1992-11 ended
AT171 EFIS;AT17#,CT170,ST170 GLIM,SE,SGEXT,SX ¥22,600
68102 — Glass Sub-assy, Front Door, LH
68112-20360 note Glass Sub-assy, Front Door, LH
1988-05 → 1992-11 ended
CT176,ET176 SG;AT17#,CT170,ST170 ¥17,500
68112-20370 note Glass Sub-assy, Front Door, LH
1988-05 → 1992-11 ended
AT171 EFIS;AT17#,CT170,ST170 GLIM,SE,SGEXT,SX ¥21,000
68112-20370 note Glass Sub-assy, Front Door, LH
1990-12 → 1992-08 ended
CT170 SG ¥21,000
68112-20370 note Glass Sub-assy, Front Door, LH
1989-02 → 1990-05 ended
AT170 4F SG ¥21,000
68112-20370 note Glass Sub-assy, Front Door, LH
1989-02 → 1990-05 ended
AT170 (4FC,5F) SG ¥21,000
68112-20370 note Glass Sub-assy, Front Door, LH
1988-05 → 1989-02 ended
AT170 4F SG ¥21,000
68112-20370 note Glass Sub-assy, Front Door, LH
1988-05 → 1989-02 ended
AT170 (4FC,5F) SG ¥21,000
68112-20370 note Glass Sub-assy, Front Door, LH
1989-02 → 1990-05 ended
CT170 SG ¥21,000
68112-20380 note Glass Sub-assy, Front Door, LH
1988-05 → 1992-11 ended
CT176,ET176 DX,STD ¥17,300
68112-20420 note Glass Sub-assy, Front Door, LH
1988-05 → 1989-02 ended
AT170 4F SG ¥22,600
68112-20420 note Glass Sub-assy, Front Door, LH
1989-02 → 1990-05 ended
CT170 SG ¥22,600
68112-20420 note Glass Sub-assy, Front Door, LH
1989-02 → 1990-05 ended
AT170 (4FC,5F) SG ¥22,600
68112-20420 note Glass Sub-assy, Front Door, LH
1989-02 → 1990-05 ended
AT170 4F SG ¥22,600
68112-20420 note Glass Sub-assy, Front Door, LH
1988-05 → 1989-02 ended
AT170 (4FC,5F) SG ¥22,600
68112-20420 note Glass Sub-assy, Front Door, LH
1990-12 → 1992-08 ended
CT170 SG ¥22,600
68112-20420 note Glass Sub-assy, Front Door, LH
1988-05 → 1992-11 ended
AT171 EFIS;AT17#,CT170,ST170 GLIM,SE,SGEXT,SX ¥22,600
68141C — Run, Front Door Glass, RH
68141-20180 Run, Front Door Glass, RH
1988-05 → 1991-03 ended
AT17#,CT17#,ET176,ST170 ¥3,640
68141-20220 Run, Front Door Glass, RH
1991-03 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥3,620
68151C — Run, Front Door Glass, LH
68151-20050 Run, Front Door Glass, LH
1988-05 → 1991-03 ended
AT17#,CT17#,ET176,ST170 ¥3,660
68151-20060 Run, Front Door Glass, LH
1991-03 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥3,620
68160C — Weatherstrip Assy, Front Door Glass, Outer RH
68160-95R00 Weatherstrip Assy, Front Door Glass, Outer RH
1988-05 → 1992-11 ended
CT176,ET176 DX,STD ¥2,550
68210C — Weatherstrip Assy, Front Door Glass, Outer LH
68210-95R00 Weatherstrip Assy, Front Door Glass, Outer LH
1988-05 → 1992-11 ended
CT176,ET176 DX,STD ¥2,550
68211B — Clip(FOR FRONT DOOR GLASS WEATHERSTRIP)
68211-20070 note Clip(FOR FRONT DOOR GLASS WEATHERSTRIP)
1988-05 → 1990-05 ended
CT176,ET176 DX,STD ¥240
68211-20070 note Clip(FOR FRONT DOOR GLASS WEATHERSTRIP)
1988-05 → 1990-05 ended
AT170 4F DX ¥240
68211-20070 note Clip(FOR FRONT DOOR GLASS WEATHERSTRIP)
1990-05 → 1992-11 ended
CT176,ET176 DX,STD ¥240
68211-95500 note Clip(FOR FRONT DOOR GLASS WEATHERSTRIP)
1988-05 → 1990-05 ended
CT176,ET176 DX,STD ¥300
68211-95500 note Clip(FOR FRONT DOOR GLASS WEATHERSTRIP)
1990-05 → 1992-11 ended
CT176,ET176 DX,STD ¥300
68610 — Check Assy, Front Door
68610-89102 Check Assy, Front Door
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥3,650
68617 — Pin, Front Door Check
68617-20011 Pin, Front Door Check
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥180
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
