Toyota Carina FF
1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan
Discontinued model
Data version 1993-06

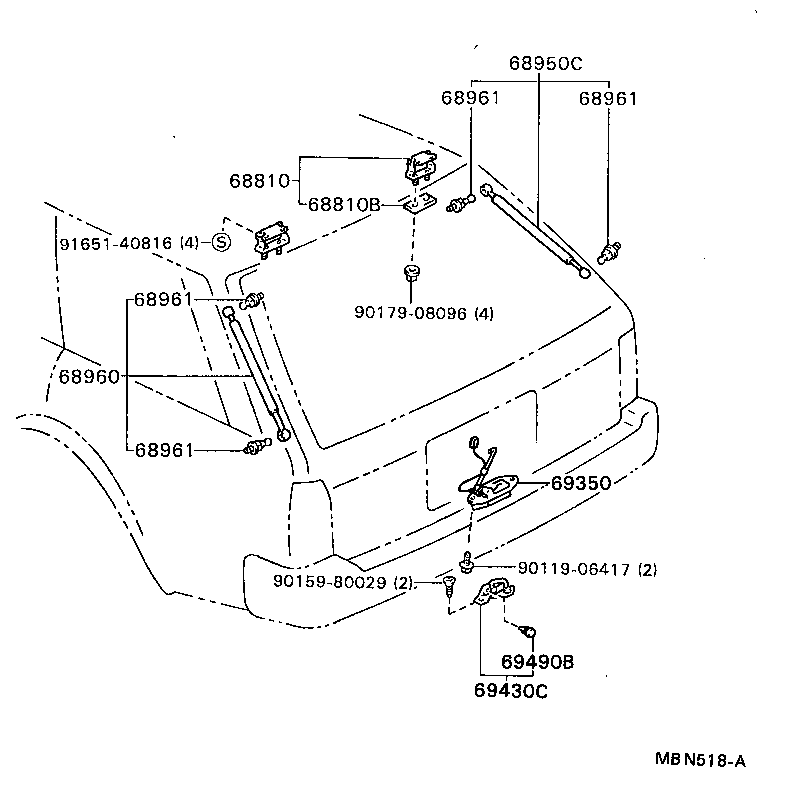

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 68810 — Hinge Assy, Back Door, Upper | ||||
| 68810-95500 |
Hinge Assy, Back Door, Upper
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | ¥2,180 | |
| 68810B — Pad, Back Door Hinge | ||||
| 68838-95500 |
Pad, Back Door Hinge
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | ¥170 | |
| 68950C — Stay Assy, Back Door, RH | ||||
| 68950-29665 |
Stay Assy, Back Door, RH
1988-05 → 1989-01
ended
|
CT176 DX | ¥10,800 | |
| 68950-29665 |
Stay Assy, Back Door, RH
1988-05 → 1989-01
ended
|
AT170,ET176 (VAN,WG) (DX,STD,SV) | ¥10,800 | |
| 68950-29675 |
Stay Assy, Back Door, RH
1988-05 → 1989-01
ended
|
CT176,ET176,ST170 SG,SX | ¥10,800 | |
| 68950-29675 note |
Stay Assy, Back Door, RH
1988-05 → 1989-01
ended
|
AT170,CT176,ET176 (VAN,WG) (DX,STD,SV) | ¥10,800 | |
| 68950-29865 |
Stay Assy, Back Door, RH
1989-01 → 1992-11
ended
|
AT170,CT17#,ET176 (VAN,WG) (DX,STD,SV) | ¥10,600 | |
| 68950-29875 |
Stay Assy, Back Door, RH
1989-01 → 1992-11
ended
|
CT176,ET176,ST170 (SG,SX) (CBR,CI,DSL) | ¥10,600 | |
| 68950-29875 note |
Stay Assy, Back Door, RH
1989-01 → 1992-11
ended
|
AT170,CT17#,ET176 (VAN,WG) (DX,STD,SV) | ¥10,600 | |
| 68950-80007 |
Stay Assy, Back Door, RH
1990-05 → 1991-05
ended
|
ST170 SX | ¥11,500 | |
| 68950-80007 note |
Stay Assy, Back Door, RH
1990-05 → 1991-05
ended
|
AT170,CT170 SV | ¥11,500 | |
| 68950-80009 |
Stay Assy, Back Door, RH
1991-06 → 1992-11
ended
|
ST170 SX | ¥12,000 | |
| 68950-80009 note |
Stay Assy, Back Door, RH
1991-06 → 1992-11
ended
|
AT170,CT170 SV | ¥12,000 | |
| 68950-80010 note |
Stay Assy, Back Door, RH
1988-05 → —
|
CT176,ET176 MTM DX | ¥12,200 | |
| 68960 — Stay Assy, Back Door, LH | ||||
| 68960-29475 |
Stay Assy, Back Door, LH
1988-05 → 1989-01
ended
|
AT170,ET176 (VAN,WG) (DX,STD,SV) | ¥10,800 | |
| 68960-29475 |
Stay Assy, Back Door, LH
1988-05 → 1989-01
ended
|
CT176 DX | ¥10,800 | |
| 68960-29485 |
Stay Assy, Back Door, LH
1988-05 → 1989-01
ended
|
CT176,ET176,ST170 SG,SX | ¥10,800 | |
| 68960-29485 note |
Stay Assy, Back Door, LH
1988-05 → 1989-01
ended
|
AT170,CT176,ET176 (VAN,WG) (DX,STD,SV) | ¥10,800 | |
| 68960-29665 |
Stay Assy, Back Door, LH
1989-01 → 1992-11
ended
|
AT170,CT17#,ET176 (VAN,WG) (DX,STD,SV) | ¥10,600 | |
| 68960-29675 |
Stay Assy, Back Door, LH
1989-01 → 1992-11
ended
|
CT176,ET176,ST170 (SG,SX) (CBR,CI,DSL) | ¥10,600 | |
| 68960-29675 note |
Stay Assy, Back Door, LH
1989-01 → 1992-11
ended
|
AT170,CT17#,ET176 (VAN,WG) (DX,STD,SV) | ¥10,600 | |
| 68960-29725 |
Stay Assy, Back Door, LH
1990-05 → 1991-05
ended
|
ST170 SX | ¥11,500 | |
| 68960-29725 note |
Stay Assy, Back Door, LH
1990-05 → 1991-05
ended
|
AT170,CT170 SV | ¥11,500 | |
| 68960-29745 |
Stay Assy, Back Door, LH
1991-06 → 1992-11
ended
|
ST170 SX | ¥12,000 | |
| 68960-29745 note |
Stay Assy, Back Door, LH
1991-06 → 1992-11
ended
|
AT170,CT170 SV | ¥12,000 | |
| 68960-29755 note |
Stay Assy, Back Door, LH
1988-05 → —
|
CT176,ET176 MTM DX | ¥12,200 | |
| 68961 — Bolt, Back Door Stay | ||||
| 68961-23010 |
Bolt, Back Door Stay
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | ¥510 | |
| 69350 — Lock Assy, Back Door | ||||
| 69350-95500 |
Lock Assy, Back Door
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | ¥7,600 | |
| 69430C — Striker Assy, Back Door Lock | ||||
| 69430-95500 |
Striker Assy, Back Door Lock
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | ¥1,220 | |
| 69490B — Cushion(FOR BACK DOOR LOCK STRIKER) | ||||
| 90541-06002 |
Cushion(FOR BACK DOOR LOCK STRIKER)
1988-05 → 1992-11
ended
|
AT170,CT17#,ET176,ST170 VAN,WG | ¥350 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
