Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration MBN522C 9324954006 — not listed in this catalogue 9011910111 — not listed in this catalogue 72011C — ADJUSTER SUB-ASSY, FRONT SEAT, RH (5 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (5 parts) 72011D — SPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER) (3 parts) 9016840043 — not listed in this catalogue 71811D — SHIELD, FRONT SEAT CUSHION, RH (5 parts) 9616001200 — not listed in this catalogue 72137B — COVER, SEAT TRACK, RH (5 parts) 72457 — KNOB, VERTICAL SEAT ADJUSTER (6 parts) 72138B — COVER, SEAT TRACK, LH (5 parts) 9052001002 — not listed in this catalogue 72301 — WIRE SUB-ASSY, SEAT TRACK EQUALIZING (2 parts) 9016840043 — not listed in this catalogue 9011910290 — not listed in this catalogue 9011910111 — not listed in this catalogue 9052308001 — not listed in this catalogue 72012C — ADJUSTER SUB-ASSY, FRONT SEAT, LH (4 parts) 9016840049 — not listed in this catalogue 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (9 parts) 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (5 parts) 72130A — TRACK ASSY, FRONT SEAT, INNER RH (5 parts) 72011E — SPRING, TENSION, LH(FOR FRONT SEAT ADJUSTER OUTER) (2 parts) 9016840043 — not listed in this catalogue 9011908080 — not listed in this catalogue 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (9 parts) 72140A — TRACK ASSY, FRONT SEAT,INNER LH (4 parts) 72137B — COVER, SEAT TRACK, RH (5 parts) 72138B — COVER, SEAT TRACK, LH (5 parts) 9011910290 — not listed in this catalogue 71812D — SHIELD, FRONT SEAT CUSHION, LH (8 parts) 9011908080 — not listed in this catalogue 72526 — HANDLE, RECLINING ADJUSTER RELEASE, LH (5 parts) 9016840043 — not listed in this catalogue 9324954006 — not listed in this catalogue 9011910111 — not listed in this catalogue 72011C — ADJUSTER SUB-ASSY, FRONT SEAT, RH (5 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (5 parts) 9016840043 — not listed in this catalogue 9016840049 — not listed in this catalogue 72011D — SPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER) (3 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (5 parts) 72137B — COVER, SEAT TRACK, RH (5 parts) 9324954006 — not listed in this catalogue 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (5 parts) 72138B — COVER, SEAT TRACK, LH (5 parts) 9011910290 — not listed in this catalogue 72130A — TRACK ASSY, FRONT SEAT, INNER RH (5 parts) 9011908080 — not listed in this catalogue

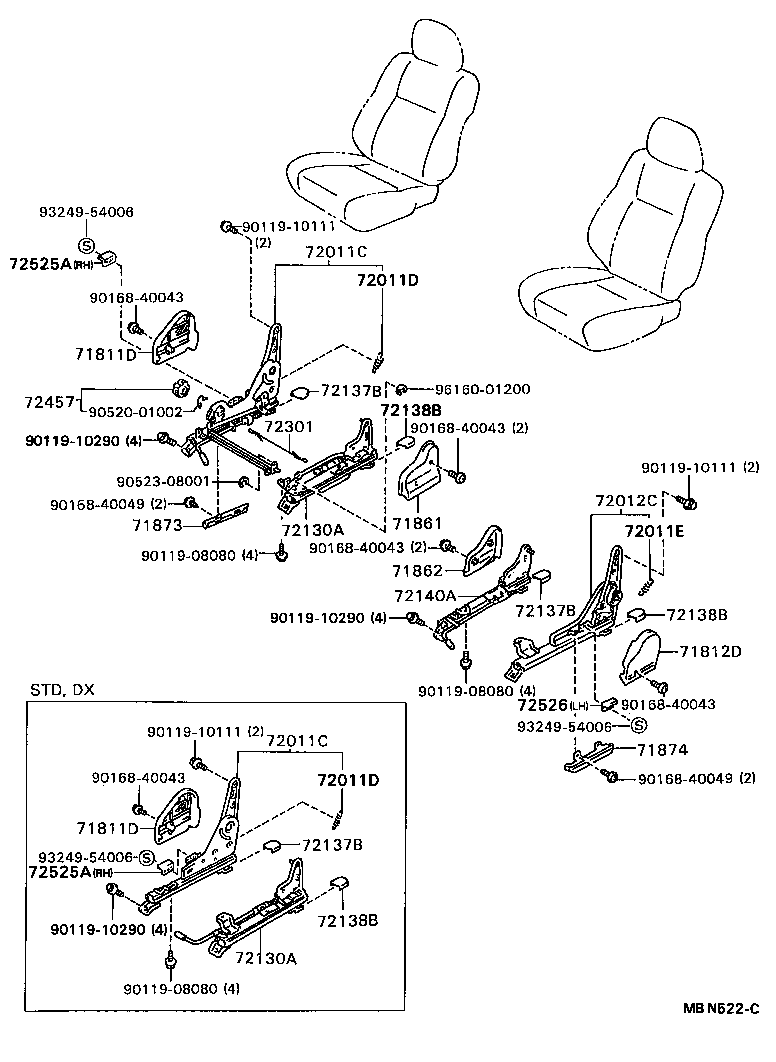

MBN522C · 27 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
92 parts on this figure
Part number Description Fitment Price
71811D — Shield, Front Seat Cushion, RH
71811-20160-03 note Shield, Front Seat Cushion, RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥2,680
71811-20160-04 note Shield, Front Seat Cushion, RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,680
71811-20160-06 note Shield, Front Seat Cushion, RH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥2,680
71811-20160-06 note Shield, Front Seat Cushion, RH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥2,680
71811-20160-14 note Shield, Front Seat Cushion, RH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,680
71812D — Shield, Front Seat Cushion, LH
71812-20110-03 note Shield, Front Seat Cushion, LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥2,690
71812-20110-04 note Shield, Front Seat Cushion, LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,690
71812-20110-06 note Shield, Front Seat Cushion, LH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥2,690
71812-20110-06 note Shield, Front Seat Cushion, LH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥2,690
71812-20110-14 note Shield, Front Seat Cushion, LH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,690
71812-20140-03 note Shield, Front Seat Cushion, LH
1990-05 → —
ST170 4FC SGEXT —
71812-20140-04 note Shield, Front Seat Cushion, LH
1990-05 → —
ST170 4FC SGEXT —
71812-20140-06 note Shield, Front Seat Cushion, LH
1990-05 → —
ST170 4FC SGEXT —
71861 — Shield, Front Seat Cushion, Inner RH
71861-20050-03 note Shield, Front Seat Cushion, Inner RH
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥2,680
71861-20050-04 note Shield, Front Seat Cushion, Inner RH
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥2,680
71861-20050-06 note Shield, Front Seat Cushion, Inner RH
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥2,680
71861-20050-06 note Shield, Front Seat Cushion, Inner RH
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT,SX ¥2,680
71861-20050-14 note Shield, Front Seat Cushion, Inner RH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥2,680
71861-20080-03 note Shield, Front Seat Cushion, Inner RH
1988-08 → 1992-08 ended
AT175 ¥2,680
71861-20080-04 note Shield, Front Seat Cushion, Inner RH
1988-08 → 1990-05 ended
AT175 ¥2,680
71861-20080-06 note Shield, Front Seat Cushion, Inner RH
1988-08 → 1992-08 ended
AT175 ¥2,680
71861-20080-14 note Shield, Front Seat Cushion, Inner RH
1990-05 → 1992-08 ended
AT175 ¥2,680
71862 — Shield, Front Seat Cushion, Inner LH
71862-20050-03 note Shield, Front Seat Cushion, Inner LH
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥2,680
71862-20050-04 note Shield, Front Seat Cushion, Inner LH
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥2,680
71862-20050-06 note Shield, Front Seat Cushion, Inner LH
1988-05 → 1990-05 ended
AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥2,680
71862-20050-06 note Shield, Front Seat Cushion, Inner LH
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT,SX ¥2,680
71862-20050-14 note Shield, Front Seat Cushion, Inner LH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 S,SE,SG,SGEXT ¥2,680
71862-20080-03 note Shield, Front Seat Cushion, Inner LH
1988-08 → 1992-08 ended
AT175 ¥2,680
71862-20080-04 note Shield, Front Seat Cushion, Inner LH
1988-08 → 1990-05 ended
AT175 ¥2,680
71862-20080-06 note Shield, Front Seat Cushion, Inner LH
1988-08 → 1992-08 ended
AT175 ¥2,680
71862-20080-14 note Shield, Front Seat Cushion, Inner LH
1990-05 → 1992-08 ended
AT175 ¥2,680
71873 — Shield, Front Seat Cushion, Lower RH
71873-20020-03 note Shield, Front Seat Cushion, Lower RH
1988-05 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥2,260
71873-20020-04 note Shield, Front Seat Cushion, Lower RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,260
71873-20020-06 note Shield, Front Seat Cushion, Lower RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥2,260
71873-20020-06 note Shield, Front Seat Cushion, Lower RH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥2,260
71873-20020-14 note Shield, Front Seat Cushion, Lower RH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,260
71874 — Shield, Front Seat Cushion, Lower LH
71874-20010-03 note Shield, Front Seat Cushion, Lower LH
1988-05 → 1992-11 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥2,080
71874-20010-04 note Shield, Front Seat Cushion, Lower LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,080
71874-20010-06 note Shield, Front Seat Cushion, Lower LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥2,080
71874-20010-06 note Shield, Front Seat Cushion, Lower LH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥2,080
71874-20010-14 note Shield, Front Seat Cushion, Lower LH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥2,080
72011C — Adjuster Sub-assy, Front Seat, RH
72010-20220 Adjuster Sub-assy, Front Seat, RH
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥26,300
72010-20290 Adjuster Sub-assy, Front Seat, RH
1988-05 → 1992-11 ended
AT170,CT170 DX,SV ¥21,100
72010-20300 Adjuster Sub-assy, Front Seat, RH
1988-08 → 1992-08 ended
AT175 ¥29,600
72010-95503 Adjuster Sub-assy, Front Seat, RH
1988-05 → 1992-11 ended
CT176,ET176 DX,STD ¥20,100
72010-95504 Adjuster Sub-assy, Front Seat, RH
1988-05 → 1992-11 ended
CT176,ET176 SG ¥26,300
72011D — Spring, Tension, RH(FOR FRONT SEAT ADJUSTER OUTER)
90506-20046 Spring, Tension, RH(FOR FRONT SEAT ADJUSTER OUTER)
1988-05 → 1989-03 ended
AT17#,CT17#,ET176,ST170 ¥230
90506-20046 Spring, Tension, RH(FOR FRONT SEAT ADJUSTER OUTER)
1989-03 → 1992-11 ended
AT170,CT17#,ET176 DX,STD,SV ¥230
90506-25002 Spring, Tension, RH(FOR FRONT SEAT ADJUSTER OUTER)
1989-03 → 1992-11 ended
AT17#,CT17#,ET176,ST170 GLIM,S,SE,SG,SGEXT,SX ¥350
72011E — Spring, Tension, LH(FOR FRONT SEAT ADJUSTER OUTER)
90506-20046 Spring, Tension, LH(FOR FRONT SEAT ADJUSTER OUTER)
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥230
90507-18014 note Spring, Tension, LH(FOR FRONT SEAT ADJUSTER OUTER)
1990-05 → —
ST170 4FC SGEXT ¥410
72012C — Adjuster Sub-assy, Front Seat, LH
72020-20180 Adjuster Sub-assy, Front Seat, LH
1988-08 → 1992-08 ended
AT175 ¥21,100
72020-20280 Adjuster Sub-assy, Front Seat, LH
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥21,100
72020-20290 note Adjuster Sub-assy, Front Seat, LH
1990-05 → —
ST170 4FC SGEXT —
72020-95502 Adjuster Sub-assy, Front Seat, LH
1988-05 → 1992-11 ended
CT176,ET176 ¥20,100
72130A — Track Assy, Front Seat, Inner RH
72130-20260 Track Assy, Front Seat, Inner RH
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 GLIM,S,SE,SG,SGEXT,SX ¥12,400
72130-20290 Track Assy, Front Seat, Inner RH
1988-05 → 1992-11 ended
AT170,CT170 DX,SV ¥7,100
72130-20300 Track Assy, Front Seat, Inner RH
1988-08 → 1992-08 ended
AT175 ¥12,100
72130-95501 Track Assy, Front Seat, Inner RH
1988-05 → 1992-11 ended
CT176,ET176 SG ¥12,400
72130-95502 Track Assy, Front Seat, Inner RH
1988-05 → 1992-11 ended
CT176,ET176 DX,STD ¥12,400
72137B — Cover, Seat Track, RH
72137-32010-03 note Cover, Seat Track, RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥680
72137-32010-06 note Cover, Seat Track, RH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥680
72137-32010-06 note Cover, Seat Track, RH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥680
72137-32010-14 note Cover, Seat Track, RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥680
72137-32010-24 note Cover, Seat Track, RH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥680
72138B — Cover, Seat Track, LH
72137-32010-03 note Cover, Seat Track, LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥680
72137-32010-06 note Cover, Seat Track, LH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥680
72137-32010-06 note Cover, Seat Track, LH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥680
72137-32010-14 note Cover, Seat Track, LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥680
72137-32010-24 note Cover, Seat Track, LH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥680
72140A — Track Assy, Front Seat,Inner LH
72140-20230 Track Assy, Front Seat,Inner LH
1988-05 → 1992-11 ended
AT170,171,CT170,ST170 ¥7,100
72140-20240 Track Assy, Front Seat,Inner LH
1988-08 → 1992-08 ended
AT175 ¥12,100
72140-20250 note Track Assy, Front Seat,Inner LH
1990-05 → —
ST170 4FC SGEXT —
72140-95501 Track Assy, Front Seat,Inner LH
1988-05 → 1992-11 ended
CT176,ET176 ¥12,400
72301 — Wire Sub-assy, Seat Track Equalizing
72301-20210 Wire Sub-assy, Seat Track Equalizing
1988-05 → 1992-11 ended
AT170,171,CT17#,ET176,ST170 GLIM,S,SE,SG,SGEXT,SX ¥660
72301-20240 Wire Sub-assy, Seat Track Equalizing
1988-08 → 1992-08 ended
AT175 ¥350
72457 — Knob, Vertical Seat Adjuster
72457-20050-03 note Knob, Vertical Seat Adjuster
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 GLIM,S,SE,SG,SGEXT,SX ¥1,200
72457-20050-04 note Knob, Vertical Seat Adjuster
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥1,200
72457-20050-06 note Knob, Vertical Seat Adjuster
1988-05 → 1990-05 ended
AT17#,CT17#,ET176,ST170 GLIM,S,SE,SG,SGEXT,SX ¥1,200
72457-20050-06 note Knob, Vertical Seat Adjuster
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥1,200
72457-20050-14 note Knob, Vertical Seat Adjuster
1992-02 → 1992-08 ended
AT175 ¥1,200
72457-20050-14 note Knob, Vertical Seat Adjuster
1990-05 → 1992-02 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥1,200
72525A — Handle, Reclining Adjuster Release, RH
72525-12090-03 note Handle, Reclining Adjuster Release, RH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥940
72525-12090-16 note Handle, Reclining Adjuster Release, RH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥940
72525-12090-16 note Handle, Reclining Adjuster Release, RH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥940
72525-12090-34 note Handle, Reclining Adjuster Release, RH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥940
72525-12090-44 note Handle, Reclining Adjuster Release, RH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥940
72526 — Handle, Reclining Adjuster Release, LH
72526-12030-03 note Handle, Reclining Adjuster Release, LH
1988-05 → 1992-11 ended
AT17#,CT17#,ET176,ST170 ¥940
72526-12030-16 note Handle, Reclining Adjuster Release, LH
1988-05 → 1990-05 ended
CT176,ET176 DX,SG;AT17#,CT170,ST170 GLIM,S,SE,SG,SGEXT,SV,SX ¥940
72526-12030-16 note Handle, Reclining Adjuster Release, LH
1990-05 → 1992-11 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT,SX ¥940
72526-12030-34 note Handle, Reclining Adjuster Release, LH
1988-05 → 1990-05 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥940
72526-12030-44 note Handle, Reclining Adjuster Release, LH
1990-05 → 1992-08 ended
AT17#,CT170,ST170 S,SE,SG,SGEXT ¥940
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
