Toyota Carina FF

1988-05 → 1992-11 · chassis AT17#,ST170,CT17#,ET176 · catalogue 231120 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

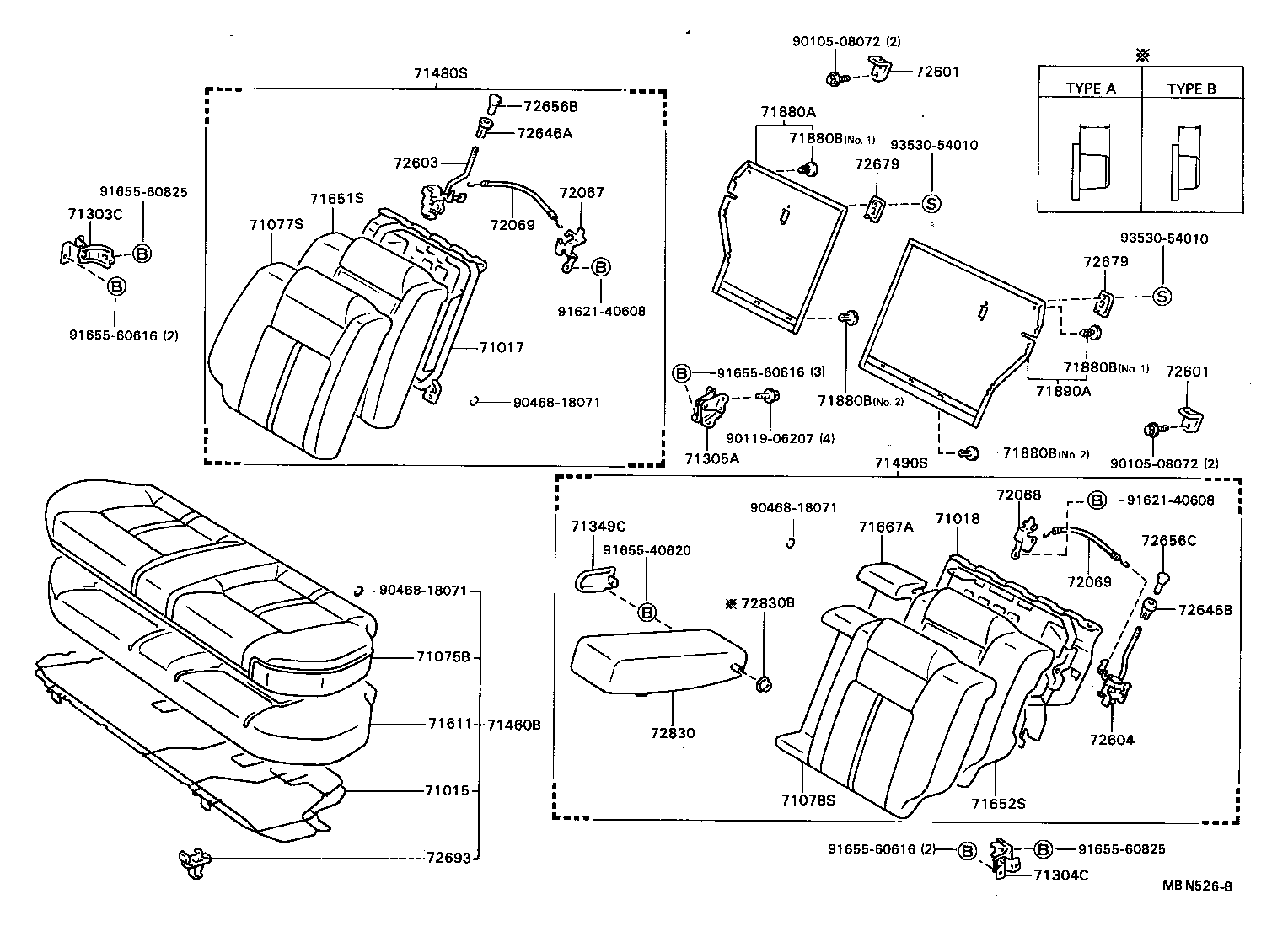

Exploded illustration MBN526B 9010508072 — not listed in this catalogue 72601 — STRIKER SUB-ASSY, REAR SEAT LOCK (4 parts) 71480S — BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) (31 parts) 72656B — BUTTON, REAR SEATBACK STOP RELEASE (14 parts) 71880A — CARPET ASSY, REAR SEATBACK BOARD, RH (20 parts) 72646A — GROMMET, REAR SEATBACK STOP BUTTON (20 parts) 71880B — CLIP(FOR REAR SEATBACK CARPET) (21 parts) 9353054010 — not listed in this catalogue 72603 — LOCK SUB-ASSY, REAR SEATBACK, RH (8 parts) 72679 — BEZEL, REAR SEATBACK LOCK CONTROL (13 parts) 9165560825 — not listed in this catalogue 72067 — LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH (4 parts) 71651S — PAD, REAR SEATBACK, RH(FOR SEPARATE TYPE) (7 parts) 71303C — HINGE SUB-ASSY, REAR SEATBACK, RH (5 parts) 71077S — COVER, REAR SEATBACK, RH (FOR SEPARATE TYPE) (31 parts) 72069 — CABLE SUB-ASSY, REAR SEATBACK LOCK CONTROL (4 parts) 9353054010 — not listed in this catalogue 72679 — BEZEL, REAR SEATBACK LOCK CONTROL (13 parts) 9162140608 — not listed in this catalogue 9165560616 — not listed in this catalogue 71017 — FRAME SUB-ASSY, REAR SEATBACK, RH (7 parts) 71880B — CLIP(FOR REAR SEATBACK CARPET) (21 parts) 72601 — STRIKER SUB-ASSY, REAR SEAT LOCK (4 parts) 9165560616 — not listed in this catalogue 71890A — CARPET ASSY, REAR SEATBACK BOARD, LH (20 parts) 71880B — CLIP(FOR REAR SEATBACK CARPET) (21 parts) 9046818071 — not listed in this catalogue 9011906207 — not listed in this catalogue 71880B — CLIP(FOR REAR SEATBACK CARPET) (21 parts) 71305A — HINGE SUB-ASSY, REAR SEATBACK, CENTER (5 parts) 71490S — BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) (31 parts) 9010508072 — not listed in this catalogue 72068 — LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH (4 parts) 9162140608 — not listed in this catalogue 9046818071 — not listed in this catalogue 71018 — FRAME SUB-ASSY, REAR SEATBACK, LH (6 parts) 71349C — COVER, REAR SEATBACK HINGE (14 parts) 71667A — PAD, REAR SEATBACK, CENTER A (5 parts) 72656C — BUTTON, REAR SEATBACK STOP RELEASE (14 parts) 9165540620 — not listed in this catalogue 72069 — CABLE SUB-ASSY, REAR SEATBACK LOCK CONTROL (4 parts) 9046818071 — not listed in this catalogue 72830B — BUSH(FOR REAR SEAT CENTER ARMREST) (14 parts) 72646B — GROMMET, REAR SEATBACK STOP BUTTON (20 parts) 71075B — COVER, REAR SEAT CUSHION (FOR BENCH TYPE) (84 parts) 71611 — PAD, REAR SEAT CUSHION (11 parts) 71460B — CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) (89 parts) 72830 — ARMREST ASSY, REAR SEAT, CENTER (32 parts) 72604 — LOCK SUB-ASSY, REAR SEATBACK, LH (8 parts) 71015 — FRAME SUB-ASSY, REAR SEAT CUSHION (6 parts) 71078S — COVER, REAR SEATBACK, LH(FOR SEPARATE TYPE) (31 parts) 71652S — PAD, REAR SEATBACK, LH(FOR SEPARATE TYPE) (7 parts) 9165560616 — not listed in this catalogue 9165560825 — not listed in this catalogue 72693 — HOOK, REAR SEAT CUSHION LOCK (5 parts) 71304C — HINGE SUB-ASSY, REAR SEATBACK, LH (5 parts)
MBN526B · 40 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
600 parts on this figure
Part number Description Fitment Price
71015 — Frame Sub-assy, Rear Seat Cushion
71015-20290 Frame Sub-assy, Rear Seat Cushion
1989-05 → 1989-08 ended
AT170,171,CT170,ST170 DX,GLIM,S,SG,SGEXT ¥6,300
71015-20290 note Frame Sub-assy, Rear Seat Cushion
1989-05 → 1989-08 ended
AT170,CT170 SE ¥6,300
71015-20290 note Frame Sub-assy, Rear Seat Cushion
1989-05 → 1989-08 ended
ST170 SE ¥6,300
71015-20290 Frame Sub-assy, Rear Seat Cushion
1989-08 → 1992-08 ended
AT170,171,CT170,ST170 SED ¥6,300
71015-20290 Frame Sub-assy, Rear Seat Cushion
1988-05 → 1989-05 ended
AT170,171,CT170,ST170 SED ¥6,300
71015-20300 Frame Sub-assy, Rear Seat Cushion
1988-08 → 1992-08 ended
AT175 ¥7,500
71017 — Frame Sub-assy, Rear Seatback, RH
71017-13070 Frame Sub-assy, Rear Seatback, RH
1988-05 → 1990-05 ended
CT176,ET176 ¥15,500
71017-20310 Frame Sub-assy, Rear Seatback, RH
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥12,900
71017-20390 Frame Sub-assy, Rear Seatback, RH
1988-05 → 1990-05 ended
AT171 GLIM ¥13,000
71017-20390 note Frame Sub-assy, Rear Seatback, RH
1988-05 → 1990-05 ended
ST170 SE ¥13,000
71017-20390 note Frame Sub-assy, Rear Seatback, RH
1988-05 → 1991-01 ended
AT171 S ¥13,000
71017-20391 Frame Sub-assy, Rear Seatback, RH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥14,000
71017-20391 note Frame Sub-assy, Rear Seatback, RH
1991-01 → 1992-08 ended
AT171 EFIS ¥14,000
71018 — Frame Sub-assy, Rear Seatback, LH
71018-20120 Frame Sub-assy, Rear Seatback, LH
1988-05 → 1990-05 ended
AT171 GLIM ¥13,000
71018-20120 note Frame Sub-assy, Rear Seatback, LH
1988-05 → 1990-05 ended
ST170 SE ¥13,000
71018-20120 note Frame Sub-assy, Rear Seatback, LH
1988-05 → 1991-01 ended
AT171 S ¥13,000
71018-20121 Frame Sub-assy, Rear Seatback, LH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥17,800
71018-20121 note Frame Sub-assy, Rear Seatback, LH
1991-01 → 1992-08 ended
AT171 EFIS ¥17,800
71018-95R00 Frame Sub-assy, Rear Seatback, LH
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥12,900
71075B — Cover, Rear Seat Cushion (FOR BENCH TYPE)
71065-20790-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-12 → 1990-05 ended
AT175 SGEXT ¥48,200
71065-20790-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-12 → 1990-05 ended
AT175 SGEXT ¥48,200
71065-2B180-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1992-04 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥46,800
71065-2B180-E0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1992-04 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥46,800
71065-95R00-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
CT176,ET176 DX ¥34,200
71065-95R00-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
CT176,ET176 DX ¥34,200
71065-95R01-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
CT176,ET176 SG ¥46,500
71065-95R01-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
CT176,ET176 SG ¥46,500
71065-95R02-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1992-11 ended
ET176 STD ¥27,100
71075-21180-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-11 ended
CT176,ET176 DX ¥33,800
71075-21190-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-11 ended
CT176,ET176 SG ¥46,200
71075-2B120-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-03 → 1990-05 ended
ST170 SGEXT ¥48,200
71075-2B120-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-03 → 1990-05 ended
ST170 SGEXT ¥48,200
71075-2B140-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-03 → 1990-05 ended
AT170,CT170,ST170 SG,SGEXT ¥52,100
71075-2B140-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-03 → 1990-05 ended
AT170,CT170,ST170 SG,SGEXT ¥52,100
71075-2B200-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170 DX ¥34,200
71075-2B201-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170 DX ¥33,800
71075-2B210-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170 4F DX ¥27,400
71075-2B220-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170,CT170 SG ¥46,500
71075-2B220-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170,CT170 SG ¥46,500
71075-2B220-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170,CT170 SG ¥46,500
71075-2B221-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170,CT170 SG ¥46,200
71075-2B221-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170,CT170 SG ¥46,200
71075-2B221-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170,CT170 SG ¥46,200
71075-2B230-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
ST170 SGEXT ¥48,200
71075-2B230-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170 SG ¥48,200
71075-2B230-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170 SG ¥48,200
71075-2B230-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
ST170 SGEXT ¥48,200
71075-2B230-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170 SG ¥48,200
71075-2B230-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
ST170 SGEXT ¥48,200
71075-2B231-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-12 → 1992-04 ended
CT170 SG ¥47,800
71075-2B231-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170,ST170 SGEXT ¥47,800
71075-2B231-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-12 → 1992-04 ended
CT170 SG ¥47,800
71075-2B231-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170,ST170 SGEXT ¥47,800
71075-2B231-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-12 → 1992-04 ended
CT170 SG ¥47,800
71075-2B231-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170,ST170 SGEXT ¥47,800
71075-2B240-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT171 S ¥43,000
71075-2B240-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT171 S ¥43,000
71075-2B240-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT171 S ¥43,000
71075-2B241-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT171 EFIS ¥42,700
71075-2B241-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT171 EFIS ¥42,700
71075-2B241-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT171 EFIS ¥42,700
71075-2B250-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AT170,CT170,ST170 SE ¥51,800
71075-2B250-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1989-08 ended
AT170,CT170 SE ¥51,800
71075-2B250-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1989-08 ended
ST170 SE ¥51,800
71075-2B250-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AT170,CT170,ST170 SE ¥51,800
71075-2B250-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1989-08 ended
AT170,CT170 SE ¥51,800
71075-2B250-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1989-08 ended
ST170 SE ¥51,800
71075-2B250-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1989-08 ended
ST170 SE ¥51,800
71075-2B250-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1989-08 ended
AT170,CT170 SE ¥51,800
71075-2B250-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AT170,CT170,ST170 SE ¥51,800
71075-2B260-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT171 GLIM ¥60,400
71075-2B260-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT171 GLIM ¥60,400
71075-2B261-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT171 EFI ¥59,800
71075-2B270-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170 (4FC,5F) SG ¥43,000
71075-2B270-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170 (4FC,5F) SG ¥43,000
71075-2B270-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170 (4FC,5F) SG ¥43,000
71075-2B271-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170 (4FC,5F) SGEXT ¥42,700
71075-2B271-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170 (4FC,5F) SGEXT ¥42,700
71075-2B271-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170 (4FC,5F) SGEXT ¥42,700
71075-2B370-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-08 → 1990-05 ended
AT175 SGEXT ¥48,200
71075-2B370-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-08 → 1990-05 ended
AT175 SGEXT ¥48,200
71075-2B370-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-08 → 1990-05 ended
AT175 SGEXT ¥48,200
71075-2B371-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT175 SGEXT ¥47,800
71075-2B371-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT175 SGEXT ¥47,800
71075-2B371-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT175 SGEXT ¥47,800
71075-2B410-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-08 → 1990-05 ended
AT175 SG ¥46,500
71075-2B410-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-08 → 1990-05 ended
AT175 SG ¥46,500
71075-2B410-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-08 → 1990-05 ended
AT175 SG ¥46,500
71075-2B411-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT175 SG ¥46,200
71075-2B411-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT175 SG ¥46,200
71075-2B411-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT175 SG ¥46,200
71075-2B530-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥51,600
71075-2B530-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥51,600
71075-2B530-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥51,600
71075-2B550-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT175 SE ¥51,600
71075-2B550-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT175 SE ¥51,600
71075-2B550-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT175 SE ¥51,600
71075-2B650-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-08 → 1990-05 ended
AT170,CT170,ST170 SE ¥52,100
71075-2B650-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-08 → 1990-05 ended
AT170,CT170,ST170 SE ¥52,100
71075-2B650-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-08 → 1990-05 ended
AT170,CT170,ST170 SE ¥52,100
71075-2B651-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
ST170 SE ¥59,800
71075-2B651-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
ST170 SE ¥59,800
71075-2B651-06 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1992-08 ended
ST170 SE ¥59,800
71077S — Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077-21150-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1990-05 → 1992-11 ended
AT170,CT170 SV ¥20,200
71077-21160-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1990-05 → 1992-11 ended
ST170 SX ¥25,100
71077-21160-06 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1990-05 → 1992-11 ended
ST170 SX ¥25,100
71077-2D280-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 S ¥25,500
71077-2D280-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 S ¥25,500
71077-2D280-06 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 S ¥25,500
71077-2D281-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1990-05 → 1991-01 ended
AT171 EFIS ¥25,100
71077-2D281-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1990-05 → 1991-01 ended
AT171 EFIS ¥25,100
71077-2D281-06 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1990-05 → 1991-01 ended
AT171 EFIS ¥25,100
71077-2D282-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1991-01 → 1992-08 ended
AT171 EFIS ¥25,100
71077-2D282-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1991-01 → 1992-08 ended
AT171 EFIS ¥25,100
71077-2D282-06 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1991-01 → 1992-08 ended
AT171 EFIS ¥25,100
71077-2D300-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1988-05 → 1989-08 ended
ST170 SE ¥30,500
71077-2D300-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1988-05 → 1989-08 ended
ST170 SE ¥30,500
71077-2D300-06 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1988-05 → 1989-08 ended
ST170 SE ¥30,500
71077-2D310-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 GLIM ¥35,600
71077-2D310-06 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 GLIM ¥35,600
71077-2D311-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT171 EFI ¥35,200
71077-2D540-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥30,400
71077-2D540-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥30,400
71077-2D540-06 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥30,400
71077-2D660-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1989-12 → 1990-05 ended
ST170 SE ¥30,700
71077-2D660-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1989-12 → 1990-05 ended
ST170 SE ¥30,700
71077-2D660-06 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1989-12 → 1990-05 ended
ST170 SE ¥30,700
71077-2D661-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
ST170 SE ¥35,200
71077-2D661-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
ST170 SE ¥35,200
71077-2D661-06 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
ST170 SE ¥35,200
71077-95R00-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT170 SV ¥20,300
71077-95R00-06 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT170 SV ¥20,300
71077-95R01-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
ST170 SX ¥25,500
71077-95R01-06 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
ST170 SX ¥25,500
71078S — Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71078-20580-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1988-05 → 1989-08 ended
ST170 SE ¥39,600
71078-20580-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1988-05 → 1989-08 ended
ST170 SE ¥39,600
71078-20580-06 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1988-05 → 1989-08 ended
ST170 SE ¥39,600
71078-20590-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 GLIM ¥46,300
71078-20590-06 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 GLIM ¥46,300
71078-20591-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT171 EFI ¥45,900
71078-20650-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 S ¥32,800
71078-20650-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 S ¥32,800
71078-20650-06 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 S ¥32,800
71078-20651-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1990-05 → 1991-01 ended
AT171 EFIS ¥32,800
71078-20651-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1990-05 → 1991-01 ended
AT171 EFIS ¥32,800
71078-20651-06 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1990-05 → 1991-01 ended
AT171 EFIS ¥32,800
71078-20652-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1991-01 → 1992-08 ended
AT171 EFIS ¥32,500
71078-20652-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1991-01 → 1992-08 ended
AT171 EFIS ¥32,500
71078-20652-06 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1991-01 → 1992-08 ended
AT171 EFIS ¥32,500
71078-20750-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥39,200
71078-20750-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥39,200
71078-20750-06 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥39,200
71078-20770-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1989-08 → 1990-05 ended
ST170 SE ¥39,700
71078-20770-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1989-08 → 1990-05 ended
ST170 SE ¥39,700
71078-20770-06 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1989-08 → 1990-05 ended
ST170 SE ¥39,700
71078-20771-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
ST170 SE ¥45,900
71078-20771-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
ST170 SE ¥45,900
71078-20771-06 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
ST170 SE ¥45,900
71078-21010-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1990-05 → 1992-11 ended
AT170,CT170 SV ¥26,300
71078-21020-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1990-05 → 1992-11 ended
ST170 SX ¥32,500
71078-21020-06 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1990-05 → 1992-11 ended
ST170 SX ¥32,500
71078-95R00-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT170 SV ¥26,400
71078-95R00-06 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT170 SV ¥26,400
71078-95R01-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
ST170 SX ¥32,800
71078-95R01-06 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
ST170 SX ¥32,800
71303C — Hinge Sub-assy, Rear Seatback, RH
71303-20040 Hinge Sub-assy, Rear Seatback, RH
1988-05 → 1990-05 ended
AT171 GLIM ¥2,010
71303-20040 note Hinge Sub-assy, Rear Seatback, RH
1988-05 → 1990-05 ended
ST170 SE ¥2,010
71303-20040 note Hinge Sub-assy, Rear Seatback, RH
1988-05 → 1992-08 ended
AT171 S ¥2,010
71303-20040 Hinge Sub-assy, Rear Seatback, RH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥2,010
71303-20050 Hinge Sub-assy, Rear Seatback, RH
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥2,010
71304C — Hinge Sub-assy, Rear Seatback, LH
71304-20040 note Hinge Sub-assy, Rear Seatback, LH
1988-05 → 1992-08 ended
AT171 S ¥2,010
71304-20040 Hinge Sub-assy, Rear Seatback, LH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥2,010
71304-20040 note Hinge Sub-assy, Rear Seatback, LH
1988-05 → 1990-05 ended
ST170 SE ¥2,010
71304-20040 Hinge Sub-assy, Rear Seatback, LH
1988-05 → 1990-05 ended
AT171 GLIM ¥2,010
71304-20050 Hinge Sub-assy, Rear Seatback, LH
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥2,010
71305A — Hinge Sub-assy, Rear Seatback, Center
71305-20070 Hinge Sub-assy, Rear Seatback, Center
1988-05 → 1990-05 ended
AT171 GLIM ¥1,750
71305-20070 note Hinge Sub-assy, Rear Seatback, Center
1988-05 → 1990-05 ended
ST170 SE ¥1,750
71305-20070 note Hinge Sub-assy, Rear Seatback, Center
1988-05 → 1992-08 ended
AT171 S ¥1,750
71305-20070 Hinge Sub-assy, Rear Seatback, Center
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥1,750
71305-20090 Hinge Sub-assy, Rear Seatback, Center
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥1,460
71349C — Cover, Rear Seatback Hinge
71349-32030-04 note Cover, Rear Seatback Hinge
1988-05 → 1988-07 ended
ST170 SE ¥640
71349-32030-04 note Cover, Rear Seatback Hinge
1988-05 → 1988-07 ended
AT171 S ¥640
71349-32030-06 note Cover, Rear Seatback Hinge
1988-05 → 1990-05 ended
AT171 GLIM ¥640
71349-32030-06 note Cover, Rear Seatback Hinge
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥640
71349-32030-06 note Cover, Rear Seatback Hinge
1988-05 → 1992-08 ended
AT171 S ¥640
71349-32030-06 note Cover, Rear Seatback Hinge
1988-05 → 1990-05 ended
ST170 SE ¥640
71349-32030-13 note Cover, Rear Seatback Hinge
1988-05 → 1990-05 ended
ST170 SE ¥640
71349-32030-13 note Cover, Rear Seatback Hinge
1988-05 → 1990-05 ended
AT171 GLIM ¥640
71349-32030-13 note Cover, Rear Seatback Hinge
1988-05 → 1992-08 ended
AT171 S ¥640
71349-32030-13 note Cover, Rear Seatback Hinge
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥640
71349-32030-14 note Cover, Rear Seatback Hinge
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥640
71349-32030-14 note Cover, Rear Seatback Hinge
1990-05 → 1992-08 ended
AT171 EFIS ¥640
71349-32030-J0 note Cover, Rear Seatback Hinge
1989-08 → 1990-05 ended
AT171 S ¥640
71349-32030-J0 note Cover, Rear Seatback Hinge
1988-07 → 1990-05 ended
ST170 SE ¥640
71460B — Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460-21230-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-11 ended
CT176,ET176 DX —
71460-21240-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-11 ended
CT176,ET176 SG —
71460-2B200-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170 DX —
71460-2B201-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170 DX —
71460-2B210-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170 4F DX —
71460-2B220-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170,CT170 SG —
71460-2B220-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170,CT170 SG —
71460-2B220-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170,CT170 SG —
71460-2B221-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170,CT170 SG —
71460-2B221-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170,CT170 SG —
71460-2B221-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170,CT170 SG —
71460-2B230-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170 SG —
71460-2B230-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
ST170 SGEXT —
71460-2B230-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170 SG —
71460-2B230-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
ST170 SGEXT —
71460-2B230-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170 SG —
71460-2B230-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
ST170 SGEXT —
71460-2B231-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170,ST170 SGEXT —
71460-2B231-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-12 → 1992-04 ended
CT170 SG —
71460-2B231-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-12 → 1992-04 ended
CT170 SG —
71460-2B231-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170,ST170 SGEXT —
71460-2B231-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-12 → 1992-04 ended
CT170 SG —
71460-2B231-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170,ST170 SGEXT —
71460-2B240-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT171 S —
71460-2B240-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT171 S —
71460-2B240-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT171 S —
71460-2B241-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT171 EFIS —
71460-2B241-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT171 EFIS —
71460-2B241-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT171 EFIS —
71460-2B250-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1989-08 ended
AT170,CT170 SE —
71460-2B250-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1989-08 ended
ST170 SE —
71460-2B250-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AT170,CT170,ST170 SE —
71460-2B250-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1989-08 ended
AT170,CT170 SE —
71460-2B250-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1989-08 ended
ST170 SE —
71460-2B250-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AT170,CT170,ST170 SE —
71460-2B250-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1989-08 ended
AT170,CT170 SE —
71460-2B250-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AT170,CT170,ST170 SE —
71460-2B250-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1989-08 ended
ST170 SE —
71460-2B260-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT171 GLIM —
71460-2B260-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT171 GLIM —
71460-2B261-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT171 EFI —
71460-2B270-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170 (4FC,5F) SG —
71460-2B270-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170 (4FC,5F) SG —
71460-2B270-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1990-05 ended
AT170 (4FC,5F) SG —
71460-2B271-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170 (4FC,5F) SGEXT —
71460-2B271-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170 (4FC,5F) SGEXT —
71460-2B271-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170 (4FC,5F) SGEXT —
71460-2B290-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-03 → 1990-05 ended
ST170 SGEXT —
71460-2B290-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-03 → 1990-05 ended
ST170 SGEXT —
71460-2B340-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-08 → 1990-05 ended
AT175 SGEXT —
71460-2B340-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-08 → 1990-05 ended
AT175 SGEXT —
71460-2B340-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-08 → 1990-05 ended
AT175 SGEXT —
71460-2B341-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT175 SGEXT —
71460-2B341-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT175 SGEXT —
71460-2B341-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT175 SGEXT —
71460-2B370-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-08 → 1990-05 ended
AT175 SG —
71460-2B370-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-08 → 1990-05 ended
AT175 SG —
71460-2B370-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-08 → 1990-05 ended
AT175 SG —
71460-2B371-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT175 SG —
71460-2B371-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT175 SG —
71460-2B371-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT175 SG —
71460-2B470-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE —
71460-2B470-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE —
71460-2B470-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE —
71460-2B800-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-08 → 1990-05 ended
AT170,CT170,ST170 SE —
71460-2B800-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-08 → 1990-05 ended
AT170,CT170,ST170 SE —
71460-2B800-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-08 → 1990-05 ended
AT170,CT170,ST170 SE —
71460-2B801-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
ST170 SE —
71460-2B801-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
ST170 SE —
71460-2B801-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
ST170 SE —
71560-20620-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1990-05 ended
AT170,CT170,ST170 SG,SGEXT —
71560-20620-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-03 → 1990-05 ended
AT170,CT170,ST170 SG,SGEXT —
71560-20860-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-12 → 1990-05 ended
AT175 SGEXT —
71560-20860-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-12 → 1990-05 ended
AT175 SGEXT —
71560-2B040-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT175 SE —
71560-2B040-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT175 SE —
71560-2B040-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1992-08 ended
AT175 SE —
71560-2B340-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1992-04 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥101,000
71560-2B340-E0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1992-04 → 1992-08 ended
CT170 SG;AT170,ST170 SGEXT ¥101,000
71560-95R00-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1989-06 ended
CT176,ET176 DX —
71560-95R00-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1989-06 ended
CT176,ET176 DX —
71560-95R01-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1989-06 ended
CT176,ET176 SG —
71560-95R01-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1989-06 ended
CT176,ET176 SG —
71560-95R02-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1989-06 ended
ET176 STD —
71560-95R05-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-06 → 1992-11 ended
ET176 STD —
71560-95R06-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-06 → 1990-05 ended
CT176,ET176 DX —
71560-95R06-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-06 → 1990-05 ended
CT176,ET176 DX —
71560-95R07-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-06 → 1990-05 ended
CT176,ET176 SG —
71560-95R07-06 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-06 → 1990-05 ended
CT176,ET176 SG —
71480S — Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71480-21230-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1990-05 → 1992-11 ended
AT170,CT170 SV —
71480-21240-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1990-05 → 1992-11 ended
ST170 SX —
71480-21240-06 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1990-05 → 1992-11 ended
ST170 SX —
71480-2D410-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 S —
71480-2D410-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 S —
71480-2D410-06 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 S —
71480-2D411-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1990-05 → 1991-01 ended
AT171 EFIS —
71480-2D411-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1990-05 → 1991-01 ended
AT171 EFIS —
71480-2D411-06 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1990-05 → 1991-01 ended
AT171 EFIS —
71480-2D412-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1991-01 → 1992-08 ended
AT171 EFIS —
71480-2D412-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1991-01 → 1992-08 ended
AT171 EFIS —
71480-2D412-06 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1991-01 → 1992-08 ended
AT171 EFIS —
71480-2D430-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1988-05 → 1989-08 ended
ST170 SE —
71480-2D430-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1988-05 → 1989-08 ended
ST170 SE —
71480-2D430-06 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1988-05 → 1989-08 ended
ST170 SE —
71480-2D440-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 GLIM —
71480-2D440-06 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 GLIM —
71480-2D441-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT171 EFI —
71480-2D550-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE —
71480-2D550-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE —
71480-2D550-06 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE —
71480-2G120-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1989-08 → 1990-05 ended
ST170 SE —
71480-2G120-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1989-08 → 1990-05 ended
ST170 SE —
71480-2G120-06 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1989-08 → 1990-05 ended
ST170 SE —
71480-2G121-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
ST170 SE —
71480-2G121-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
ST170 SE —
71480-2G121-06 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
ST170 SE —
71480-95R00-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT170 SV —
71480-95R00-06 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT170 SV —
71480-95R01-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
ST170 SX —
71480-95R01-06 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
ST170 SX —
71490S — Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71490-20550-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE —
71490-20550-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE —
71490-20550-06 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE —
71490-20640-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1988-05 → 1989-08 ended
ST170 SE —
71490-20640-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1988-05 → 1989-08 ended
ST170 SE —
71490-20640-06 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1988-05 → 1989-08 ended
ST170 SE —
71490-20650-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 GLIM —
71490-20650-06 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 GLIM —
71490-20651-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT171 EFI —
71490-20700-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 S —
71490-20700-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 S —
71490-20700-06 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 S —
71490-20701-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1990-05 → 1991-01 ended
AT171 EFIS —
71490-20701-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1990-05 → 1991-01 ended
AT171 EFIS —
71490-20701-06 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1990-05 → 1991-01 ended
AT171 EFIS —
71490-20702-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1991-01 → 1992-08 ended
AT171 EFIS —
71490-20702-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1991-01 → 1992-08 ended
AT171 EFIS —
71490-20702-06 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1991-01 → 1992-08 ended
AT171 EFIS —
71490-21010-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1990-05 → 1992-11 ended
AT170,CT170 SV —
71490-21020-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1990-05 → 1992-11 ended
ST170 SX —
71490-21020-06 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1990-05 → 1992-11 ended
ST170 SX —
71490-2B080-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1989-08 → 1990-05 ended
ST170 SE —
71490-2B080-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1989-08 → 1990-05 ended
ST170 SE —
71490-2B080-06 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1989-08 → 1990-05 ended
ST170 SE —
71490-2B081-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
ST170 SE —
71490-2B081-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
ST170 SE —
71490-2B081-06 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
ST170 SE —
71490-95R00-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT170 SV —
71490-95R00-06 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT170 SV —
71490-95R01-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
ST170 SX —
71490-95R01-06 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
ST170 SX —
71611 — Pad, Rear Seat Cushion
71611-20420 Pad, Rear Seat Cushion
1988-05 → 1991-01 ended
AT170,171,CT170,ST170 DX,GLIM,S,SG,SGEXT ¥23,800
71611-20470 Pad, Rear Seat Cushion
1989-08 → 1990-05 ended
AT170,CT170,ST170 SE ¥23,800
71611-20470 note Pad, Rear Seat Cushion
1989-03 → 1990-05 ended
ST170 SGEXT ¥23,800
71611-20470 note Pad, Rear Seat Cushion
1989-05 → 1989-08 ended
AT170,CT170 SE ¥23,800
71611-20470 Pad, Rear Seat Cushion
1988-05 → 1989-05 ended
AT170,CT170,ST170 SE ¥23,800
71611-20470 note Pad, Rear Seat Cushion
1989-05 → 1989-08 ended
ST170 SE ¥23,800
71611-20471 Pad, Rear Seat Cushion
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥21,700
71611-20480 Pad, Rear Seat Cushion
1988-08 → 1992-08 ended
AT175 SG,SGEXT ¥26,900
71611-20530 Pad, Rear Seat Cushion
1990-05 → 1992-08 ended
AT175 SE ¥31,900
71611-20550 Pad, Rear Seat Cushion
1991-01 → 1992-08 ended
AT170,171,CT170,ST170 DX,GLIM,S,SG,SGEXT ¥26,600
71611-95507 Pad, Rear Seat Cushion
1988-05 → 1992-11 ended
CT176,ET176 ¥21,700
71651S — Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71651-20560 note Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
ST170 SE ¥14,300
71651-20561 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥12,000
71651-20580 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥14,000
71651-20590 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 GLIM ¥14,300
71651-20590 note Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1988-05 → 1991-01 ended
AT171 S ¥14,300
71651-20630 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT171 EFI ¥12,000
71651-20630 note Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1991-01 → 1992-08 ended
AT171 EFIS ¥12,000
71652S — Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71652-20360 note Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
ST170 SE ¥18,300
71652-20361 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥13,400
71652-20370 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1988-05 → 1990-05 ended
AT171 GLIM ¥18,300
71652-20370 note Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1988-05 → 1990-10 ended
AT171 S ¥18,300
71652-20400 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1990-05 → 1992-08 ended
AT171 EFI ¥13,400
71652-20400 note Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1991-01 → 1992-08 ended
AT171 EFIS ¥13,400
71652-95R00 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥14,000
71667A — Pad, Rear Seatback, Center A
71667-20100 Pad, Rear Seatback, Center A
1988-05 → 1990-05 ended
AT171 GLIM ¥5,900
71667-20100 note Pad, Rear Seatback, Center A
1988-05 → 1990-05 ended
ST170 SE ¥5,900
71667-20100 note Pad, Rear Seatback, Center A
1988-05 → 1990-10 ended
AT171 S ¥5,900
71667-20100 Pad, Rear Seatback, Center A
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥5,900
71667-20100 note Pad, Rear Seatback, Center A
1991-01 → 1992-08 ended
AT171 EFIS ¥5,900
71880A — Carpet Assy, Rear Seatback Board, RH
71880-20100-03 note Carpet Assy, Rear Seatback Board, RH
1988-05 → 1990-05 ended
AT171 GLIM ¥3,920
71880-20100-03 note Carpet Assy, Rear Seatback Board, RH
1988-05 → 1990-05 ended
AT171 S ¥3,920
71880-20100-04 note Carpet Assy, Rear Seatback Board, RH
1988-05 → 1990-05 ended
AT171 S ¥3,920
71880-20100-06 note Carpet Assy, Rear Seatback Board, RH
1988-05 → 1990-05 ended
AT171 S ¥3,920
71880-20100-06 note Carpet Assy, Rear Seatback Board, RH
1988-05 → 1990-05 ended
AT171 GLIM ¥3,920
71880-20100-13 note Carpet Assy, Rear Seatback Board, RH
1990-05 → 1990-08 ended
AT171 EFIS ¥3,920
71880-20100-14 note Carpet Assy, Rear Seatback Board, RH
1990-05 → 1990-08 ended
AT171 EFIS ¥3,920
71880-20100-16 note Carpet Assy, Rear Seatback Board, RH
1990-05 → 1990-08 ended
AT171 EFIS ¥3,920
71880-20110-03 note Carpet Assy, Rear Seatback Board, RH
1988-05 → 1990-05 ended
ST170 SE ¥3,920
71880-20110-04 note Carpet Assy, Rear Seatback Board, RH
1988-05 → 1990-05 ended
ST170 SE ¥3,920
71880-20110-06 note Carpet Assy, Rear Seatback Board, RH
1988-05 → 1990-05 ended
ST170 SE ¥3,920
71880-20111-03 note Carpet Assy, Rear Seatback Board, RH
1990-05 → 1992-08 ended
ST170 SE ¥5,800
71880-20111-04 note Carpet Assy, Rear Seatback Board, RH
1990-05 → 1992-08 ended
ST170 SE ¥5,800
71880-20111-06 note Carpet Assy, Rear Seatback Board, RH
1990-05 → 1992-08 ended
ST170 SE ¥5,800
71880-20210-03 note Carpet Assy, Rear Seatback Board, RH
1990-08 → 1992-08 ended
AT171 EFIS ¥5,800
71880-20210-03 note Carpet Assy, Rear Seatback Board, RH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥5,800
71880-20210-04 note Carpet Assy, Rear Seatback Board, RH
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥5,800
71880-20210-04 note Carpet Assy, Rear Seatback Board, RH
1990-08 → 1992-08 ended
AT171 EFIS ¥5,800
71880-20210-06 note Carpet Assy, Rear Seatback Board, RH
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥5,800
71880-20210-06 note Carpet Assy, Rear Seatback Board, RH
1990-08 → 1992-08 ended
AT171 EFIS ¥5,800
71880B — Clip(FOR REAR SEATBACK CARPET)
90467-06016-33 note Clip(FOR REAR SEATBACK CARPET)
1988-05 → 1990-05 ended
ST170 SE ¥170
90467-06016-33 note Clip(FOR REAR SEATBACK CARPET)
1988-05 → 1990-05 ended
AT171 GLIM ¥170
90467-06016-33 note Clip(FOR REAR SEATBACK CARPET)
1988-05 → 1990-05 ended
AT171 S ¥170
90467-06016-33 note Clip(FOR REAR SEATBACK CARPET)
1990-05 → 1992-08 ended
AT171 EFIS ¥170
90467-06016-33 note Clip(FOR REAR SEATBACK CARPET)
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥170
90467-06016-40 note Clip(FOR REAR SEATBACK CARPET)
1988-05 → 1990-05 ended
ST170 SE ¥180
90467-06016-40 note Clip(FOR REAR SEATBACK CARPET)
1988-05 → 1990-05 ended
AT171 S ¥180
90467-06016-48 note Clip(FOR REAR SEATBACK CARPET)
1990-05 → 1992-08 ended
AT171 EFIS ¥180
90467-06016-48 note Clip(FOR REAR SEATBACK CARPET)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥180
90467-06016-57 note Clip(FOR REAR SEATBACK CARPET)
1990-05 → 1992-08 ended
AT171 EFIS ¥170
90467-06016-57 note Clip(FOR REAR SEATBACK CARPET)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥170
90467-06016-57 note Clip(FOR REAR SEATBACK CARPET)
1988-05 → 1990-05 ended
AT171 S ¥170
90467-06016-57 note Clip(FOR REAR SEATBACK CARPET)
1988-05 → 1990-05 ended
AT171 GLIM ¥170
90467-06016-57 note Clip(FOR REAR SEATBACK CARPET)
1988-05 → 1990-05 ended
ST170 SE ¥170
90467-09066 note Clip(FOR REAR SEATBACK CARPET)
1988-05 → 1991-06 ended
AT171 S ¥300
90467-09066 note Clip(FOR REAR SEATBACK CARPET)
1988-05 → 1990-05 ended
ST170 SE ¥300
90467-09066 note Clip(FOR REAR SEATBACK CARPET)
1988-05 → 1990-05 ended
AT171 GLIM ¥300
90467-09066 note Clip(FOR REAR SEATBACK CARPET)
1990-05 → 1991-06 ended
AT170,171,CT170,ST170 GLIM,SE ¥300
90467-09066-B0 note Clip(FOR REAR SEATBACK CARPET)
1990-05 → 1992-08 ended
AT171 EFIS ¥180
90467-09066-B0 note Clip(FOR REAR SEATBACK CARPET)
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥180
90467-09066-B0 note Clip(FOR REAR SEATBACK CARPET)
1990-05 → 1992-08 ended
AT171 EFI ¥180
71890A — Carpet Assy, Rear Seatback Board, LH
71890-20040-03 note Carpet Assy, Rear Seatback Board, LH
1988-05 → 1990-05 ended
AT171 GLIM ¥3,920
71890-20040-03 note Carpet Assy, Rear Seatback Board, LH
1988-05 → 1990-05 ended
AT171 S ¥3,920
71890-20040-04 note Carpet Assy, Rear Seatback Board, LH
1988-05 → 1990-05 ended
AT171 S ¥3,920
71890-20040-06 note Carpet Assy, Rear Seatback Board, LH
1988-05 → 1990-05 ended
AT171 GLIM ¥3,920
71890-20040-06 note Carpet Assy, Rear Seatback Board, LH
1988-05 → 1990-05 ended
AT171 S ¥3,920
71890-20040-13 note Carpet Assy, Rear Seatback Board, LH
1990-05 → 1990-08 ended
AT171 EFIS ¥3,920
71890-20040-14 note Carpet Assy, Rear Seatback Board, LH
1990-05 → 1990-08 ended
AT171 EFIS ¥3,920
71890-20040-16 note Carpet Assy, Rear Seatback Board, LH
1990-05 → 1990-08 ended
AT171 EFIS ¥3,920
71890-20050-03 note Carpet Assy, Rear Seatback Board, LH
1988-05 → 1990-05 ended
ST170 SE ¥3,920
71890-20050-04 note Carpet Assy, Rear Seatback Board, LH
1988-05 → 1990-05 ended
ST170 SE ¥3,920
71890-20050-06 note Carpet Assy, Rear Seatback Board, LH
1988-05 → 1990-05 ended
ST170 SE ¥3,920
71890-20051-03 note Carpet Assy, Rear Seatback Board, LH
1990-05 → 1992-08 ended
ST170 SE ¥7,500
71890-20051-04 note Carpet Assy, Rear Seatback Board, LH
1990-05 → 1992-08 ended
ST170 SE ¥7,500
71890-20051-06 note Carpet Assy, Rear Seatback Board, LH
1990-05 → 1992-08 ended
ST170 SE ¥7,500
71890-20160-03 note Carpet Assy, Rear Seatback Board, LH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥7,500
71890-20160-03 note Carpet Assy, Rear Seatback Board, LH
1990-08 → 1992-08 ended
AT171 EFIS ¥7,500
71890-20160-04 note Carpet Assy, Rear Seatback Board, LH
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥7,500
71890-20160-04 note Carpet Assy, Rear Seatback Board, LH
1990-08 → 1992-08 ended
AT171 EFIS ¥7,500
71890-20160-06 note Carpet Assy, Rear Seatback Board, LH
1990-08 → 1992-08 ended
AT171 EFIS ¥7,500
71890-20160-06 note Carpet Assy, Rear Seatback Board, LH
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥7,500
72067 — Lever Sub-assy, Rear Back Lock Control, RH
72067-20010 Lever Sub-assy, Rear Back Lock Control, RH
1988-05 → 1990-05 ended
AT171 GLIM ¥1,010
72067-20010 note Lever Sub-assy, Rear Back Lock Control, RH
1988-05 → 1990-05 ended
ST170 SE ¥1,010
72067-20010 note Lever Sub-assy, Rear Back Lock Control, RH
1988-05 → 1992-08 ended
AT171 S ¥1,010
72067-20010 Lever Sub-assy, Rear Back Lock Control, RH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥1,010
72068 — Lever Sub-assy, Rear Back Lock Control, LH
72068-20010 Lever Sub-assy, Rear Back Lock Control, LH
1988-05 → 1990-05 ended
AT171 GLIM ¥1,010
72068-20010 note Lever Sub-assy, Rear Back Lock Control, LH
1988-05 → 1990-05 ended
ST170 SE ¥1,010
72068-20010 note Lever Sub-assy, Rear Back Lock Control, LH
1988-05 → 1992-08 ended
AT171 S ¥1,010
72068-20010 Lever Sub-assy, Rear Back Lock Control, LH
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥1,010
72069 — Cable Sub-assy, Rear Seatback Lock Control
72069-20020 Cable Sub-assy, Rear Seatback Lock Control
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥1,260
72069-20020 note Cable Sub-assy, Rear Seatback Lock Control
1988-05 → 1992-08 ended
AT171 S ¥1,260
72069-20020 Cable Sub-assy, Rear Seatback Lock Control
1988-05 → 1990-05 ended
AT171 GLIM ¥1,260
72069-20020 note Cable Sub-assy, Rear Seatback Lock Control
1988-05 → 1990-05 ended
ST170 SE ¥1,260
72601 — Striker Sub-assy, Rear Seat Lock
72601-16060 Striker Sub-assy, Rear Seat Lock
1988-05 → 1990-05 ended
AT170,171,ST170 GLIM,SV,SX ¥1,190
72601-16060 note Striker Sub-assy, Rear Seat Lock
1988-05 → 1990-05 ended
ST170 SE ¥1,190
72601-16060 note Striker Sub-assy, Rear Seat Lock
1988-05 → 1992-08 ended
AT171 S ¥1,190
72601-16060 Striker Sub-assy, Rear Seat Lock
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 GLIM,SE,SV,SX ¥1,190
72603 — Lock Sub-assy, Rear Seatback, RH
72603-20030 Lock Sub-assy, Rear Seatback, RH
1988-05 → 1990-05 ended
AT171 GLIM ¥3,480
72603-20030 note Lock Sub-assy, Rear Seatback, RH
1988-05 → 1990-05 ended
ST170 SE ¥3,480
72603-20030 note Lock Sub-assy, Rear Seatback, RH
1988-05 → 1990-09 ended
AT171 S ¥3,480
72603-20030 Lock Sub-assy, Rear Seatback, RH
1990-05 → 1990-09 ended
AT170,171,CT170,ST170 GLIM,SE ¥3,480
72603-20080 Lock Sub-assy, Rear Seatback, RH
1990-09 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥3,450
72603-20080 note Lock Sub-assy, Rear Seatback, RH
1990-09 → 1992-08 ended
AT171 EFIS ¥3,450
72630-95501 Lock Sub-assy, Rear Seatback, RH
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥3,460
72630-95502 Lock Sub-assy, Rear Seatback, RH
1988-05 → 1992-11 ended
CT176,ET176 ¥2,260
72604 — Lock Sub-assy, Rear Seatback, LH
72604-20030 note Lock Sub-assy, Rear Seatback, LH
1988-05 → 1990-09 ended
AT171 S ¥3,480
72604-20030 Lock Sub-assy, Rear Seatback, LH
1990-05 → 1990-09 ended
AT170,171,CT170,ST170 GLIM,SE ¥3,480
72604-20030 note Lock Sub-assy, Rear Seatback, LH
1988-05 → 1990-05 ended
ST170 SE ¥3,480
72604-20030 Lock Sub-assy, Rear Seatback, LH
1988-05 → 1990-05 ended
AT171 GLIM ¥3,480
72604-20080 Lock Sub-assy, Rear Seatback, LH
1990-09 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥3,450
72604-20080 note Lock Sub-assy, Rear Seatback, LH
1990-09 → 1992-08 ended
AT171 EFIS ¥3,450
72640-95501 Lock Sub-assy, Rear Seatback, LH
1988-05 → 1992-11 ended
AT170,CT170,ST170 WG ¥3,460
72640-95502 Lock Sub-assy, Rear Seatback, LH
1988-05 → 1992-11 ended
CT176,ET176 ¥2,260
72646A — Grommet, Rear Seatback Stop Button
72646-20040-03 note Grommet, Rear Seatback Stop Button
1988-05 → 1989-12 ended
AT170,171,ST170 GLIM,SV,SX ¥260
72646-20040-03 note Grommet, Rear Seatback Stop Button
1988-05 → 1989-12 ended
ST170 SE ¥260
72646-20040-03 note Grommet, Rear Seatback Stop Button
1988-05 → 1989-12 ended
AT171 S ¥260
72646-20040-04 note Grommet, Rear Seatback Stop Button
1988-05 → 1989-12 ended
ST170 SE ¥260
72646-20040-04 note Grommet, Rear Seatback Stop Button
1988-05 → 1989-12 ended
AT171 S ¥260
72646-20040-06 note Grommet, Rear Seatback Stop Button
1988-05 → 1989-12 ended
AT170,171,ST170 GLIM,SV,SX ¥260
72646-20040-06 note Grommet, Rear Seatback Stop Button
1988-05 → 1989-12 ended
ST170 SE ¥260
72646-20040-06 note Grommet, Rear Seatback Stop Button
1988-05 → 1989-12 ended
AT171 S ¥260
72646-20050-03 note Grommet, Rear Seatback Stop Button
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 GLIM,SE,SV,SX ¥370
72646-20050-03 note Grommet, Rear Seatback Stop Button
1989-12 → 1992-08 ended
AT171 S ¥370
72646-20050-03 note Grommet, Rear Seatback Stop Button
1989-12 → 1990-05 ended
AT170,171,ST170 GLIM,SV,SX ¥370
72646-20050-03 note Grommet, Rear Seatback Stop Button
1989-12 → 1990-05 ended
ST170 SE ¥370
72646-20050-04 note Grommet, Rear Seatback Stop Button
1990-05 → 1992-08 ended
AT171 EFIS ¥370
72646-20050-04 note Grommet, Rear Seatback Stop Button
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥370
72646-20050-06 note Grommet, Rear Seatback Stop Button
1989-12 → 1990-05 ended
ST170 SE ¥370
72646-20050-06 note Grommet, Rear Seatback Stop Button
1989-12 → 1990-05 ended
AT170,171,ST170 GLIM,SV,SX ¥370
72646-20050-06 note Grommet, Rear Seatback Stop Button
1990-05 → 1992-11 ended
AT170,CT170,ST170 SE,SX ¥370
72646-20050-06 note Grommet, Rear Seatback Stop Button
1989-12 → 1992-08 ended
AT171 S ¥370
72646-20050-14 note Grommet, Rear Seatback Stop Button
1989-12 → 1990-05 ended
AT171 S ¥370
72646-20050-14 note Grommet, Rear Seatback Stop Button
1989-12 → 1990-05 ended
ST170 SE ¥370
72646B — Grommet, Rear Seatback Stop Button
72646-20040-03 note Grommet, Rear Seatback Stop Button
1988-05 → 1989-12 ended
AT170,171,ST170 GLIM,SV,SX ¥260
72646-20040-03 note Grommet, Rear Seatback Stop Button
1988-05 → 1989-12 ended
ST170 SE ¥260
72646-20040-03 note Grommet, Rear Seatback Stop Button
1988-05 → 1989-12 ended
AT171 S ¥260
72646-20040-04 note Grommet, Rear Seatback Stop Button
1988-05 → 1989-12 ended
ST170 SE ¥260
72646-20040-04 note Grommet, Rear Seatback Stop Button
1988-05 → 1989-12 ended
AT171 S ¥260
72646-20040-06 note Grommet, Rear Seatback Stop Button
1988-05 → 1989-12 ended
AT170,171,ST170 GLIM,SV,SX ¥260
72646-20040-06 note Grommet, Rear Seatback Stop Button
1988-05 → 1989-12 ended
ST170 SE ¥260
72646-20040-06 note Grommet, Rear Seatback Stop Button
1988-05 → 1989-12 ended
AT171 S ¥260
72646-20050-03 note Grommet, Rear Seatback Stop Button
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 GLIM,SE,SV,SX ¥370
72646-20050-03 note Grommet, Rear Seatback Stop Button
1989-12 → 1992-08 ended
AT171 S ¥370
72646-20050-03 note Grommet, Rear Seatback Stop Button
1989-12 → 1990-05 ended
AT170,171,ST170 GLIM,SV,SX ¥370
72646-20050-03 note Grommet, Rear Seatback Stop Button
1989-12 → 1990-05 ended
ST170 SE ¥370
72646-20050-04 note Grommet, Rear Seatback Stop Button
1990-05 → 1992-08 ended
AT171 EFIS ¥370
72646-20050-04 note Grommet, Rear Seatback Stop Button
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥370
72646-20050-06 note Grommet, Rear Seatback Stop Button
1989-12 → 1990-05 ended
ST170 SE ¥370
72646-20050-06 note Grommet, Rear Seatback Stop Button
1989-12 → 1990-05 ended
AT170,171,ST170 GLIM,SV,SX ¥370
72646-20050-06 note Grommet, Rear Seatback Stop Button
1990-05 → 1992-11 ended
AT170,CT170,ST170 SE,SX ¥370
72646-20050-06 note Grommet, Rear Seatback Stop Button
1989-12 → 1992-08 ended
AT171 S ¥370
72646-20050-14 note Grommet, Rear Seatback Stop Button
1989-12 → 1990-05 ended
AT171 S ¥370
72646-20050-14 note Grommet, Rear Seatback Stop Button
1989-12 → 1990-05 ended
ST170 SE ¥370
72656B — Button, Rear Seatback Stop Release
72658-23010-06 note Button, Rear Seatback Stop Release
1988-05 → 1990-05 ended
AT170,171,ST170 GLIM,SV,SX ¥740
72658-23010-06 note Button, Rear Seatback Stop Release
1988-05 → 1990-05 ended
ST170 SE ¥740
72658-23010-06 note Button, Rear Seatback Stop Release
1990-05 → 1992-11 ended
AT170,CT170,ST170 SE,SX ¥740
72658-23010-06 note Button, Rear Seatback Stop Release
1988-05 → 1992-08 ended
AT171 S ¥740
72658-23010-14 note Button, Rear Seatback Stop Release
1988-05 → 1988-07 ended
ST170 SE ¥740
72658-23010-14 note Button, Rear Seatback Stop Release
1988-05 → 1988-07 ended
AT171 S ¥740
72658-23010-23 note Button, Rear Seatback Stop Release
1988-05 → 1990-05 ended
AT170,171,ST170 GLIM,SV,SX ¥740
72658-23010-23 note Button, Rear Seatback Stop Release
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 GLIM,SE,SV,SX ¥740
72658-23010-23 note Button, Rear Seatback Stop Release
1988-05 → 1992-08 ended
AT171 S ¥740
72658-23010-23 note Button, Rear Seatback Stop Release
1988-05 → 1990-05 ended
ST170 SE ¥740
72658-23010-24 note Button, Rear Seatback Stop Release
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥740
72658-23010-24 note Button, Rear Seatback Stop Release
1990-05 → 1992-08 ended
AT171 EFIS ¥740
72658-23010-J0 note Button, Rear Seatback Stop Release
1988-07 → 1990-05 ended
AT171 S ¥740
72658-23010-J0 note Button, Rear Seatback Stop Release
1988-07 → 1990-05 ended
ST170 SE ¥740
72656C — Button, Rear Seatback Stop Release
72658-23010-06 note Button, Rear Seatback Stop Release
1990-05 → 1992-11 ended
AT170,CT170,ST170 SE,SX ¥740
72658-23010-06 note Button, Rear Seatback Stop Release
1988-05 → 1990-05 ended
AT170,171,ST170 GLIM,SV,SX ¥740
72658-23010-06 note Button, Rear Seatback Stop Release
1988-05 → 1990-05 ended
ST170 SE ¥740
72658-23010-06 note Button, Rear Seatback Stop Release
1988-05 → 1992-08 ended
AT171 S ¥740
72658-23010-14 note Button, Rear Seatback Stop Release
1988-05 → 1988-07 ended
AT171 S ¥740
72658-23010-14 note Button, Rear Seatback Stop Release
1988-05 → 1988-07 ended
ST170 SE ¥740
72658-23010-23 note Button, Rear Seatback Stop Release
1988-05 → 1990-05 ended
ST170 SE ¥740
72658-23010-23 note Button, Rear Seatback Stop Release
1990-05 → 1992-11 ended
AT170,171,CT170,ST170 GLIM,SE,SV,SX ¥740
72658-23010-23 note Button, Rear Seatback Stop Release
1988-05 → 1990-05 ended
AT170,171,ST170 GLIM,SV,SX ¥740
72658-23010-23 note Button, Rear Seatback Stop Release
1988-05 → 1992-08 ended
AT171 S ¥740
72658-23010-24 note Button, Rear Seatback Stop Release
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥740
72658-23010-24 note Button, Rear Seatback Stop Release
1990-05 → 1992-08 ended
AT171 EFIS ¥740
72658-23010-J0 note Button, Rear Seatback Stop Release
1988-07 → 1990-05 ended
ST170 SE ¥740
72658-23010-J0 note Button, Rear Seatback Stop Release
1988-07 → 1990-05 ended
AT171 S ¥740
72679 — Bezel, Rear Seatback Lock Control
72679-16010-03 note Bezel, Rear Seatback Lock Control
1990-05 → 1992-08 ended
AT171 EFIS ¥1,010
72679-16010-03 note Bezel, Rear Seatback Lock Control
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥1,010
72679-16010-13 note Bezel, Rear Seatback Lock Control
1988-05 → 1990-05 ended
AT171 GLIM ¥1,010
72679-16010-13 note Bezel, Rear Seatback Lock Control
1988-05 → 1990-05 ended
ST170 SE ¥1,010
72679-16010-13 note Bezel, Rear Seatback Lock Control
1988-05 → 1990-05 ended
AT171 S ¥1,010
72679-16010-14 note Bezel, Rear Seatback Lock Control
1988-05 → 1990-05 ended
ST170 SE ¥1,010
72679-16010-14 note Bezel, Rear Seatback Lock Control
1988-05 → 1990-05 ended
AT171 S ¥1,010
72679-16010-16 note Bezel, Rear Seatback Lock Control
1988-05 → 1992-08 ended
AT171 S ¥1,010
72679-16010-16 note Bezel, Rear Seatback Lock Control
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥1,010
72679-16010-16 note Bezel, Rear Seatback Lock Control
1988-05 → 1990-05 ended
ST170 SE ¥1,010
72679-16010-16 note Bezel, Rear Seatback Lock Control
1988-05 → 1990-05 ended
AT171 GLIM ¥1,010
72679-16010-24 note Bezel, Rear Seatback Lock Control
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥1,010
72679-16010-24 note Bezel, Rear Seatback Lock Control
1990-05 → 1992-08 ended
AT171 EFIS ¥1,010
72693 — Hook, Rear Seat Cushion Lock
72693-20010 Hook, Rear Seat Cushion Lock
1988-05 → 1989-05 ended
AT17#,CT170,ST170 SED ¥640
72693-20010 Hook, Rear Seat Cushion Lock
1989-08 → 1992-08 ended
AT17#,CT170,ST170 SED ¥640
72693-20010 note Hook, Rear Seat Cushion Lock
1989-05 → 1989-08 ended
ST170 SE ¥640
72693-20010 Hook, Rear Seat Cushion Lock
1989-05 → 1989-08 ended
AT17#,CT170,ST170 DX,GLIM,S,SG,SGEXT ¥640
72693-20010 Hook, Rear Seat Cushion Lock
1989-05 → 1989-08 ended
AT170,CT170 SE ¥640
72830 — Armrest Assy, Rear Seat, Center
72830-20250-03 note Armrest Assy, Rear Seat, Center
1988-05 → 1989-05 ended
AT170,CT170,ST170 SE ¥28,600
72830-20250-03 note Armrest Assy, Rear Seat, Center
1989-05 → 1989-08 ended
AT170,CT170,ST170 SE ¥28,600
72830-20250-04 note Armrest Assy, Rear Seat, Center
1988-05 → 1989-05 ended
AT170,CT170,ST170 SE ¥28,600
72830-20250-04 note Armrest Assy, Rear Seat, Center
1989-05 → 1989-08 ended
AT170,CT170,ST170 SE ¥28,600
72830-20250-06 note Armrest Assy, Rear Seat, Center
1988-05 → 1989-05 ended
AT170,CT170,ST170 SE ¥28,600
72830-20250-06 note Armrest Assy, Rear Seat, Center
1989-05 → 1989-08 ended
AT170,CT170,ST170 SE ¥28,600
72830-20260-03 note Armrest Assy, Rear Seat, Center
1988-05 → 1989-08 ended
ST170 SE ¥32,400
72830-20260-04 note Armrest Assy, Rear Seat, Center
1988-05 → 1989-08 ended
ST170 SE ¥32,400
72830-20260-06 note Armrest Assy, Rear Seat, Center
1988-05 → 1989-08 ended
ST170 SE ¥32,400
72830-20270-03 note Armrest Assy, Rear Seat, Center
1988-05 → 1990-05 ended
AT171 GLIM ¥32,500
72830-20270-06 note Armrest Assy, Rear Seat, Center
1988-05 → 1990-05 ended
AT171 GLIM ¥32,500
72830-20271-03 note Armrest Assy, Rear Seat, Center
1990-05 → 1992-08 ended
AT171 EFI ¥32,100
72830-20290-03 note Armrest Assy, Rear Seat, Center
1988-05 → 1990-05 ended
AT171 S ¥27,100
72830-20290-04 note Armrest Assy, Rear Seat, Center
1988-05 → 1990-05 ended
AT171 S ¥27,100
72830-20290-06 note Armrest Assy, Rear Seat, Center
1988-05 → 1990-05 ended
AT171 S ¥27,100
72830-20291-03 note Armrest Assy, Rear Seat, Center
1990-05 → 1992-08 ended
AT171 EFIS ¥26,900
72830-20291-04 note Armrest Assy, Rear Seat, Center
1990-05 → 1992-08 ended
AT171 EFIS ¥26,900
72830-20291-06 note Armrest Assy, Rear Seat, Center
1990-05 → 1992-08 ended
AT171 EFIS ¥26,900
72830-20340-03 note Armrest Assy, Rear Seat, Center
1989-08 → 1990-05 ended
AT170,CT170,ST170 SE ¥32,500
72830-20340-04 note Armrest Assy, Rear Seat, Center
1989-08 → 1990-05 ended
AT170,CT170,ST170 SE ¥32,500
72830-20340-06 note Armrest Assy, Rear Seat, Center
1989-08 → 1990-05 ended
AT170,CT170,ST170 SE ¥32,500
72830-20350-03 note Armrest Assy, Rear Seat, Center
1989-08 → 1990-05 ended
ST170 SE ¥32,500
72830-20350-04 note Armrest Assy, Rear Seat, Center
1989-08 → 1990-05 ended
ST170 SE ¥32,500
72830-20350-06 note Armrest Assy, Rear Seat, Center
1989-08 → 1990-05 ended
ST170 SE ¥32,500
72830-20351-03 note Armrest Assy, Rear Seat, Center
1990-05 → 1992-08 ended
ST170 SE ¥26,900
72830-20351-04 note Armrest Assy, Rear Seat, Center
1990-05 → 1992-08 ended
ST170 SE ¥26,900
72830-20351-06 note Armrest Assy, Rear Seat, Center
1990-05 → 1992-08 ended
ST170 SE ¥26,900
72830-20360-03 note Armrest Assy, Rear Seat, Center
1989-03 → 1990-05 ended
ST170 SGEXT ¥24,700
72830-20360-06 note Armrest Assy, Rear Seat, Center
1989-03 → 1990-05 ended
ST170 SGEXT ¥24,700
72830-20380-03 note Armrest Assy, Rear Seat, Center
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥32,100
72830-20380-04 note Armrest Assy, Rear Seat, Center
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥32,100
72830-20380-06 note Armrest Assy, Rear Seat, Center
1990-05 → 1992-08 ended
AT170,CT170,ST170 SE ¥32,100
72830B — Bush(FOR REAR SEAT CENTER ARMREST)
90386-06002 note Bush(FOR REAR SEAT CENTER ARMREST)
1988-05 → 1990-05 ended
AT171 GLIM ¥220
90386-06002 note Bush(FOR REAR SEAT CENTER ARMREST)
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥220
90386-06002 note Bush(FOR REAR SEAT CENTER ARMREST)
1988-05 → 1992-08 ended
AT171 S ¥220
90386-06002 note Bush(FOR REAR SEAT CENTER ARMREST)
1988-05 → 1990-05 ended
ST170 SE ¥220
90386-06022 note Bush(FOR REAR SEAT CENTER ARMREST)
1989-05 → 1989-08 ended
AT170,CT170,ST170 SE ¥200
90386-06022 note Bush(FOR REAR SEAT CENTER ARMREST)
1989-03 → 1990-05 ended
ST170 SGEXT ¥200
90386-06022 Bush(FOR REAR SEAT CENTER ARMREST)
1989-08 → 1990-05 ended
AT170,CT170,ST170 SE ¥200
90386-06022 Bush(FOR REAR SEAT CENTER ARMREST)
1988-05 → 1989-05 ended
AT170,CT170,ST170 SE ¥200
90386-06028 note Bush(FOR REAR SEAT CENTER ARMREST)
1988-05 → 1989-08 ended
ST170 SE ¥190
90386-06028 note Bush(FOR REAR SEAT CENTER ARMREST)
1988-05 → 1990-05 ended
AT171 GLIM ¥190
90386-06028 note Bush(FOR REAR SEAT CENTER ARMREST)
1989-08 → 1990-05 ended
ST170 SE ¥190
90386-06028 note Bush(FOR REAR SEAT CENTER ARMREST)
1988-05 → 1989-08 ended
ST170 SE ¥190
90386-06028 note Bush(FOR REAR SEAT CENTER ARMREST)
1988-05 → 1992-08 ended
AT171 S ¥190
90386-06028 note Bush(FOR REAR SEAT CENTER ARMREST)
1990-05 → 1992-08 ended
AT170,171,CT170,ST170 GLIM,SE ¥190
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
